Model # 1105805750 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 1105805750 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

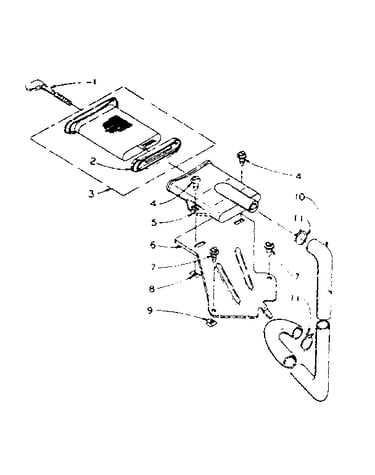

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 262 parts  |
Washer Spanner Nut 21366
#18

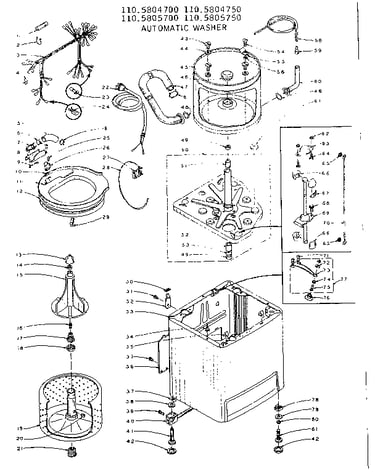

Machine sub-assembly diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Gasket 21050
#46

Machine sub-assembly diagram

Gasket

Part #21050

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 21050. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Hose 21046
#58

Machine sub-assembly diagram

Hose

Part #21046

Replaced by #WP353244

?
Manufacturer substitution
This part replaces 21046. Substitute parts can look different from the original.
BEST SELLER
$43.73 |
12% OFF Phone Price : $49.73
In Stock
Clamp 21276
#20

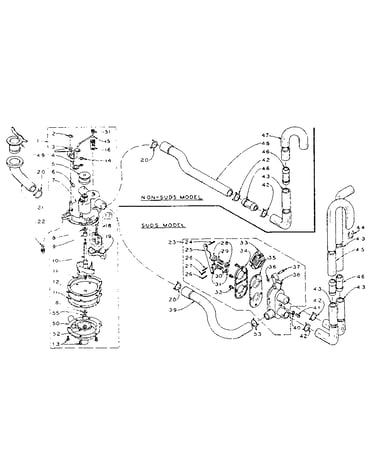

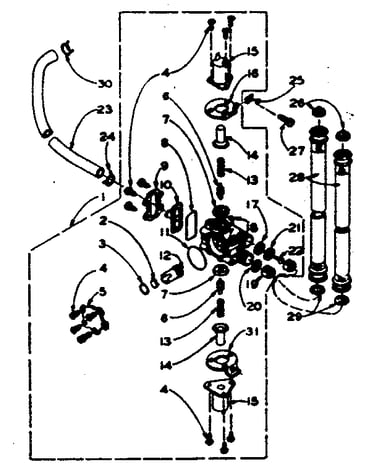

Water system diagram

Clamp

Part #21276

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 16802
#42

Water system diagram

Hose clamp

Part #16802

The manufacturer no longer makes this part, and there's no substitute part

Clamp 272857
#53

Water system diagram

Clamp

Part #272857

The manufacturer no longer makes this part, and there's no substitute part

Clamp 272853
#6

Machine sub-assembly diagram

Clamp

Part #272853

The manufacturer no longer makes this part, and there's no substitute part

Washer Lid Hinge Bearing 21258
#5

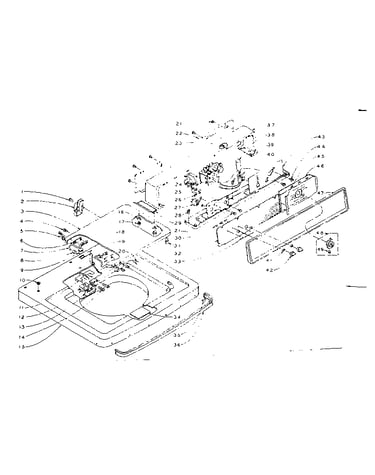

Machine top assembly diagram

Washer lid hinge bearing

Part #21258

Replaced by #WP21258

?
Manufacturer substitution
This part replaces 21258. Substitute parts can look different from the original.
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Screen 10826
#14

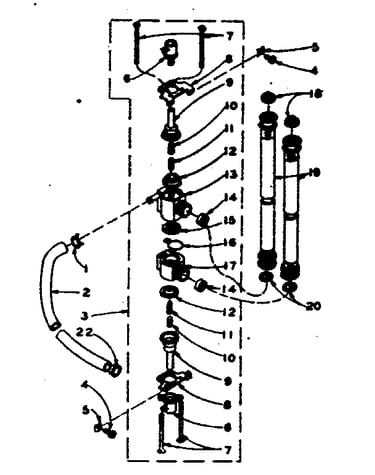

Fulton sylphon valve diagram

Screen

Part #10826

Replaced by #WP96160

?
Manufacturer substitution
This part replaces 10826. Substitute parts can look different from the original.
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Screen 10725
Screen

Part #10725

Replaced by #WP96160

?
Manufacturer substitution
This part replaces 10725. Substitute parts can look different from the original.
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
