Ryobi
Power Saw

Model # PC-3050 Official Ryobi cutoff machine

Here are the diagrams and repair parts for Official Ryobi PC-3050 cutoff machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |

Retaining Ring R-13 6100079
#16

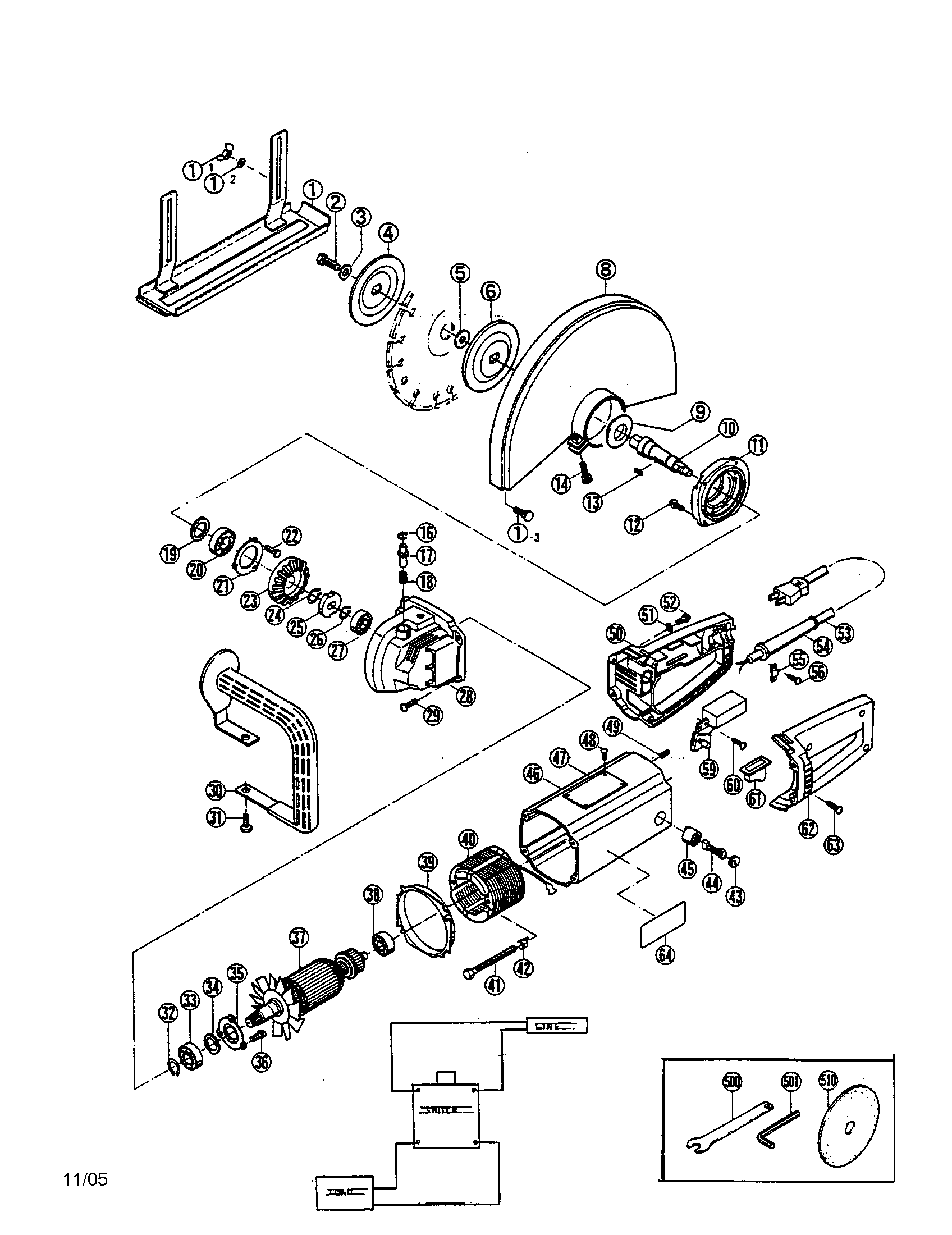

Cut-off-machine diagram

Retaining ring r-13

Part #6100079

The manufacturer no longer makes this part, and there's no substitute part

Gear Case 6820182
#28

Cut-off-machine diagram

Gear case

Part #6820182

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Screw M5 X 85 (2) 6130337
#41

Cut-off-machine diagram

Hex head screw m5 x 85 (2)

Part #6130337

The manufacturer no longer makes this part, and there's no substitute part

Switch Cover 6370044
#61

Cut-off-machine diagram

Switch cover

Part #6370044

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing 6800591
#46

Cut-off-machine diagram

Motor housing

Part #6800591

The manufacturer no longer makes this part, and there's no substitute part

Stopper 6220027
#25

Cut-off-machine diagram

Stopper

Part #6220027

The manufacturer no longer makes this part, and there's no substitute part

Washer 9571000
#3

Cut-off-machine diagram

Washer

Part #9571000

The manufacturer no longer makes this part, and there's no substitute part

Clamp Plate 6151127
#21

Cut-off-machine diagram

Clamp plate

Part #6151127

The manufacturer no longer makes this part, and there's no substitute part

Felt 6390027
#19

Cut-off-machine diagram

Felt

Part #6390027

The manufacturer no longer makes this part, and there's no substitute part

Single End Wrench 17 6240383
#500

Cut-off-machine diagram

Single end wrench 17

Part #6240383

The manufacturer no longer makes this part, and there's no substitute part
