Goldstar
Countertop Microwave

Model # MA-6100W Official Goldstar microwave

Here are the diagrams and repair parts for Official Goldstar MA-6100W microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Microwave High-voltage Diode 6021W3B001N
#6

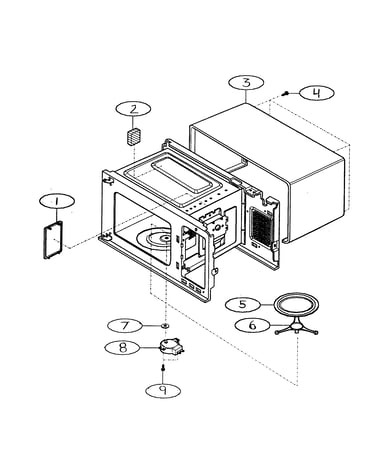

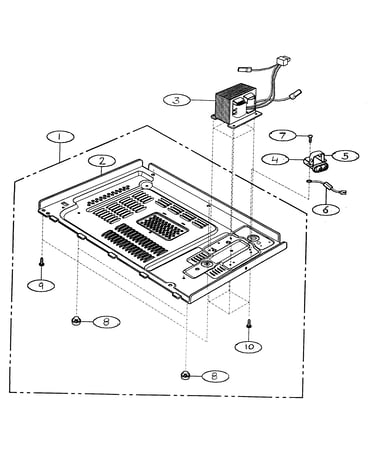

Cabinet parts diagram

Microwave high-voltage diode

Part #6021W3B001N

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001N. Substitute parts can look different from the original.
BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Micro-switch 3B73361D
#7

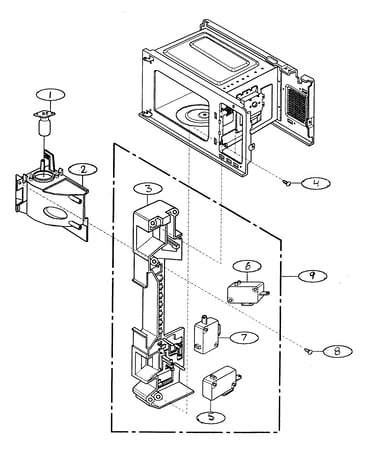

Cabinet parts diagram

Micro-switch

Part #3B73361D

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 3B73361D. Substitute parts can look different from the original.
BEST SELLER
$11.77 |
15% OFF Phone Price : $13.77
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Light Bulb (replaces 6912w3b002g) 6912W3B002L
#1

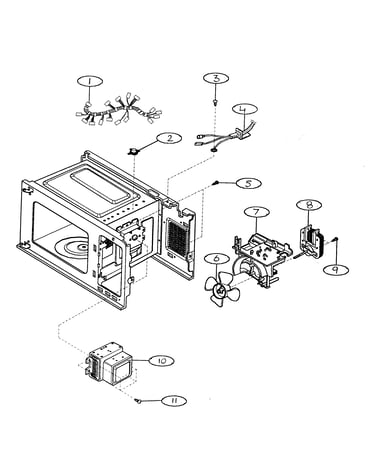

Cabinet parts diagram

Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L

BEST SELLER
This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Spring 4970WRA001D
#8

Cabinet parts diagram

Spring

Part #4970WRA001D

Replaced by #4970WRA001G

?
Manufacturer substitution
This part replaces 4970WRA001D. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Door Latch Lever (replaces 4510w3l002a) 4510W3L003A
#8

Cabinet parts diagram

Microwave door latch lever (replaces 4510w3l002a)

Part #4510W3L003A

This item is not returnable
$8.29
In Stock
Microwave Screw 1SBF0402418
Microwave screw

Part #1SBF0402418

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Us Pressed Steel Microwave Screw 1TTG0402422
#NI

Cabinet parts diagram

Us pressed steel microwave screw

Part #1TTG0402422

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Screw 1TTL0402418
#9

Cabinet parts diagram

Screw

Part #1TTL0402418

Replaced by #1TTG0402422

?
Manufacturer substitution
This part replaces 1TTL0402418. Substitute parts can look different from the original.
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Waveguide Cover 3052W2A021A
#1

Cabinet parts diagram

Microwave waveguide cover

Part #3052W2A021A

Replaced by #3052W1M006A

?
Manufacturer substitution
This part replaces 3052W2A021A. Substitute parts can look different from the original.
$8.29
Back Order
