Amana
Side-By-Side Refrigerator

Model # 2599A-P1190419WL Official Amana side-by-side refrigerator

Here are the diagrams and repair parts for Official Amana 2599A-P1190419WL side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

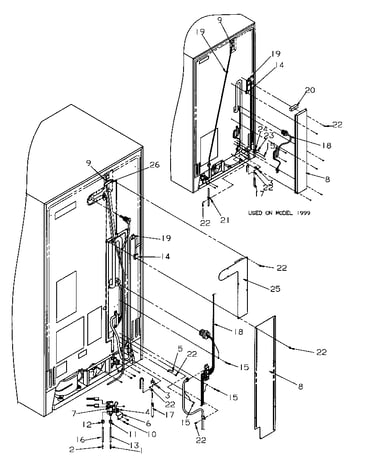

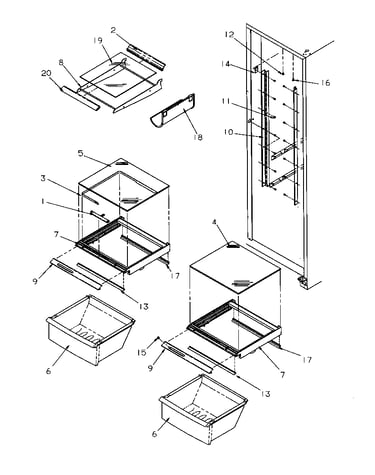

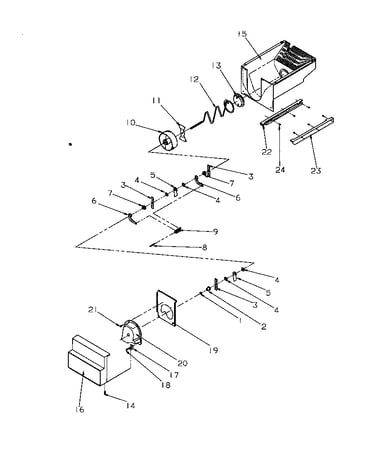

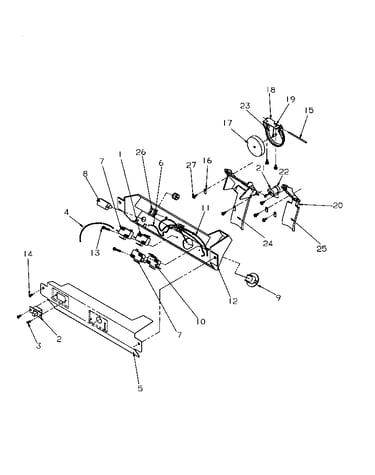

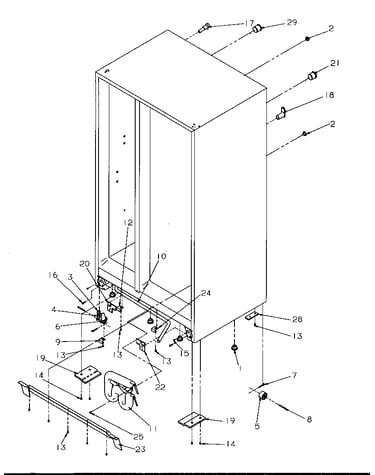

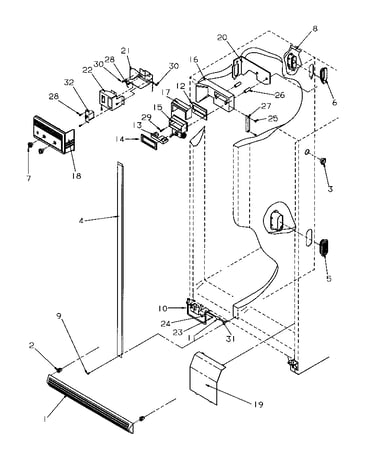

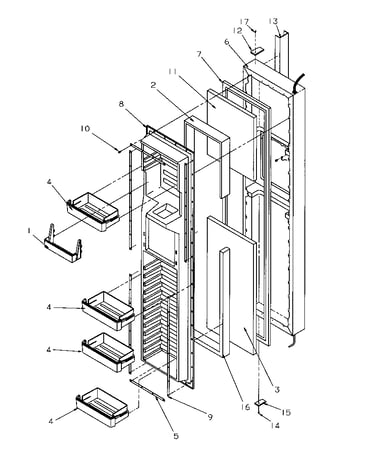

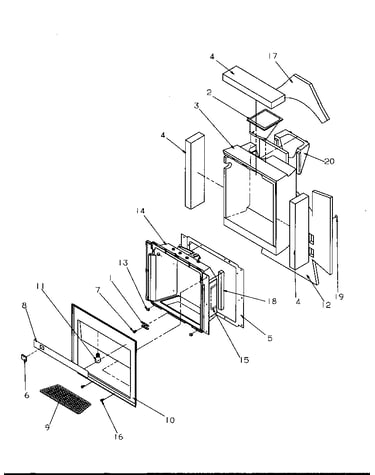

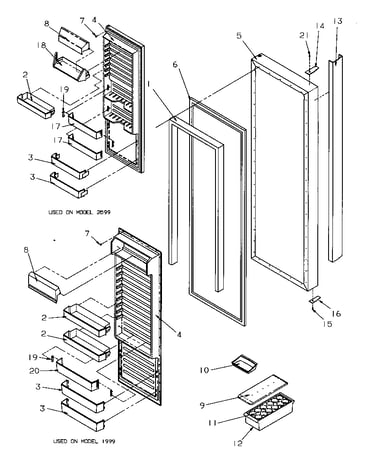

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 431 parts  |
Refrigerator Ice Maker (red) D7824703
#10

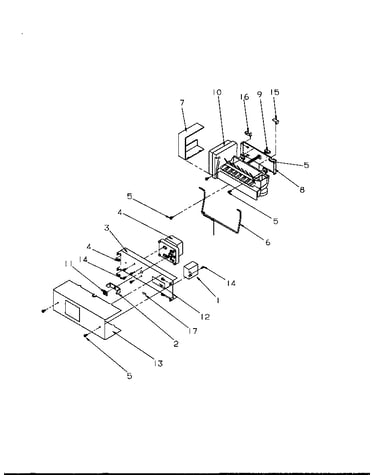

Ice maker parts diagram

Refrigerator ice maker (red)

Part #D7824703

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824703. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#10

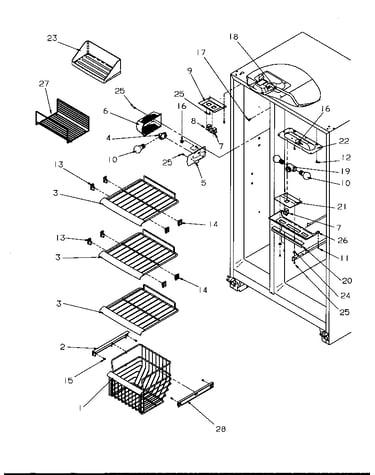

Freezer shelving and refrigerator light diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Switch C3680304
#7

Freezer shelving and refrigerator light diagram

Switch

Part #C3680304

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680304. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Compressor 12049703
#22B

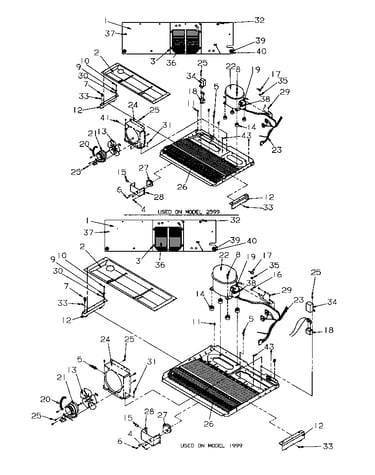

Machine compartment diagram

Refrigerator compressor

Part #12049703

Replaced by #W10309990

?
Manufacturer substitution
This part replaces 12049703. Substitute parts can look different from the original.
BEST SELLER
$338.61 |
$12.00 OFF Phone Price : $350.61
In Stock
Refrigerator Capacitor C8931605
#1

Ice maker parts diagram

Refrigerator capacitor

Part #C8931605

Replaced by #W10613606

?
Manufacturer substitution
This part replaces C8931605. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Condenser Motor 10884501
#21

Machine compartment diagram

Refrigerator condenser motor

Part #10884501

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Timer 10530702
#27

Machine compartment diagram

Refrigerator timer

Part #10530702

Replaced by #R0131577

?
Manufacturer substitution
This part replaces 10530702. Substitute parts can look different from the original.
BEST SELLER
$31.09 |
16% OFF Phone Price : $37.09
In Stock
Refrigerator Thermostat 12017806
#21

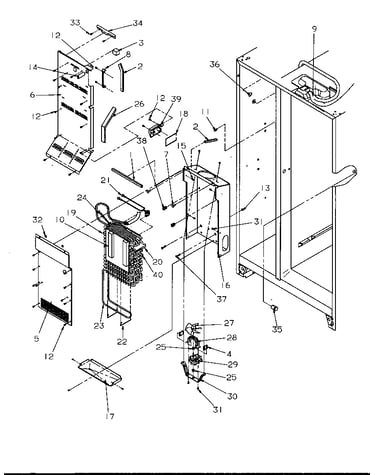

Evaporator and air handling parts diagram

Refrigerator thermostat

Part #12017806

Replaced by #R0161088

?
Manufacturer substitution
This part replaces 12017806. Substitute parts can look different from the original.
$56.58 |
10% OFF Phone Price : $62.58
In Stock
Refrigerator Heater 12049801
#23

Evaporator and air handling parts diagram

Refrigerator heater

Part #12049801

Replaced by #WP12049801

?
Manufacturer substitution
This part replaces 12049801. Substitute parts can look different from the original.
$78.36 |
7% OFF Phone Price : $84.36
In Stock
Refrigerator Screw M0214931
Refrigerator screw

Part #M0214931

Replaced by #W11233072

?
Manufacturer substitution
This part replaces M0214931. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
