Model # MER6550BCQ Official Maytag range

Here are the diagrams and repair parts for Official Maytag MER6550BCQ range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

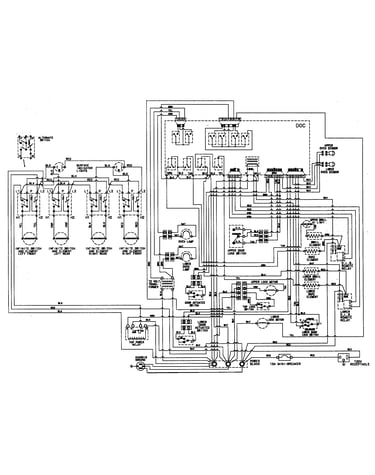

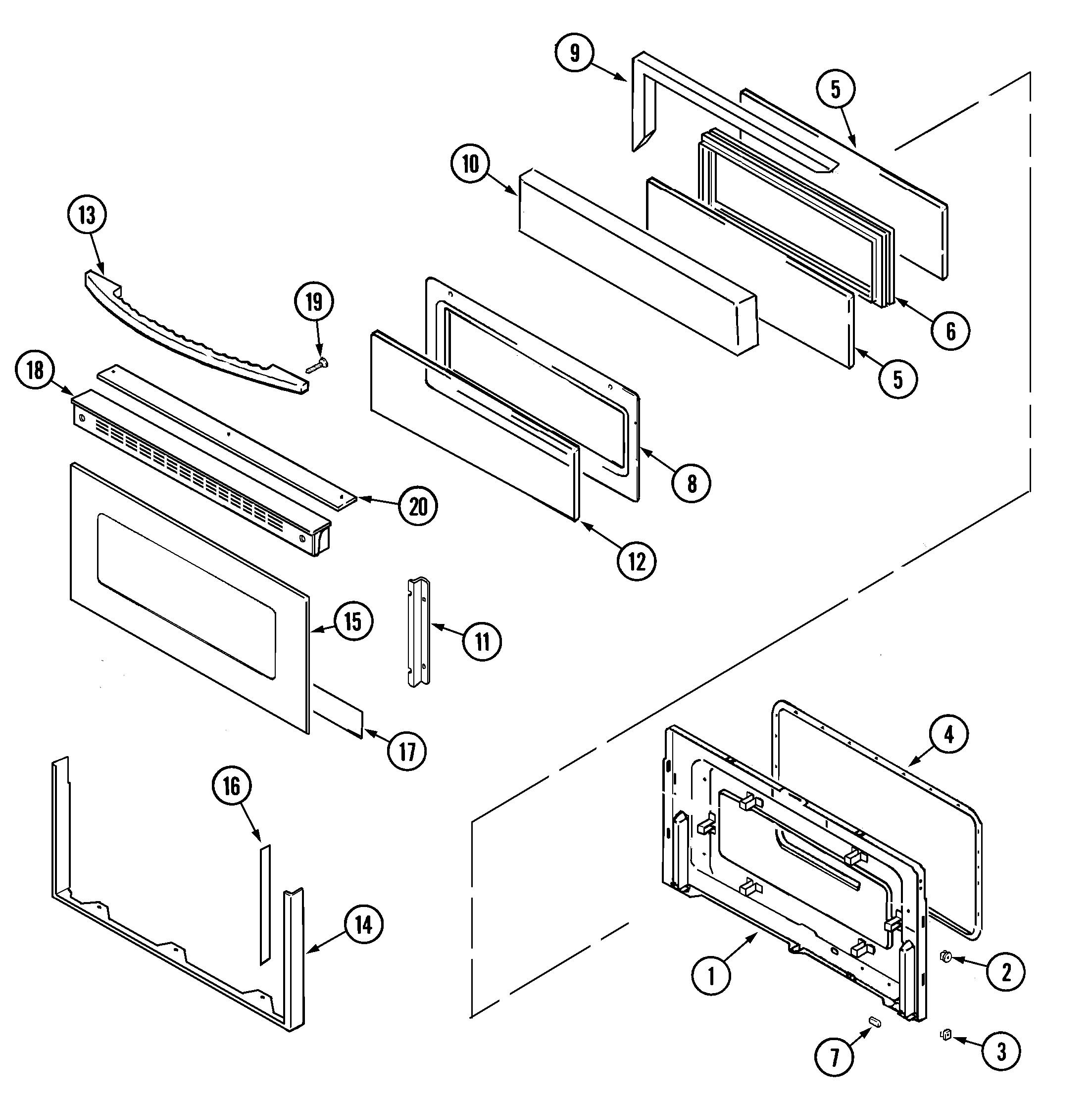

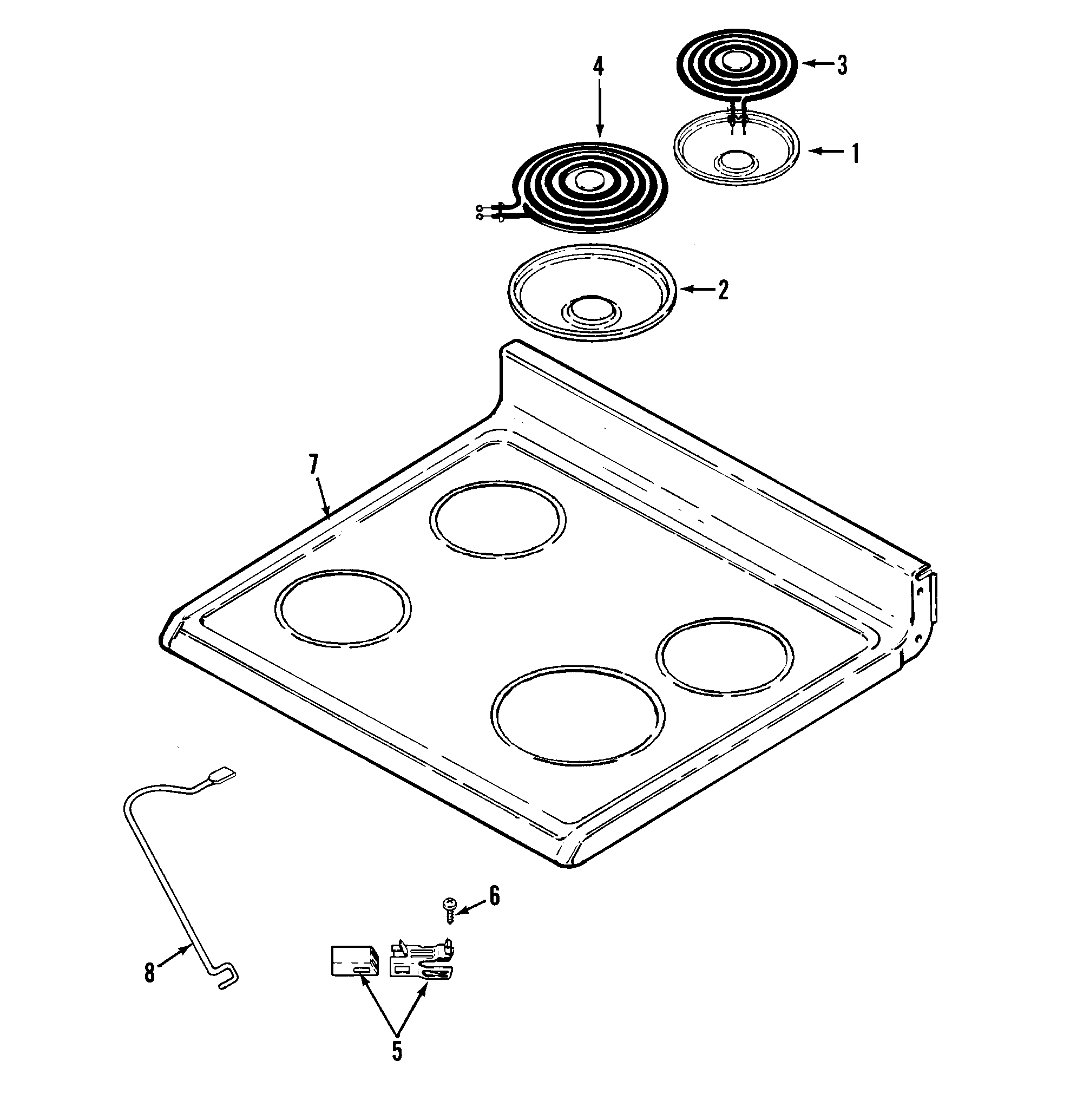

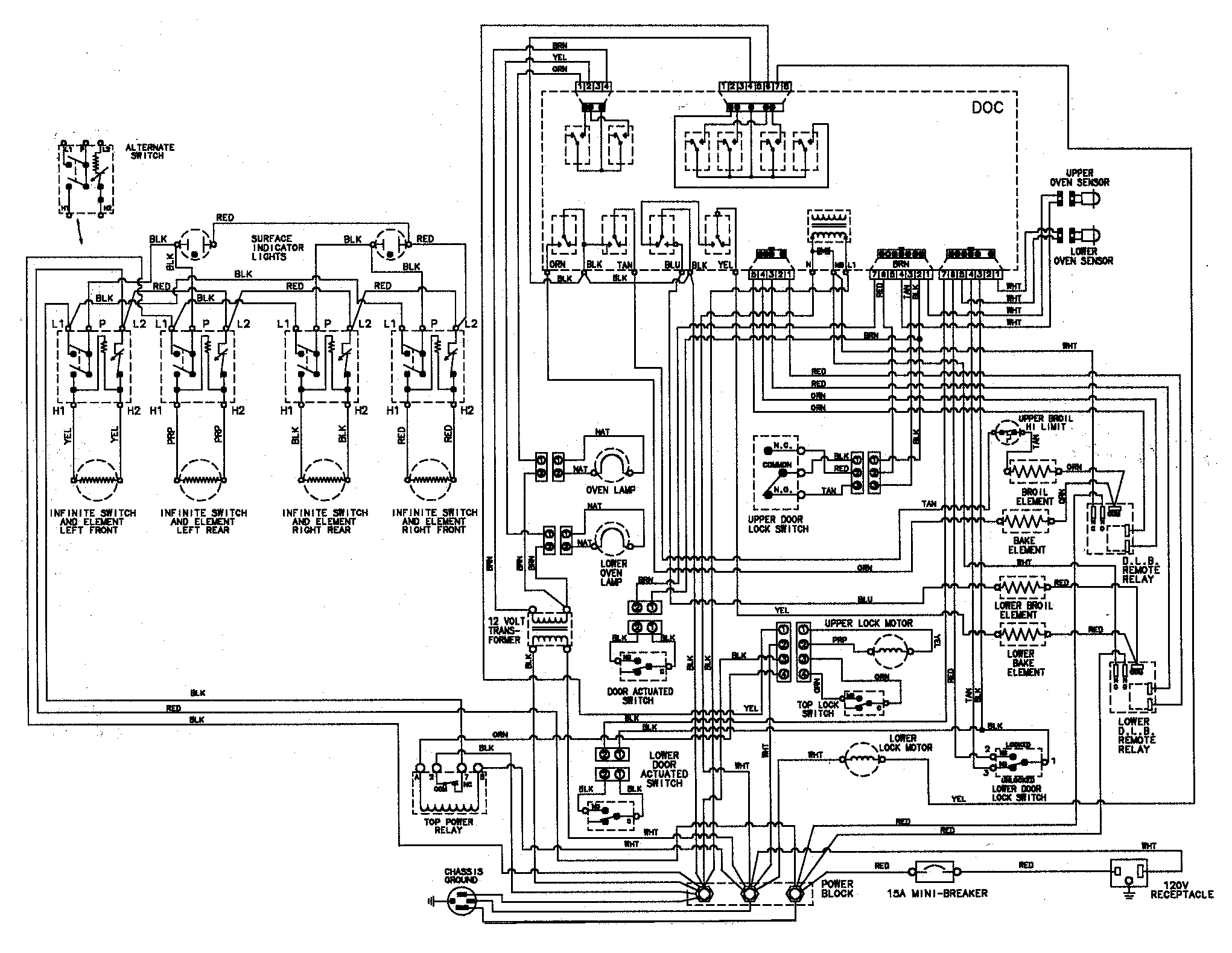

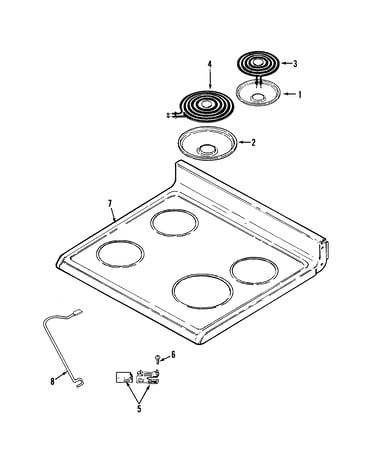

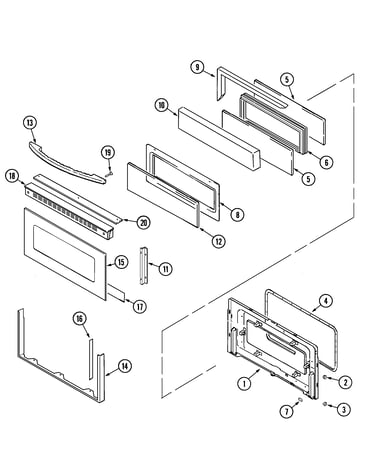

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |
Grill Element 74004107
#2

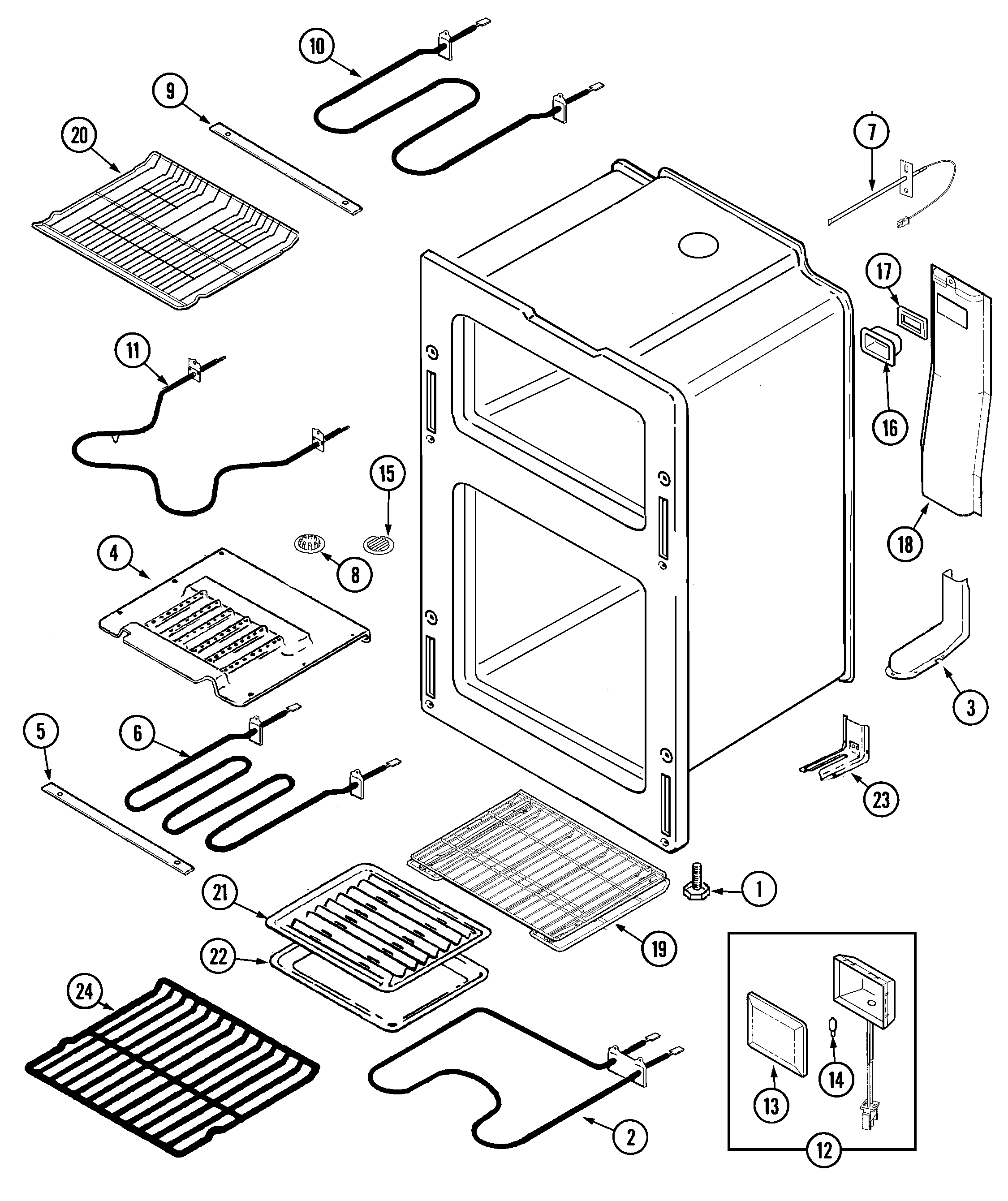

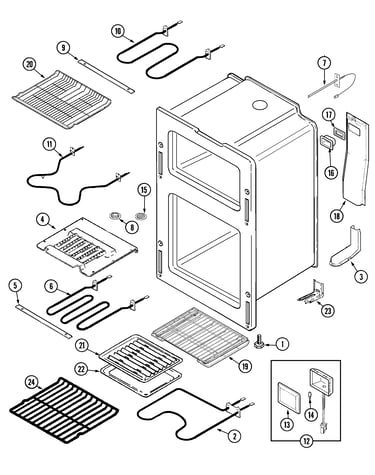

Oven diagram

Grill element

Part #74004107

Replaced by #WP7406P428-60

?
Manufacturer substitution
This part replaces 74004107. Substitute parts can look different from the original.
BEST SELLER
$36.41 |
14% OFF Phone Price : $42.41
In Stock
Terminal Block 7401P038-60
#30

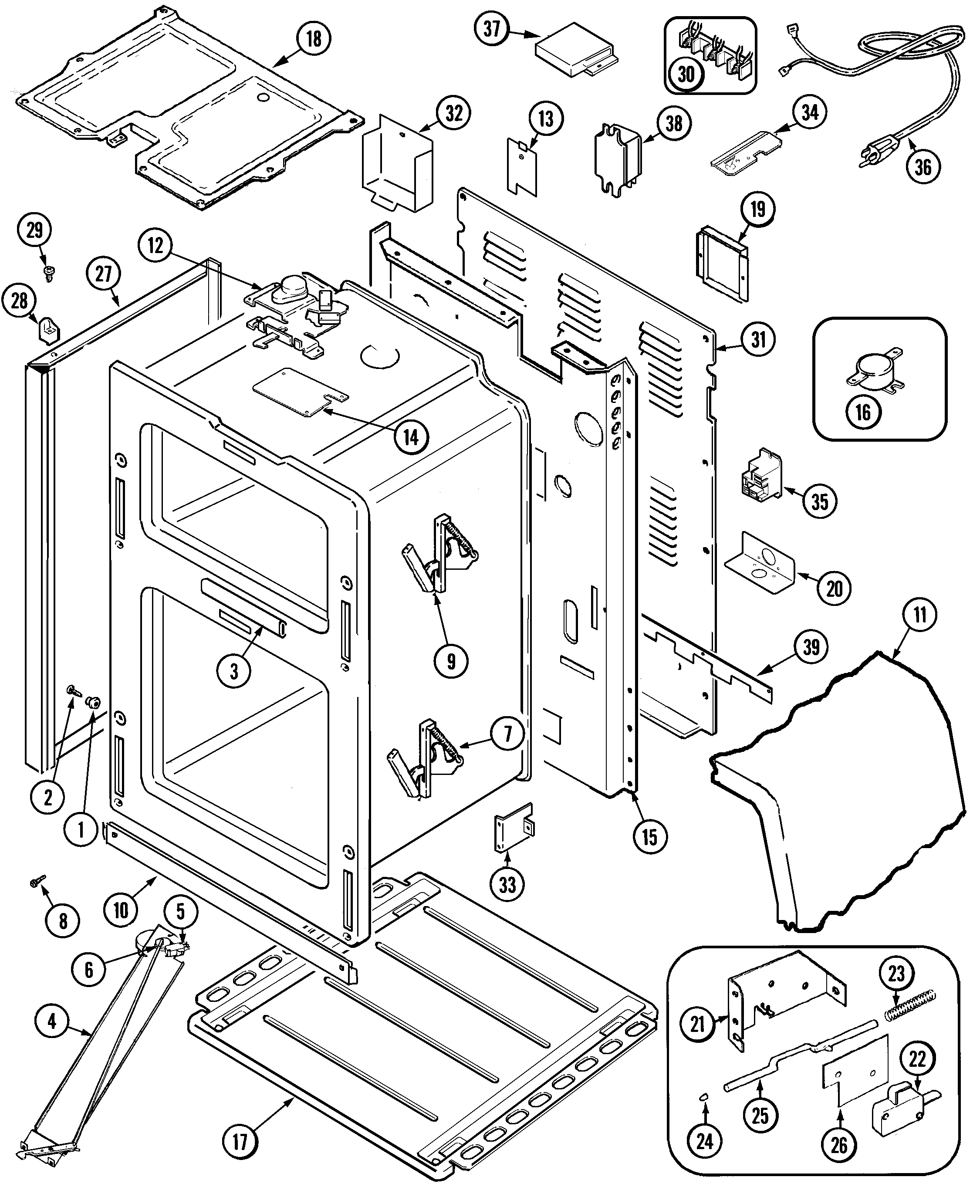

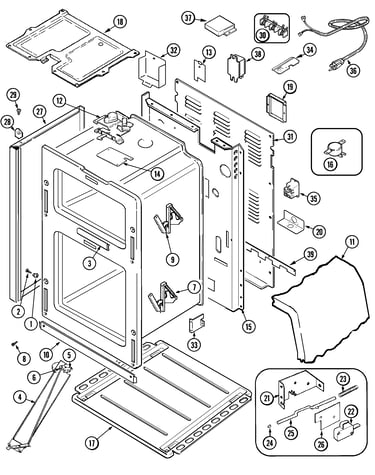

Body diagram

Terminal block

Part #7401P038-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P038-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Oven Sensor 74004943
#7A

Oven diagram

Oven sensor

Part #74004943

Replaced by #12001656

?
Manufacturer substitution
This part replaces 74004943. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Range Surface Element Control Switch 7403P238-60
#5

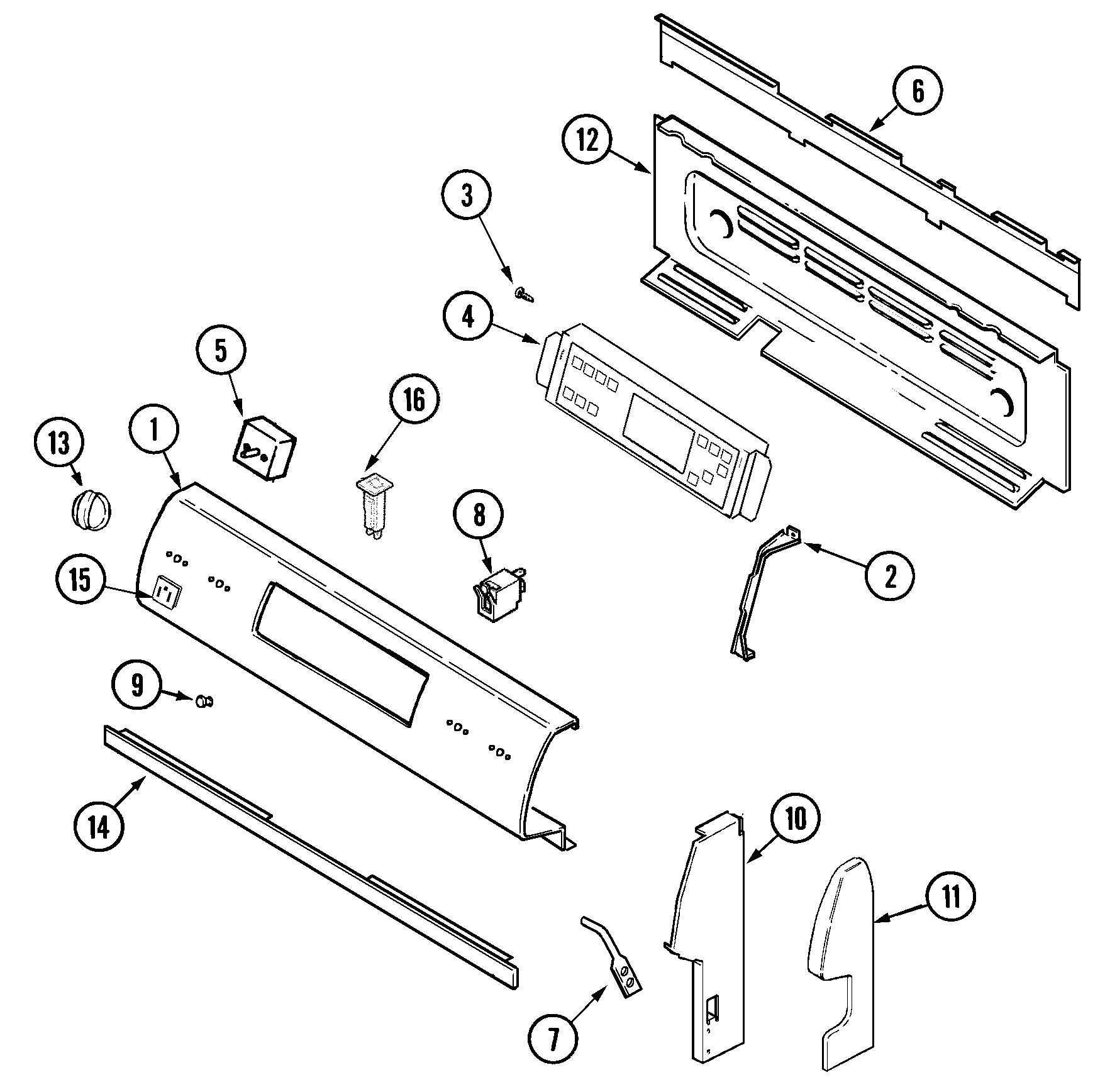

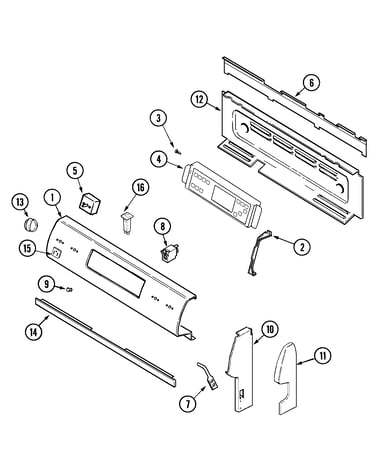

Control panel diagram

Range surface element control switch

Part #7403P238-60

Replaced by #WP7403P238-60

?
Manufacturer substitution
This part replaces 7403P238-60. Substitute parts can look different from the original.
BEST SELLER
$50.39 |
11% OFF Phone Price : $56.39
In Stock
Range Surface Element Control Switch 7403P239-60
#5A

Control panel diagram

Range surface element control switch

Part #7403P239-60

Replaced by #WP7403P239-60

?
Manufacturer substitution
This part replaces 7403P239-60. Substitute parts can look different from the original.
BEST SELLER
$47.96 |
11% OFF Phone Price : $53.96
In Stock
Range Oven Light Bulb 74004458
#14

Oven diagram

Range oven light bulb

Part #74004458

Replaced by #WP74009925

?
Manufacturer substitution
This part replaces 74004458. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$19.38 |
9% OFF Phone Price : $21.38
In Stock
Oven Sensor 74003095
#7

Oven diagram

Oven sensor

Part #74003095

Replaced by #WP7430P044-60

?
Manufacturer substitution
This part replaces 74003095. Substitute parts can look different from the original.
BEST SELLER
$90.48 |
6% OFF Phone Price : $96.48
In Stock
Door Gasket 7201P046-60
#4

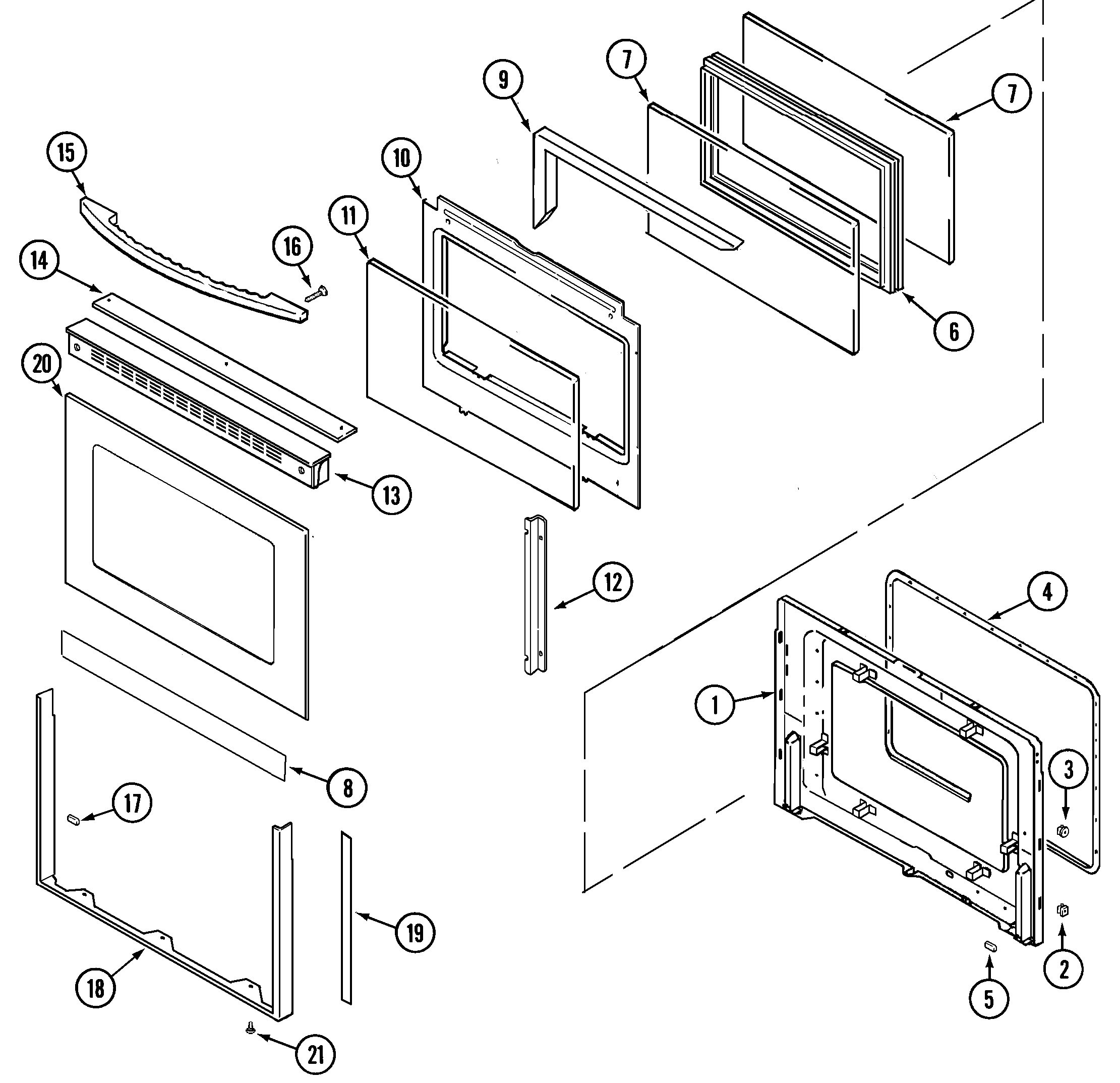

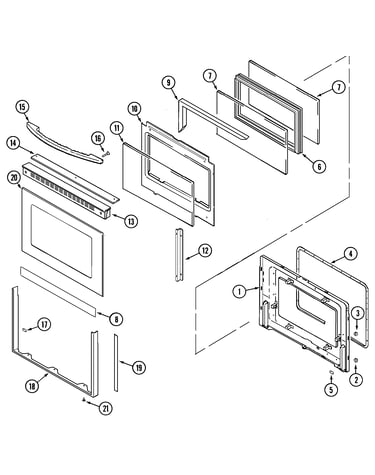

Door (lower) diagram

Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
BEST SELLER
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Range Bake Element (replaces 7406p427-60, W10314702) 74004105
#11

Oven diagram

Range bake element (replaces 7406p427-60, w10314702)

Part #74004105

$67.16 |
8% OFF Phone Price : $73.16
In Stock
Broiler Element 74004106
#10

Oven diagram

Broiler element

Part #74004106

Replaced by #W10201551

?
Manufacturer substitution
This part replaces 74004106. Substitute parts can look different from the original.
$47.29 |
11% OFF Phone Price : $53.29
In Stock
