Craftsman
Lawn Edger

Model # 536796532 Official Craftsman 9" 3.5-hp edger/trimmer

Here are the diagrams and repair parts for Official Craftsman 536796532 9" 3.5-hp edger/trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
V-belt 32668
#53

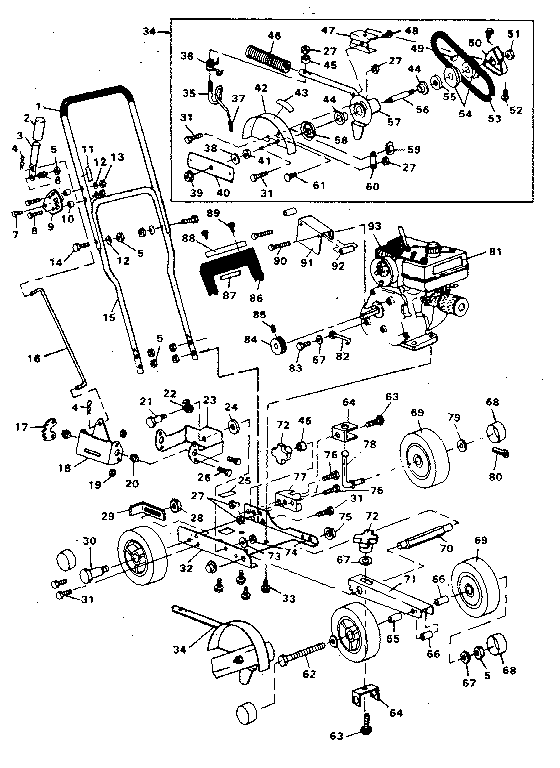

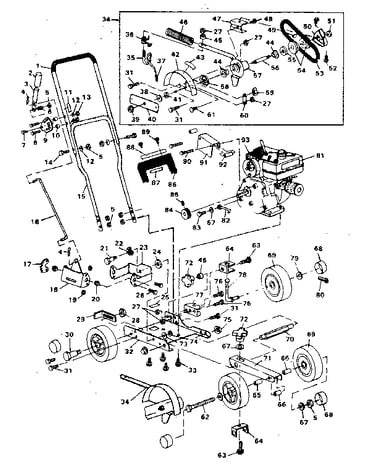

Replacement parts diagram

V-belt

Part #32668

Replaced by #32668MA

?
Manufacturer substitution
This part replaces 32668. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$24.96 |
19% OFF Phone Price : $30.96
In Stock
Spacer 51887
#65

Replacement parts diagram

Spacer

Part #51887

Replaced by #51887MA

?
Manufacturer substitution
This part replaces 51887. Substitute parts can look different from the original.
This item is not returnable
$6.91
In Stock
Bearing S-a 51708
#20

Replacement parts diagram

Bearing s-a

Part #51708

Replaced by #338607MA

?
Manufacturer substitution
This part replaces 51708. Substitute parts can look different from the original.
$7.74
In Stock
Washer 8728
#12

Replacement parts diagram

Washer

Part #8728

Replaced by #783000MA

?
Manufacturer substitution
This part replaces 8728. Substitute parts can look different from the original.
This item is not returnable
$9.34
In Stock
Knob 52577
#72

Replacement parts diagram

Knob

Part #52577

Replaced by #1501260MA

?
Manufacturer substitution
This part replaces 52577. Substitute parts can look different from the original.
$10.93 |
15% OFF Phone Price : $12.93
In Stock
Washer 845
#73

Replacement parts diagram

Washer

Part #845

Replaced by #17X168ZMA

?
Manufacturer substitution
This part replaces 845. Substitute parts can look different from the original.
$11.26
In Stock
Bracket 51604
#77

Replacement parts diagram

Bracket

Part #51604

Replaced by #6842MA

?
Manufacturer substitution
This part replaces 51604. Substitute parts can look different from the original.
$14.49
In Stock
Decal 70330
#43

Replacement parts diagram

Decal

Part #70330

Replaced by #333874MA

?
Manufacturer substitution
This part replaces 70330. Substitute parts can look different from the original.
$17.31
In Stock
Nut 46023
#39

Replacement parts diagram

Nut

Part #46023

Replaced by #46023MA

?
Manufacturer substitution
This part replaces 46023. Substitute parts can look different from the original.
This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Car Bolt 455999
#61

Replacement parts diagram

Car bolt

Part #455999

Replaced by #711688MA

?
Manufacturer substitution
This part replaces 455999. Substitute parts can look different from the original.
This item is not returnable
$6.23
In Stock
