Frigidaire
Trash Compactor

Model # TCU3D5 Official Frigidaire trash compactor - 5995233029

Here are the diagrams and repair parts for Official Frigidaire TCU3D5 trash compactor - 5995233029, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

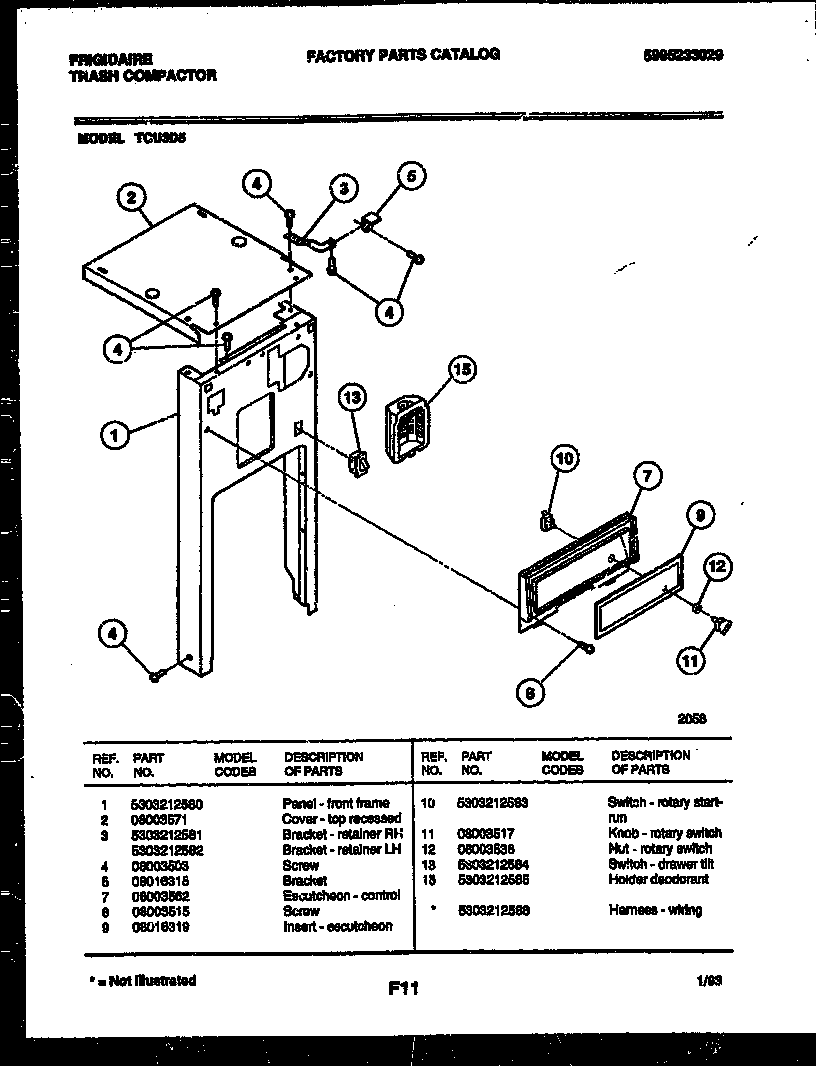

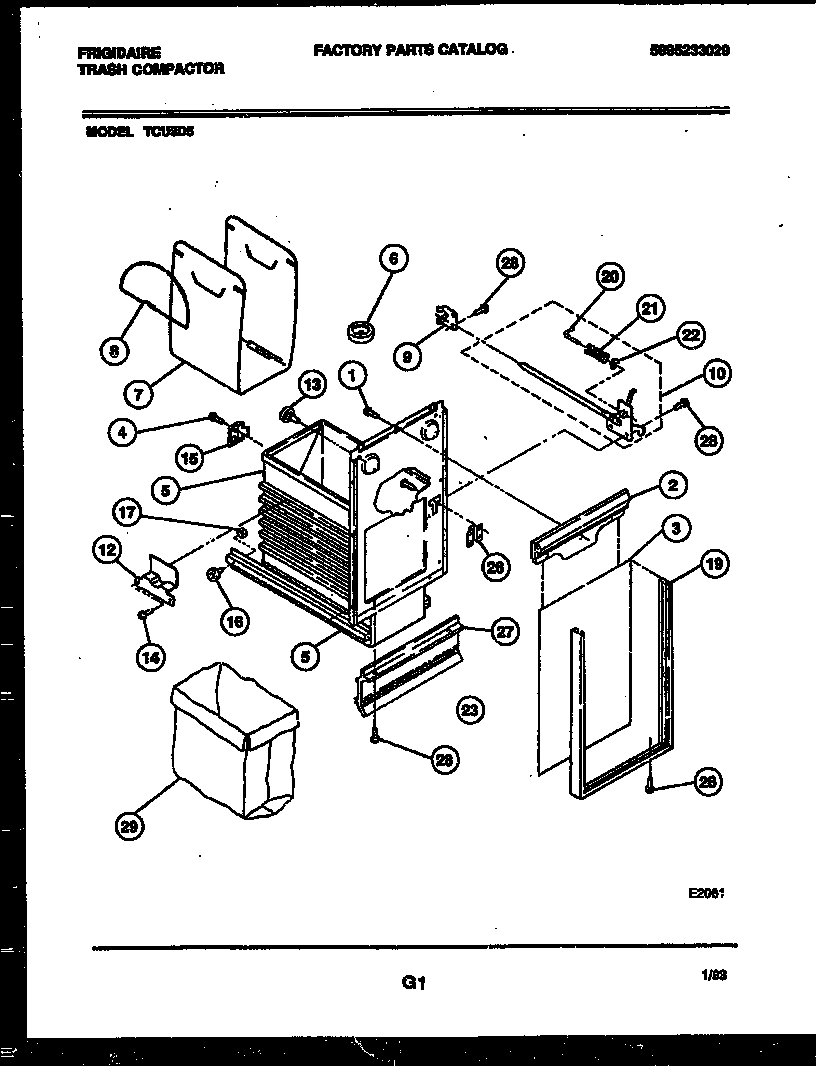

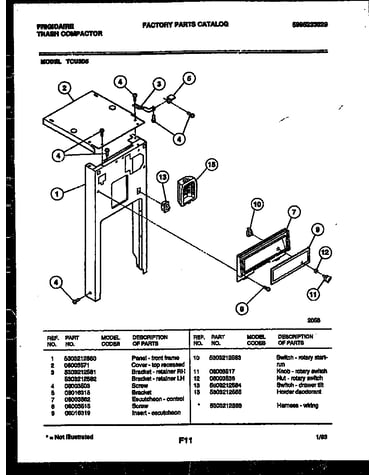

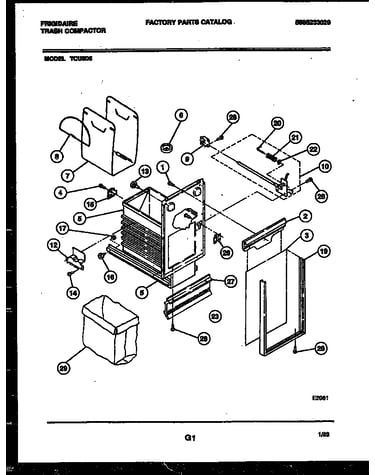

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Safety Switch 08017605
#15

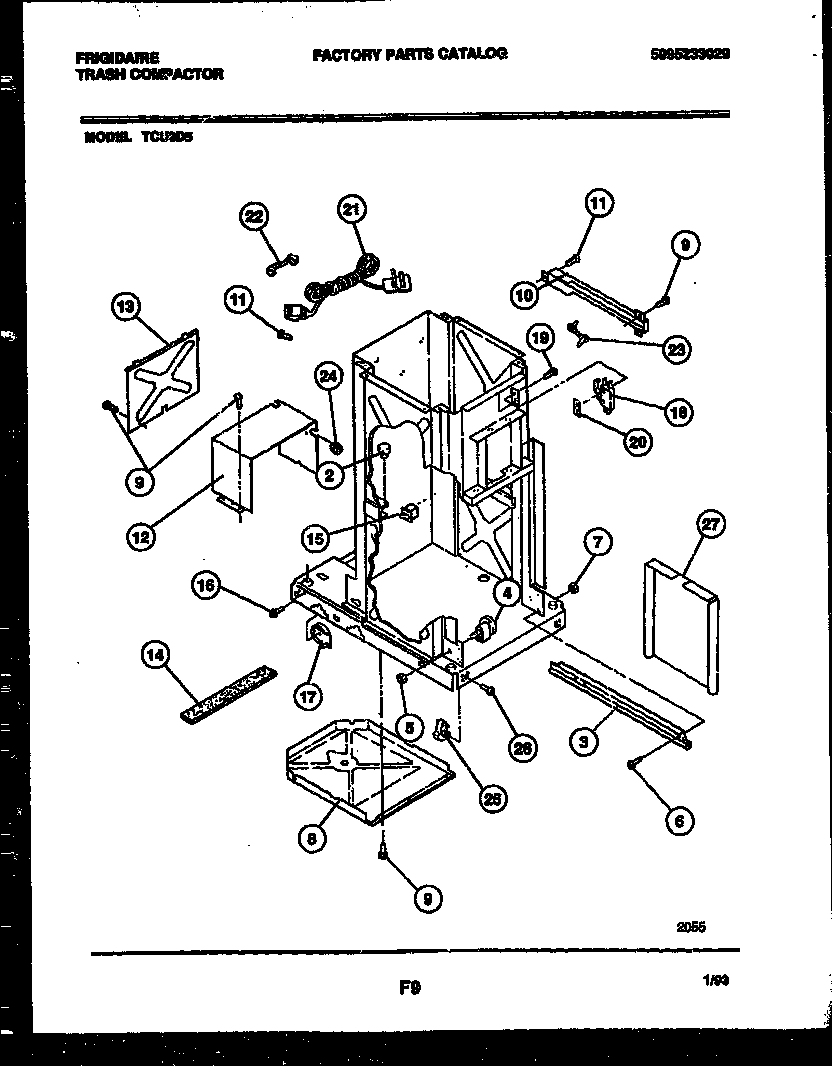

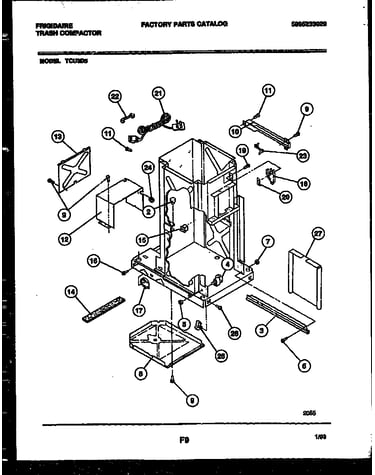

Interior parts diagram

Safety switch

Part #08017605

$19.37
In Stock
Ram Assy. 5303293192
#11

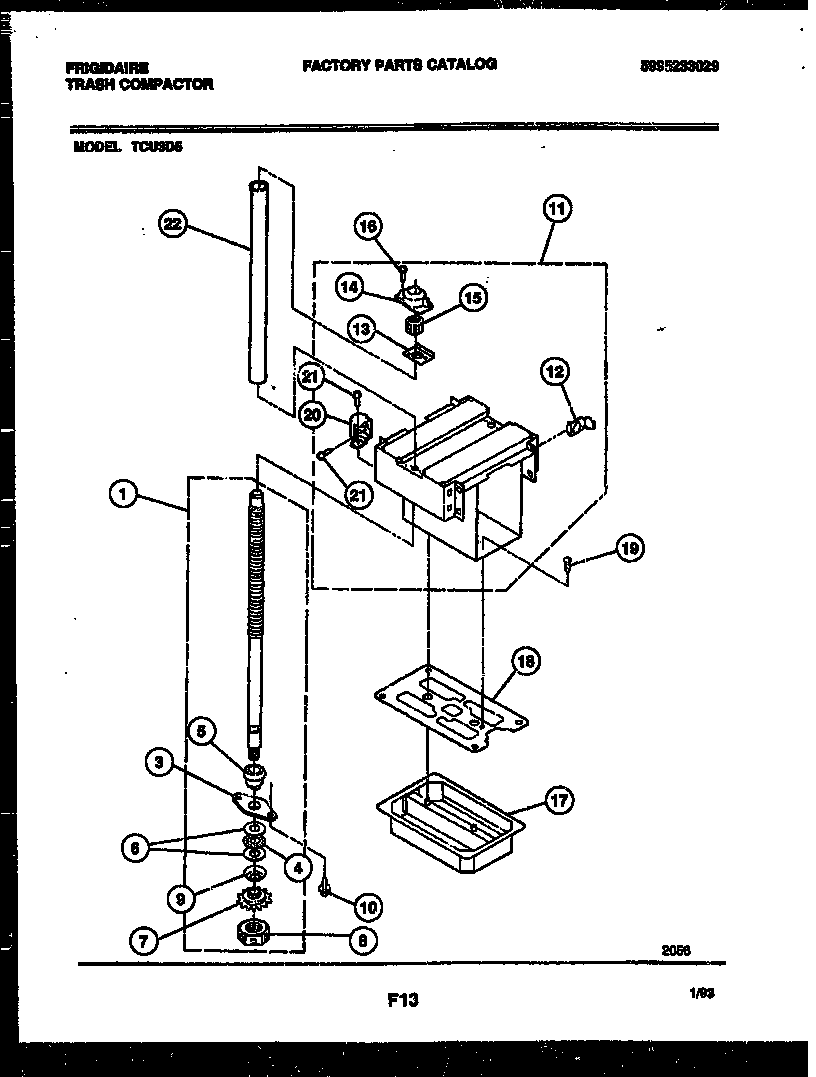

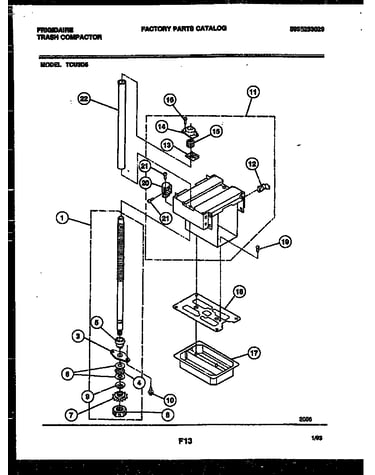

Screw-power and ram assembly diagram

Ram assy.

Part #5303293192

The manufacturer no longer makes this part, and there's no substitute part

Screw 08003485
#10

Screw-power and ram assembly diagram

Screw

Part #08003485

The manufacturer no longer makes this part, and there's no substitute part

Ring Clip 08003500
#11

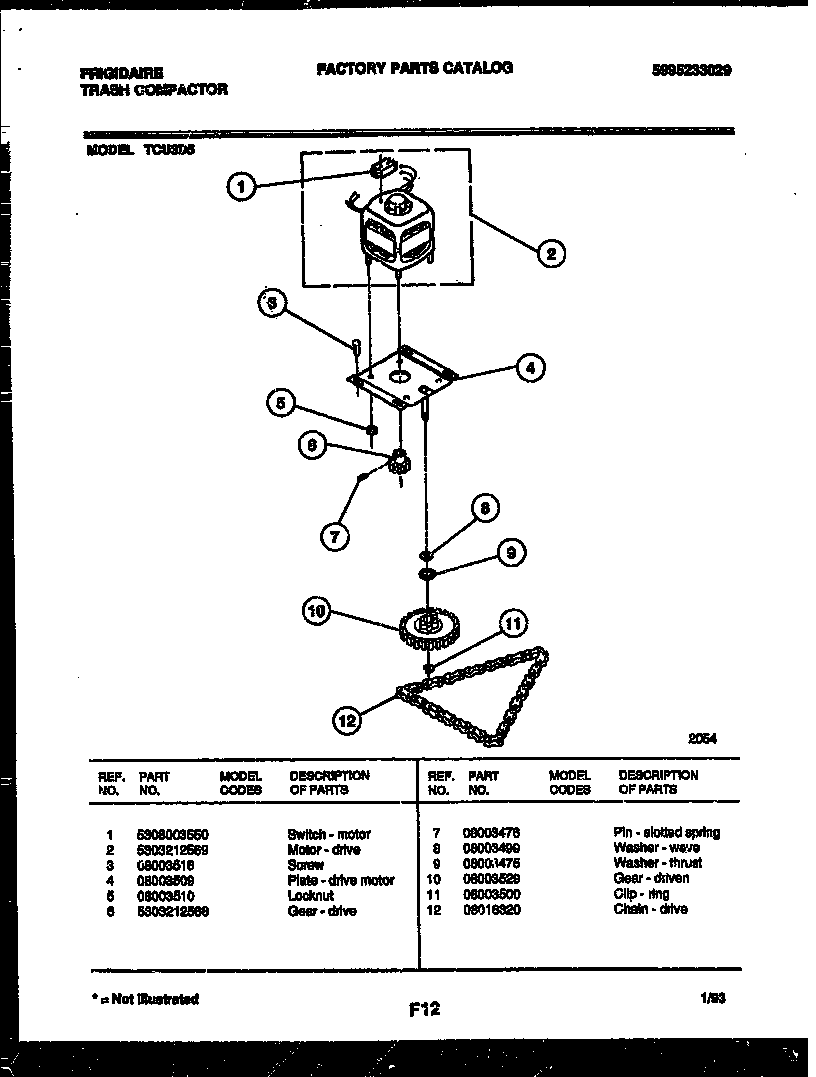

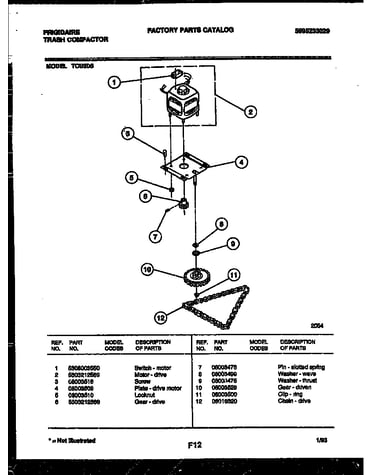

Motor and drive parts diagram

Ring clip

Part #08003500

The manufacturer no longer makes this part, and there's no substitute part

Bushing 08003504
#22

Interior parts diagram

Bushing

Part #08003504

The manufacturer no longer makes this part, and there's no substitute part

Washer - Cone (2) 08003533
#9

Screw-power and ram assembly diagram

Washer - cone (2)

Part #08003533

The manufacturer no longer makes this part, and there's no substitute part

Pan - Bottom 08003502
#8

Interior parts diagram

Pan - bottom

Part #08003502

The manufacturer no longer makes this part, and there's no substitute part

Nut Power Screw 5303212572
#7

Screw-power and ram assembly diagram

Nut power screw

Part #5303212572

The manufacturer no longer makes this part, and there's no substitute part

Pad - Ram 5303212573
#12

Screw-power and ram assembly diagram

Pad - ram

Part #5303212573

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 08003510
#5

Motor and drive parts diagram

Lock nut

Part #08003510

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your trash compactors

Choose a symptom to see related trash compactor repairs.

View all

Why is the trash compactor's ram stuck in the down position?

Main causes: broken drive gear and sprocket chain, stripped power nuts, faulty top limit and directional switch…

Read more

Why won't my trash compactor stop running?

Main causes: stuck foot pedal, bad momentary start switch, power switch failure…

Read more

Why does my trash compactor run constantly with its ram in the up position?

Main cause: broken top limit and directional switch…

Read more

Why wont my trash compactor's ram go down?

Main cause: faulty drawer tilt switch …

Read more

Why does the trash compactor ram not move even though the motor runs?

Main causes: stripped or broken power nuts, broken or disconnected drive gear and sprocket chain, damaged drive parts…

Read more

Why is it hard to open the trash compactor drawer?

Main causes: bent drawer support rollers, damaged trash container…

Read more

Why won't my trash compactor start?

Main causes: lack of power, faulty drawer safety switch, bad power switch, momentary start switch failure, bad drive mot…

Read more
