Lifestyler
Exercise Cycle

Model # 298488510 Official Lifestyler exercise cycle

Here are the diagrams and repair parts for Official Lifestyler 298488510 exercise cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

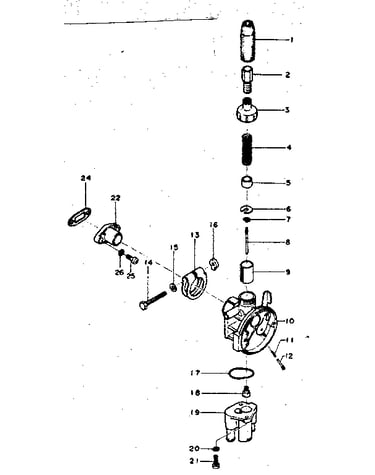

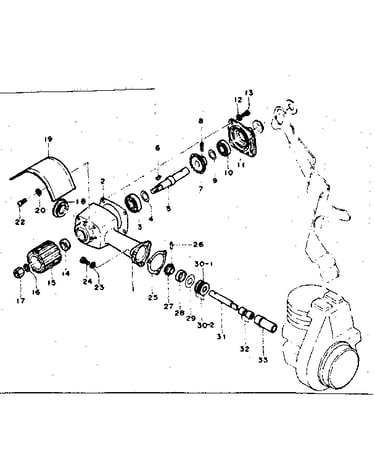

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 195 parts  |
Crank Case 077-00502-900

#NI

All parts diagram

Crank case

Part #077-00502-900

The manufacturer no longer makes this part, and there's no substitute part

Crank Case 077-00502-202
#11

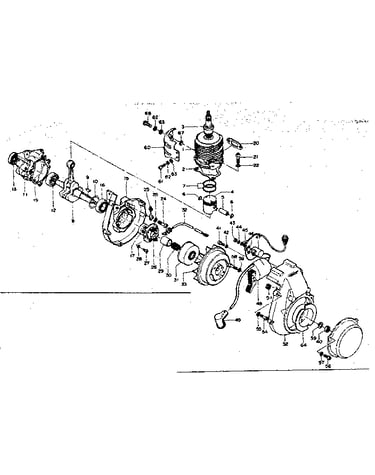

Engine diagram

Crank case

Part #077-00502-202

The manufacturer no longer makes this part, and there's no substitute part

Crankcase 076-00501-900

#NI

All parts diagram

Crankcase

Part #076-00501-900

The manufacturer no longer makes this part, and there's no substitute part

Crankcase 076-00501-203
#15

Engine diagram

Crankcase

Part #076-00501-203

The manufacturer no longer makes this part, and there's no substitute part

Flywheel Nut 066-00000-200
#40

Engine diagram

Flywheel nut

Part #066-00000-200

The manufacturer no longer makes this part, and there's no substitute part

Air Vnt Vlve 646-0062C-200
#41

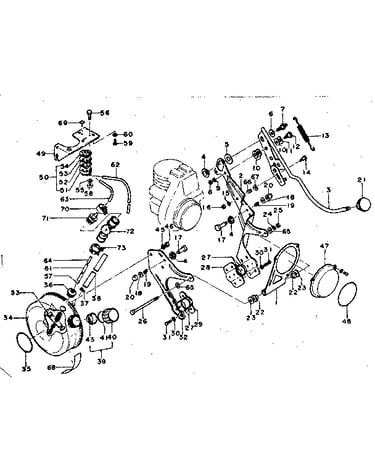

Bracket & roller engage lever diagram

Air vnt vlve

Part #646-0062C-200

The manufacturer no longer makes this part, and there's no substitute part

Washer 065-00000-200
#39

Engine diagram

Washer

Part #065-00000-200

The manufacturer no longer makes this part, and there's no substitute part

Joint Rubber 222-36100-210
#28

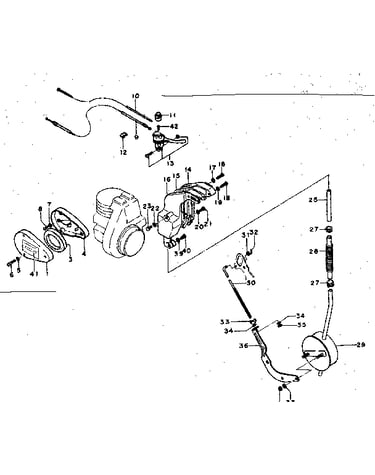

Air cleaner & muffler diagram

Joint rubber

Part #222-36100-210

The manufacturer no longer makes this part, and there's no substitute part

Pin Circlip 039-00000-201
#6

Engine diagram

Pin circlip

Part #039-00000-201

The manufacturer no longer makes this part, and there's no substitute part

Screw 990-11050-201
Screw

Part #990-11050-201

The manufacturer no longer makes this part, and there's no substitute part
