Whirlpool
Microwave/Hood Combo

Model # WMH32519HZ09 Official Whirlpool microwave/hood combo

Here are the diagrams and repair parts for Official Whirlpool WMH32519HZ09 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

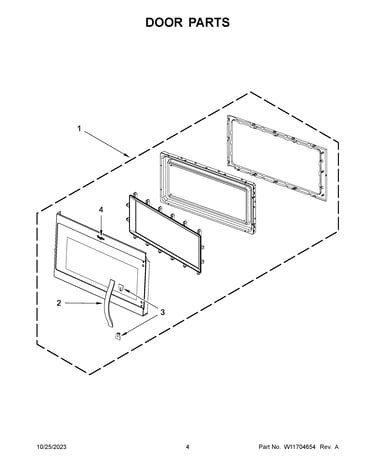

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Gaoxin-hvd C W11222648
#20

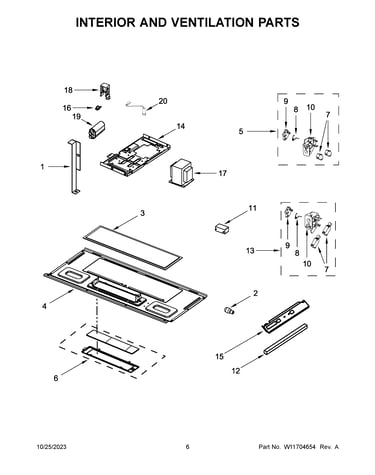

Interior and ventilation parts diagram

Gaoxin-hvd c

Part #W11222648

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W11222648. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Microwave Magnetron (replaces W10210845, W10216360, W10496310) W10754299
#14

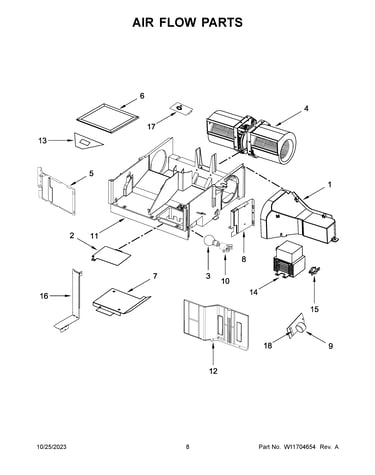

Air flow parts diagram

Microwave magnetron (replaces w10210845, w10216360, w10496310)

Part #W10754299

BEST SELLER
$183.60 |
6% OFF Phone Price : $195.60
In Stock
Microwave Door Interlock Support, Upper 8206419
#10

Interior and ventilation parts diagram

Microwave door interlock support, upper

Part #8206419

BEST SELLER
$15.53
In Stock
Microwave Door Interlock Spring W10156812
#8

Interior and ventilation parts diagram

Microwave door interlock spring

Part #W10156812

BEST SELLER
$7.73 |
11% OFF Phone Price : $8.73
In Stock
Filter W10208631
#3

Interior and ventilation parts diagram

Filter

Part #W10208631

Replaced by #W10208631A

?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
BEST SELLER
$25.60 |
19% OFF Phone Price : $31.60
In Stock
Ring, Turntable (with Rollers) W11193600
#4

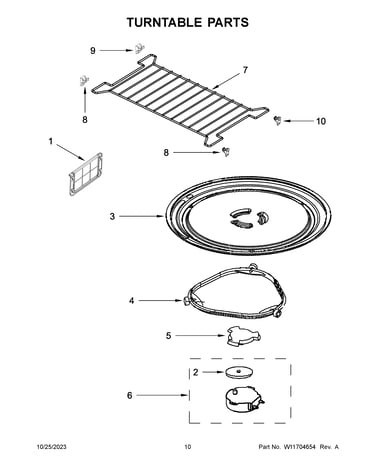

Turntable parts diagram

Ring, turntable (with rollers)

Part #W11193600

Replaced by #W11252182

?
Manufacturer substitution
This part replaces W11193600. Substitute parts can look different from the original.
$38.92 |
13% OFF Phone Price : $44.92
In Stock
Turntable Gl W11335034
#3

Turntable parts diagram

Turntable gl

Part #W11335034

Replaced by #W11367904

?
Manufacturer substitution
This part replaces W11335034. Substitute parts can look different from the original.
$57.69 |
9% OFF Phone Price : $63.69
In Stock
Microwave/hood Filter W10531156
#9

Air flow parts diagram

Microwave/hood filter

Part #W10531156

Replaced by #WPW10531156

?
Manufacturer substitution
This part replaces W10531156. Substitute parts can look different from the original.
$31.13
In Stock
Microwave Installation Template W10190018
#NI

Cabinet and installation parts diagram

Microwave installation template

Part #W10190018

This item is not returnable
$6.39 |
14% OFF Phone Price : $7.39
In Stock
Microwave Magnetron Thermostat W10832024
#15

Air flow parts diagram

Microwave magnetron thermostat

Part #W10832024

$38.87 |
13% OFF Phone Price : $44.87
In Stock
