Model # IDW30 Official Dacor dishwasher

Here are the diagrams and repair parts for Official Dacor IDW30 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

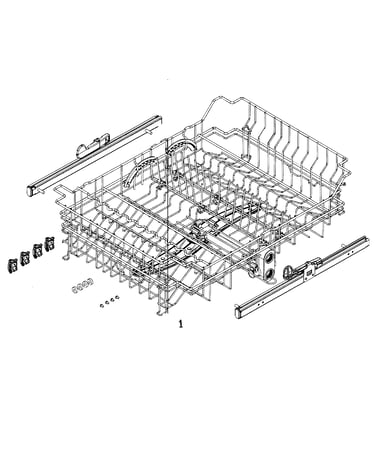

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Drain Pump 72113
#23

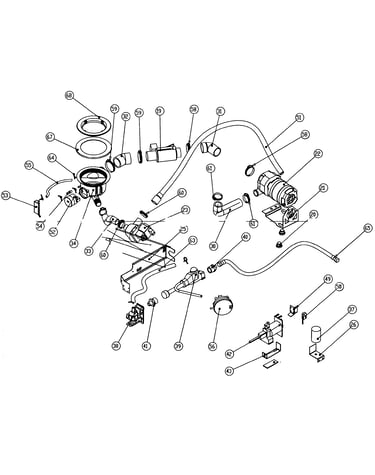

Pump assy diagram

Drain pump

Part #72113

$49.49
In Stock
Screw 83571
#78

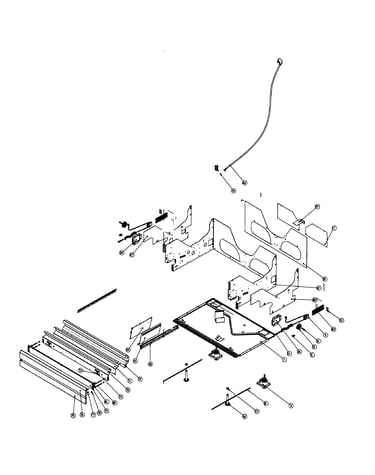

Base assy diagram

Screw

Part #83571

Replaced by #83263

?
Manufacturer substitution
This part replaces 83571. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Lr-washarm 36604
#13

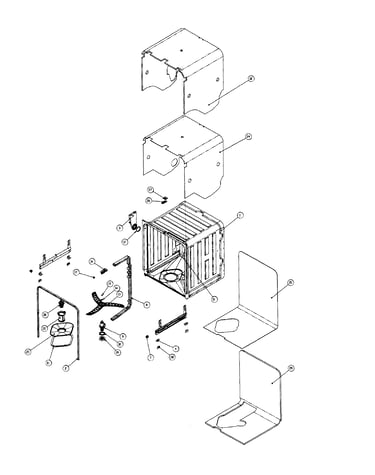

Cabinet diagram

Lr-washarm

Part #36604

$133.99
In Stock
Lower Nut 72076
#19

Cabinet diagram

Lower nut

Part #72076

This item is not returnable
$4.99
In Stock
Gasket 72558
#21

Cabinet diagram

Gasket

Part #72558

$21.49
In Stock
Lower Receptacle 72141
#5

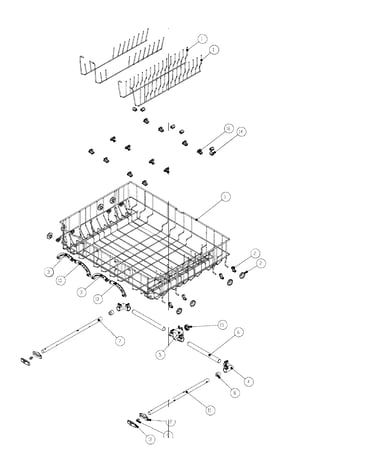

Lower rack diagram

Lower receptacle

Part #72141

$121.49
In Stock
Bracket 36769
#35

Base assy diagram

Bracket

Part #36769

$17.49
In Stock
Turbo Sensor 62715
#52

Pump assy diagram

Turbo sensor

Part #62715

$303.49
In Stock
Snap Clip 72086
#14

Lower rack diagram

Snap clip

Part #72086

This item is not returnable
$2.16
In Stock
Door Latch 72338
#8

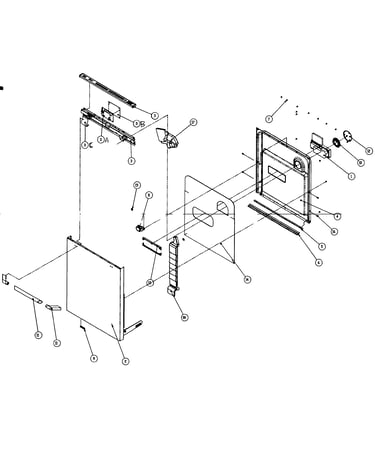

Door assy diagram

Door latch

Part #72338

$35.49
In Stock
