Model # 167410063 Official Sears swimming pool water filter

Here are the diagrams and repair parts for Official Sears 167410063 swimming pool water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Teflon Tape 089-6713

#NI

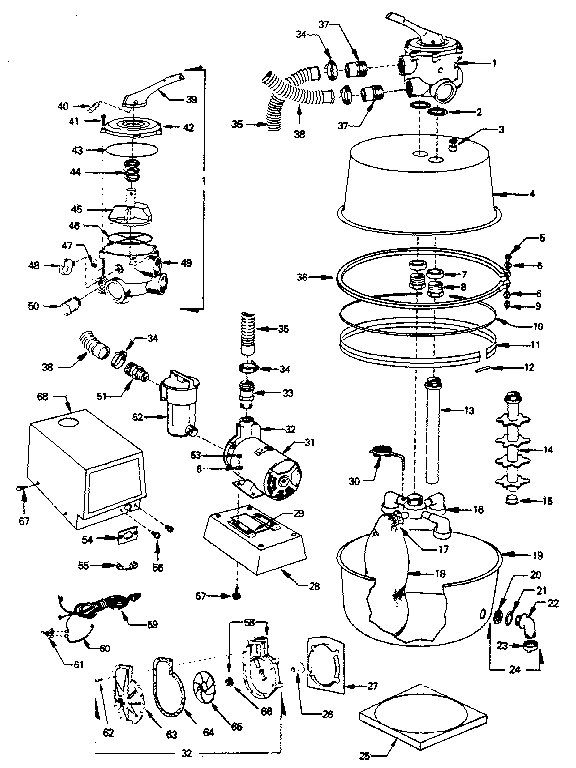

All parts diagram

Teflon tape

Part #089-6713

The manufacturer no longer makes this part, and there's no substitute part

Upr Dstrb Fn 04-1018
#16

Replacement parts diagram

Upr dstrb fn

Part #04-1018

The manufacturer no longer makes this part, and there's no substitute part

V-clamp 08-5027
#36

Replacement parts diagram

V-clamp

Part #08-5027

The manufacturer no longer makes this part, and there's no substitute part

Plate 205-9458
#54

Replacement parts diagram

Plate

Part #205-9458

The manufacturer no longer makes this part, and there's no substitute part

O-ring 037-3437
#10

Replacement parts diagram

O-ring

Part #037-3437

The manufacturer no longer makes this part, and there's no substitute part

Screw 054-3774
#56

Replacement parts diagram

Screw

Part #054-3774

The manufacturer no longer makes this part, and there's no substitute part

Filter Tank 205-9417
#19

Replacement parts diagram

Filter tank

Part #205-9417

The manufacturer no longer makes this part, and there's no substitute part

Fitting Nut 098-7016
#20

Replacement parts diagram

Fitting nut

Part #098-7016

The manufacturer no longer makes this part, and there's no substitute part

Pump Gasket 038-3435
#64

Replacement parts diagram

Pump gasket

Part #038-3435

The manufacturer no longer makes this part, and there's no substitute part

Air Relief 099-7071
#30

Replacement parts diagram

Air relief

Part #099-7071

The manufacturer no longer makes this part, and there's no substitute part
