Model # DSC-H20B Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-H20B digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

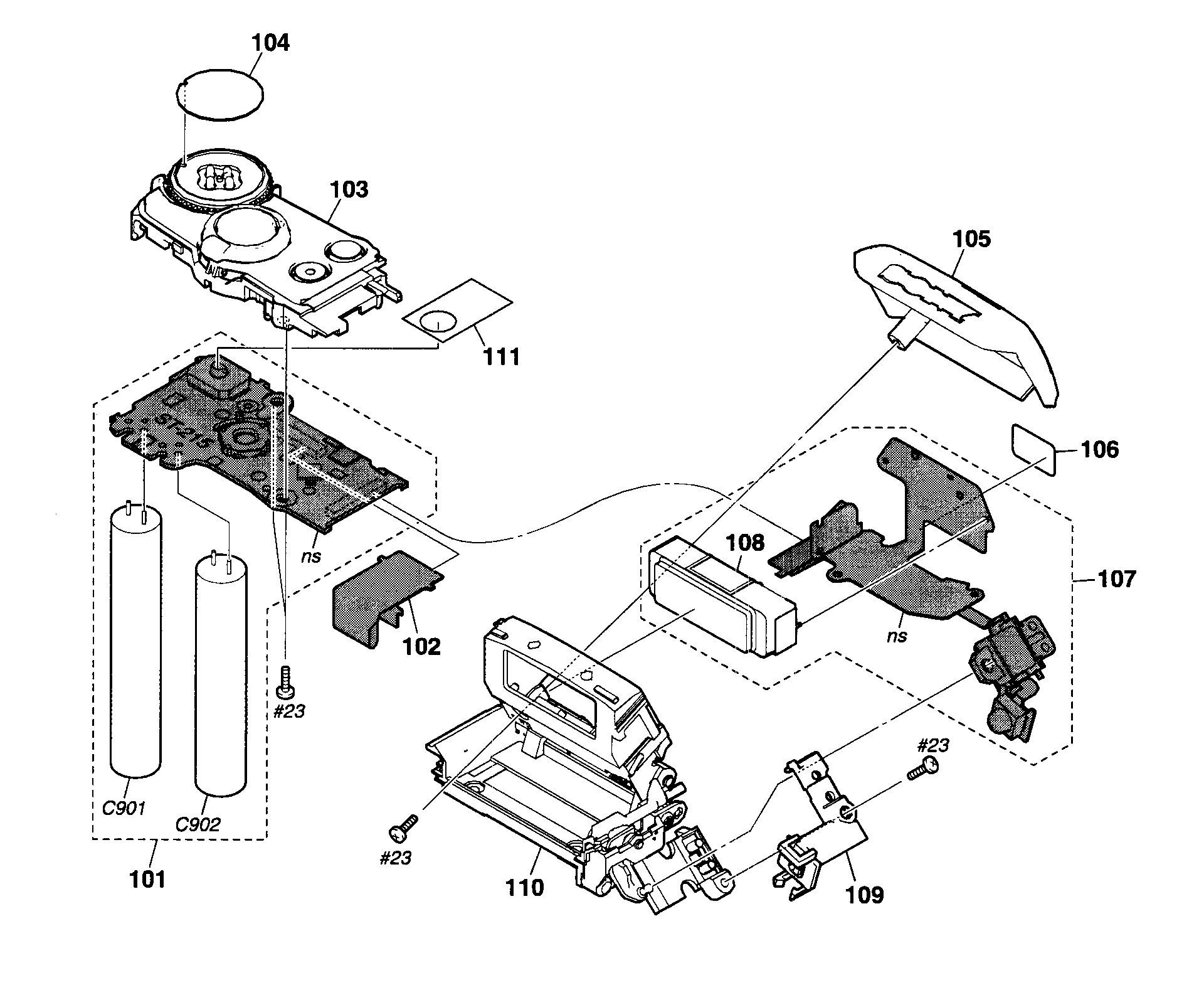

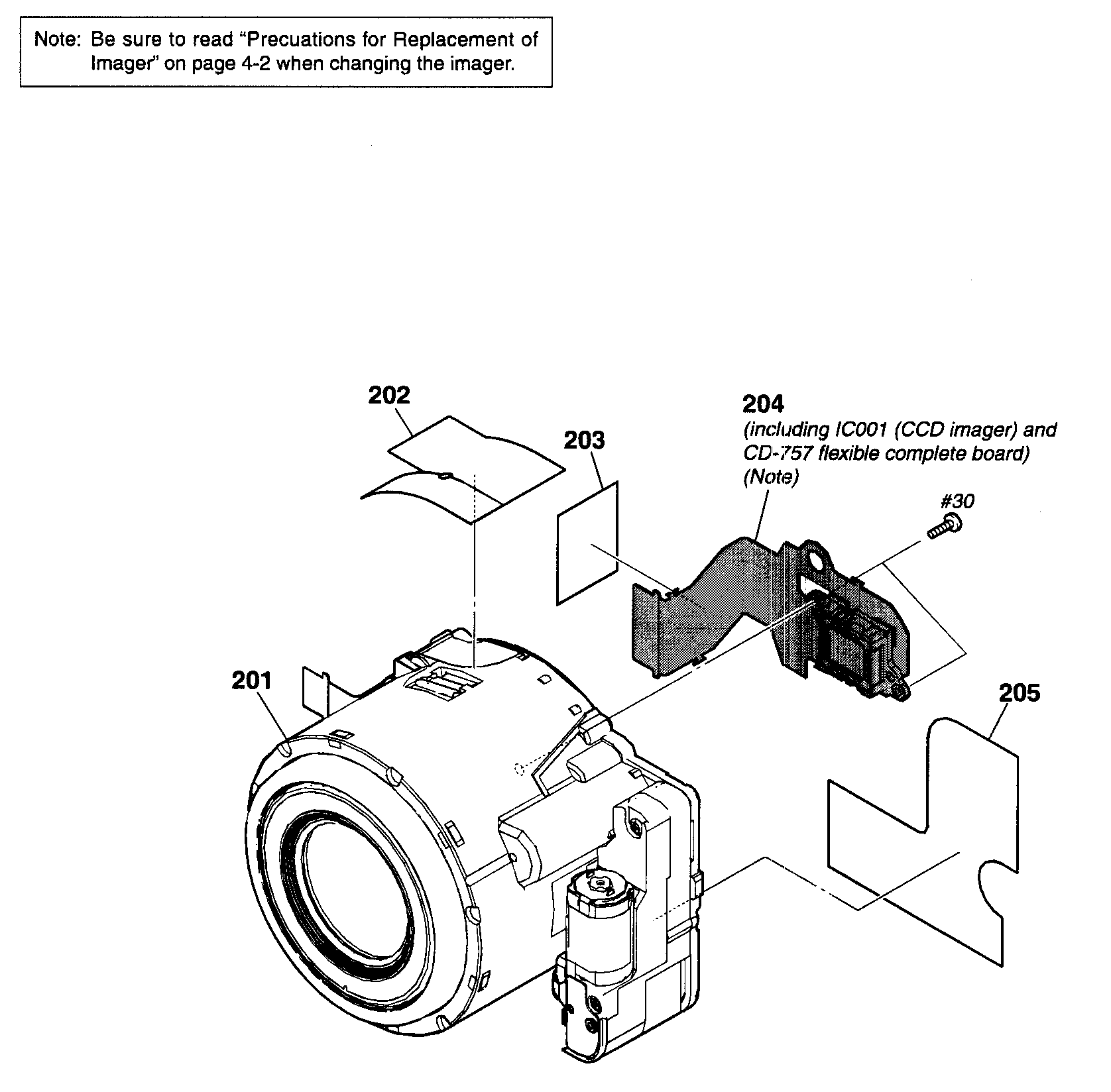

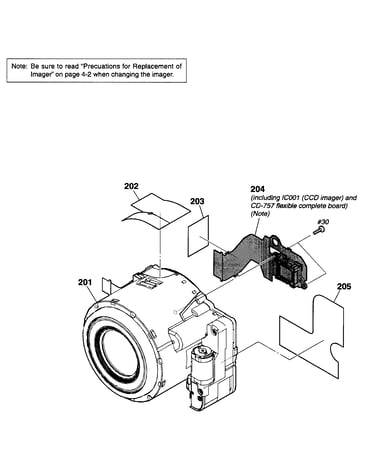

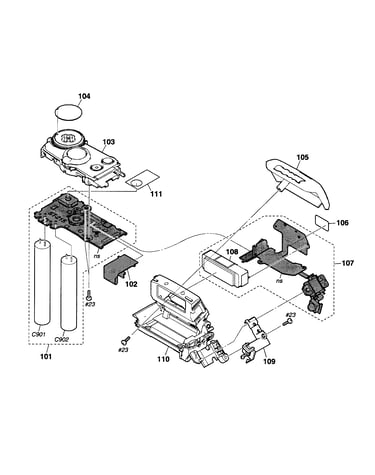

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Fuse 157684231
#NI

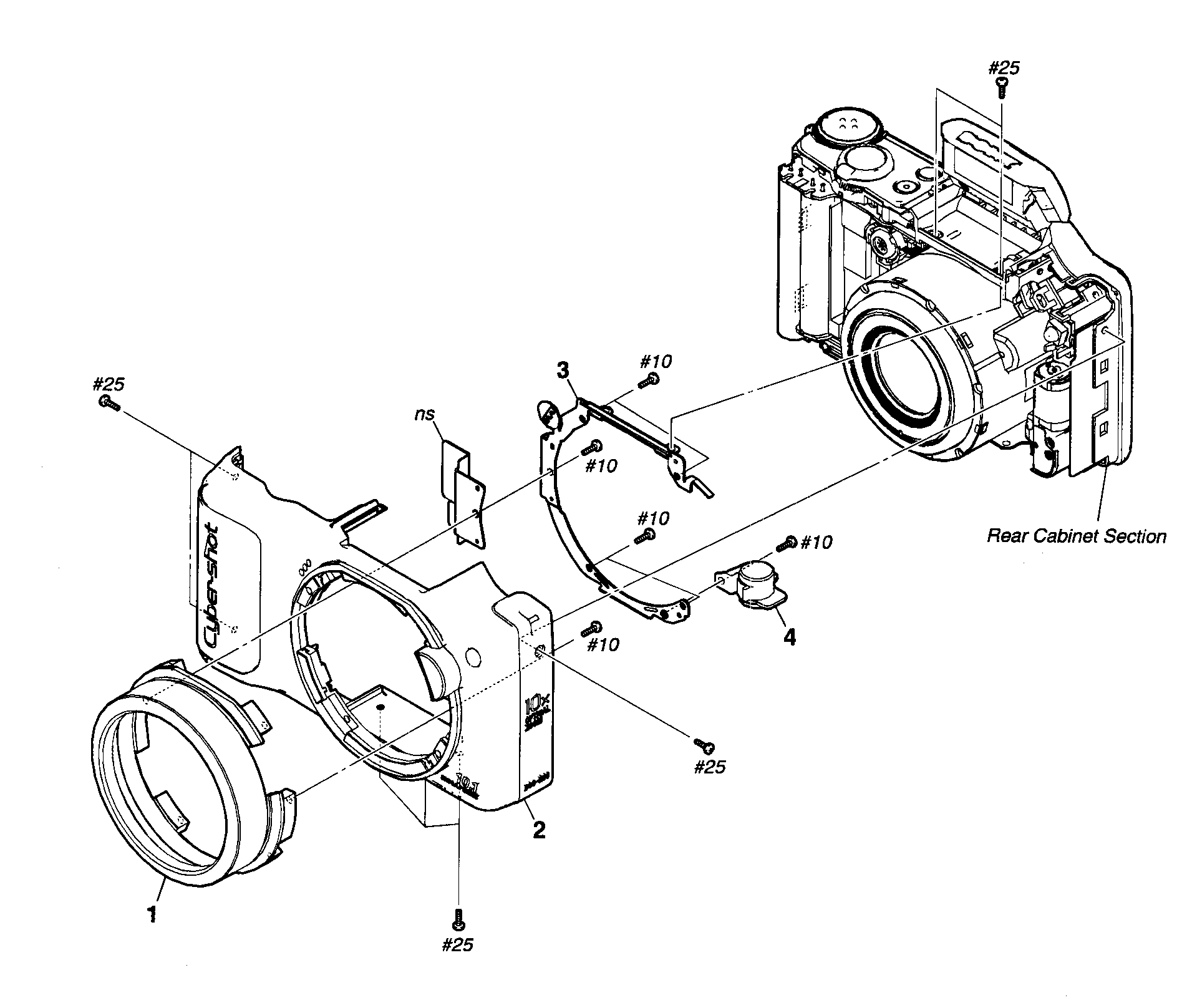

Front cabinet diagram

Fuse

Part #157684231

This item is not returnable
$2.30
In Stock
Sony Microphone 154272831
#9

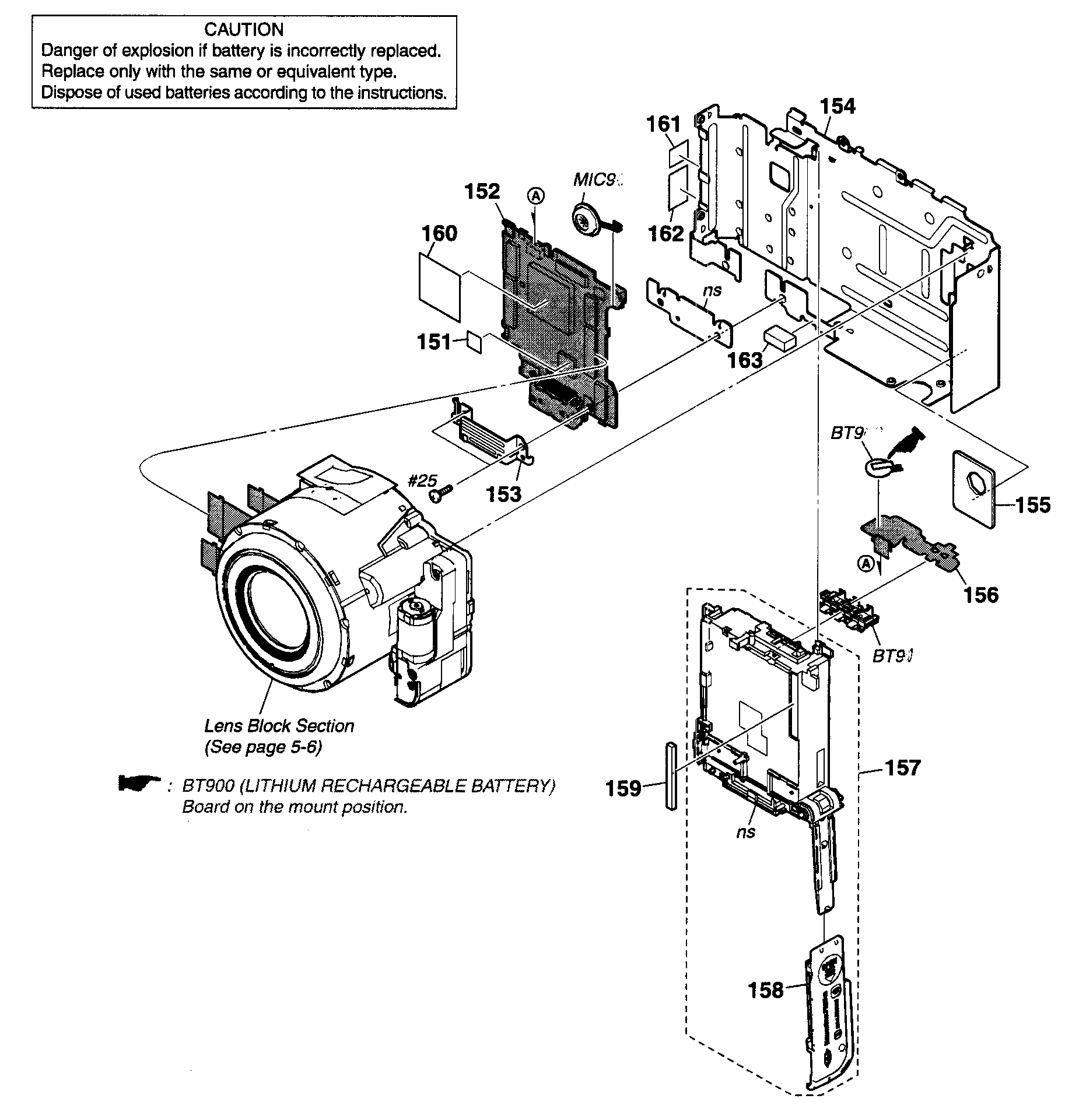

Maine section diagram

Sony microphone

Part #154272831

$13.87
In Stock
Adapter 156900812
#NI

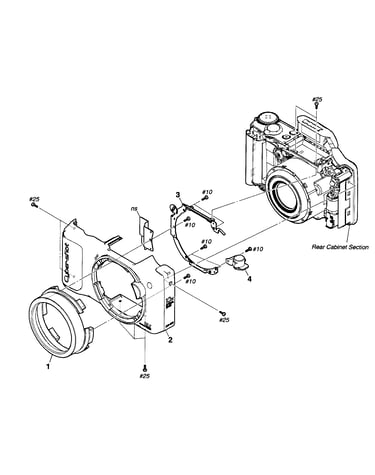

Front cabinet diagram

Adapter

Part #156900812

$15.95
In Stock
Terminal 178065111
#BT91

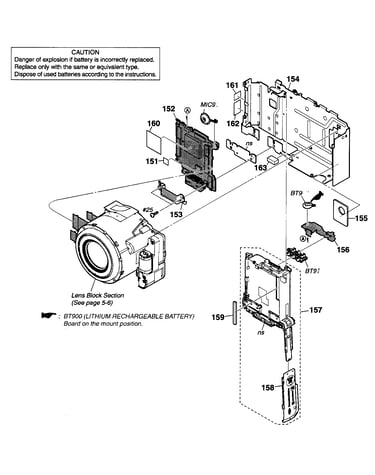

Maine section diagram

Terminal

Part #178065111

$10.31
In Stock
Sony Battery Case A1641431A
#NI

Front cabinet diagram

Sony battery case

Part #A1641431A

$146.17
In Stock
Sony Bt-051 Pcb 187813211
#156

Maine section diagram

Sony bt-051 pcb

Part #187813211

$10.01
In Stock
Sony Lid 414317601
#56

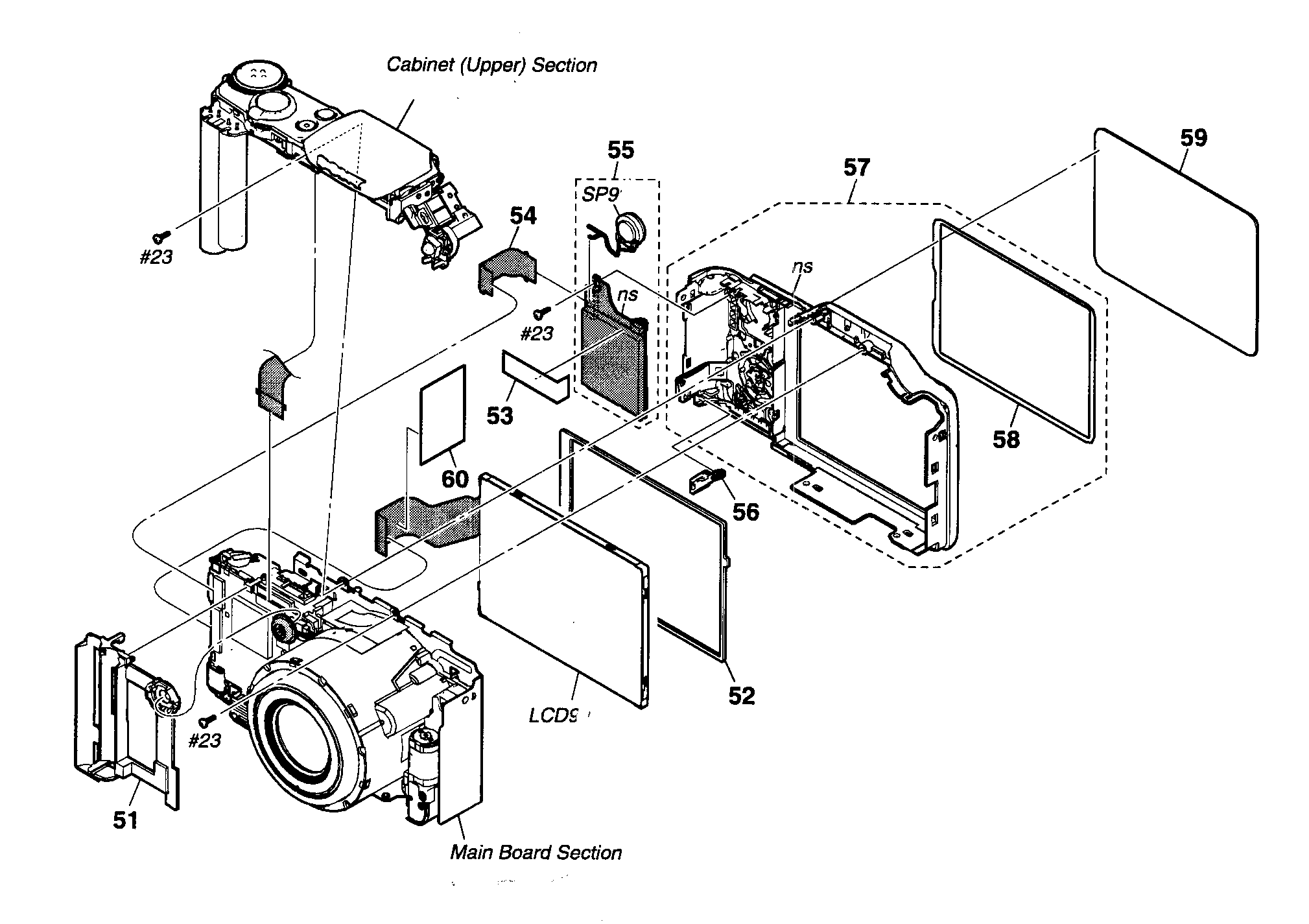

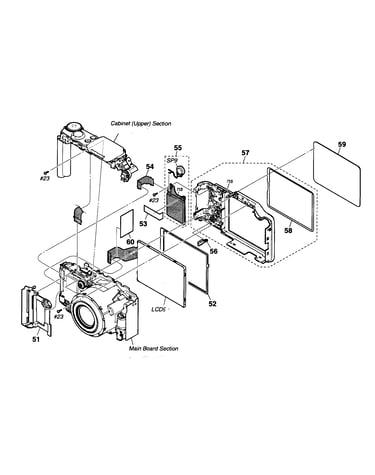

Rear cabinet diagram

Sony lid

Part #414317601

This item is not returnable
$6.49
In Stock
Integrated Circuit 680757201
#NI

Front cabinet diagram

Integrated circuit

Part #680757201

$19.71
In Stock
Sony Sy-224 Pcb A1716917A
#152

Maine section diagram

Sony sy-224 pcb

Part #A1716917A

$192.34
In Stock
Integrated Circuit 670846201
#NI

Front cabinet diagram

Integrated circuit

Part #670846201

$8.74
In Stock
