Space Heater

Model # 583356031 Official Kenmore portable heater

Here are the diagrams and repair parts for Official Kenmore 583356031 portable heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Remington Space Heater Pump Rotor Insert M22009
#10D

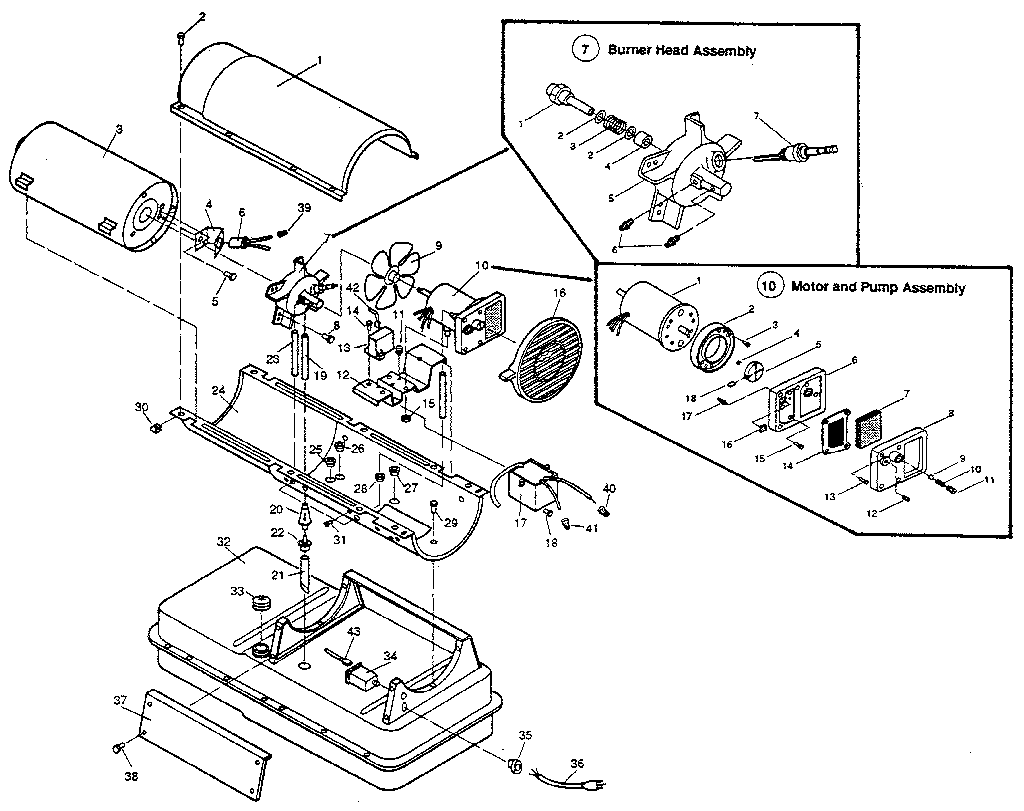

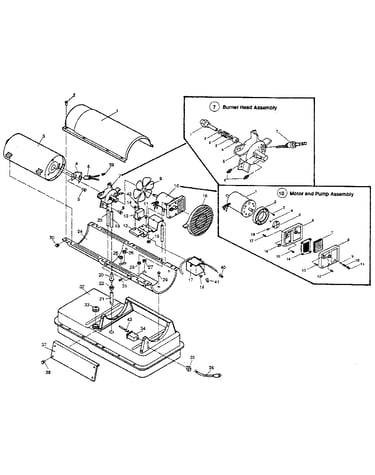

Functional replacement parts diagram

Remington space heater pump rotor insert

Part #M22009

The manufacturer no longer makes this part, and there's no substitute part

Reddy Space Heater Pump Rotor Blade M8643
#10R

Functional replacement parts diagram

Reddy space heater pump rotor blade

Part #M8643

The manufacturer no longer makes this part, and there's no substitute part

Remington Space Heater Pump Hole Plug M22997
#10L

Functional replacement parts diagram

Remington space heater pump hole plug

Part #M22997

The manufacturer no longer makes this part, and there's no substitute part

Heater Fuel Filter M51150-01
#20

Functional replacement parts diagram

Heater fuel filter

Part #M51150-01

The manufacturer no longer makes this part, and there's no substitute part

Wheel M19294
#5

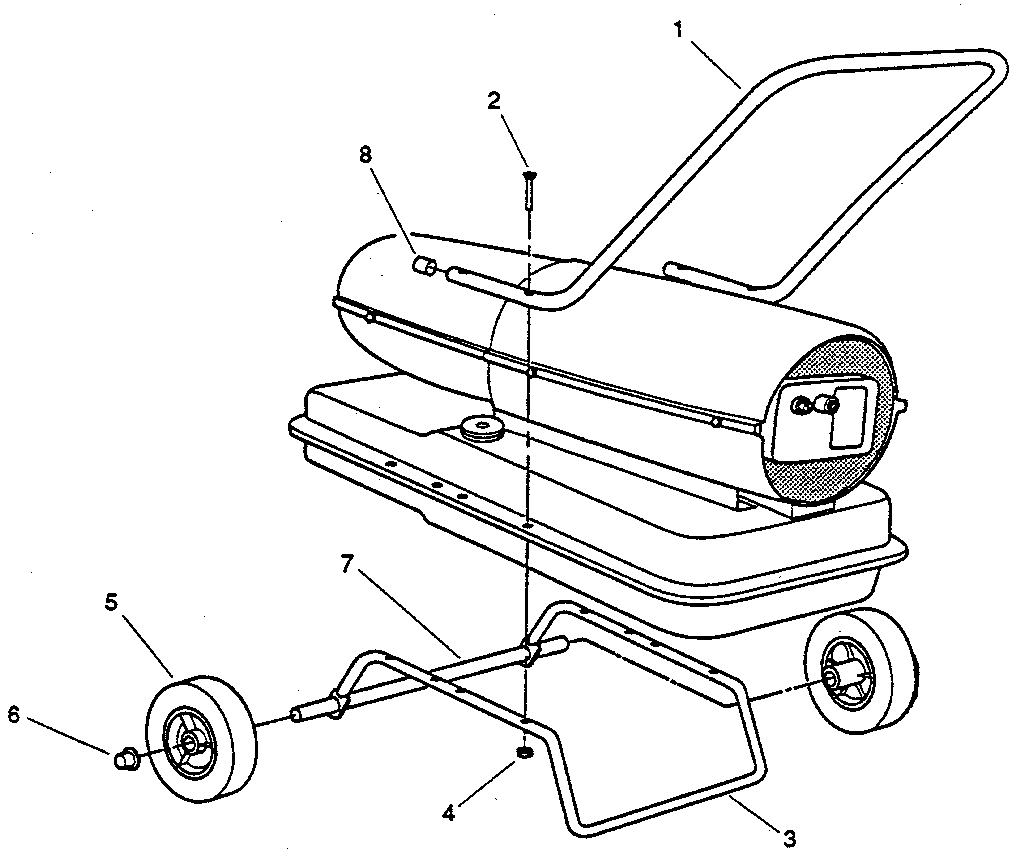

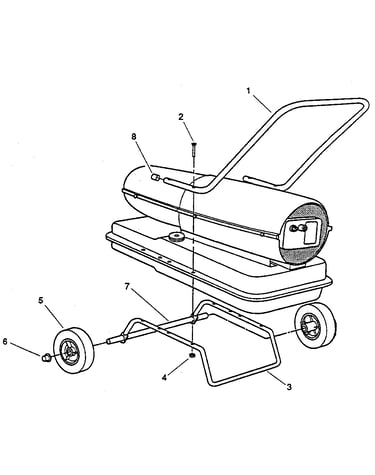

Non-functional replacement parts diagram

Wheel

Part #M19294

The manufacturer no longer makes this part, and there's no substitute part

Support M12342-3
#3

Non-functional replacement parts diagram

Support

Part #M12342-3

The manufacturer no longer makes this part, and there's no substitute part

Washer Nozzle M10659-1
#7B

Functional replacement parts diagram

Washer nozzle

Part #M10659-1

The manufacturer no longer makes this part, and there's no substitute part

Spring M10993-1
#10J

Functional replacement parts diagram

Spring

Part #M10993-1

The manufacturer no longer makes this part, and there's no substitute part

Com Cham Kt 098512-07
#3

Functional replacement parts diagram

Com cham kt

Part #098512-07

The manufacturer no longer makes this part, and there's no substitute part

Bushing M30865-02
Bushing

Part #M30865-02

The manufacturer no longer makes this part, and there's no substitute part
