Electrolux
Bottom-Mount Refrigerator

Model # EI23BC56IS0 Official Electrolux refrigerator

Here are the diagrams and repair parts for Official Electrolux EI23BC56IS0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

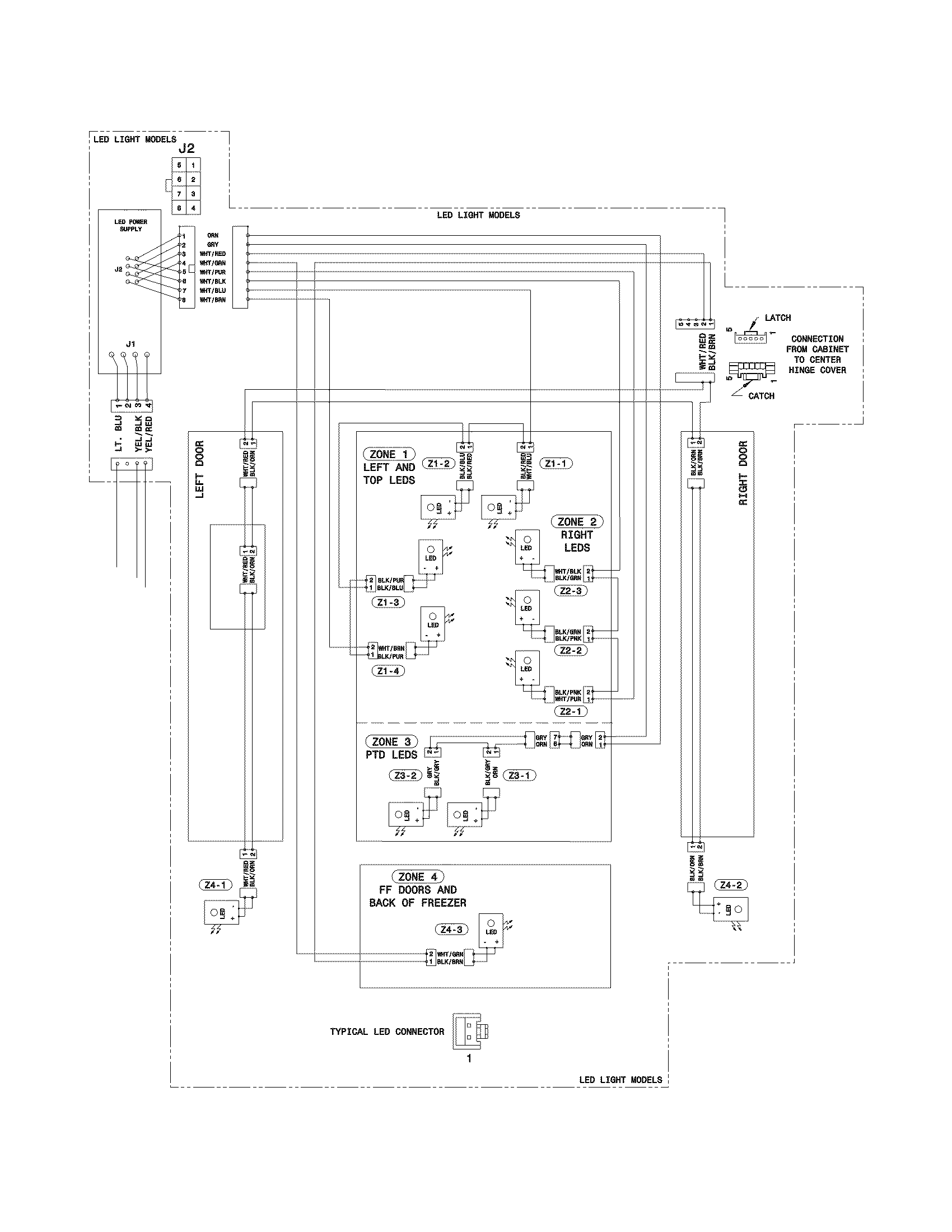

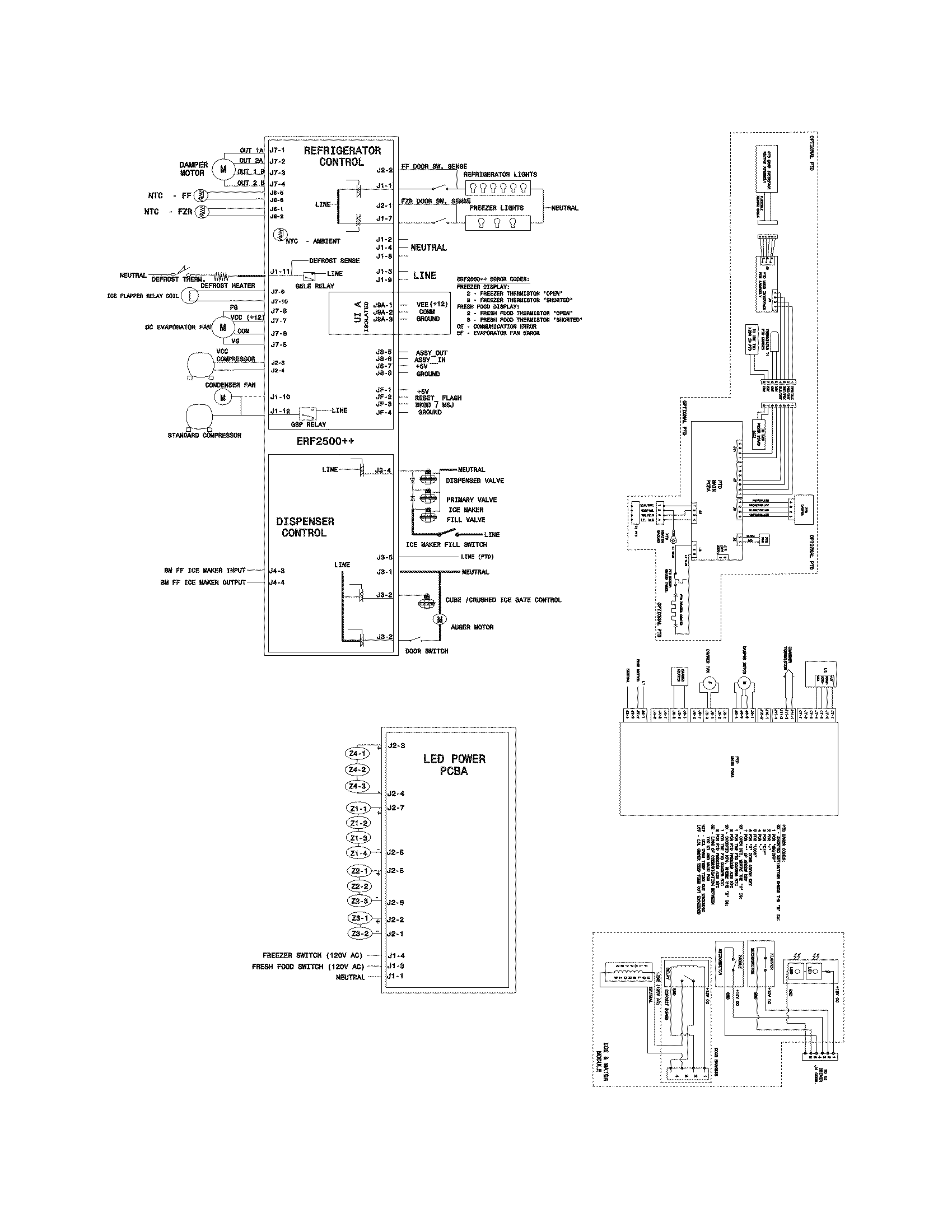

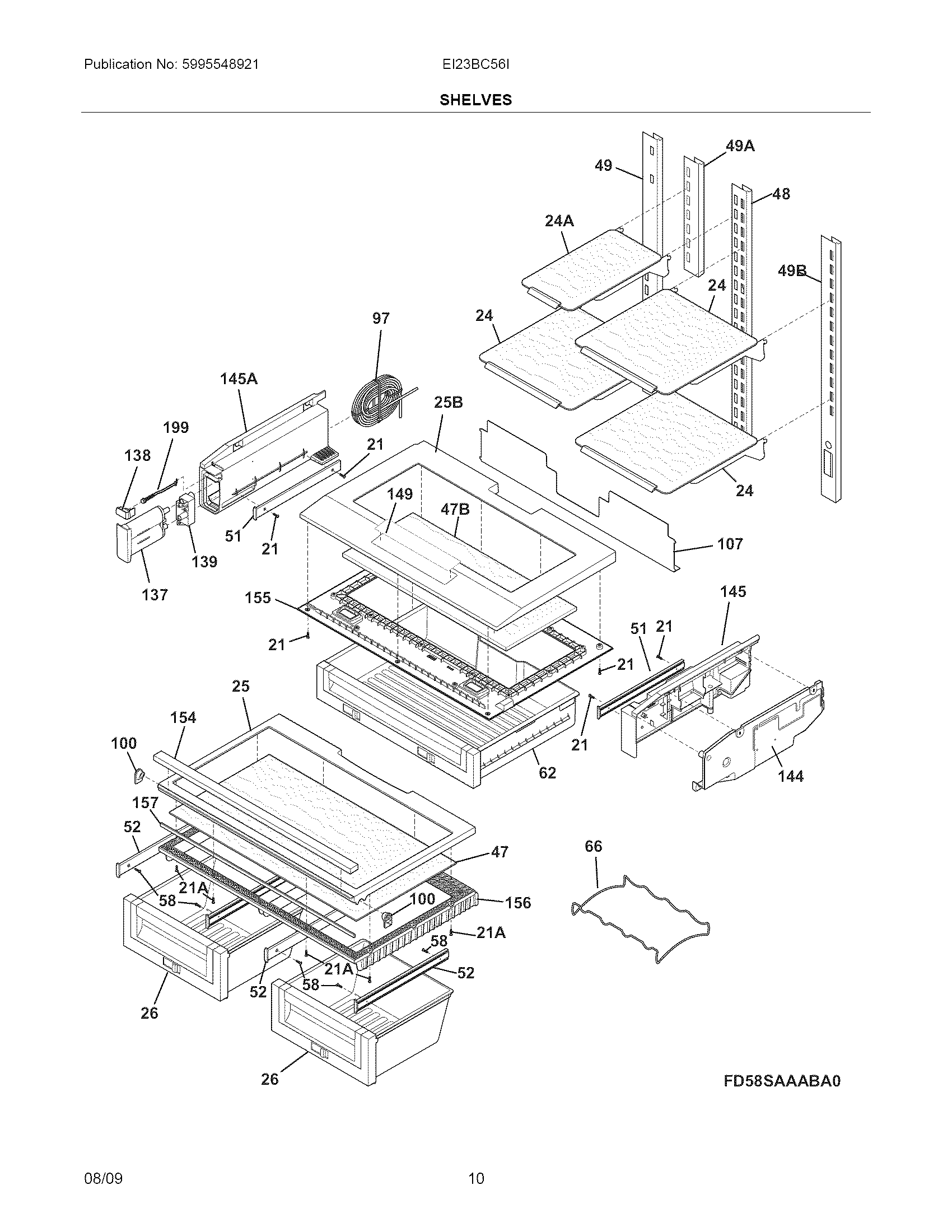

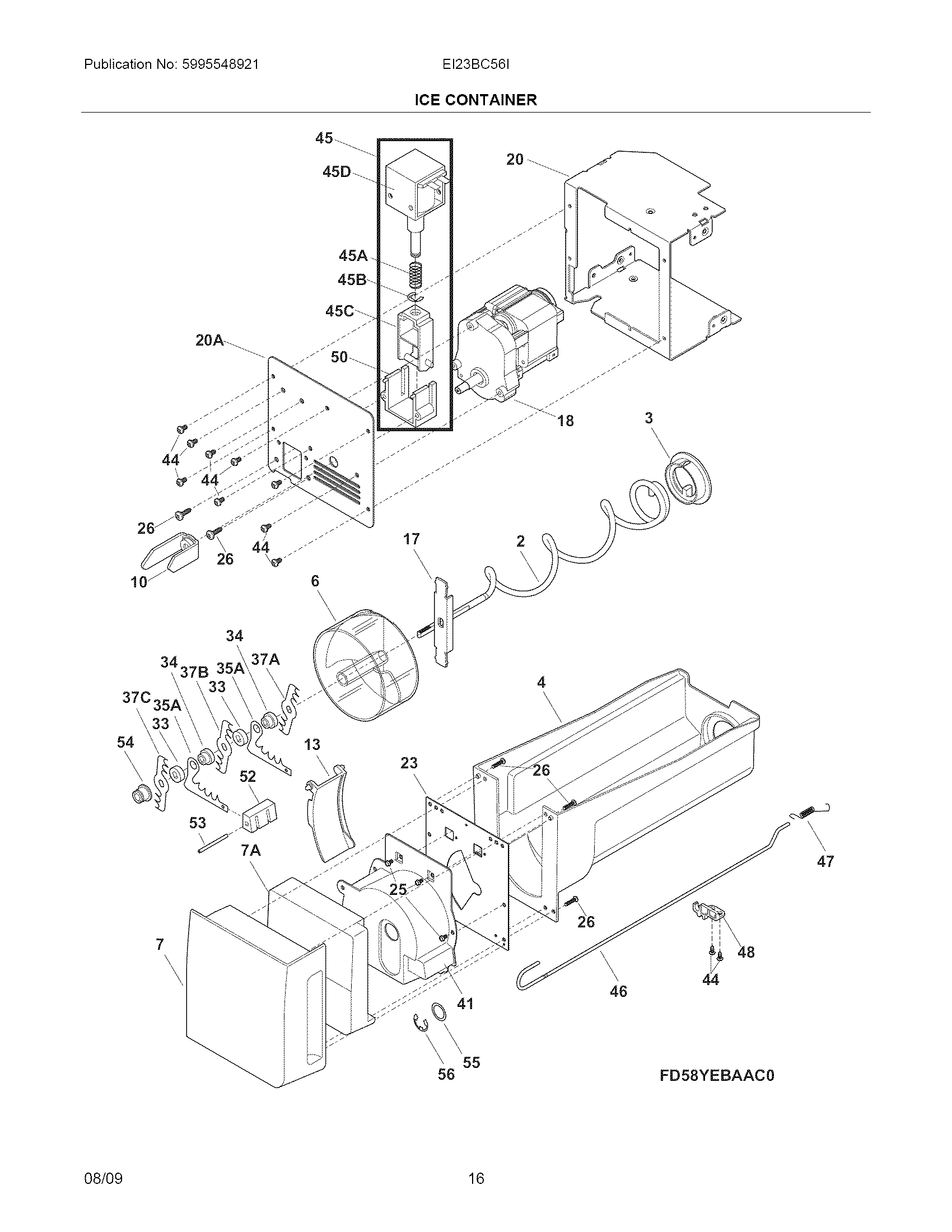

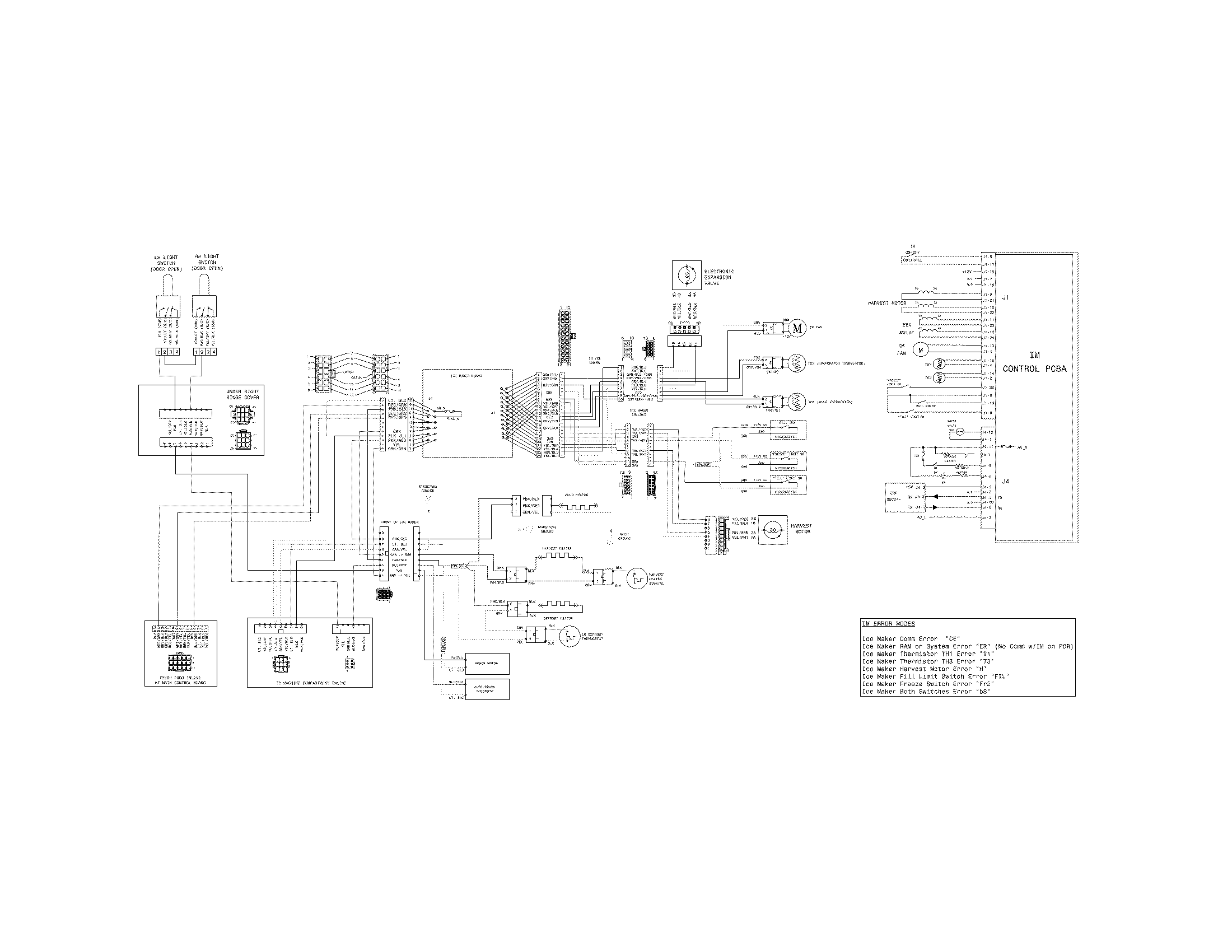

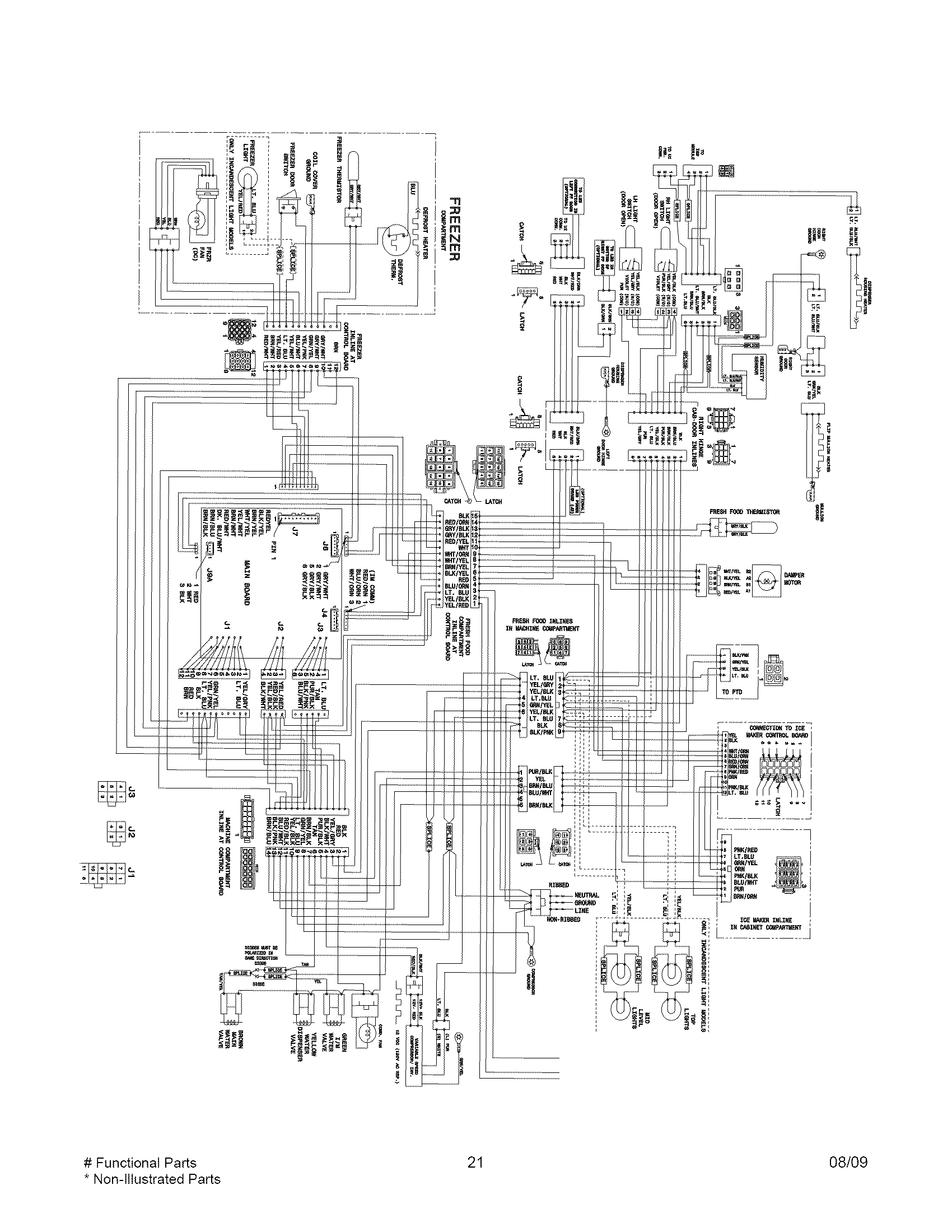

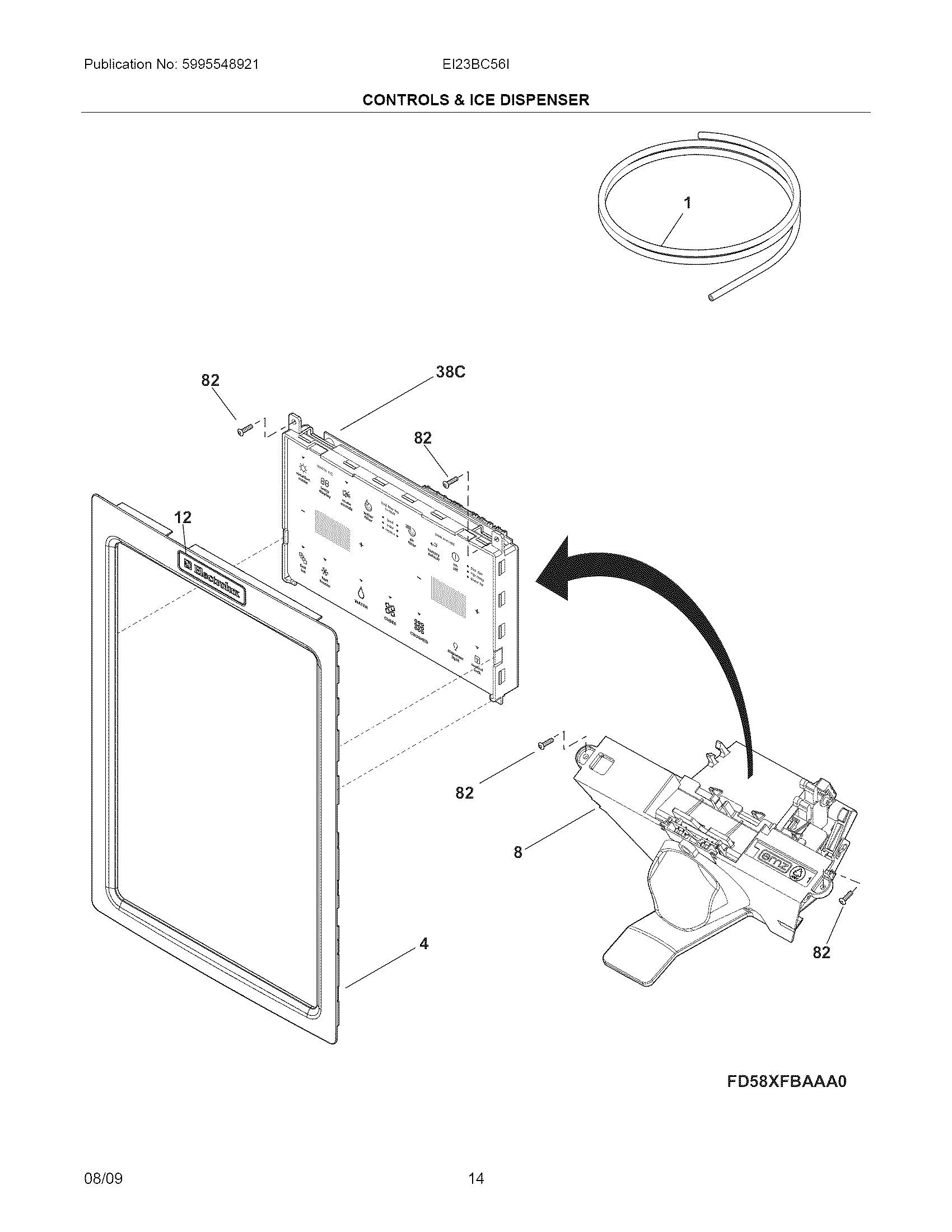

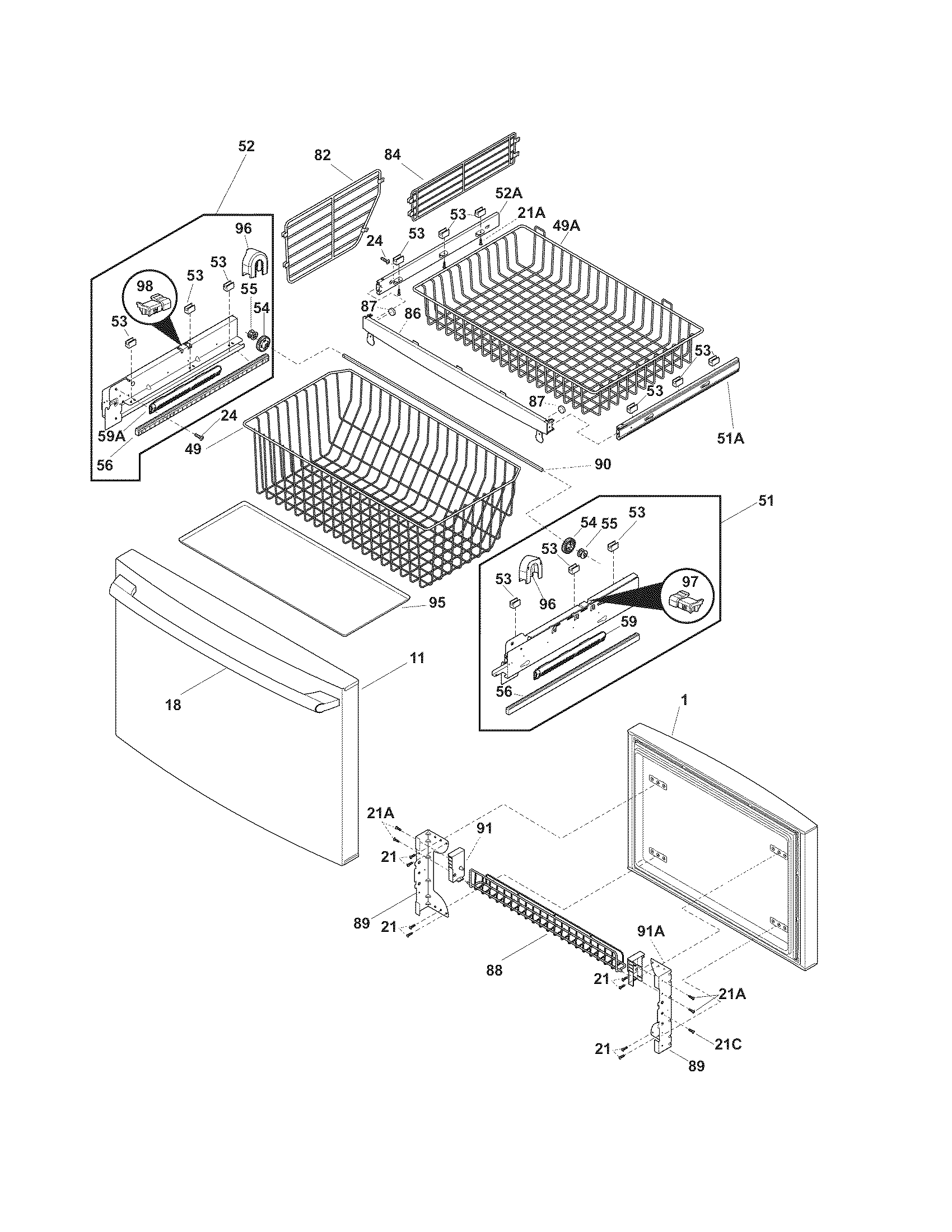

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 368 parts  |
Air Filter 7241754001
#95

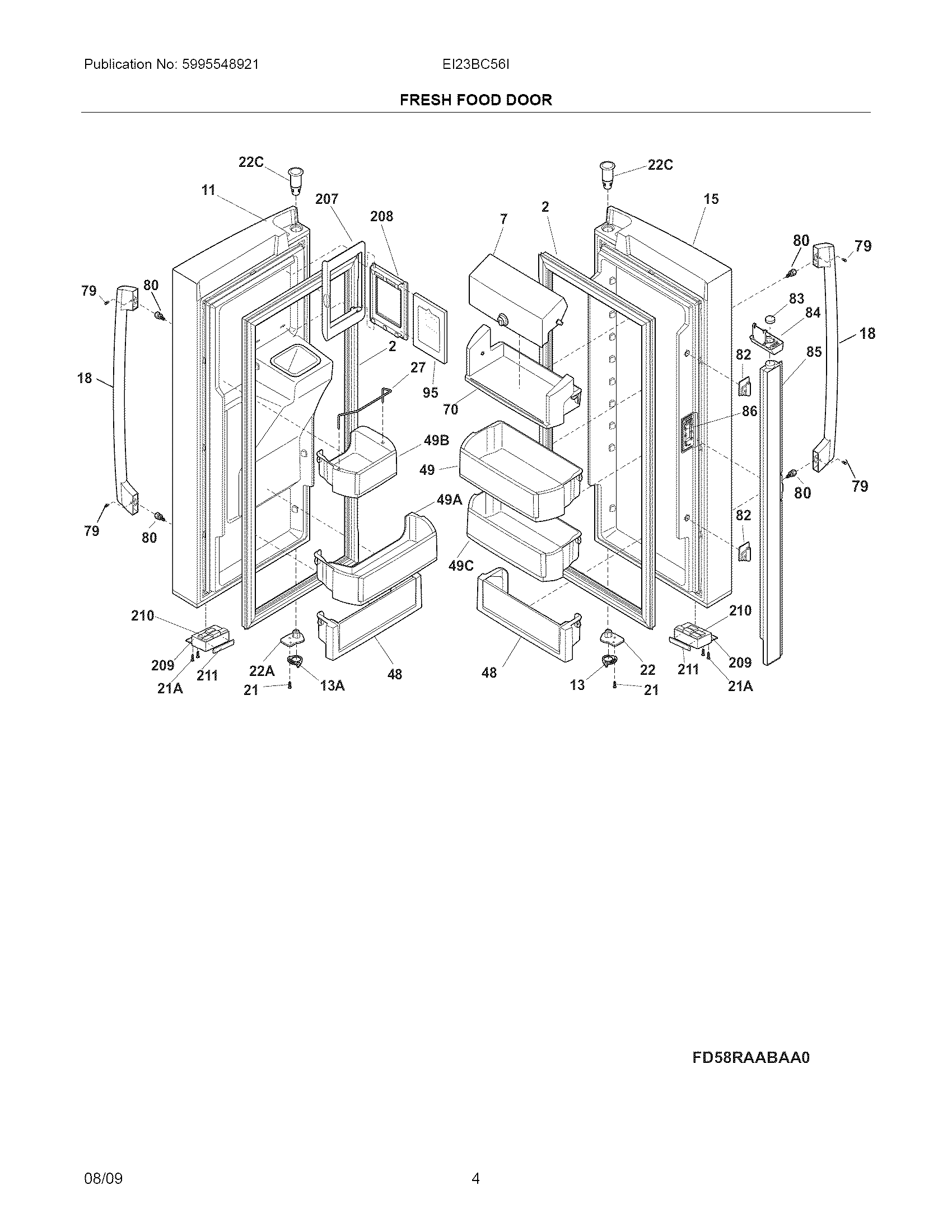

Fresh food door diagram

Air filter

Part #7241754001

Replaced by #EAFCBF

?
Manufacturer substitution
This part replaces 7241754001. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$27.39 |
18% OFF Phone Price : $33.39
In Stock
Drier-dye 7241863101
#4

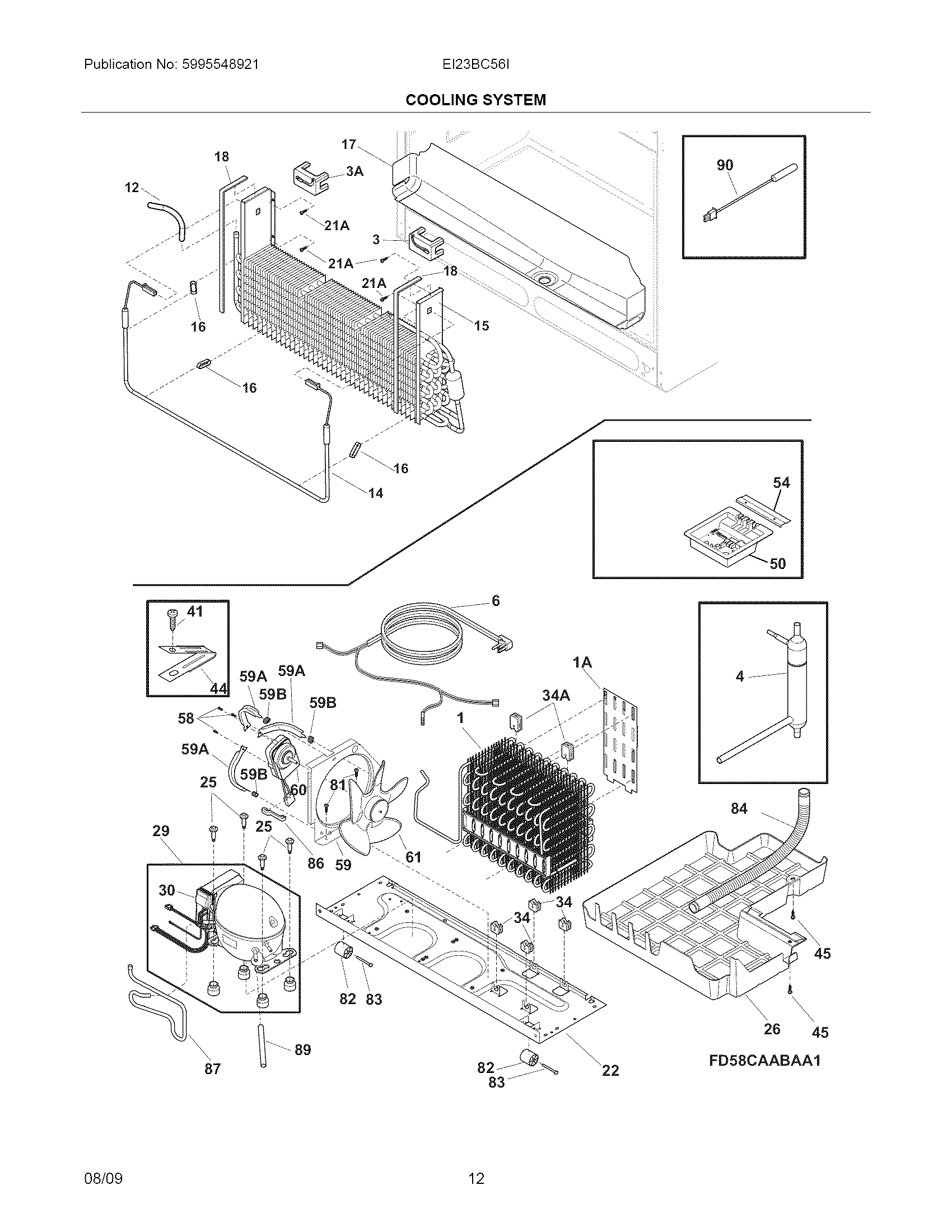

Cooling system diagram

Drier-dye

Part #7241863101

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 7241863101. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Solenoid 7241734301
#55

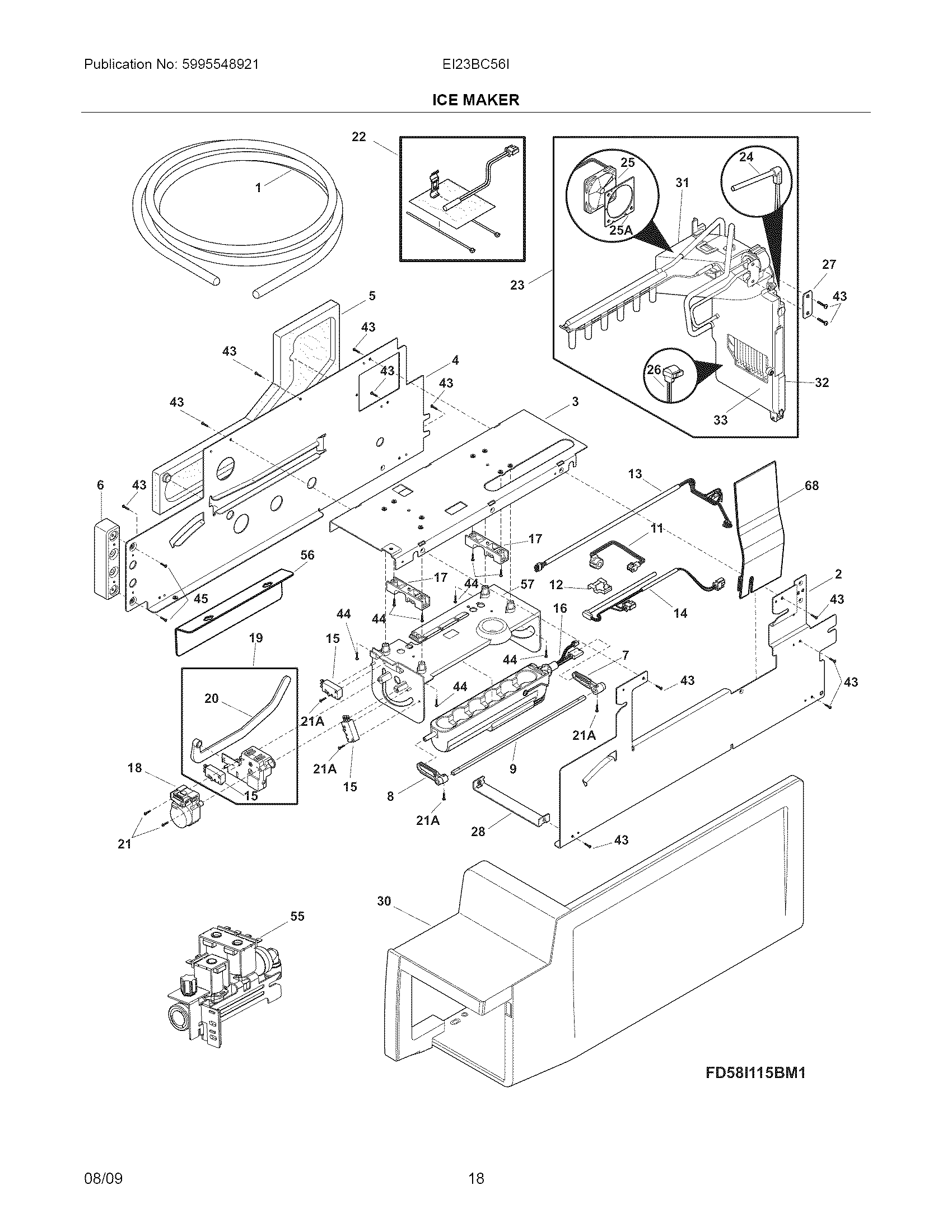

Ice maker diagram

Refrigerator solenoid

Part #7241734301

Replaced by #242252702

?
Manufacturer substitution
This part replaces 7241734301. Substitute parts can look different from the original.
BEST SELLER
$76.44 |
7% OFF Phone Price : $82.44
In Stock
Refrigerator Blade 75308000010
#5

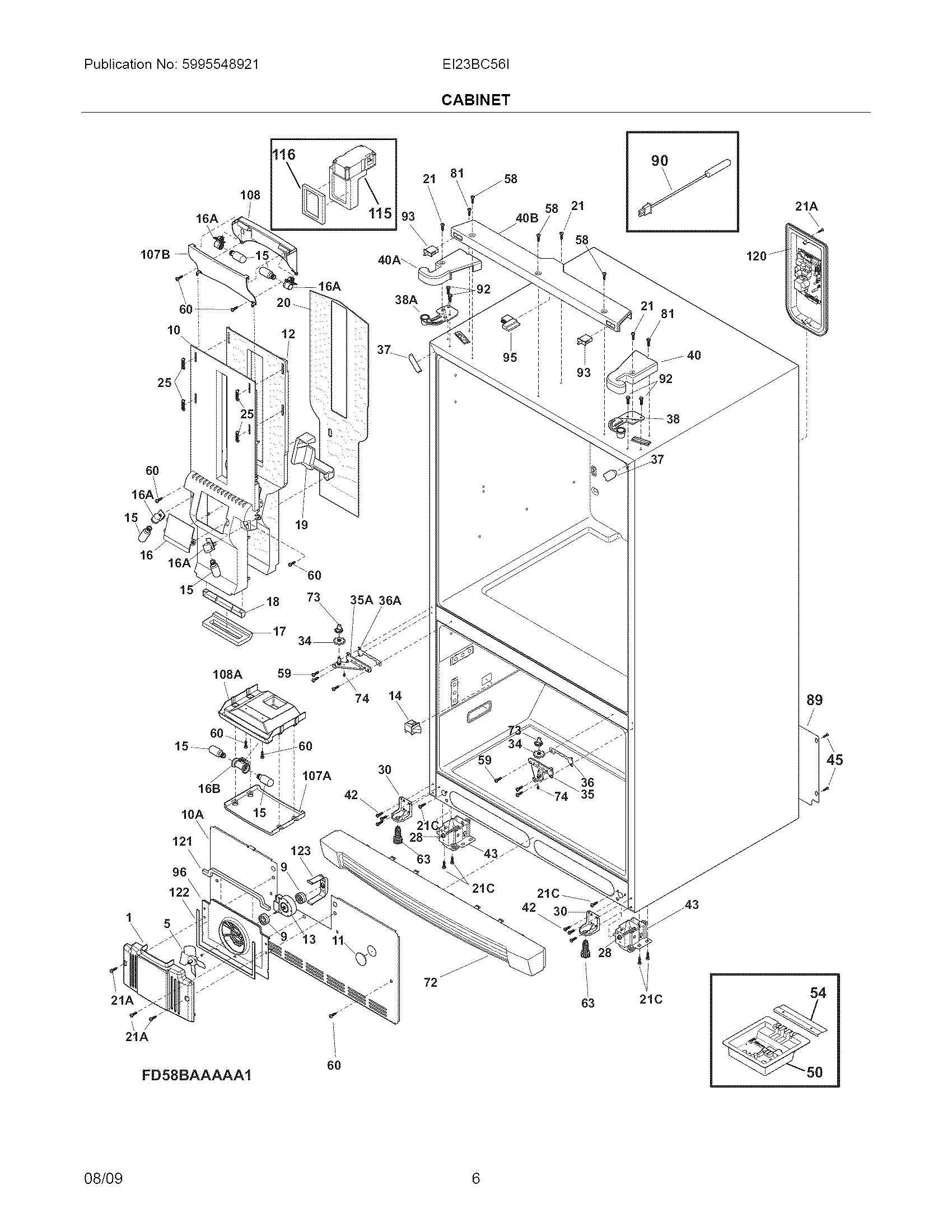

Cabinet diagram
