Model # JHP70GN5AD Official GE 30" electric range/microwave combo

Here are the diagrams and repair parts for Official GE JHP70GN5AD 30" electric range/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 309 parts  |
Diode WB27X5333

#1439

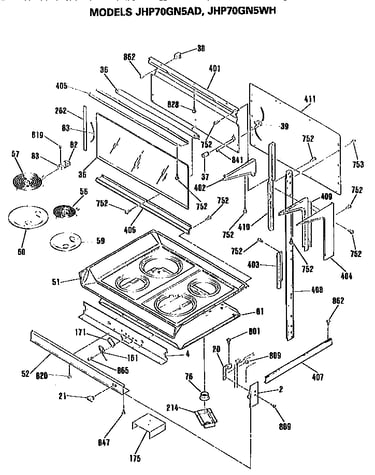

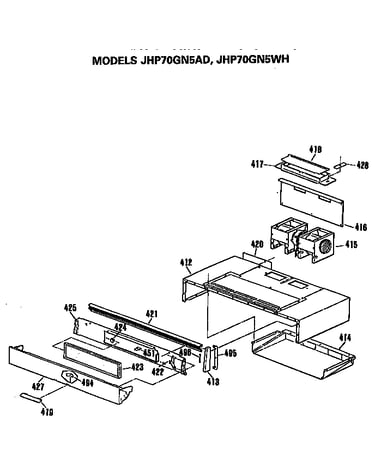

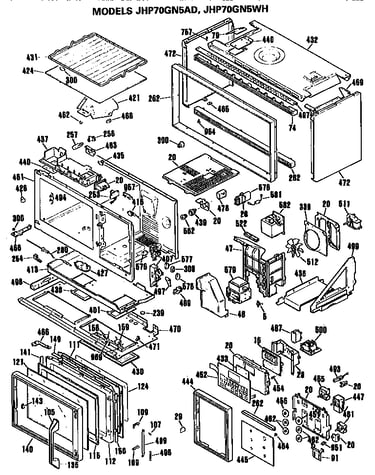

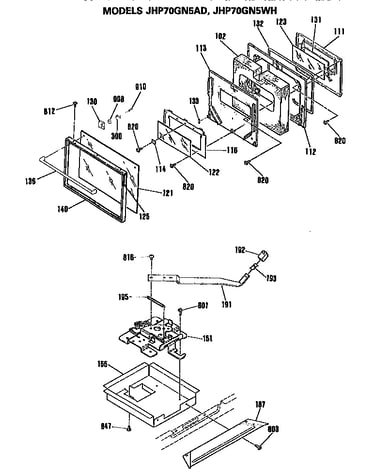

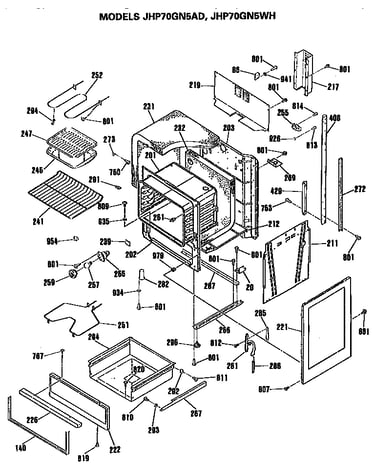

All parts diagram

Diode

Part #WB27X5333

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X5333. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Range Bake Element (replaces 325883, 340521, 8029, Wb44k5012e) WB44K5012

#251

All parts diagram

Range bake element (replaces 325883, 340521, 8029, wb44k5012e)

Part #WB44K5012

BEST SELLER
$44.59 |
12% OFF Phone Price : $50.59
In Stock
Terminal Block Assembly WB17K5017

#82

All parts diagram

Terminal block assembly

Part #WB17K5017

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces WB17K5017. Substitute parts can look different from the original.
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Magnetron WB27X5410

#769

All parts diagram

Magnetron

Part #WB27X5410

The manufacturer no longer makes this part, and there's no substitute part

Range Burner Control Switch WB21X5219

#3

All parts diagram

Range burner control switch

Part #WB21X5219

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB21X5219. Substitute parts can look different from the original.
BEST SELLER
$44.00 |
12% OFF Phone Price : $50.00
In Stock
Range Broil Element Support (replaces Wb02k9719, Wb02x9719, Wb2x9438, Wb2x9576) WB2X9719

#294

All parts diagram

Range broil element support (replaces wb02k9719, wb02x9719, wb2x9438, wb2x9576)

Part #WB2X9719

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
8" Surf Elem WB30M0002

#57

All parts diagram

8" surf elem

Part #WB30M0002

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30M0002. Substitute parts can look different from the original.
BEST SELLER
$46.48 |
11% OFF Phone Price : $52.48
In Stock
Screw-10-32 WB1X1253

#810

All parts diagram

Screw-10-32

Part #WB1X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB1X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB1K5053

#906

All parts diagram

Screw

Part #WB1K5053

Replaced by #WB1K5119

?
Manufacturer substitution
This part replaces WB1K5053. Substitute parts can look different from the original.
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Oven Door Gasket WB2K5221

#132

All parts diagram

Oven door gasket

Part #WB2K5221

Replaced by #WB2K5319

?
Manufacturer substitution
This part replaces WB2K5221. Substitute parts can look different from the original.
$109.34 |
10% OFF Phone Price : $121.34
In Stock
