Model # FT V88 Official Sanyo car stereo player

Here are the diagrams and repair parts for Official Sanyo FT-V88 car stereo player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Mechan Assy R-S872749
#43

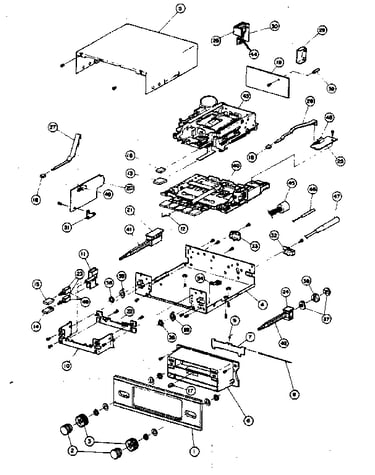

Cabinet & chassis diagram

Mechan assy

Part #R-S872749

The manufacturer no longer makes this part, and there's no substitute part

Tuner Assembly R-S872795
#40

Cabinet & chassis diagram

Tuner assembly

Part #R-S872795

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb R-A77672
#19

Cabinet & chassis diagram

Main pcb

Part #R-A77672

The manufacturer no longer makes this part, and there's no substitute part

Pcb Amss R-A77673
#20

Cabinet & chassis diagram

Pcb amss

Part #R-A77673

The manufacturer no longer makes this part, and there's no substitute part

Shaft R-1571013
#119

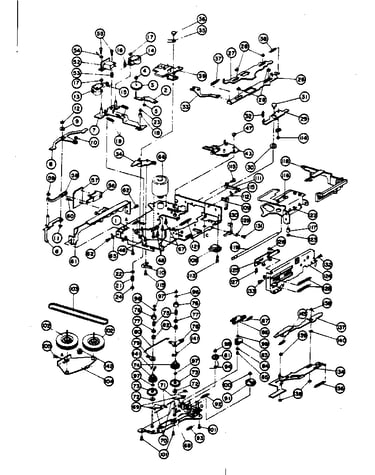

Cassette mechanism diagram

Shaft

Part #R-1571013

The manufacturer no longer makes this part, and there's no substitute part

Reverse Levr R-1272978
#26

Cassette mechanism diagram

Reverse levr

Part #R-1272978

The manufacturer no longer makes this part, and there's no substitute part

Spring R-1570397
#127

Cassette mechanism diagram

Spring

Part #R-1570397

The manufacturer no longer makes this part, and there's no substitute part

Torque Metal R-1272988A
#69

Cassette mechanism diagram

Torque metal

Part #R-1272988A

The manufacturer no longer makes this part, and there's no substitute part

Nose Panel R-A77671
#6

Cabinet & chassis diagram

Nose panel

Part #R-A77671

The manufacturer no longer makes this part, and there's no substitute part

Leaf Switch R-S47490
#110

Cassette mechanism diagram

Leaf switch

Part #R-S47490

The manufacturer no longer makes this part, and there's no substitute part
