Model # FA9101 Official Speed Queen washer

Here are the diagrams and repair parts for Official Speed Queen FA9101 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

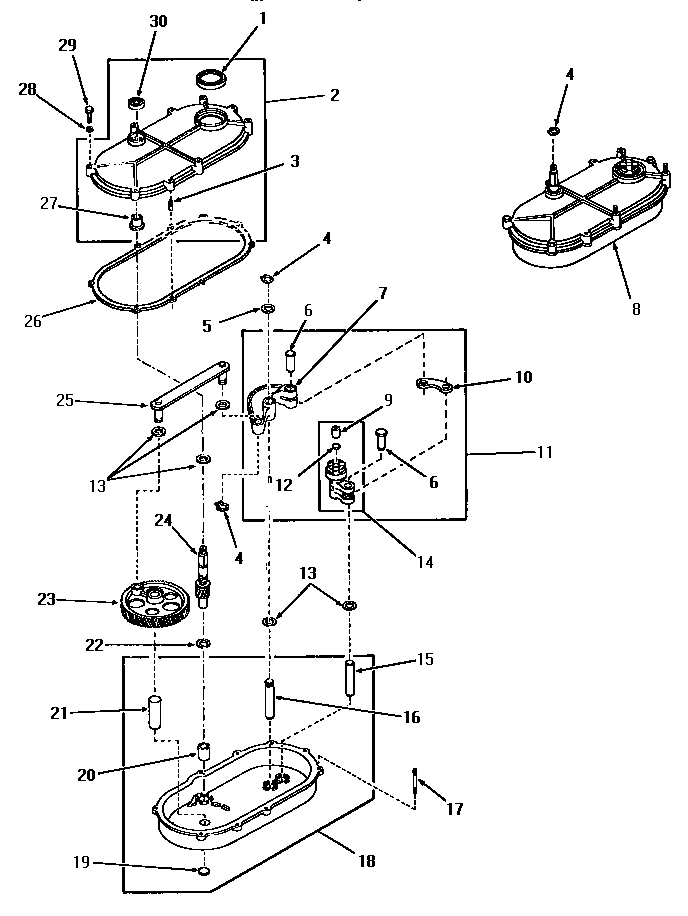

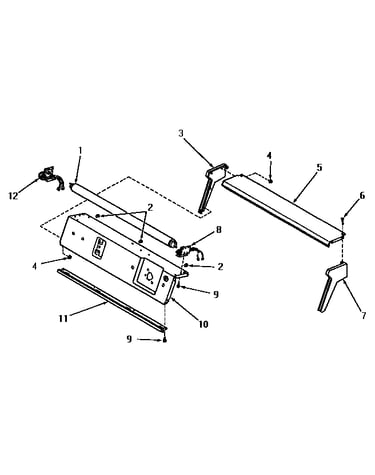

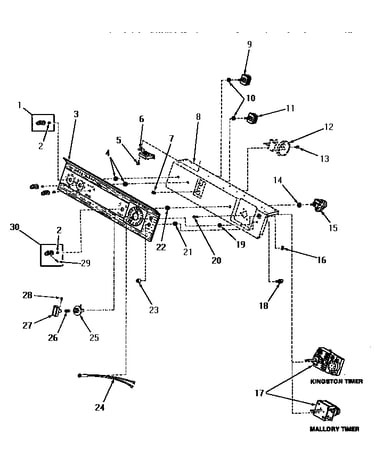

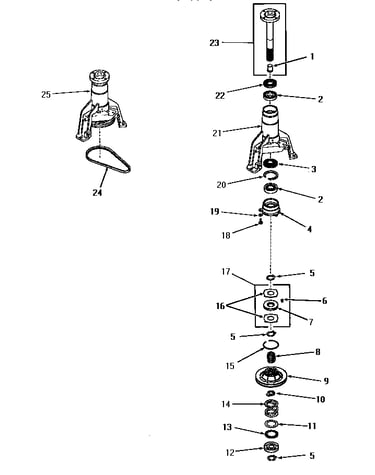

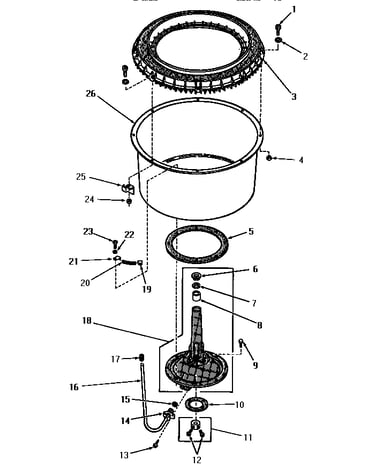

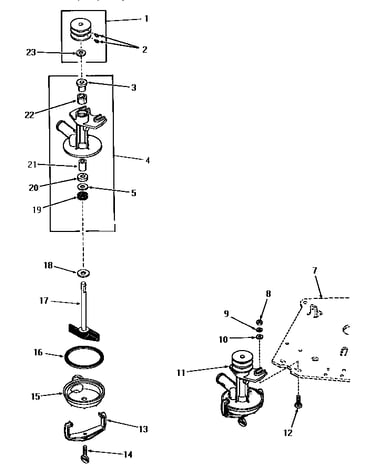

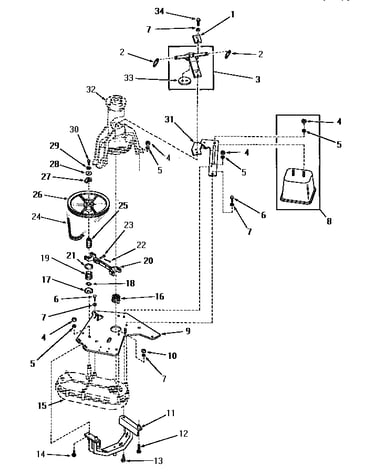

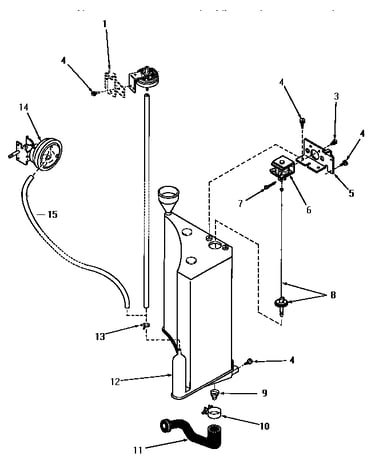

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 397 parts  |
Hose Clamp 22294
Hose clamp

Part #22294

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 22294. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 52150
Screw

Part #52150

Replaced by #WP489464

?
Manufacturer substitution
This part replaces 52150. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock

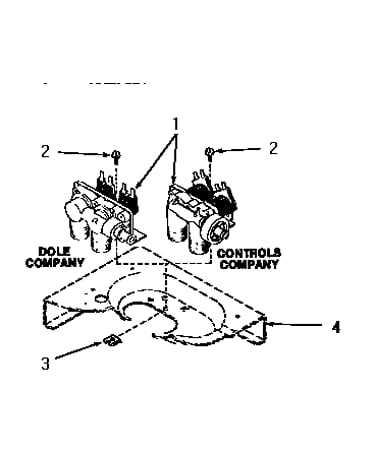

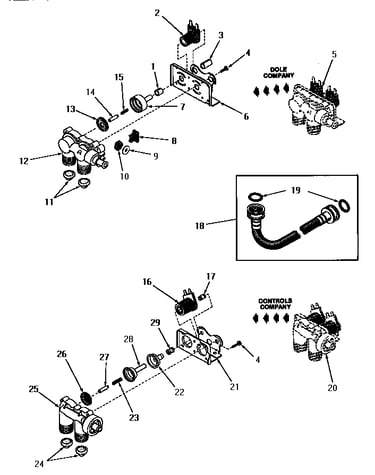

Speed Queen Screen Mixing Valve 24122
Speed queen screen mixing valve

Part #24122

$10.71
In Stock
Washer 20279
#8

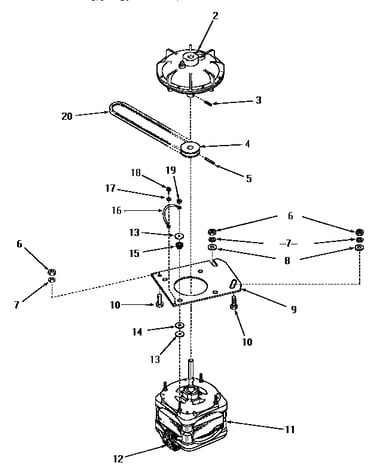

Motor, fluid drive and pump belt diagram

Washer

Part #20279

This item is not returnable
$3.23
In Stock
Kenmore Screw 20267
#2

Power cord, wire and terminals diagram

Kenmore screw

Part #20267

This item is not returnable
$3.23
In Stock
Nut 20275
Nut

Part #20275

This item is not returnable
$2.16
In Stock
Hose 25112
#22

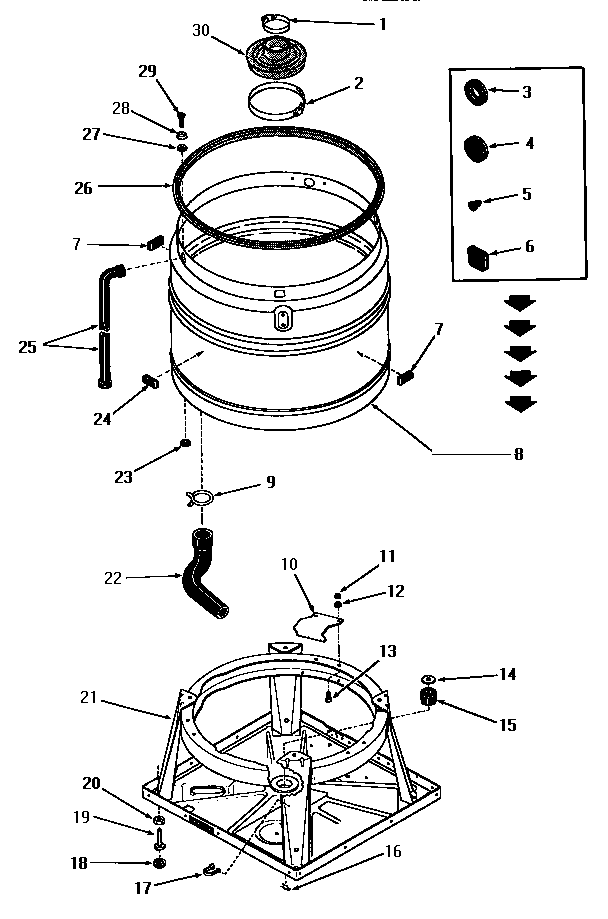

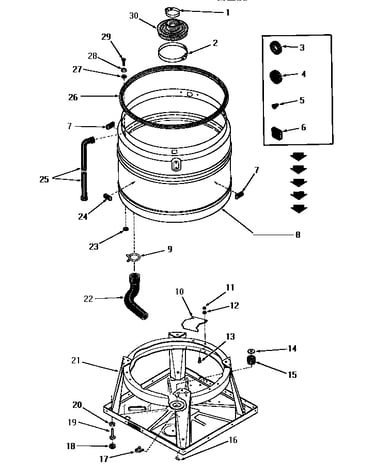

Boot, chassis and drain tub diagram

Hose

Part #25112

$24.71
In Stock
Speed Queen Screw 23008
#16

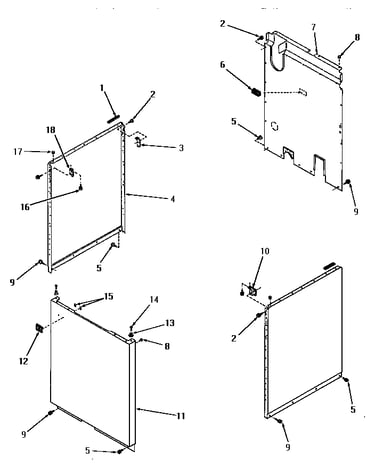

Panels diagram

Speed queen screw

Part #23008

This item is not returnable
$5.89
In Stock
Speed Queen Terminal Block 23033
#13C

Power cord, wire and terminals diagram

Speed queen terminal block

Part #23033

This item is not returnable
$3.49
In Stock
Kenmore Screw 20530
#18

Motor, fluid drive and pump belt diagram

Kenmore screw

Part #20530

This item is not returnable
$2.16
In Stock
