Model # GFC305R-02 Official GE garbage disposal
Here are the diagrams and repair parts for Official GE GFC305R-02 garbage disposal, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
GFC305R-02 Garbage Disposal
#2035

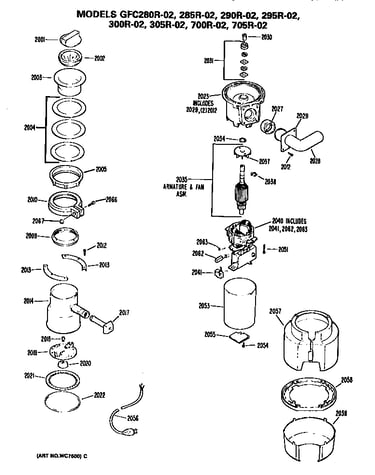

All parts diagram
Armature assembly
Part #WC26X81
$118.84
In Stock
#2067
All parts diagram
Nut 1/4-20ss
Part #WC1X285
This item is not returnable
$2.16
In Stock
#2002
All parts diagram
Splash guard
Part #WC3X125
Replaced by #WC11X20163
?
Manufacturer substitution
This part replaces WC3X125. Substitute parts can look different from the original.
$14.33 |
12% OFF Phone Price : $16.33
In Stock
#2023
All parts diagram
Drain housing
Part #WC24X232
The manufacturer no longer makes this part, and there's no substitute part
#2017
All parts diagram
Drain conn seal plug
Part #WC14X35
The manufacturer no longer makes this part, and there's no substitute part
#2022
All parts diagram
Gasket
Part #WC3X118
The manufacturer no longer makes this part, and there's no substitute part
#2051
All parts diagram
Screw field
Part #WC1X278
The manufacturer no longer makes this part, and there's no substitute part
#2010
All parts diagram
Support ring
Part #WC5X114
The manufacturer no longer makes this part, and there's no substitute part
#2013
All parts diagram
Ring
Part #WC5X107
The manufacturer no longer makes this part, and there's no substitute part
#2041
All parts diagram
Overload
Part #WC12X147
The manufacturer no longer makes this part, and there's no substitute part
