Router

Model # 31517570 Official Craftsman electronic router

Here are the diagrams and repair parts for Official Craftsman 31517570 electronic router, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
31517570 Power Tools
Brush Tube 612769-001
#14

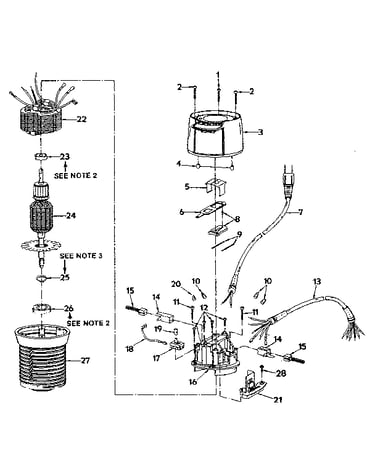

Motor assembly diagram

Brush tube

Part #612769-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 617966-007
#14

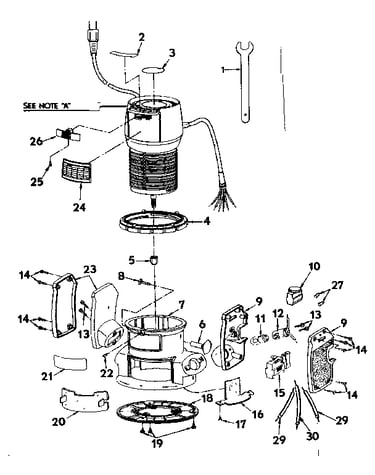

Base assembly diagram

Screw

Part #617966-007

The manufacturer no longer makes this part, and there's no substitute part

Lead W/term 990818-006
#18

Motor assembly diagram

Lead w/term

Part #990818-006

The manufacturer no longer makes this part, and there's no substitute part

Eye Shield 606688-001
#20

Base assembly diagram

Eye shield

Part #606688-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 989684-001
#17

Base assembly diagram

Screw

Part #989684-001

The manufacturer no longer makes this part, and there's no substitute part

Switch 623814-005
#15

Base assembly diagram

Switch

Part #623814-005

The manufacturer no longer makes this part, and there's no substitute part

1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
#2

Base assembly diagram

1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Cord 990920-002
#13

Motor assembly diagram

Cord

Part #990920-002

The manufacturer no longer makes this part, and there's no substitute part

Lead 990818-008
#29

Base assembly diagram

Lead

Part #990818-008

The manufacturer no longer makes this part, and there's no substitute part

Retain Ring 622167-012
#25

Motor assembly diagram

Retain ring

Part #622167-012

The manufacturer no longer makes this part, and there's no substitute part
