Model # FFED3005LWA Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FFED3005LWA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

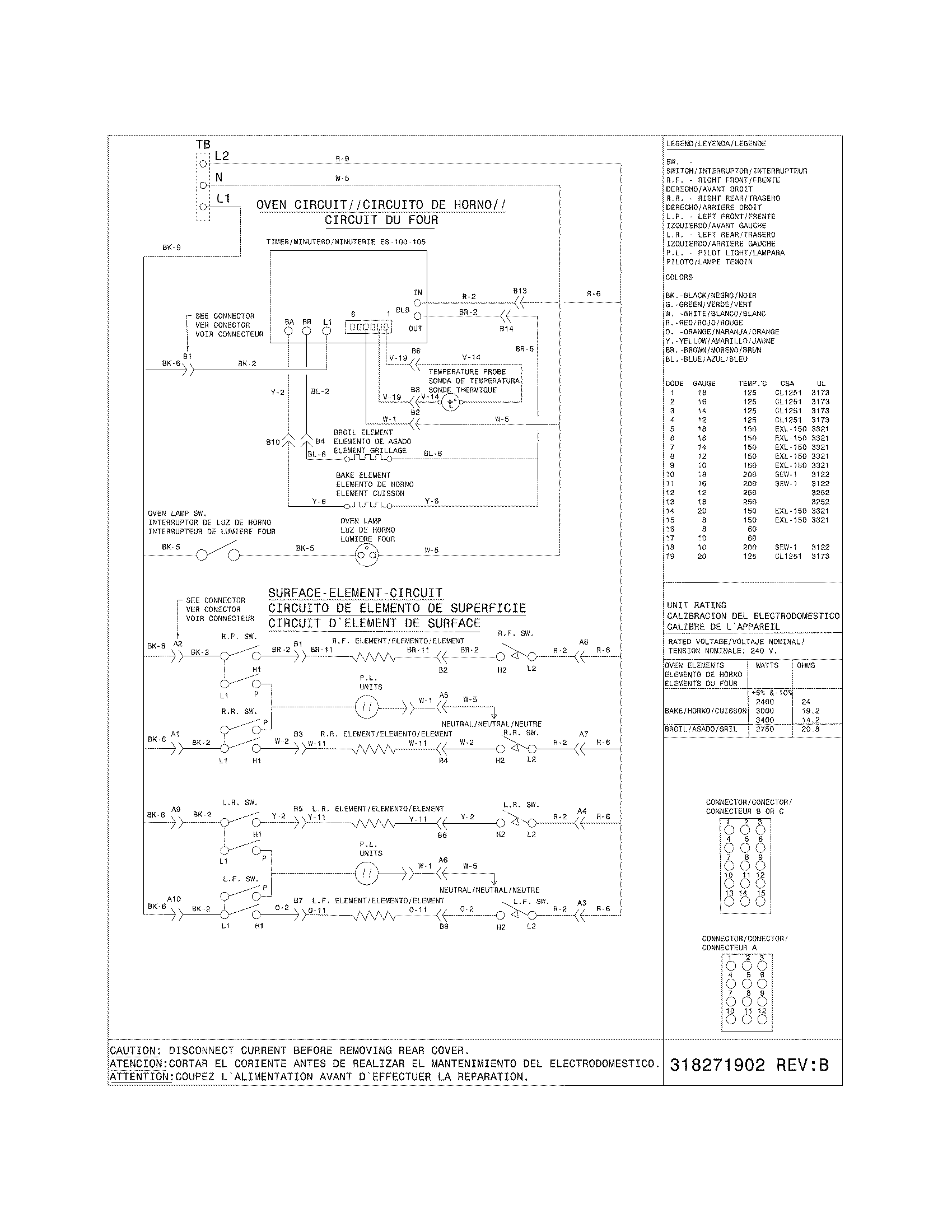

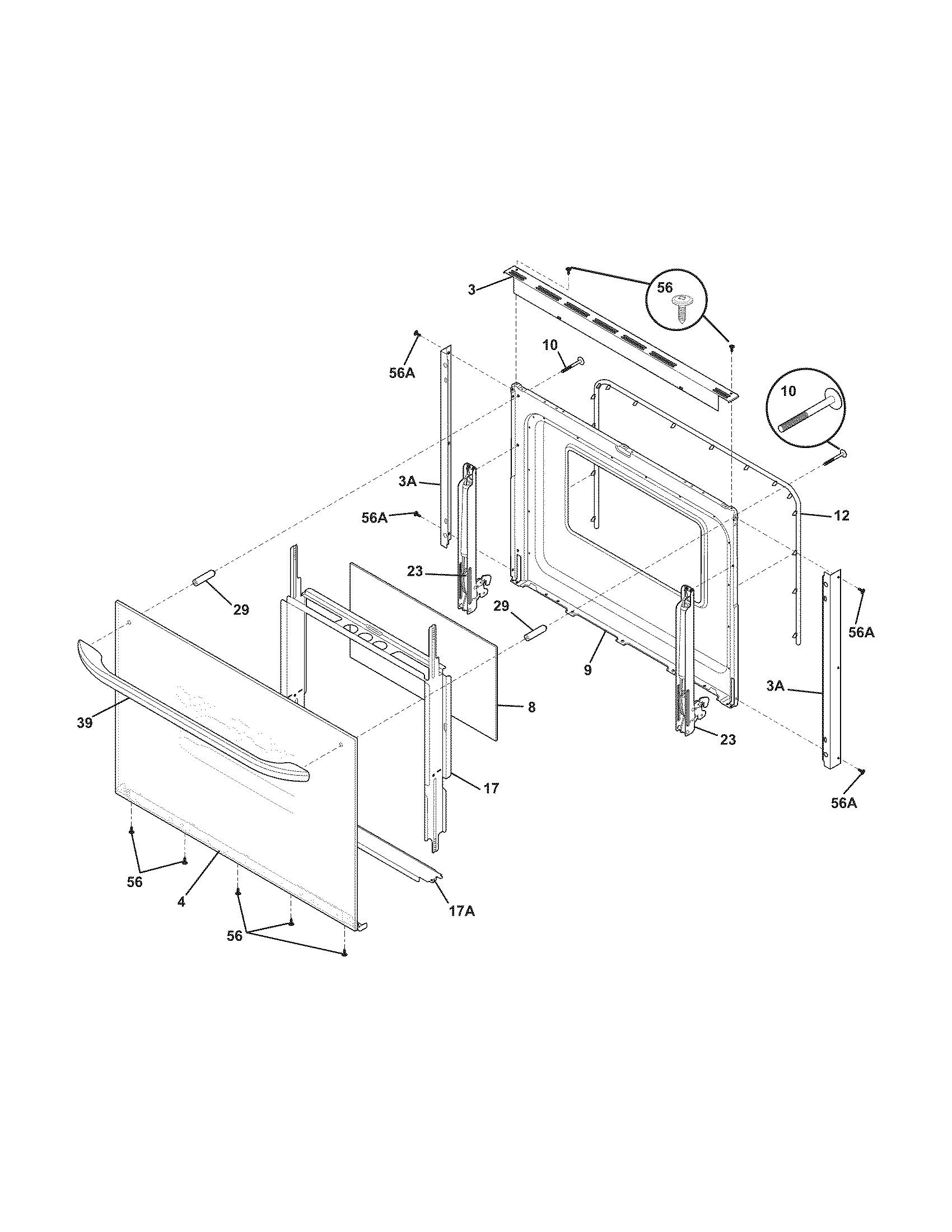

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Element 318372214
#15

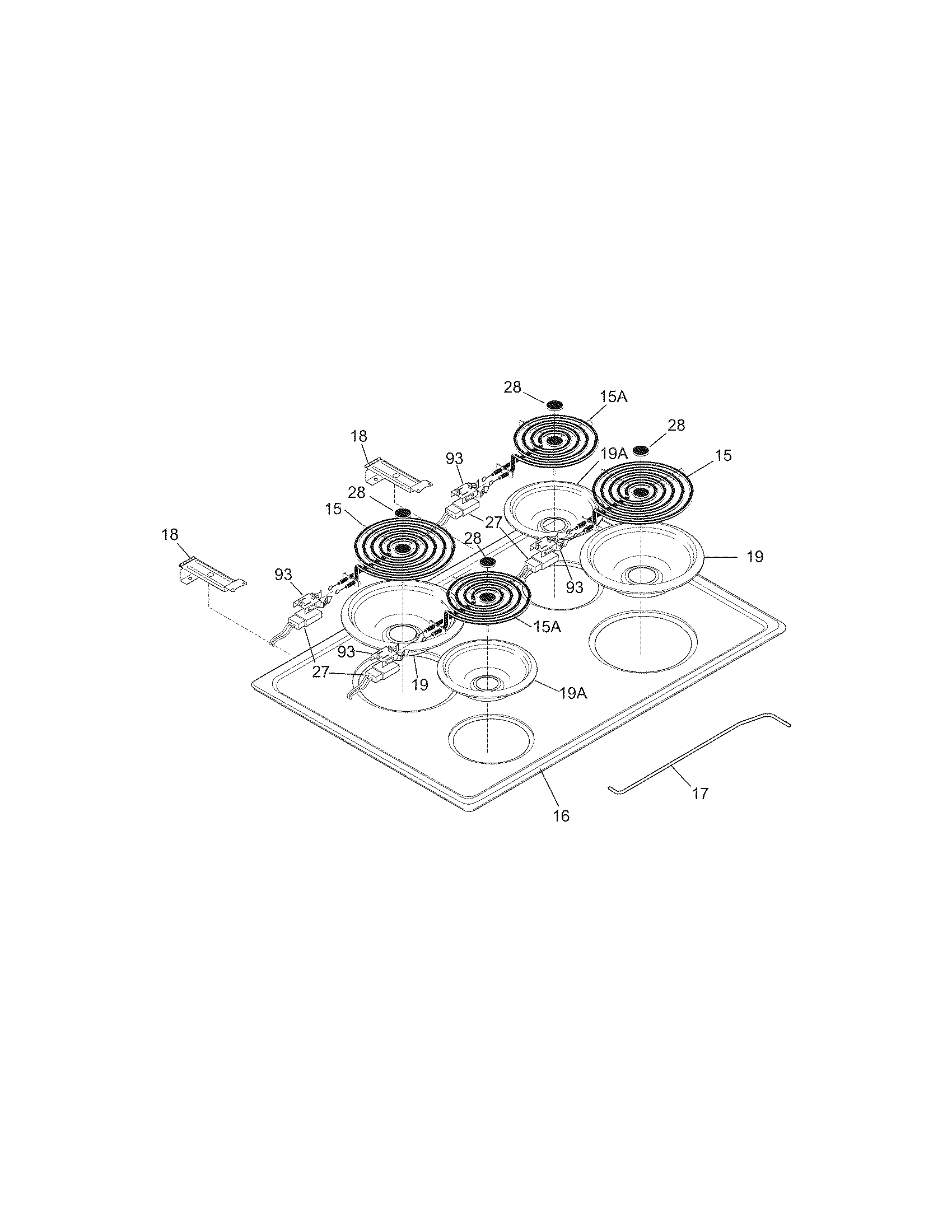

Main top diagram

Element

Part #318372214

Replaced by #316442301

?
Manufacturer substitution
This part replaces 318372214. Substitute parts can look different from the original.
BEST SELLER
$23.22 |
21% OFF Phone Price : $29.22
In Stock
Range Oven Temperature Sensor 318562500
#37

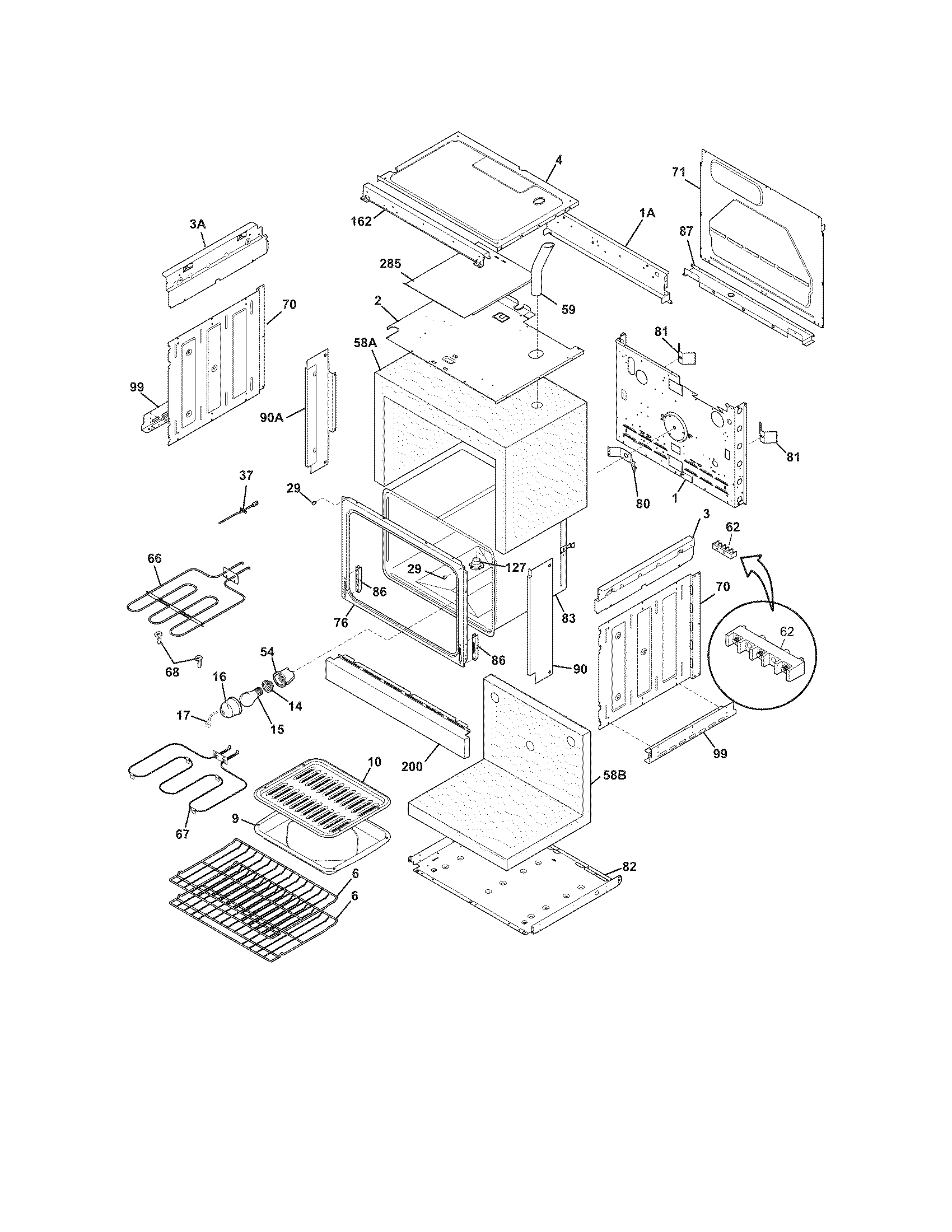

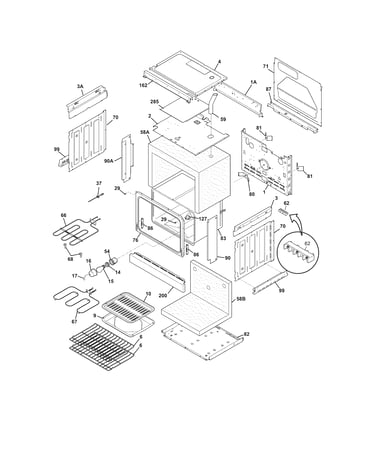

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$31.56 |
16% OFF Phone Price : $37.56
In Stock
Range Oven Light Bulb 5303013071
#15

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Block 5303912666
#27

Main top diagram

Block

Part #5303912666

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
BEST SELLER
$8.60 |
10% OFF Phone Price : $9.60
In Stock
Range Drip Pan, 8-in (chrome) (replaces 318067010, 5303013588, 5303935054, 5304432495) 316048413
#19

Main top diagram

Range drip pan, 8-in (chrome) (replaces 318067010, 5303013588, 5303935054, 5304432495)

Part #316048413

BEST SELLER
$7.30 |
12% OFF Phone Price : $8.30
In Stock
White-westinghouse Range Coil Element, 6-in (replaces 316439801) 318372211
#15A

Main top diagram

White-westinghouse range coil element, 6-in (replaces 316439801)

Part #318372211

BEST SELLER
$37.93 |
14% OFF Phone Price : $43.93
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Surface Element Control Switch 318293831
#54A

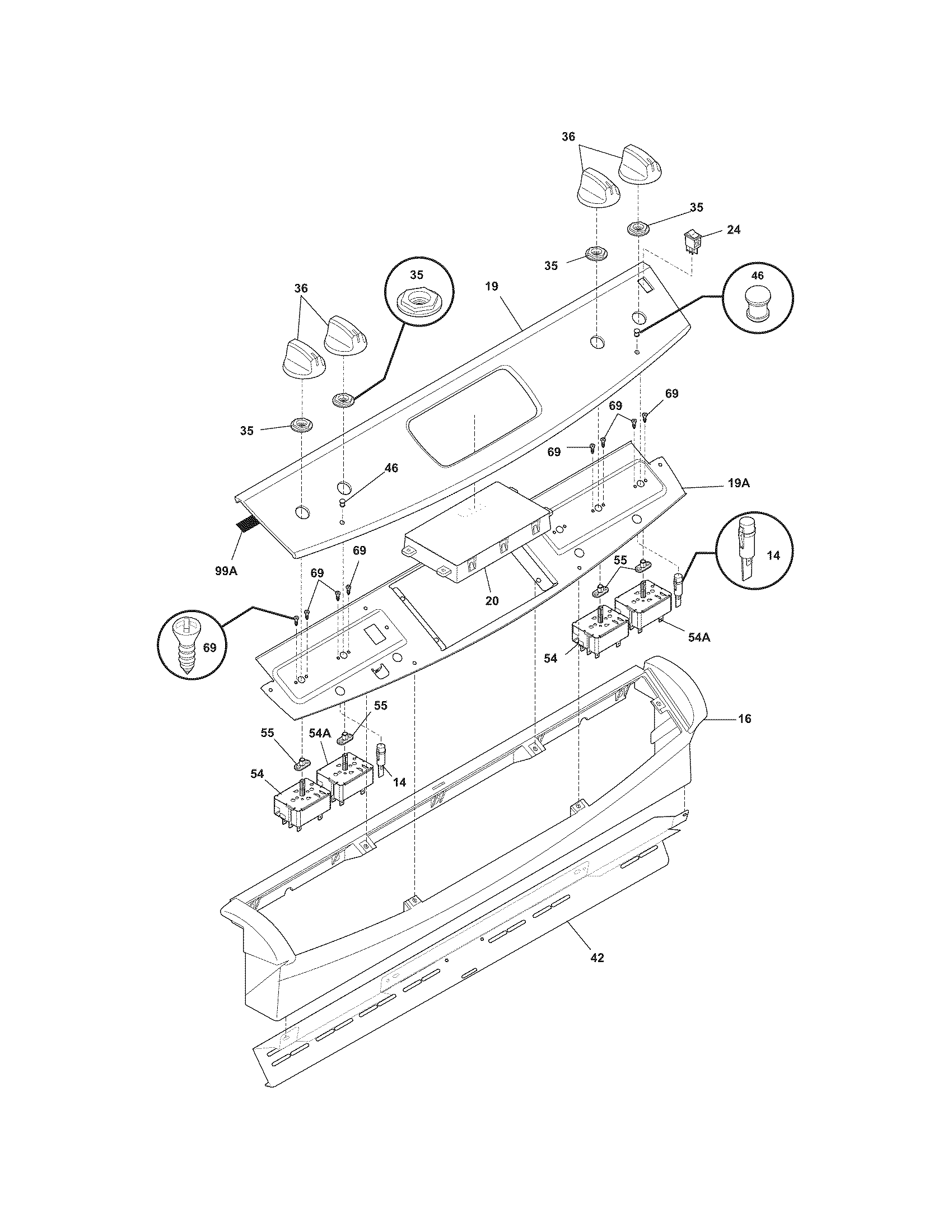

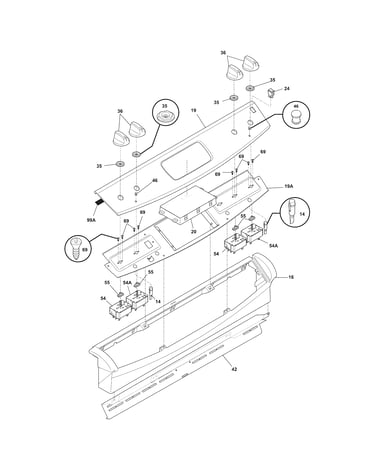

Backguard diagram

Range surface element control switch

Part #318293831

BEST SELLER
$67.71 |
8% OFF Phone Price : $73.71
In Stock
Range Broil Pan 316081900
#9

Body diagram

Range broil pan

Part #316081900

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 316081900. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Range Broil Pan Insert 316082000
#10

Body diagram

Range broil pan insert

Part #316082000

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 316082000. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
