Kenmore
Gas Range

Model # 103296015 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 103296015 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |
Lamp Bulb 65973
#132A

Body section diagram

Lamp bulb

Part #65973

Replaced by #40A15

?
Manufacturer substitution
This part replaces 65973. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Tubing 87730
#62A

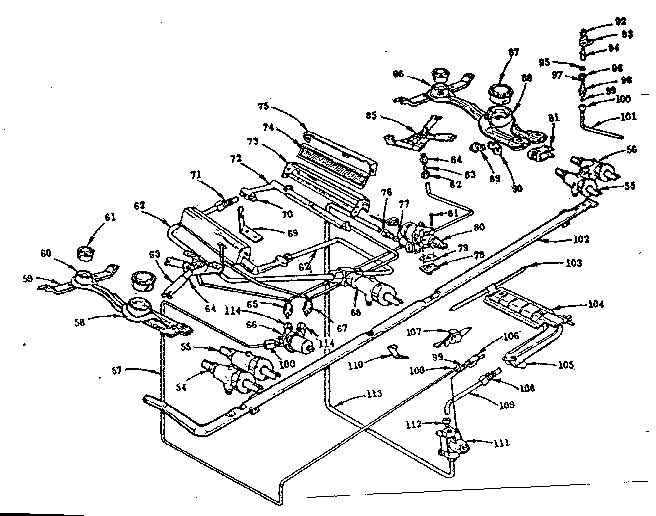

Burner section diagram

Tubing

Part #87730

Replaced by #100108370

?
Manufacturer substitution
This part replaces 87730. Substitute parts can look different from the original.
$36.67
In Stock
Support 79786
#59

Burner section diagram

Support

Part #79786

The manufacturer no longer makes this part, and there's no substitute part

Insulation 68993
#134

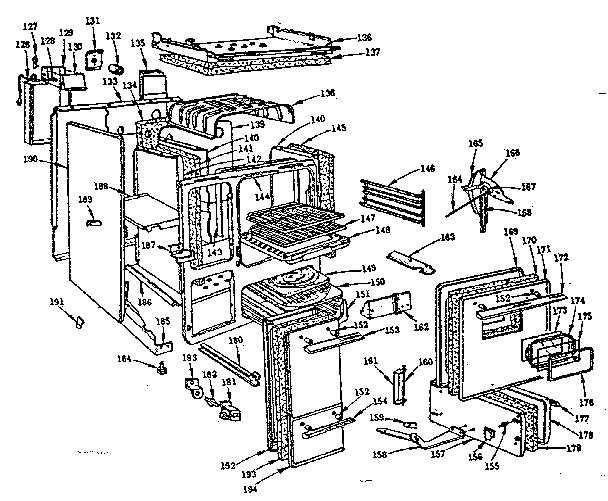

Body section diagram

Insulation

Part #68993

The manufacturer no longer makes this part, and there's no substitute part

Air Shutter 79865
#95

Burner section diagram

Air shutter

Part #79865

The manufacturer no longer makes this part, and there's no substitute part

Housing 78360
#19

Backguard and main top diagram

Housing

Part #78360

The manufacturer no longer makes this part, and there's no substitute part

Wire Cover 85837
#130

Body section diagram

Wire cover

Part #85837

The manufacturer no longer makes this part, and there's no substitute part

Thermostat Knob 95394
#36A

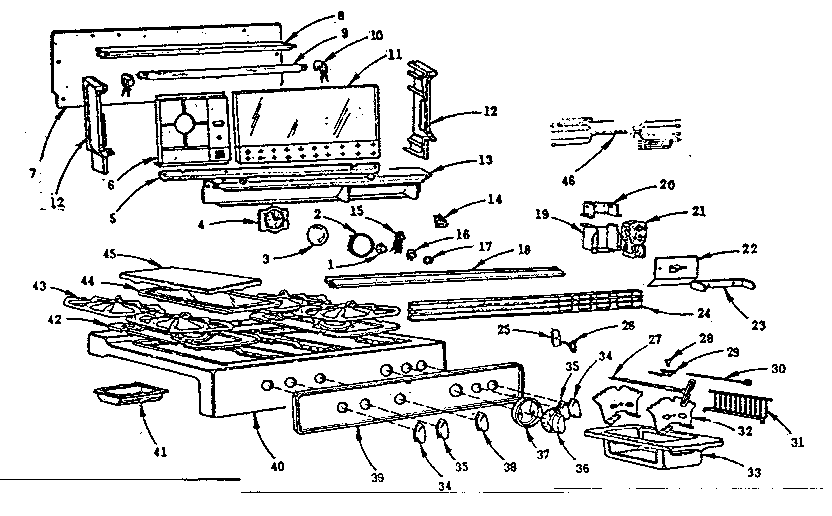

Backguard and main top diagram

Thermostat knob

Part #95394

The manufacturer no longer makes this part, and there's no substitute part

Fitting 74026
#84

Burner section diagram

Fitting

Part #74026

The manufacturer no longer makes this part, and there's no substitute part

Thumbscrew 78493
#26

Backguard and main top diagram

Thumbscrew

Part #78493

The manufacturer no longer makes this part, and there's no substitute part
