Model # PB930SF1SS Official GE electric range

Here are the diagrams and repair parts for Official GE PB930SF1SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

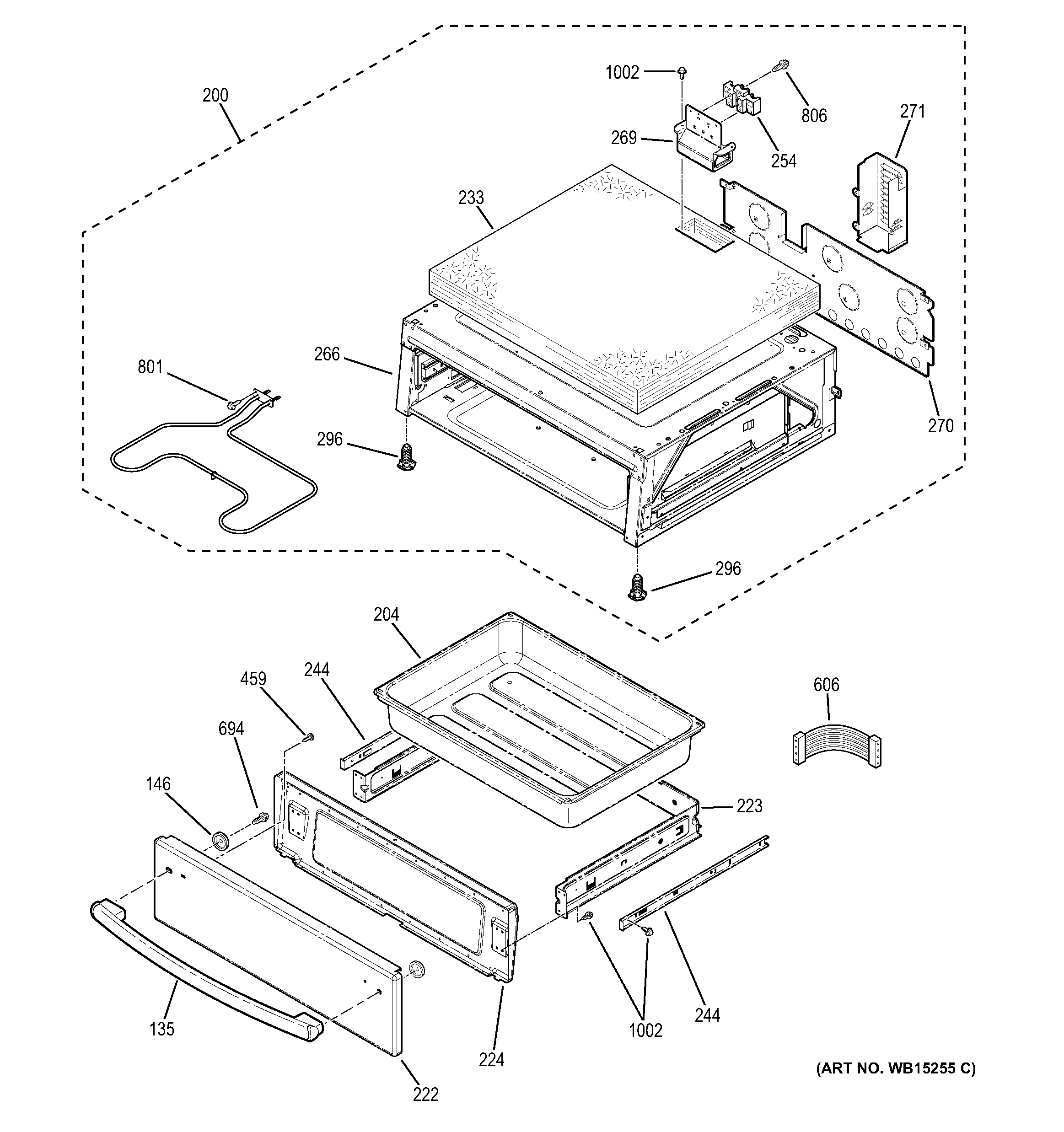

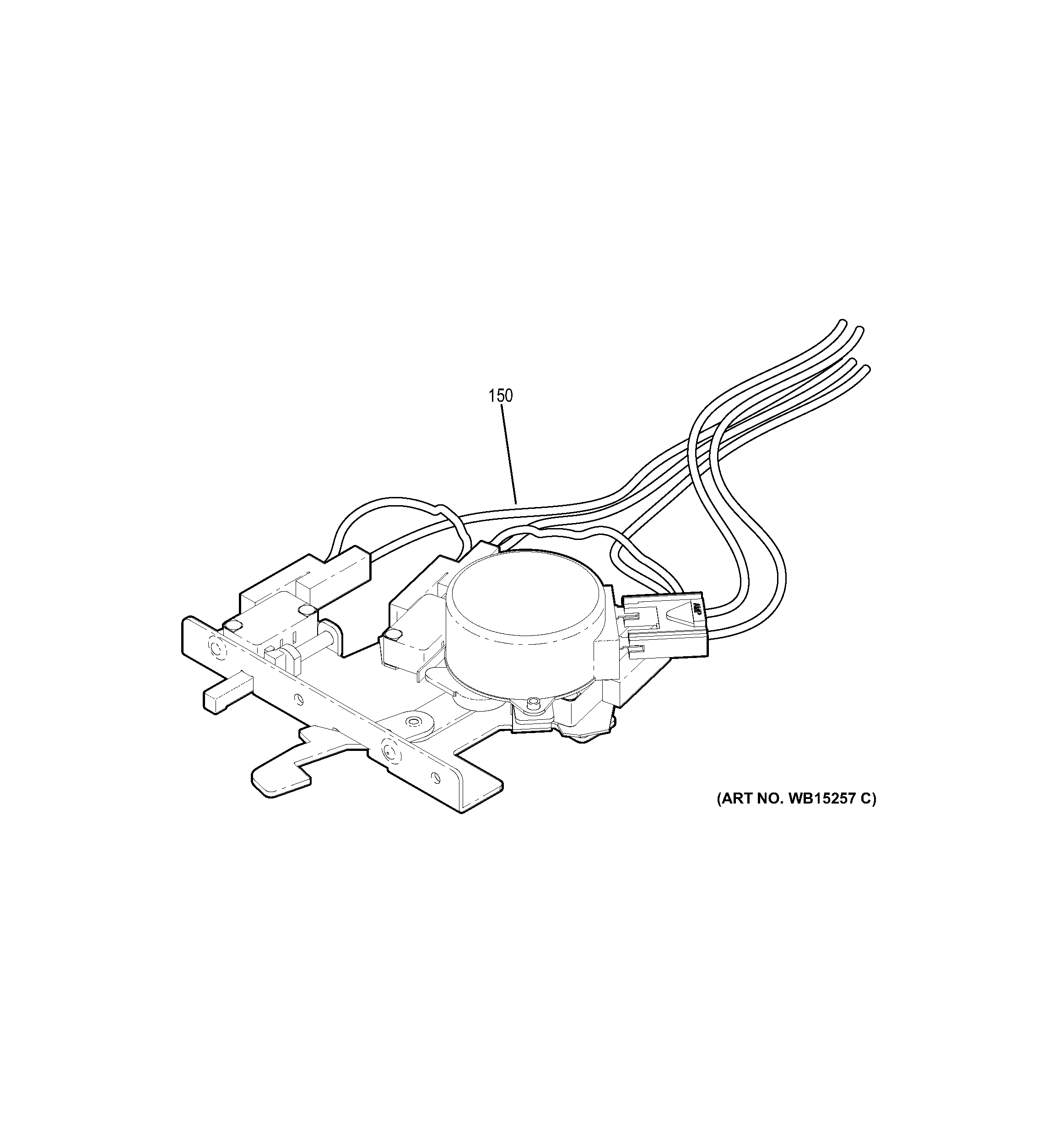

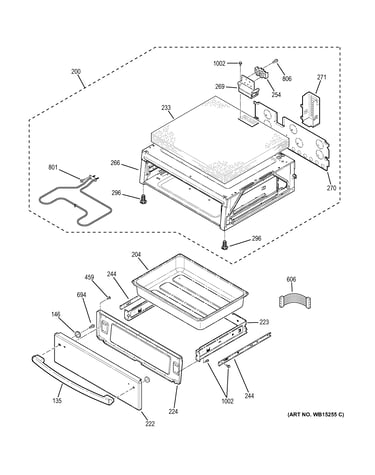

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Wall Oven Temperature Sensor WB21T10007
#253

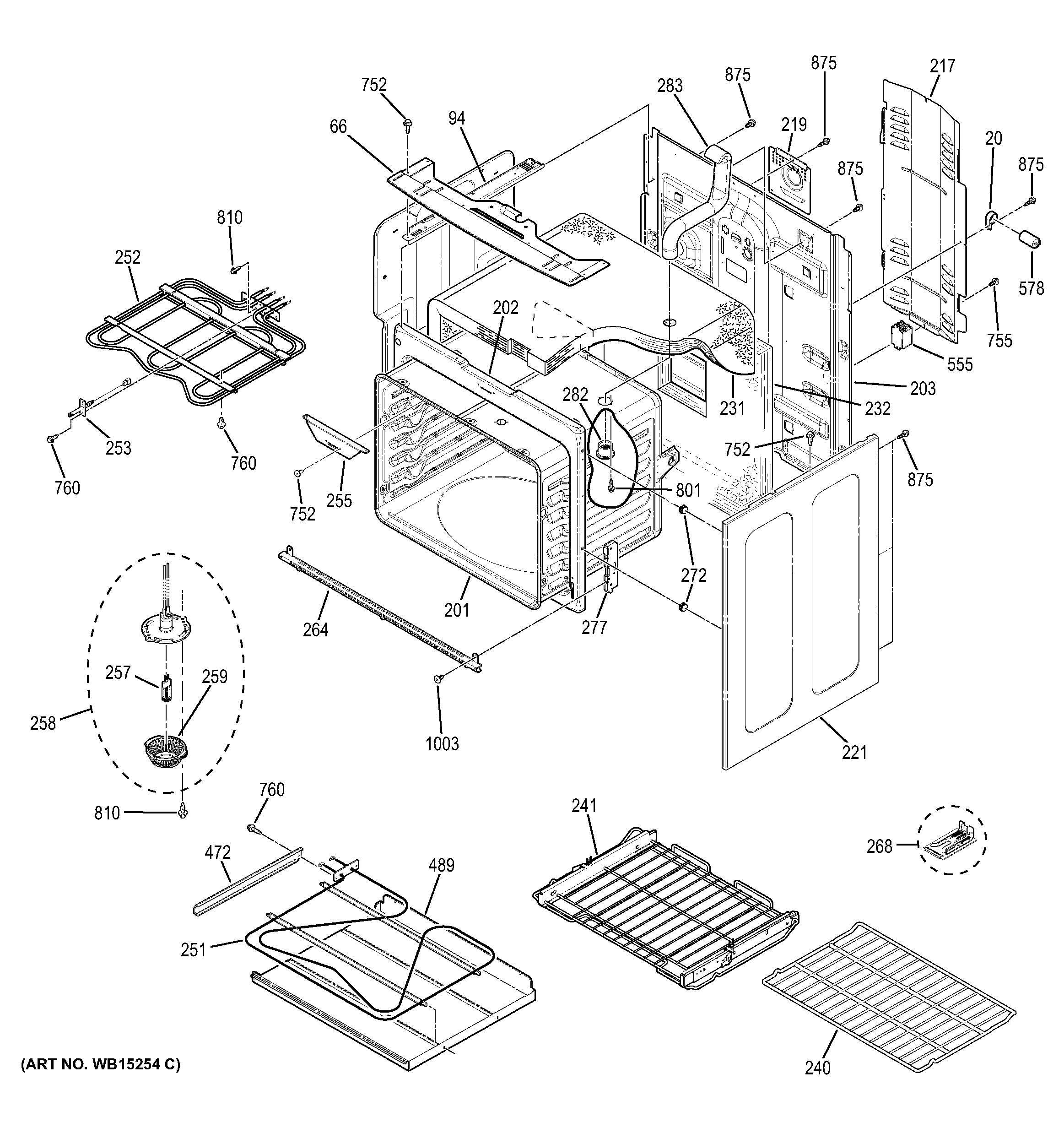

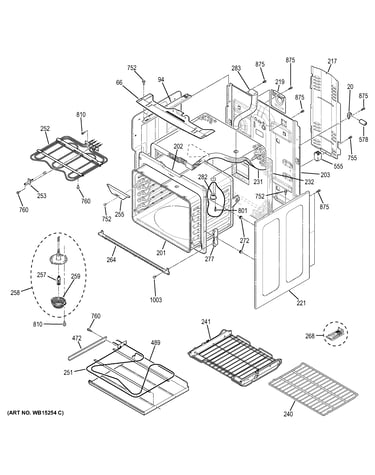

Body parts diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$24.05 |
20% OFF Phone Price : $30.05
In Stock
Range Radiant Surface Element, 5-1/2-in (replaces Wb30t10127) WB30T10145
#56

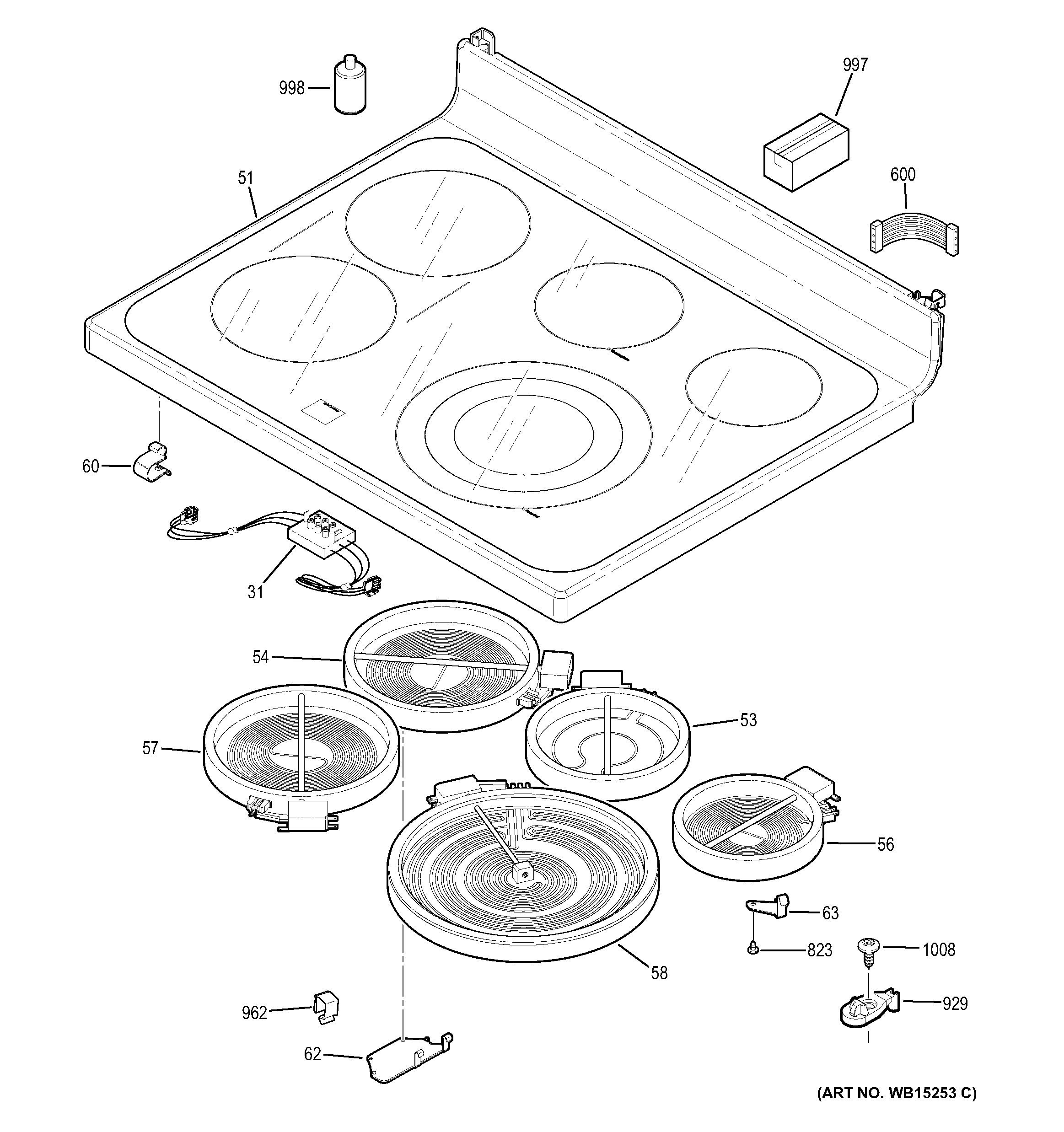

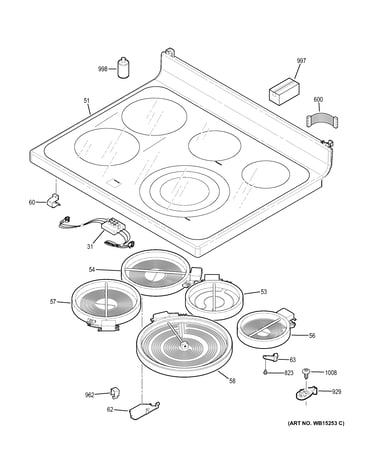

Cooktop diagram

Range radiant surface element, 5-1/2-in (replaces wb30t10127)

Part #WB30T10145

BEST SELLER
$89.97 |
6% OFF Phone Price : $95.97
In Stock
Range Radiant Surface Element, 8-in (replaces Wb30t10128) WB30T10132
#54

Cooktop diagram

Range radiant surface element, 8-in (replaces wb30t10128)

Part #WB30T10132

BEST SELLER
$51.57 |
10% OFF Phone Price : $57.57
In Stock
Range Surface Element Control Switch (replaces Wb27t10384) WB24T10153
#22

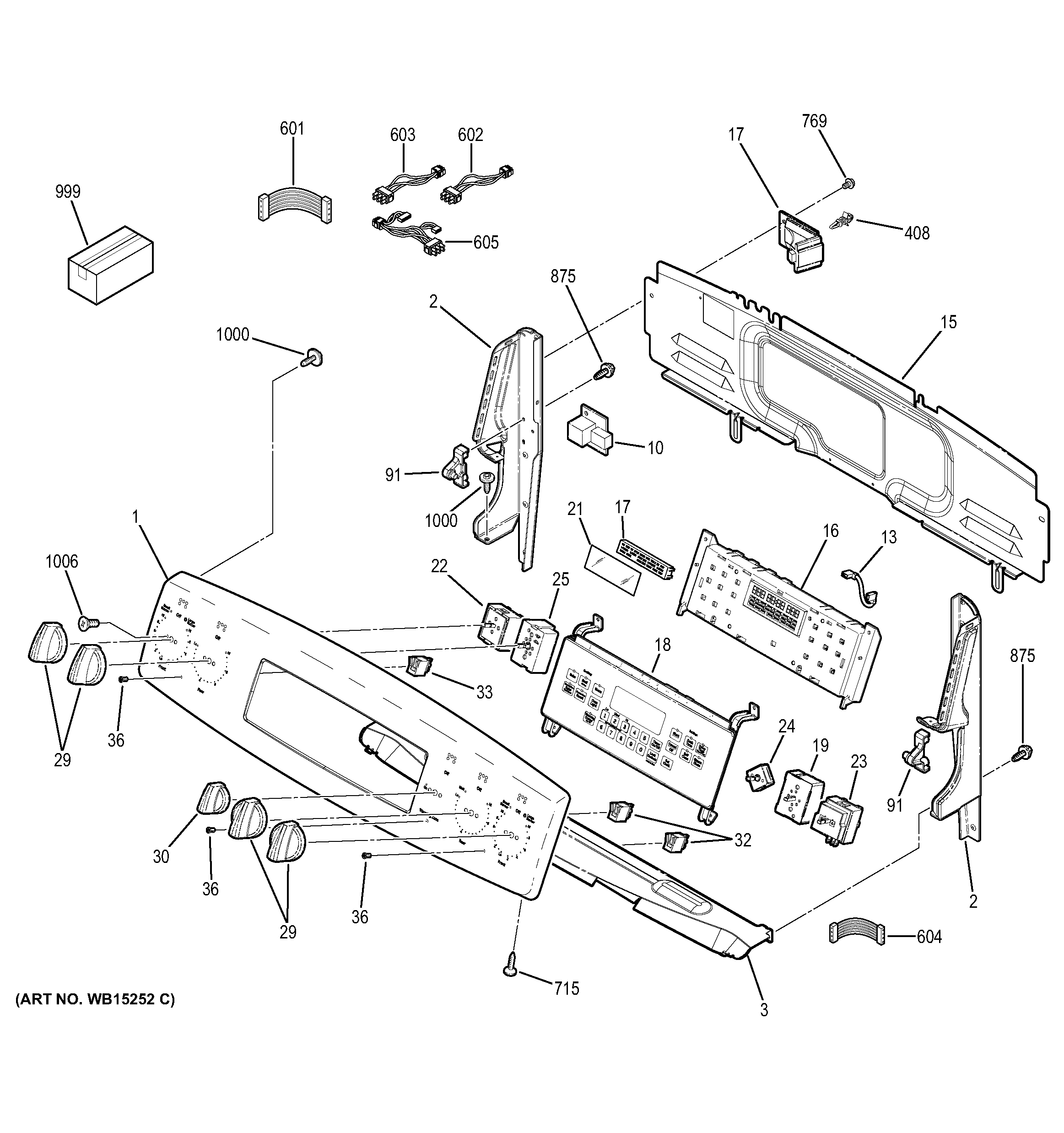

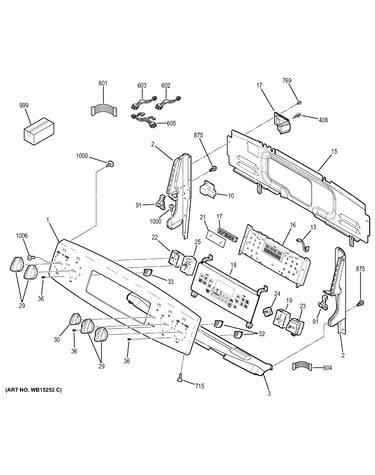

Control panel diagram

Range surface element control switch (replaces wb27t10384)

Part #WB24T10153

BEST SELLER
$98.13 |
11% OFF Phone Price : $110.13
In Stock
Range Dual Radiant Surface Element WB30T10135
#57

Cooktop diagram

Range dual radiant surface element

Part #WB30T10135

$116.84 |
9% OFF Phone Price : $128.84
In Stock
Range Oven Door Gasket (replaces Wb04t10001) WB04T10086
#111

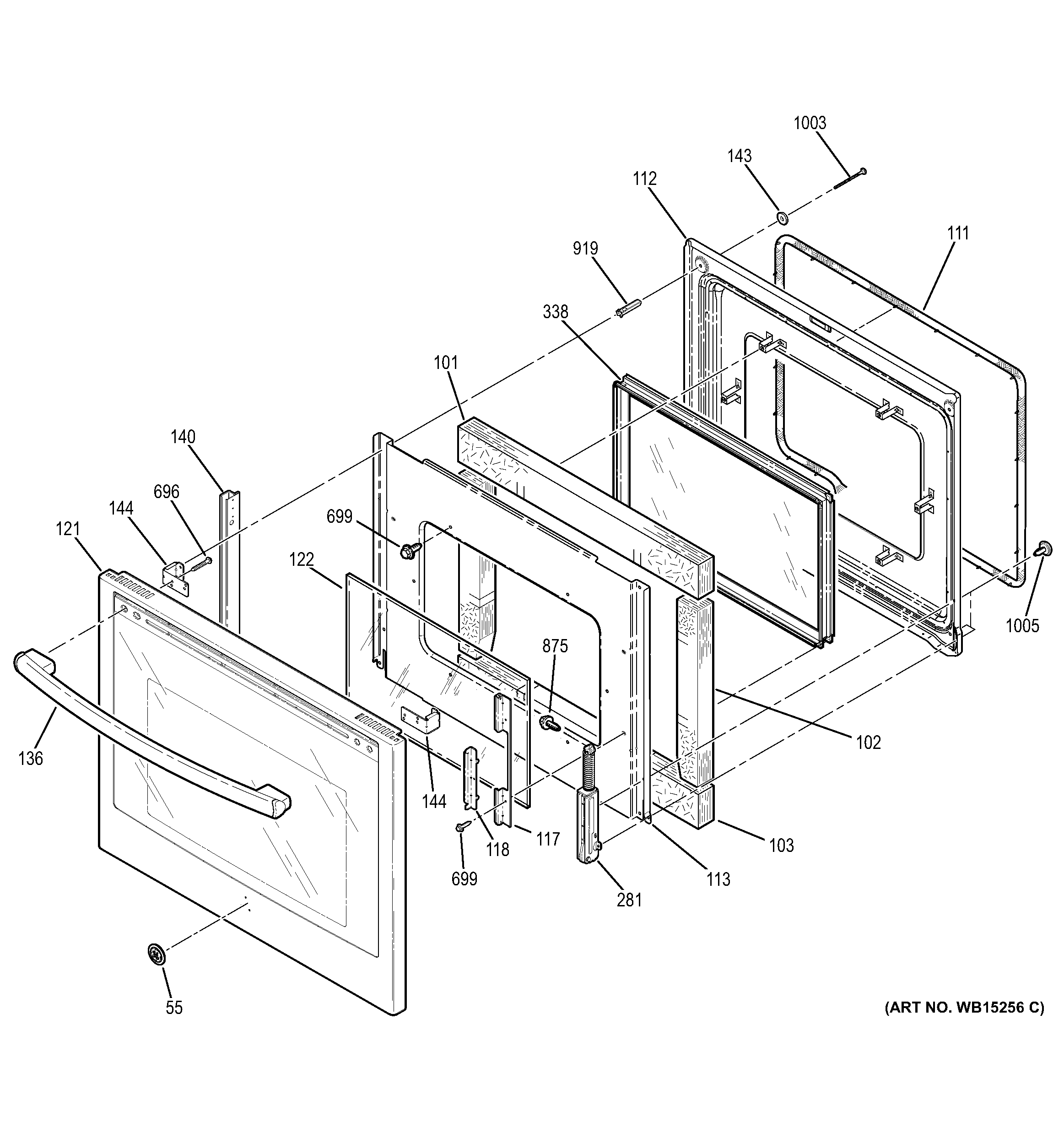

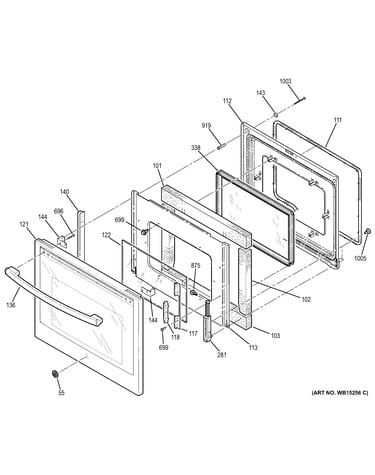

Door diagram

Range oven door gasket (replaces wb04t10001)

Part #WB04T10086

$39.75 |
13% OFF Phone Price : $45.75
In Stock
Range Bake Element (replaces Wb44t10049) WB44T10104
#251

Body parts diagram

Range bake element (replaces wb44t10049)

Part #WB44T10104

Replaced by #WB44X45499

?
Manufacturer substitution
This part replaces WB44T10104. Substitute parts can look different from the original.
$63.11
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01M0001
Screw

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Nut WB02T10017
#977

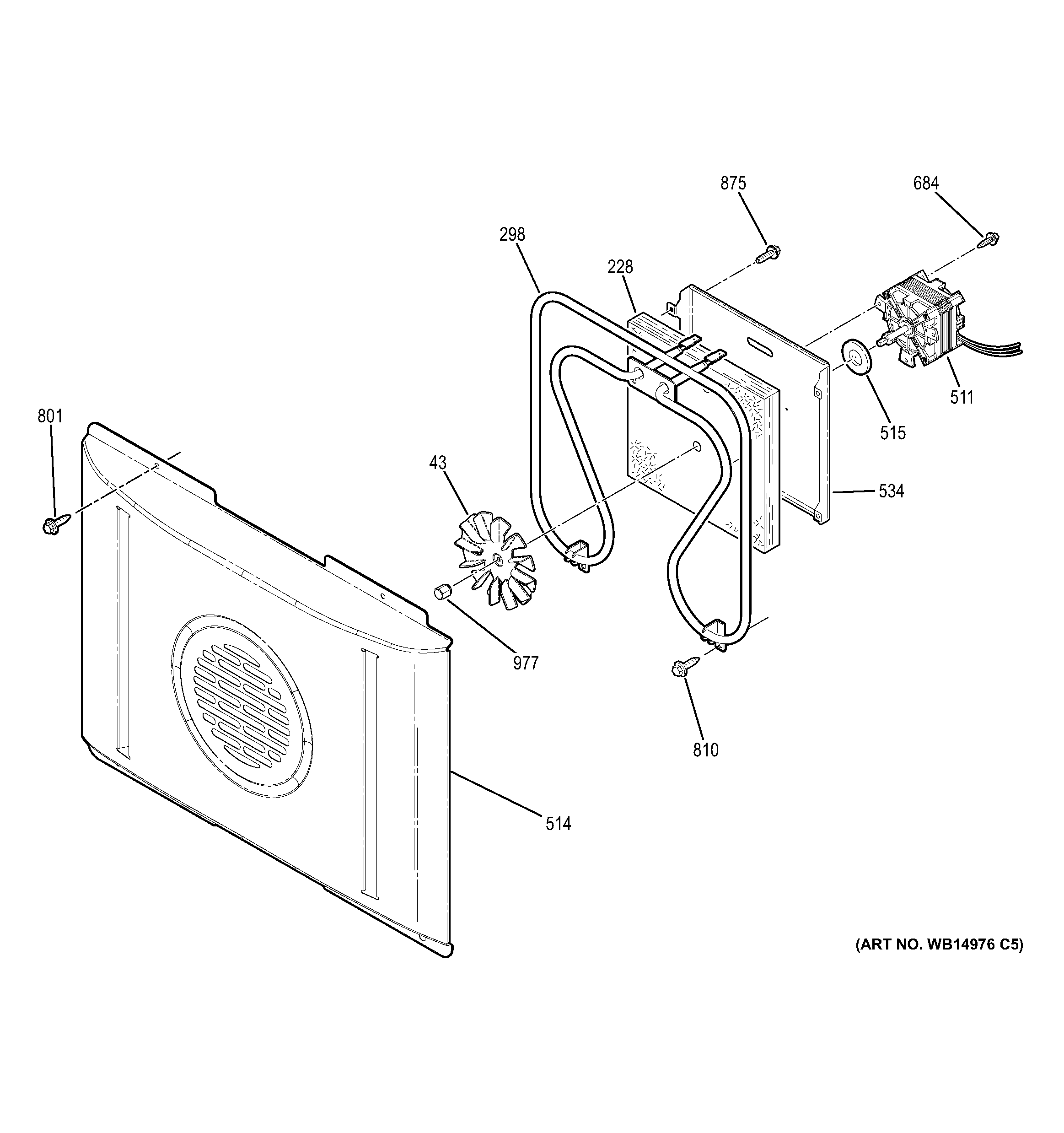

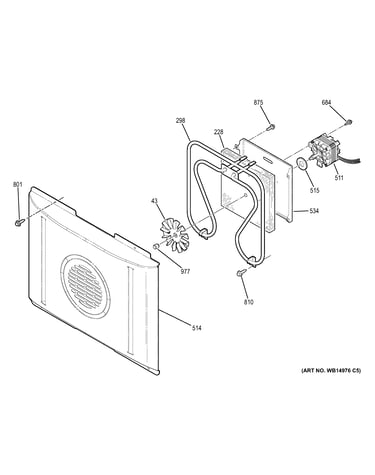

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
