Model # H4A324GKA100 Official ICP air conditioner

Here are the diagrams and repair parts for Official ICP H4A324GKA100 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Central Air Conditioner Condenser Electronic Control Board (replaces 1086071) 1088977
#21

Control box diagram

Central air conditioner condenser electronic control board (replaces 1086071)

Part #1088977

$85.61 |
7% OFF Phone Price : $91.61
In Stock
Capacitor 1172147
#5

Control box diagram

Capacitor

Part #1172147

Replaced by #1172148

?
Manufacturer substitution
This part replaces 1172147. Substitute parts can look different from the original.
$24.69 |
20% OFF Phone Price : $30.69
In Stock
Raceway 1173908
#32

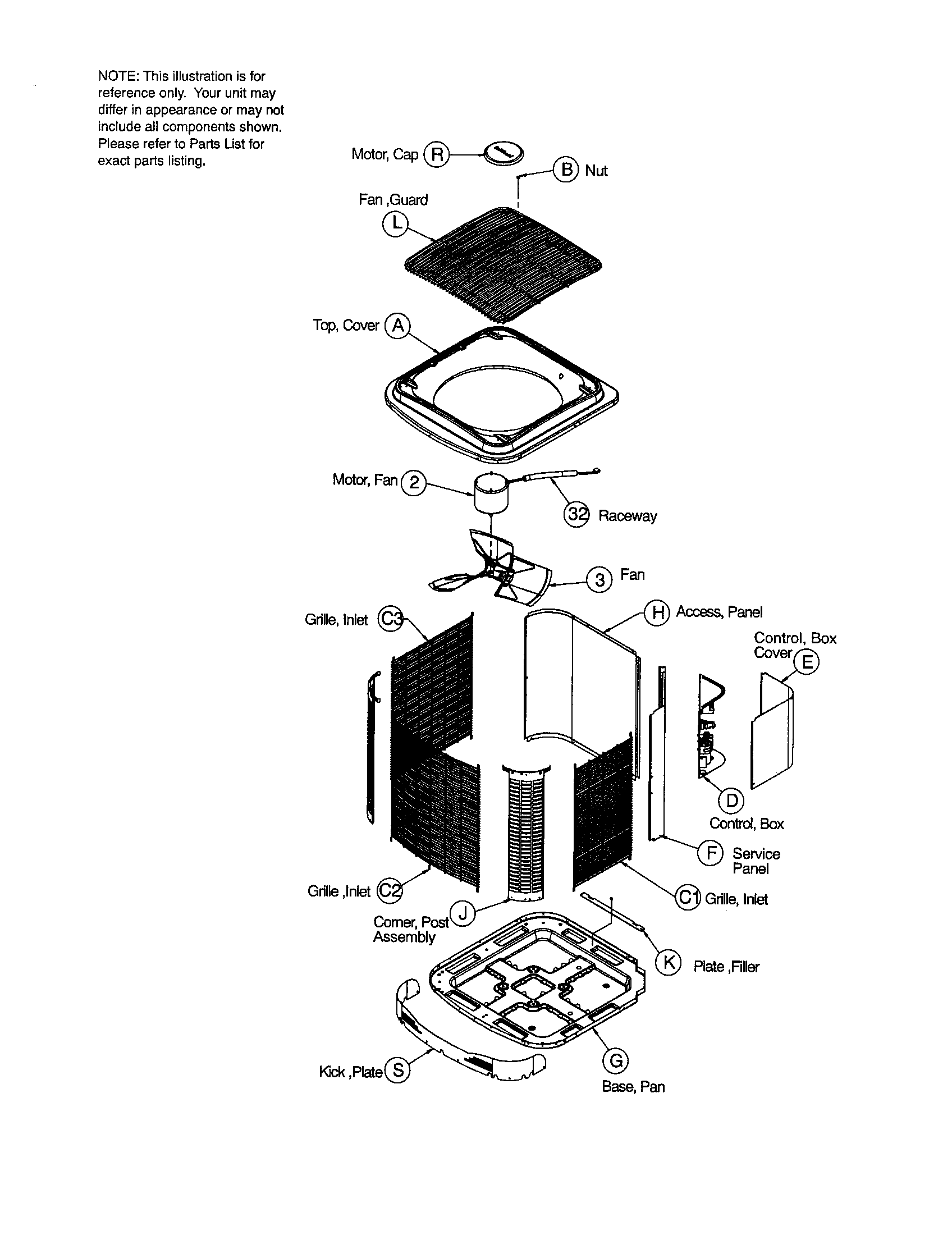

Cabinet parts/fan/motor diagram

Raceway

Part #1173908

$15.74
In Stock
Central Air Conditioner Contactor 1172472
#4

Control box diagram

Central air conditioner contactor

Part #1172472

$61.35 |
9% OFF Phone Price : $67.35
In Stock
Carrier Grommet 1171270
#10

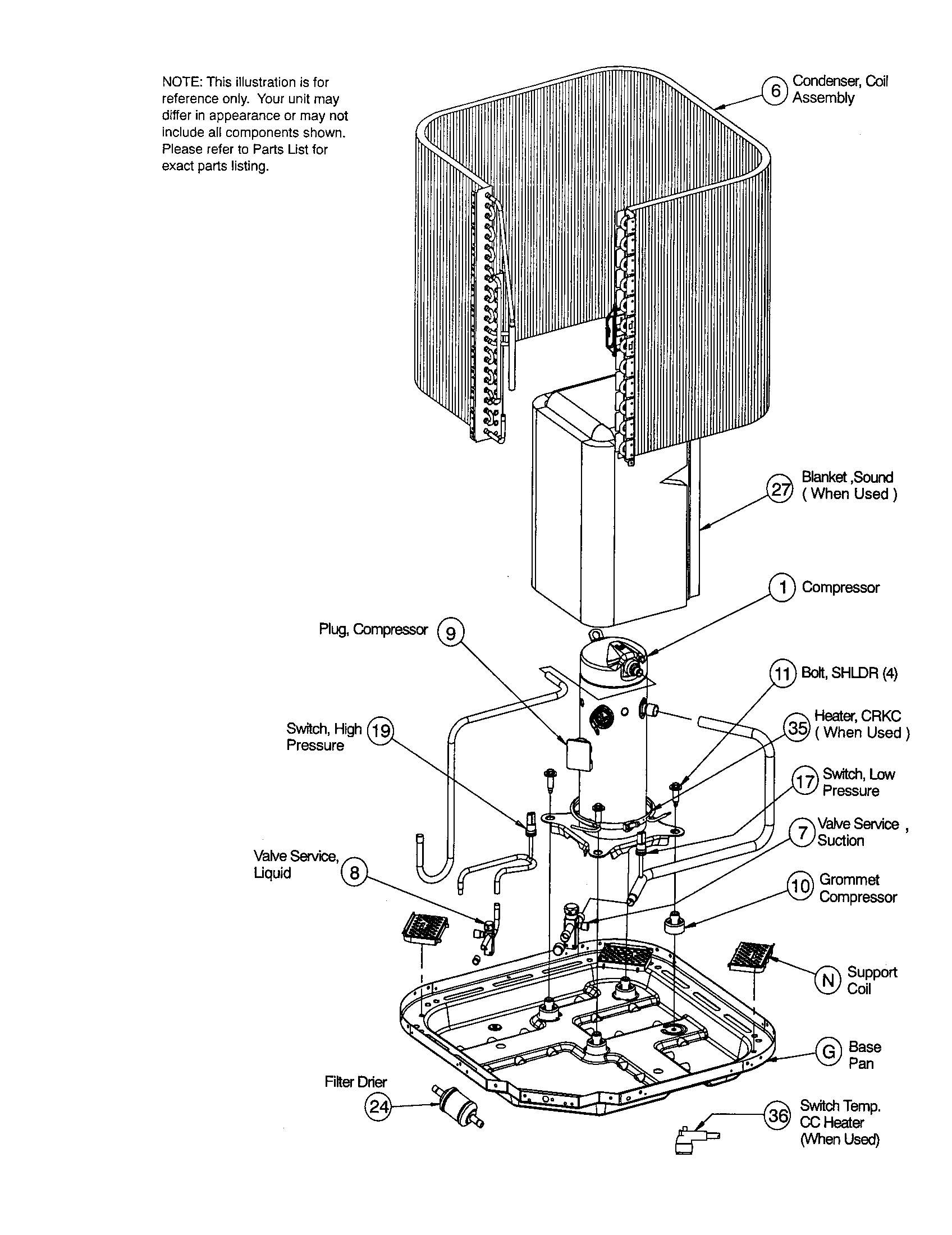

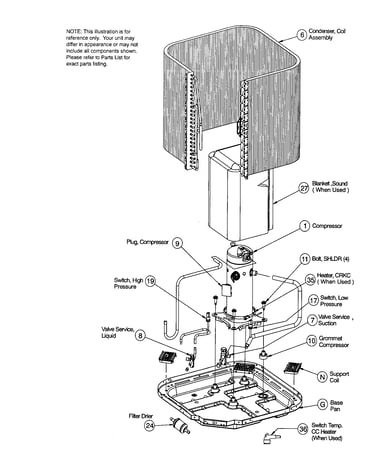

Refrigeration components diagram

Carrier grommet

Part #1171270

This item is not returnable
$4.00
In Stock
Fan 1173787
#3

Cabinet parts/fan/motor diagram

Fan

Part #1173787

$126.70
In Stock
Switch 1173954
#19

Refrigeration components diagram

Switch

Part #1173954

$27.37
In Stock
Motor 1173773
#2

Cabinet parts/fan/motor diagram

Motor

Part #1173773

$368.92
In Stock
Central Air Conditioner Nameplate 1174025
#R

Cabinet parts/fan/motor diagram

Central air conditioner nameplate

Part #1174025

This item is not returnable
$2.16
In Stock
Condenser Coil 1173961
#6

Refrigeration components diagram

Condenser coil

Part #1173961

$824.02
In Stock
