Model # DVL223EB0WW Official GE electric dryer

Here are the diagrams and repair parts for Official GE DVL223EB0WW electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Selector Knob WE01X10142
#29

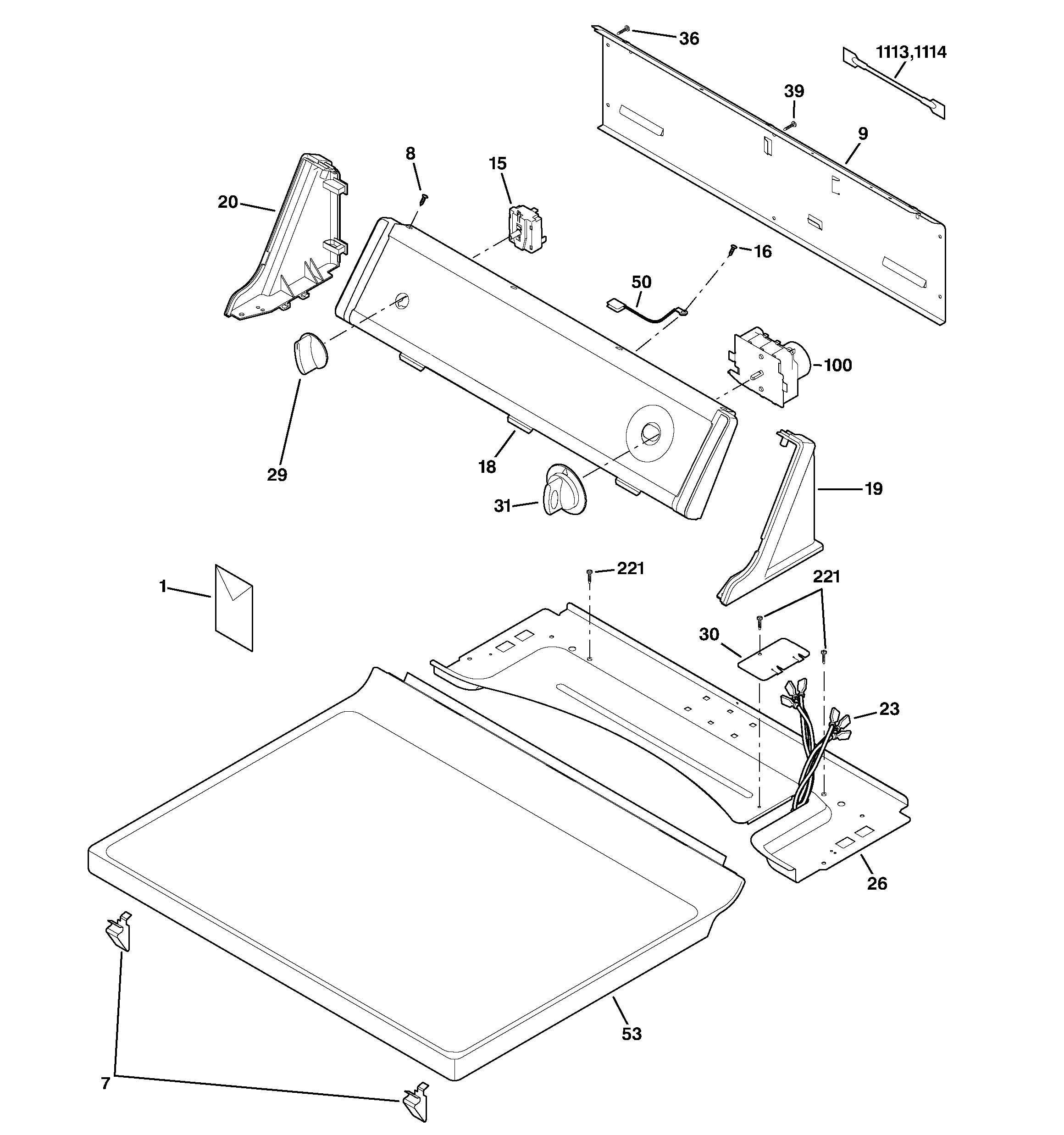

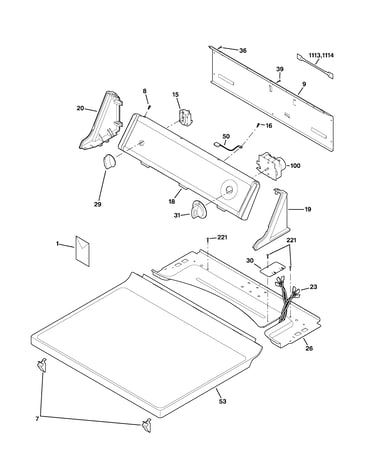

Controls & top panel diagram

Selector knob

Part #WE01X10142

Replaced by #WH01X10060

?
Manufacturer substitution
This part replaces WE01X10142. Substitute parts can look different from the original.
This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Dryer Drum Ball Hitch (replaces We13x0212, We13x10043, We13x212) WE13X10011
#1232

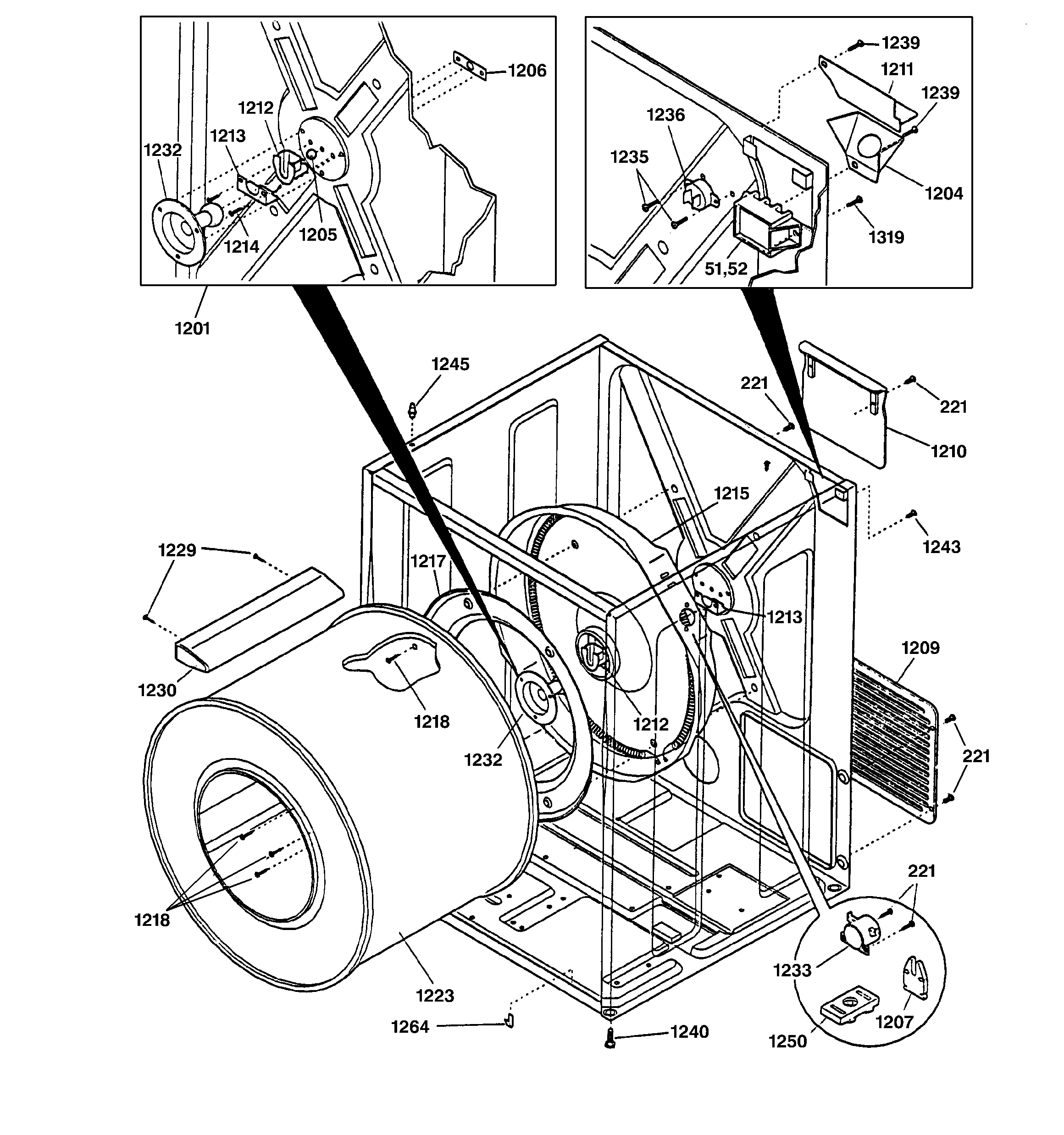

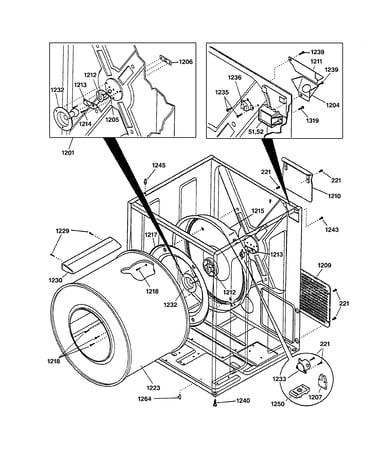

Cabinet & drum diagram

Dryer drum ball hitch (replaces we13x0212, we13x10043, we13x212)

Part #WE13X10011

$87.93 |
6% OFF Phone Price : $93.93
In Stock
Dryer Rear Bearing Kit WE25X10001
#1201

Cabinet & drum diagram

Dryer rear bearing kit

Part #WE25X10001

$90.31 |
6% OFF Phone Price : $96.31
In Stock
Drum Glide WE03X0073
#1220

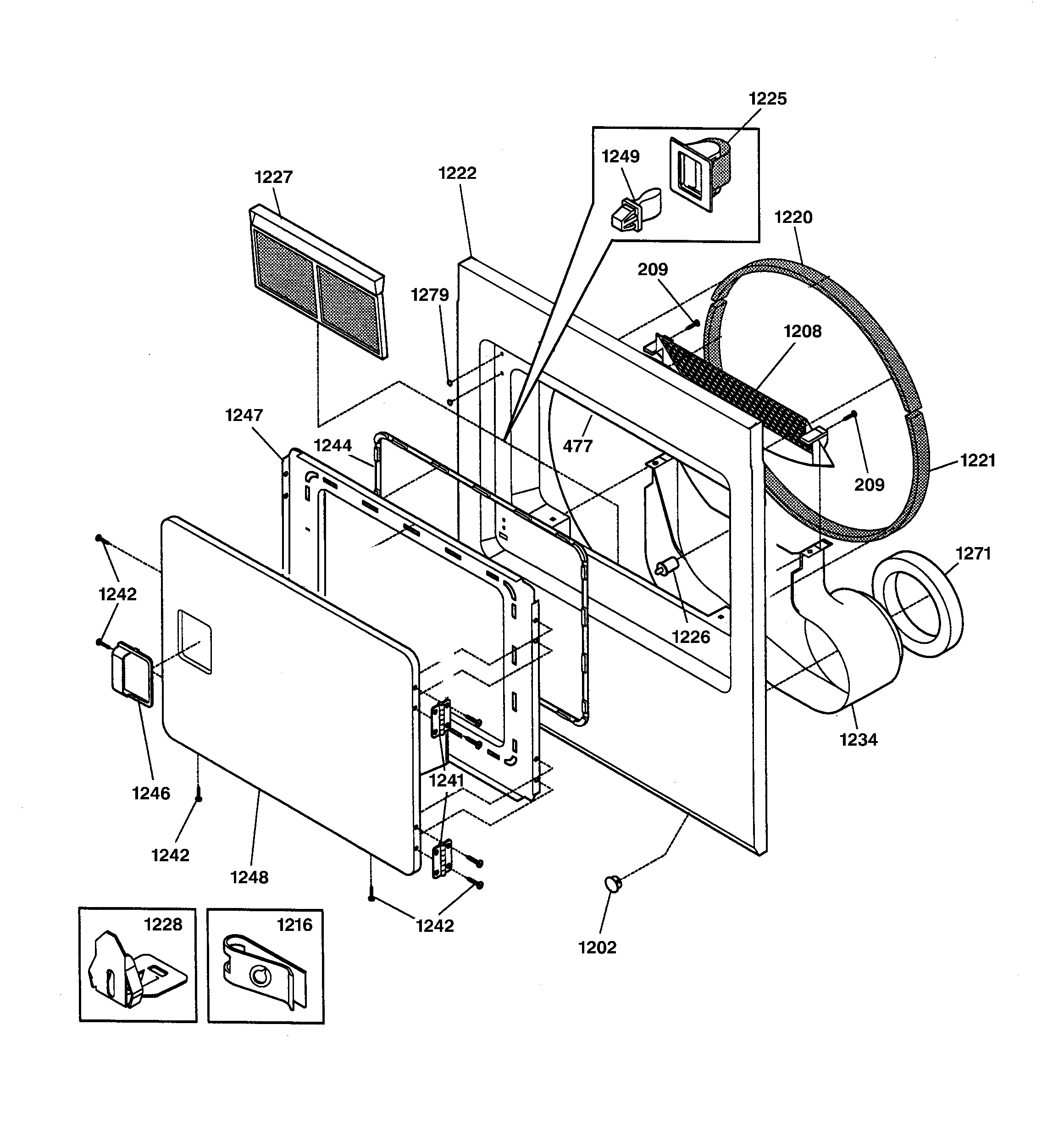

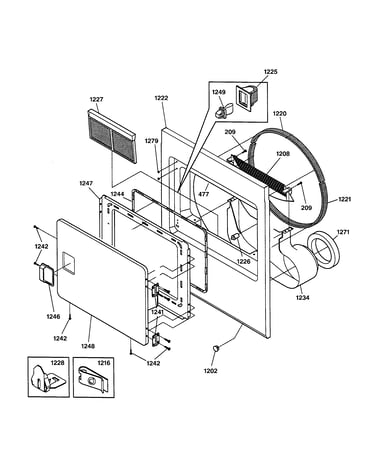

Front panel & lint filter diagram

Drum glide

Part #WE03X0073

Replaced by #WE03X10001

?
Manufacturer substitution
This part replaces WE03X0073. Substitute parts can look different from the original.
$100.99 |
11% OFF Phone Price : $112.99
In Stock
Thermostat WE04X10002
#1233

Cabinet & drum diagram

Thermostat

Part #WE04X10002

Replaced by #WE4X757

?
Manufacturer substitution
This part replaces WE04X10002. Substitute parts can look different from the original.
$56.17 |
10% OFF Phone Price : $62.17
In Stock
Dryer Drive Motor WE17X10002
#1328

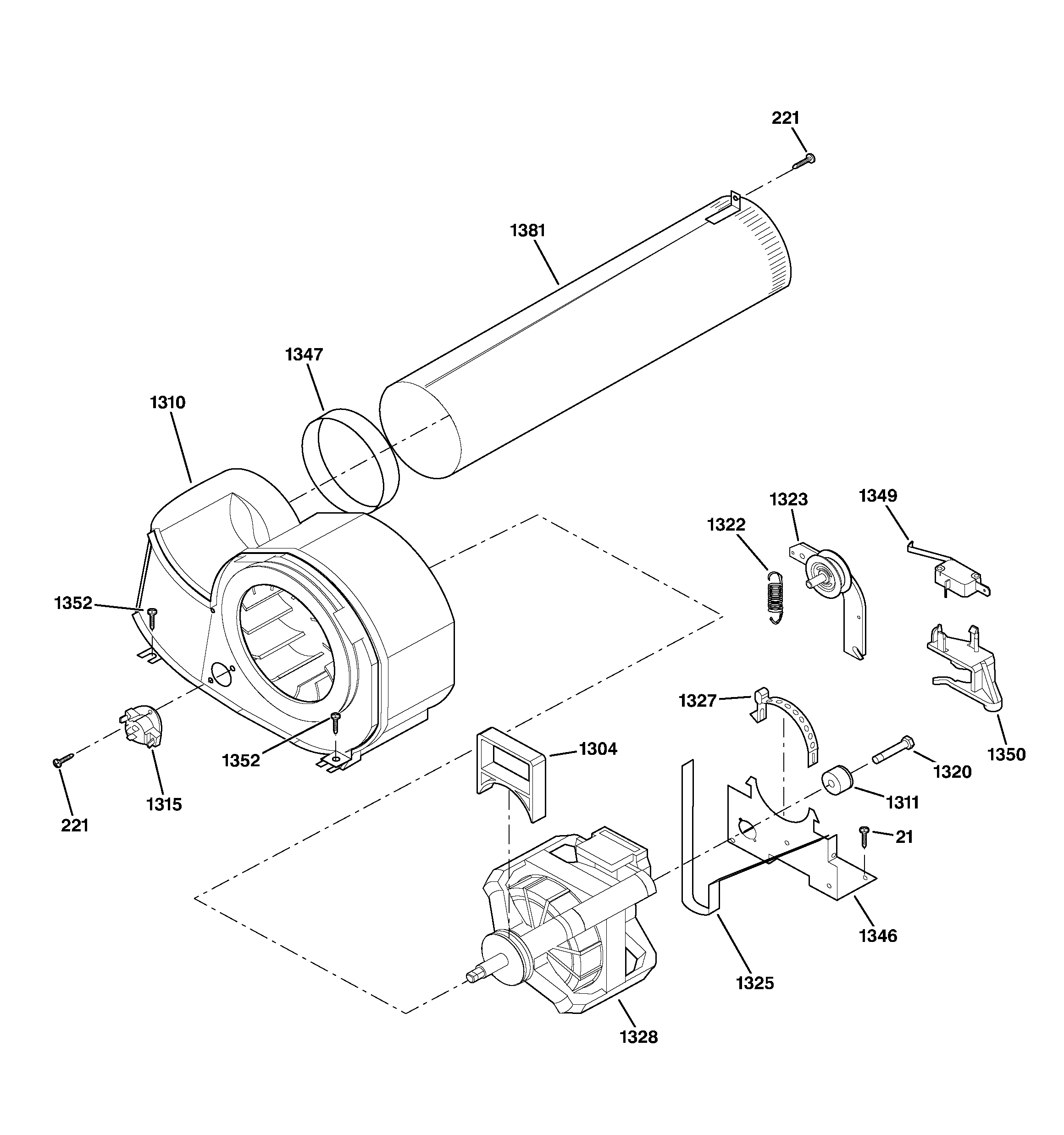

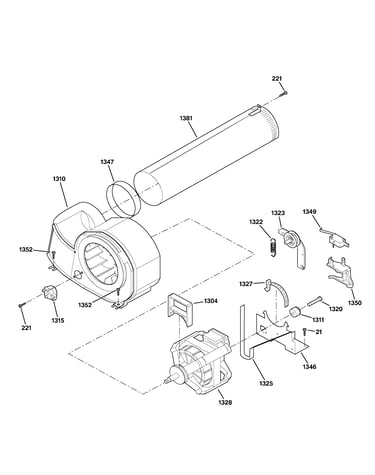

Motor diagram

Dryer drive motor

Part #WE17X10002

Replaced by #WE17X23466

?
Manufacturer substitution
This part replaces WE17X10002. Substitute parts can look different from the original.
$182.91
In Stock
Dryer Operating Thermostat WE04X10028
#1315

Motor diagram

Dryer operating thermostat

Part #WE04X10028

$39.19 |
13% OFF Phone Price : $45.19
In Stock
Dryer Cabinet Hole Plug WE01X10137
#477

Front panel & lint filter diagram

Dryer cabinet hole plug

Part #WE01X10137

$54.21 |
10% OFF Phone Price : $60.21
In Stock
Screw WE02X10011
#1239

Cabinet & drum diagram

Screw

Part #WE02X10011

$23.71
In Stock
Dvl223 - Njl 49-9996
#1

Controls & top panel diagram

Dvl223 - njl

Part #49-9996

$8.59 |
10% OFF Phone Price : $9.59
In Stock
