Model # MC-V526800 Official Panasonic vacuum

Here are the diagrams and repair parts for Official Panasonic MC-V526800 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |

Panasonic Lamp AC28GADFZ00
#A-24

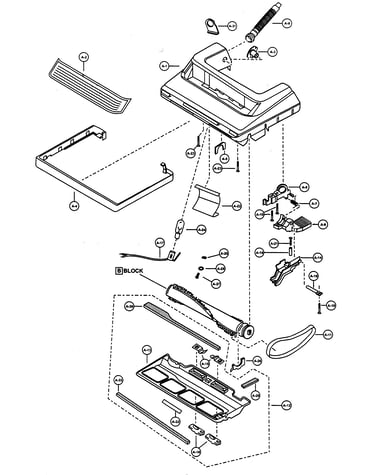

Nozzle housing diagram

Panasonic lamp

Part #AC28GADFZ00

This item is not returnable
In Stock
Panasonic Lowr Plate AC27AADGZ00
#A-13

Nozzle housing diagram

Panasonic lowr plate

Part #AC27AADGZ00

$38.89
13% OFF Phone Price : $44.89
In Stock
Panasonic Shaft AMC51A-2V0
#A-18

Nozzle housing diagram

Panasonic shaft

Part #AMC51A-2V0

In Stock
Panasonic Spacer AMC74S-Z100G
#A-19

Nozzle housing diagram

Panasonic spacer

Part #AMC74S-Z100G

This item is not returnable
In Stock
Panasonic Filter AC44KBVNZ000
#B-5

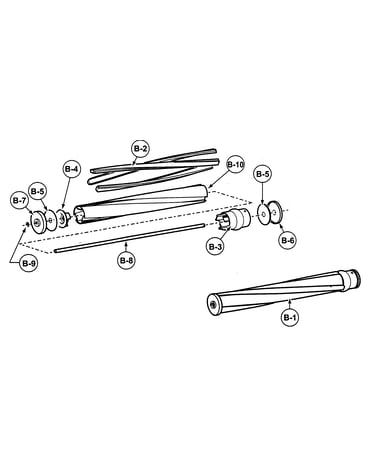

Agitator assy diagram

Panasonic filter

Part #AC44KBVNZ000

In Stock
Panasonic Socket AC93HURZ00
#A-17

Nozzle housing diagram

Panasonic socket

Part #AC93HURZ00

In Stock
Panasonic Packing AC19FARSZV06
#C-27

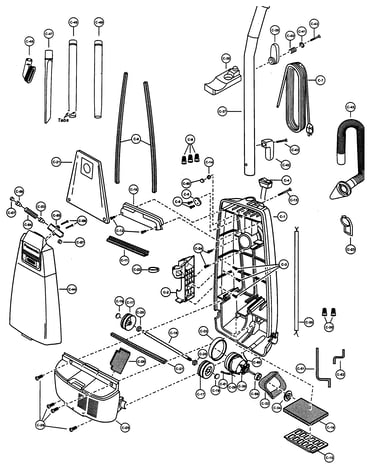

Motor housing/motor/handle/body diagram

Panasonic packing

Part #AC19FARSZV06

In Stock
Panasonic Suppressor AC99GAMMZ00
#C-32

Motor housing/motor/handle/body diagram

Panasonic suppressor

Part #AC99GAMMZ00

In Stock
Panasonic Guard AC10A2VZV07
#A-4

Nozzle housing diagram

Panasonic guard

Part #AC10A2VZV07

In Stock
Panasonic Shaft AC16CUSZ00
#C-18

Motor housing/motor/handle/body diagram

Panasonic shaft

Part #AC16CUSZ00

In Stock
