Model # MQU1554AEW Official Maytag upright freezer

Here are the diagrams and repair parts for Official Maytag MQU1554AEW upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

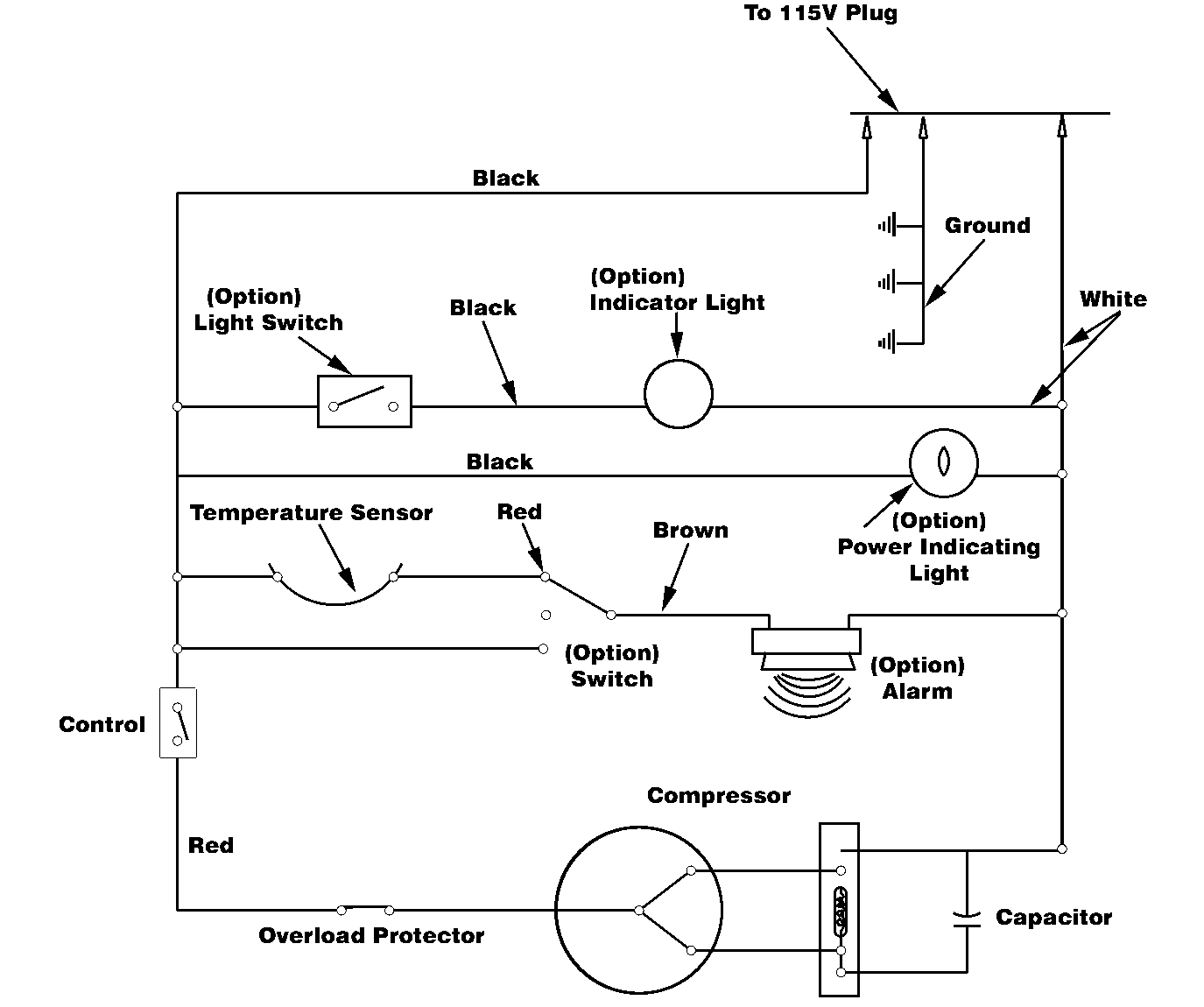

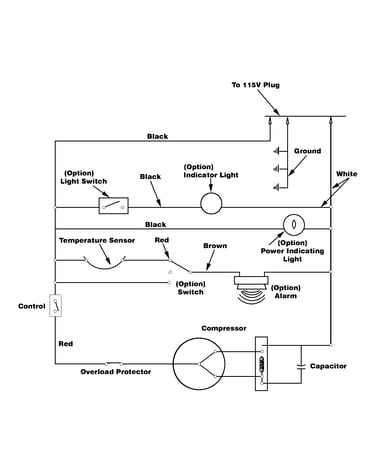

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

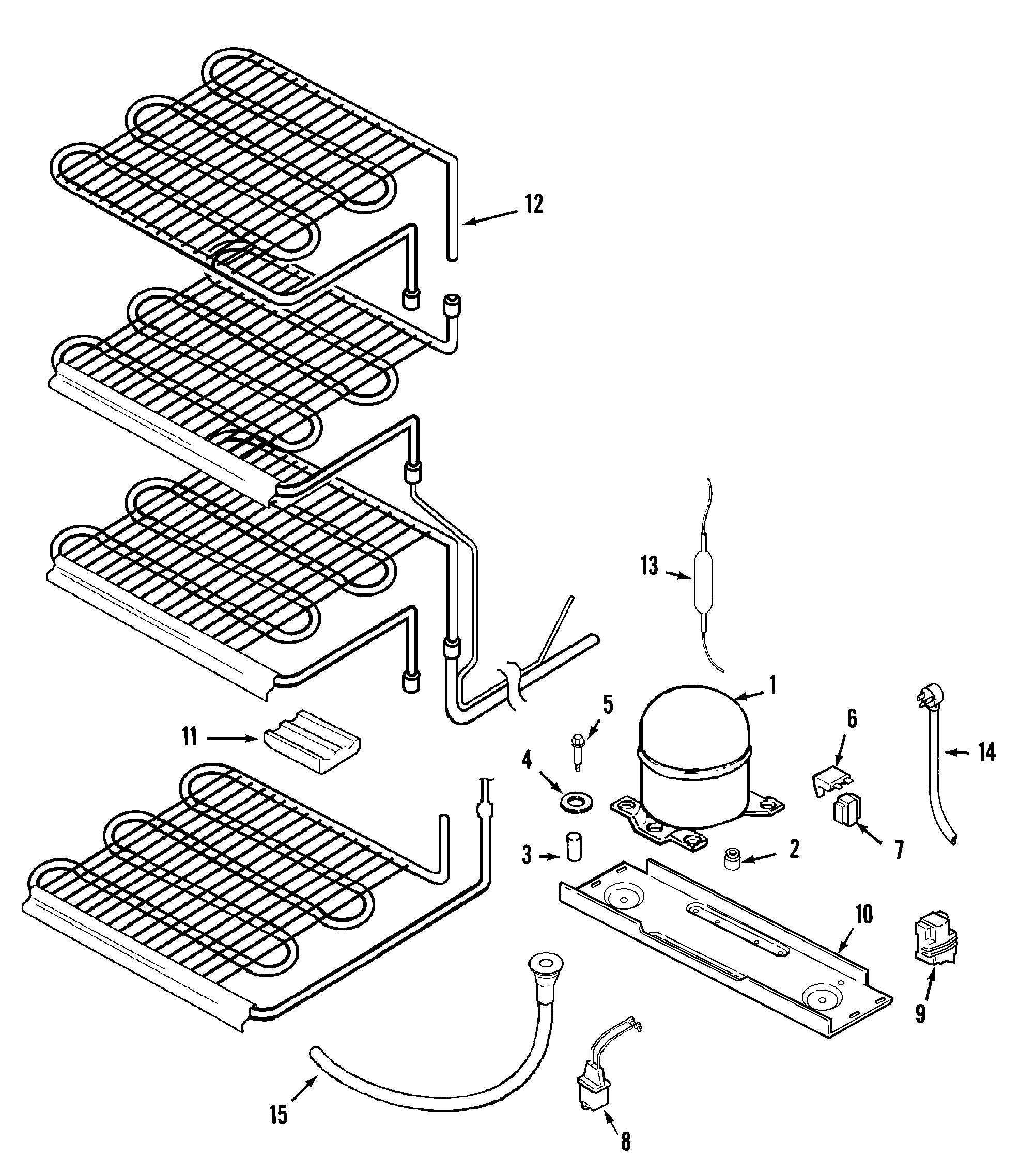

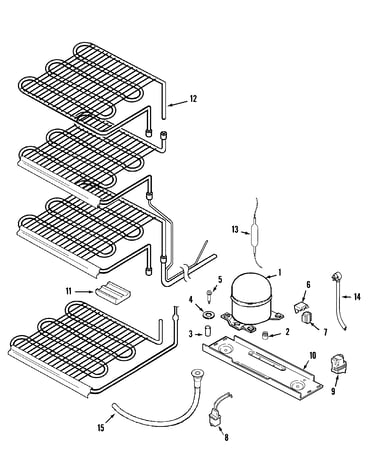

Unit compartment & system diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Switch 68001324
#5

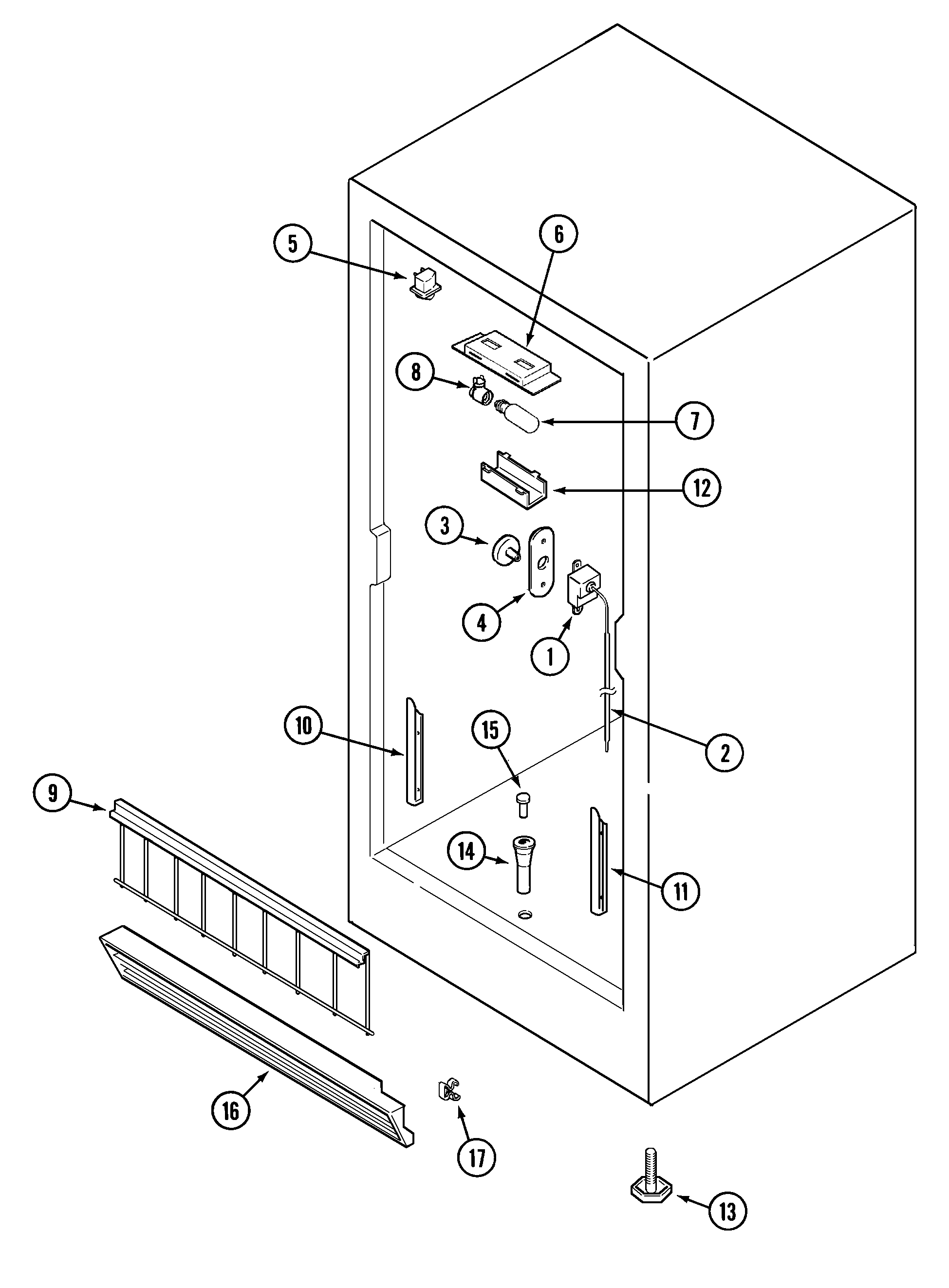

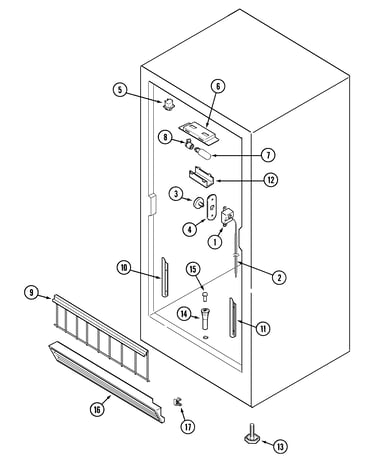

Freezer compartment diagram

Light switch

Part #68001324

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 68001324. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Compressor Kit 68001458
#1

Unit compartment & system diagram

Compressor kit

Part #68001458

Replaced by #W10309989

?
Manufacturer substitution
This part replaces 68001458. Substitute parts can look different from the original.
BEST SELLER
$502.83 |
$12.00 OFF Phone Price : $514.83
In Stock
Screw (1 1/4 68001196
#12B

Unit compartment & system diagram

Screw (1 1/4

Part #68001196

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces 68001196. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Sleeve Control 68001604
#2

Freezer compartment diagram

Sleeve control

Part #68001604

Replaced by #WP2196003

?
Manufacturer substitution
This part replaces 68001604. Substitute parts can look different from the original.
This item is not returnable
$5.04 |
17% OFF Phone Price : $6.04
In Stock
Support, Fen 68001067
#10

Freezer compartment diagram

Support, fen

Part #68001067

Replaced by #4-80576-202

?
Manufacturer substitution
This part replaces 68001067. Substitute parts can look different from the original.
This item is not returnable
$16.15 |
11% OFF Phone Price : $18.15
In Stock
Nameplate (m 68001606
#19

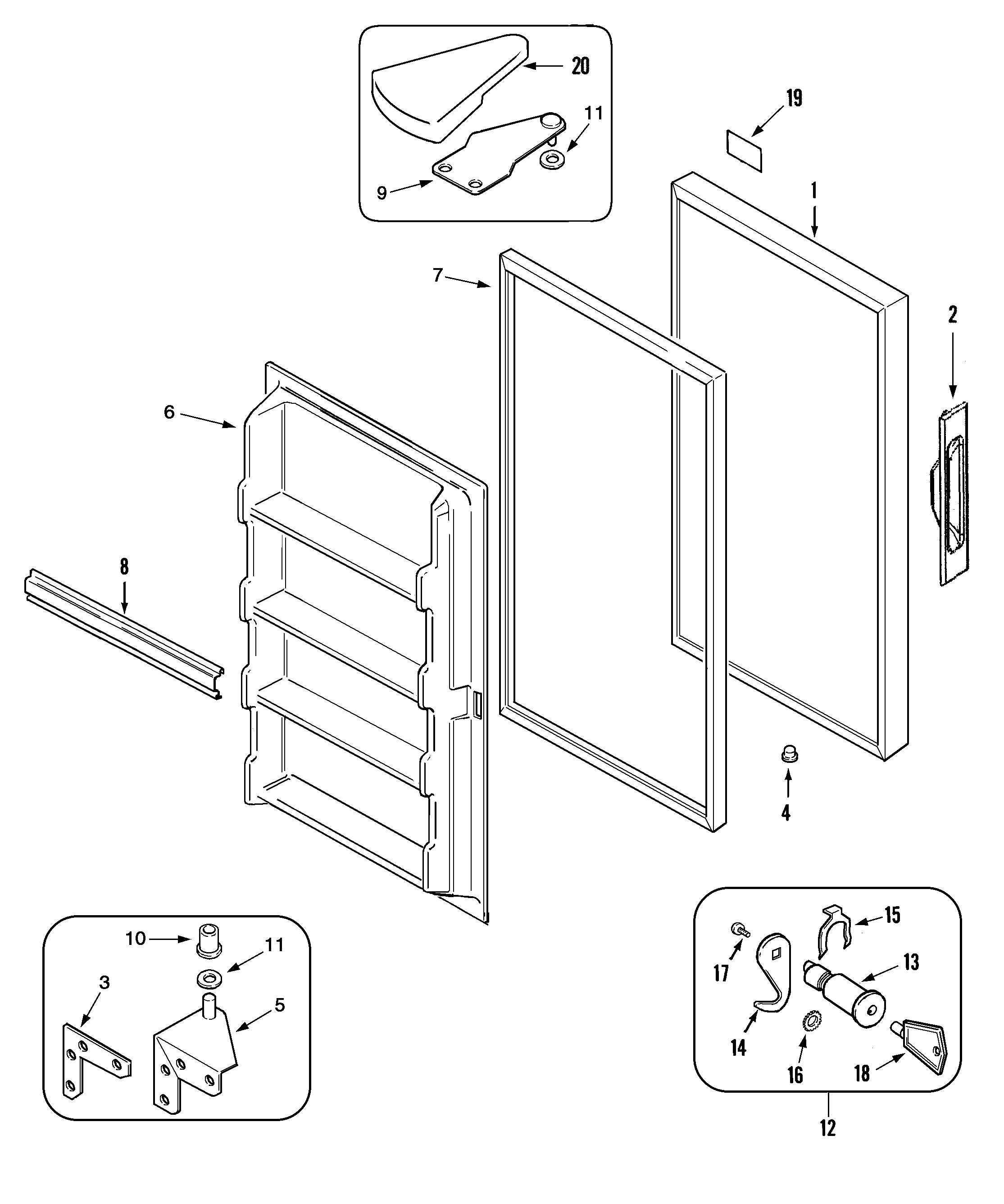

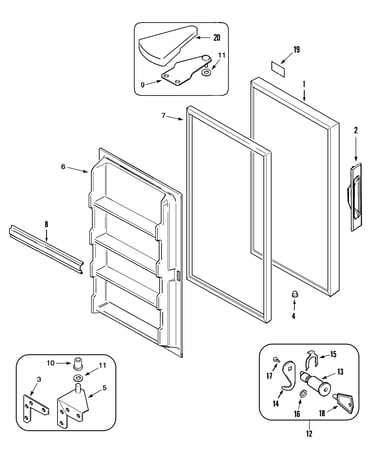

Door diagram

Nameplate (m

Part #68001606

$20.96
In Stock
Shim 68001230
#9B

Door diagram

Shim

Part #68001230

Replaced by #4390489

?
Manufacturer substitution
This part replaces 68001230. Substitute parts can look different from the original.
This item is not returnable
$4.89
In Stock
Overload 68001522
#7

Unit compartment & system diagram

Overload

Part #68001522

The manufacturer no longer makes this part, and there's no substitute part

Screw 68001102
#1A

Freezer compartment diagram

Screw

Part #68001102

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 68001102. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
