Model # LN19C350D1DXZA-OT01 Official Samsung lcd television

Here are the diagrams and repair parts for Official Samsung LN19C350D1DXZA-OT01 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |

Lcd Panel BN07-00766A
#3

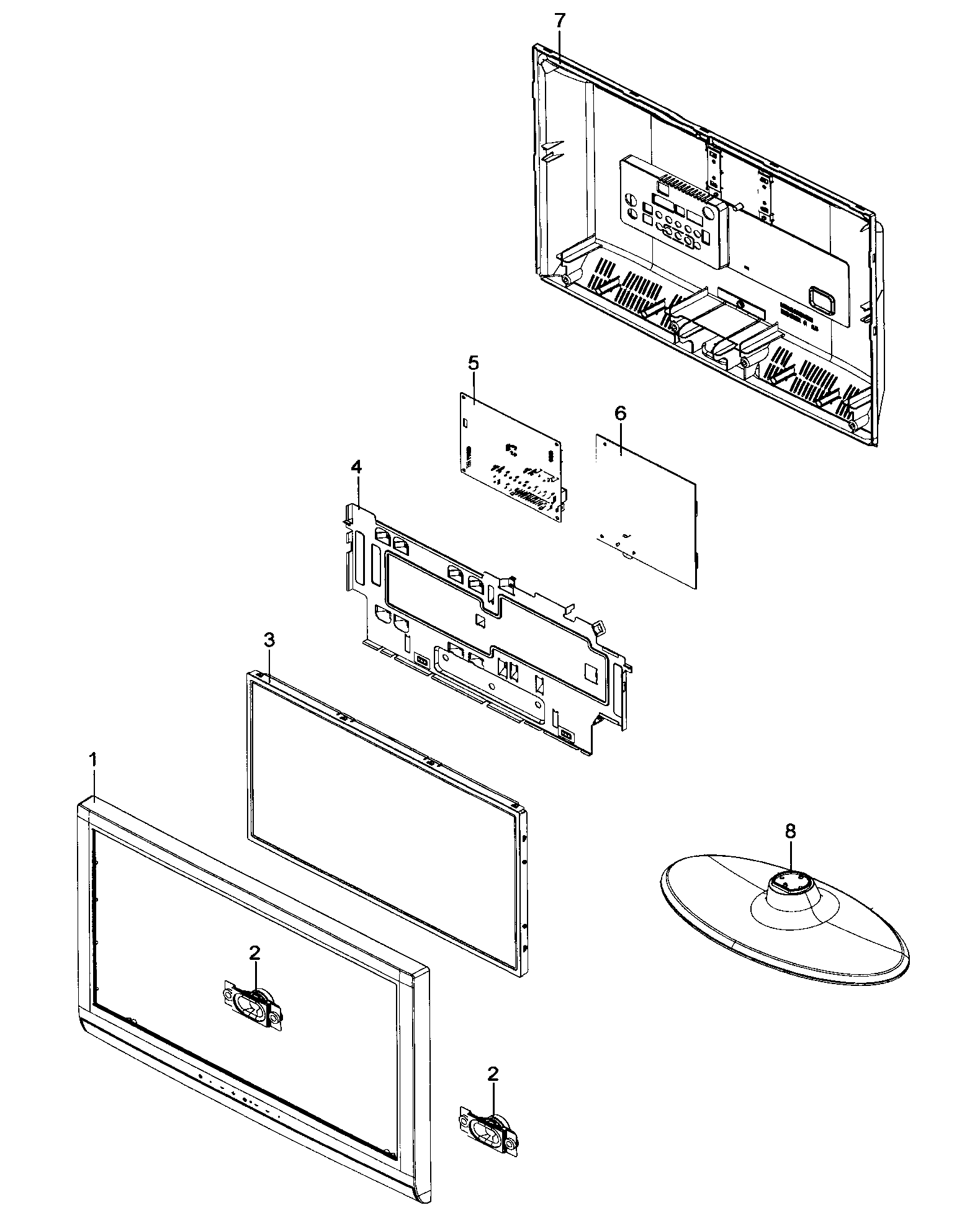

Cabinet assy diagram

Lcd panel

Part #BN07-00766A

The manufacturer no longer makes this part, and there's no substitute part

Thread-cutting Screw 6002-001294
#NI

Cabinet assy diagram

Thread-cutting screw

Part #6002-001294

The manufacturer no longer makes this part, and there's no substitute part

Cover BN96-12856A
#1

Cabinet assy diagram

Cover

Part #BN96-12856A

The manufacturer no longer makes this part, and there's no substitute part

Television Power Cord 3903-000467
#NI

Cabinet assy diagram

Television power cord

Part #3903-000467

The manufacturer no longer makes this part, and there's no substitute part

Cable Ffc BN96-12447P
#NI

Cabinet assy diagram

Cable ffc

Part #BN96-12447P

The manufacturer no longer makes this part, and there's no substitute part

Touch Pcb BN96-13063D
#NI

Cabinet assy diagram

Touch pcb

Part #BN96-13063D

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb BN94-02632J
#5

Cabinet assy diagram

Main pcb

Part #BN94-02632J

The manufacturer no longer makes this part, and there's no substitute part

Bracket Panel BN96-13322A
#4

Cabinet assy diagram

Bracket panel

Part #BN96-13322A

The manufacturer no longer makes this part, and there's no substitute part

Cover BN96-12860A
#7

Cabinet assy diagram

Cover

Part #BN96-12860A

The manufacturer no longer makes this part, and there's no substitute part

Pcb,ir Bd. BN44-00328A
#6

Cabinet assy diagram

Pcb,ir bd.

Part #BN44-00328A

The manufacturer no longer makes this part, and there's no substitute part
