Model # AR18NS8F1 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire AR18NS8F1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

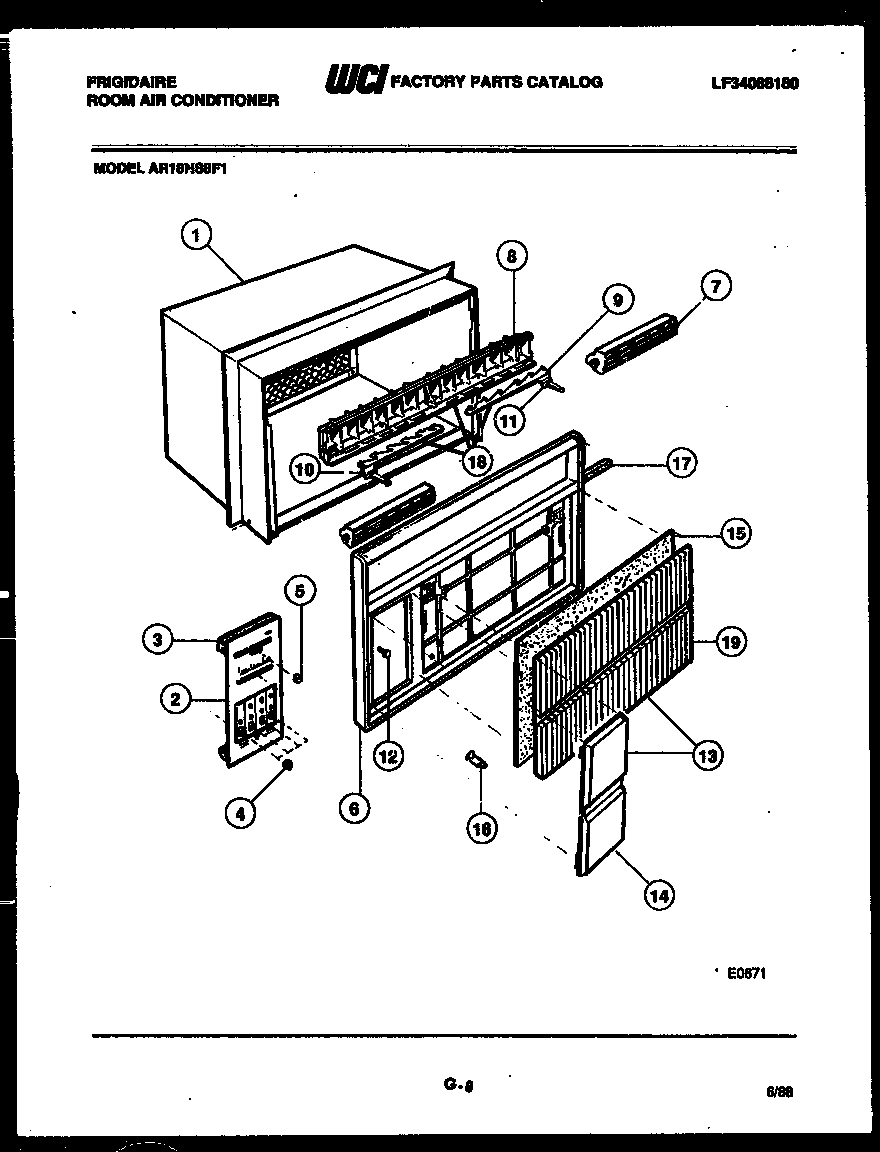

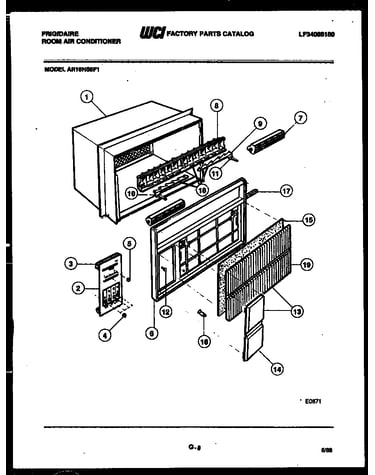

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |

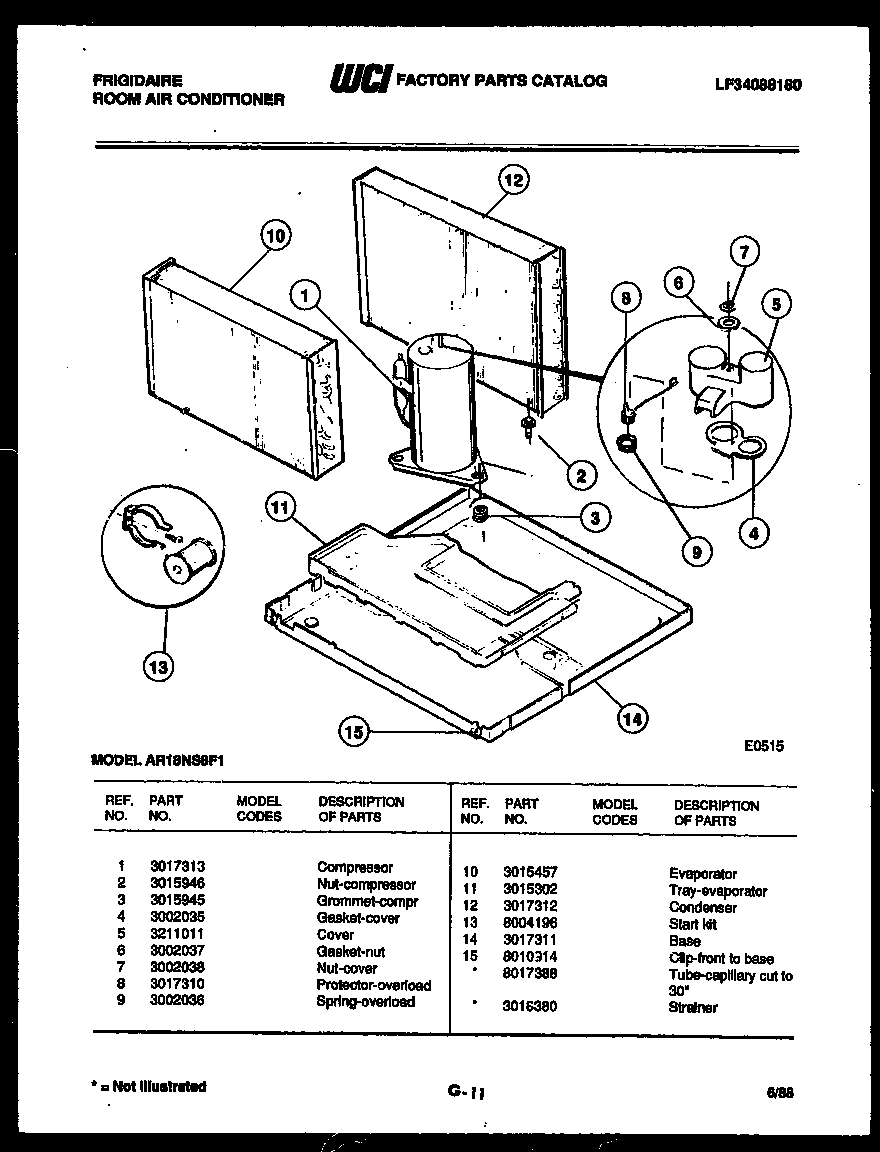

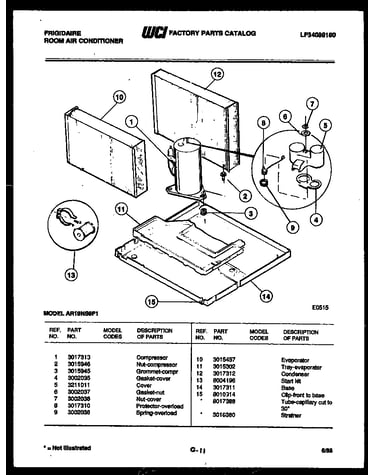

Filter 3018380

#NI

All parts diagram

Filter

Part #3018380

Replaced by #5300265301

?
Manufacturer substitution
This part replaces 3018380. Substitute parts can look different from the original.
$212.62
In Stock
Nut-hex 3017023
#12

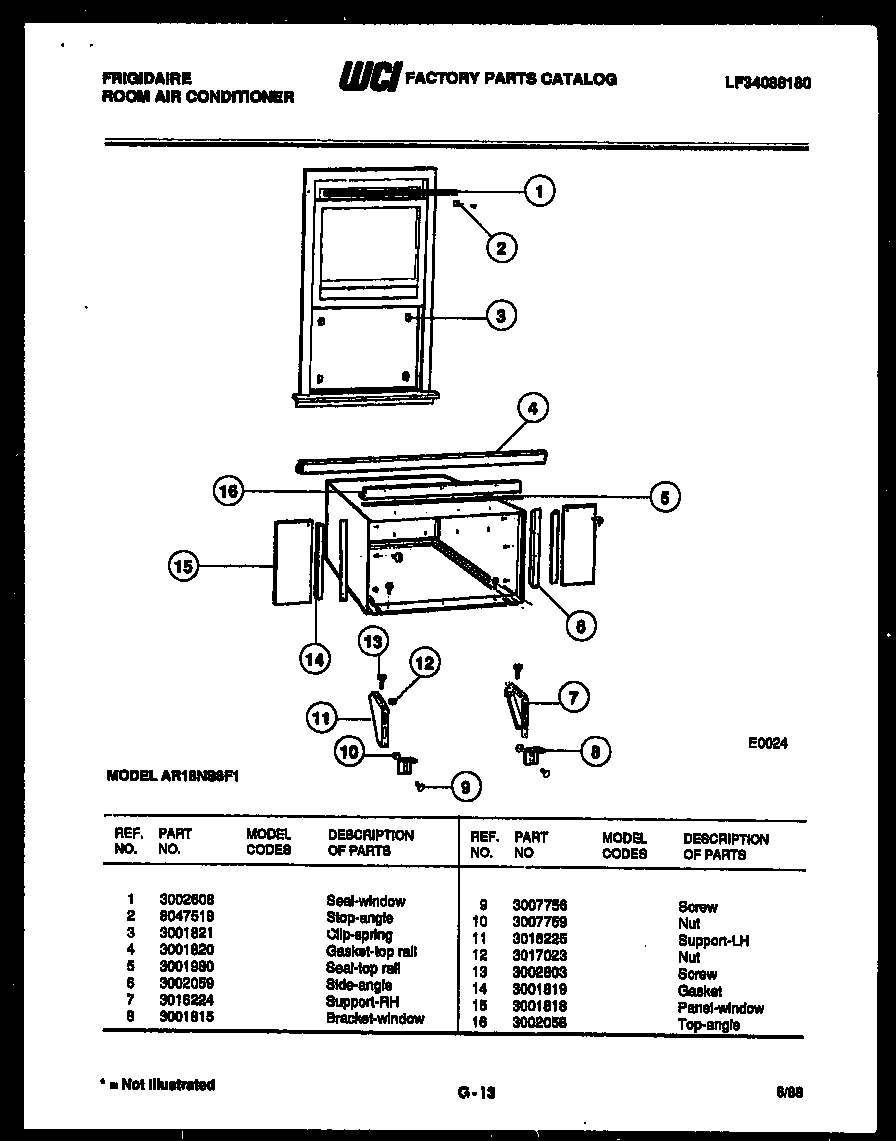

Window mounting parts diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Divider 3015321
#10

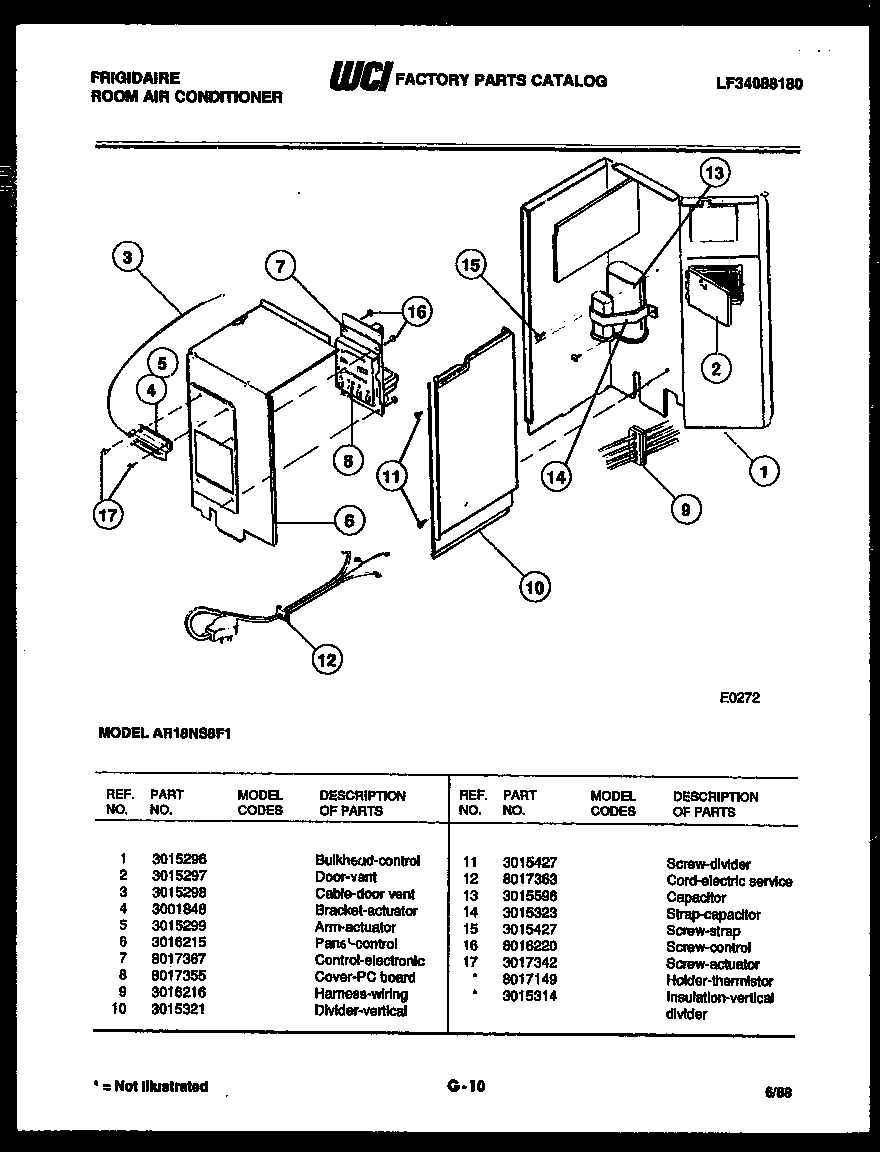

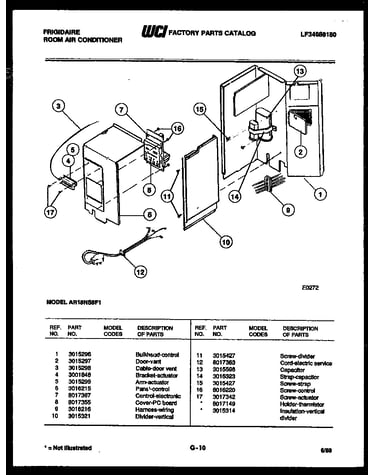

Electrical parts diagram

Divider

Part #3015321

This item is not returnable
$4.79
In Stock

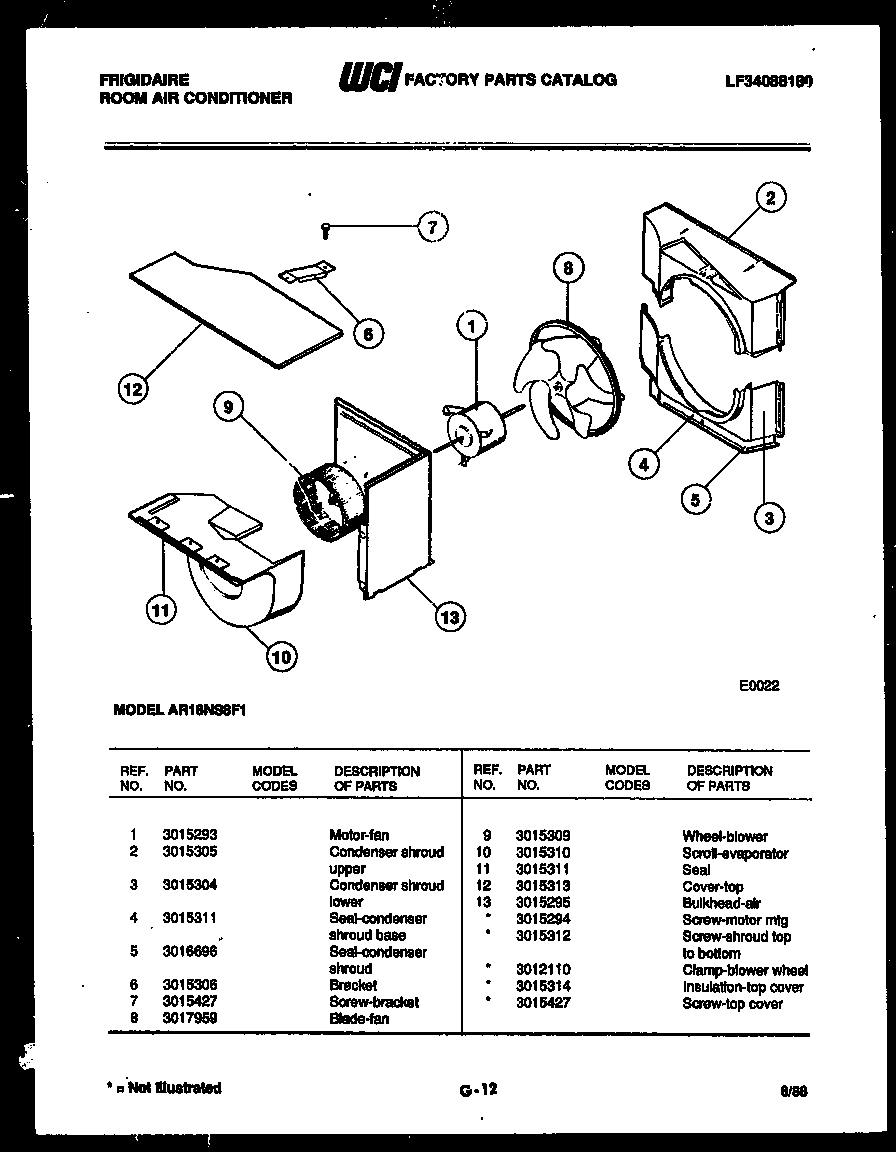

Bracket Screw 3015312

#NI

All parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Screw 3015294

#NI

All parts diagram

Screw

Part #3015294

Replaced by #5303015294

?
Manufacturer substitution
This part replaces 3015294. Substitute parts can look different from the original.
This item is not returnable
$2.34
In Stock
Screw 3015427
Screw

Part #3015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 3015427. Substitute parts can look different from the original.
$14.69
In Stock
Gasket 3001819
#14

Window mounting parts diagram

Gasket

Part #3001819

Replaced by #5303302765

?
Manufacturer substitution
This part replaces 3001819. Substitute parts can look different from the original.
This item is not returnable
$3.49
In Stock
Gasket 3001820
#4

Window mounting parts diagram

Gasket

Part #3001820

Replaced by #5303302764

?
Manufacturer substitution
This part replaces 3001820. Substitute parts can look different from the original.
$9.99
In Stock
Door Vent 3015297
#2

Electrical parts diagram

Door vent

Part #3015297

The manufacturer no longer makes this part, and there's no substitute part

Cover - Pc Board 8017355
#8

Electrical parts diagram

Cover - pc board

Part #8017355

The manufacturer no longer makes this part, and there's no substitute part
