Digital Camcorder

Model # HDR-CX190/B Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony HDR-CX190/B digital camcorder, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
HDR-CX190/B Camcorders
Plate,sp 441211901
#161

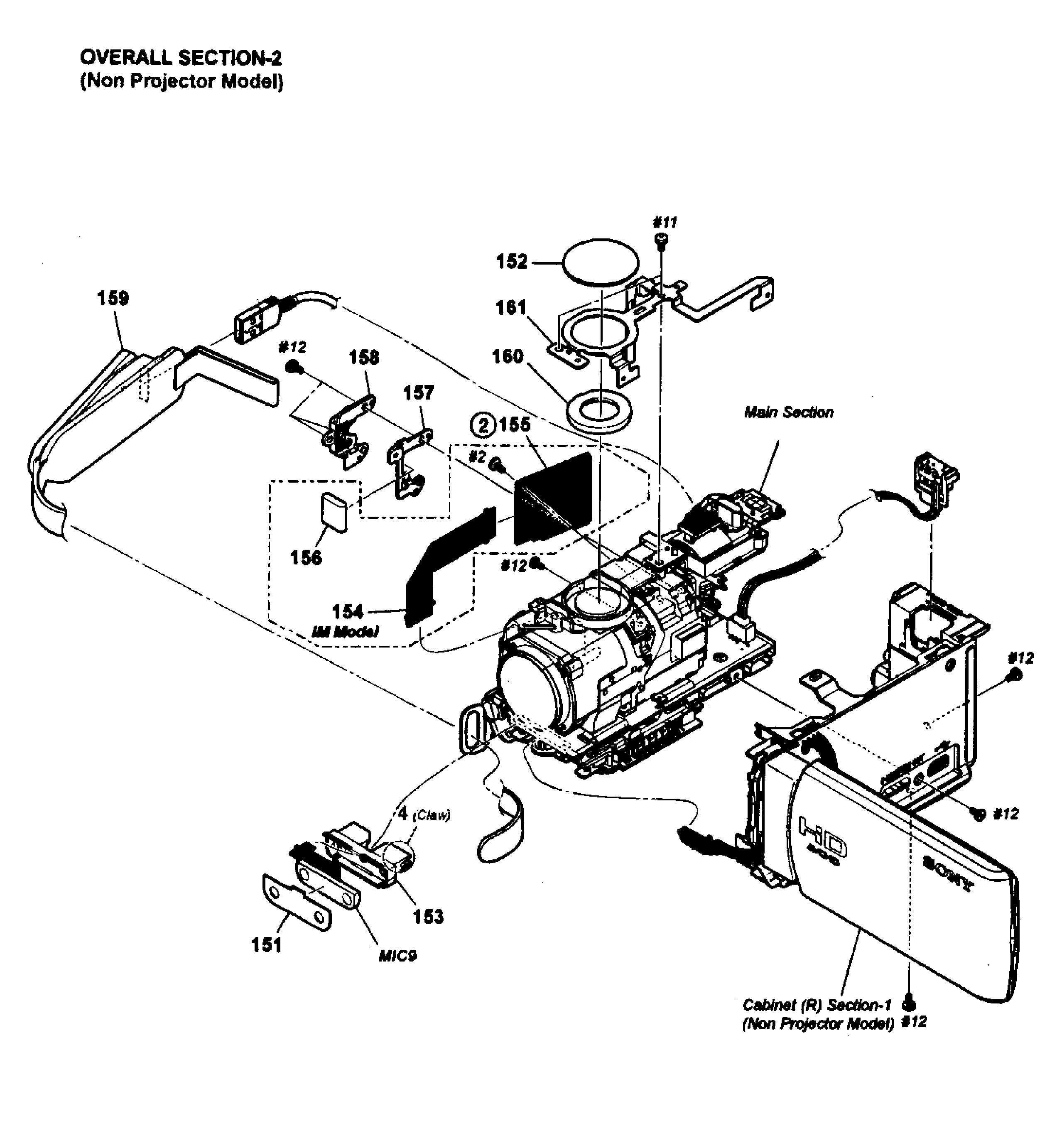

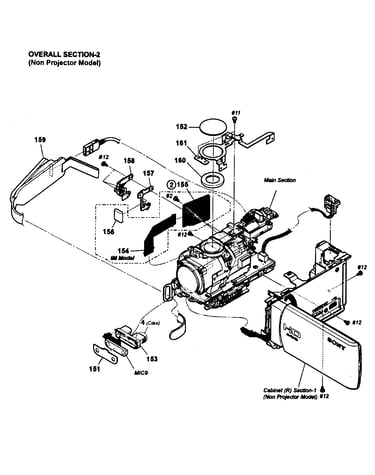

Left assy diagram

Plate,sp

Part #441211901

This item is not returnable
In Stock
Mm-102 Pcb A1852422A
#155

Left assy diagram

Mm-102 pcb

Part #A1852422A

In Stock
Own Manal 441696911
#NI

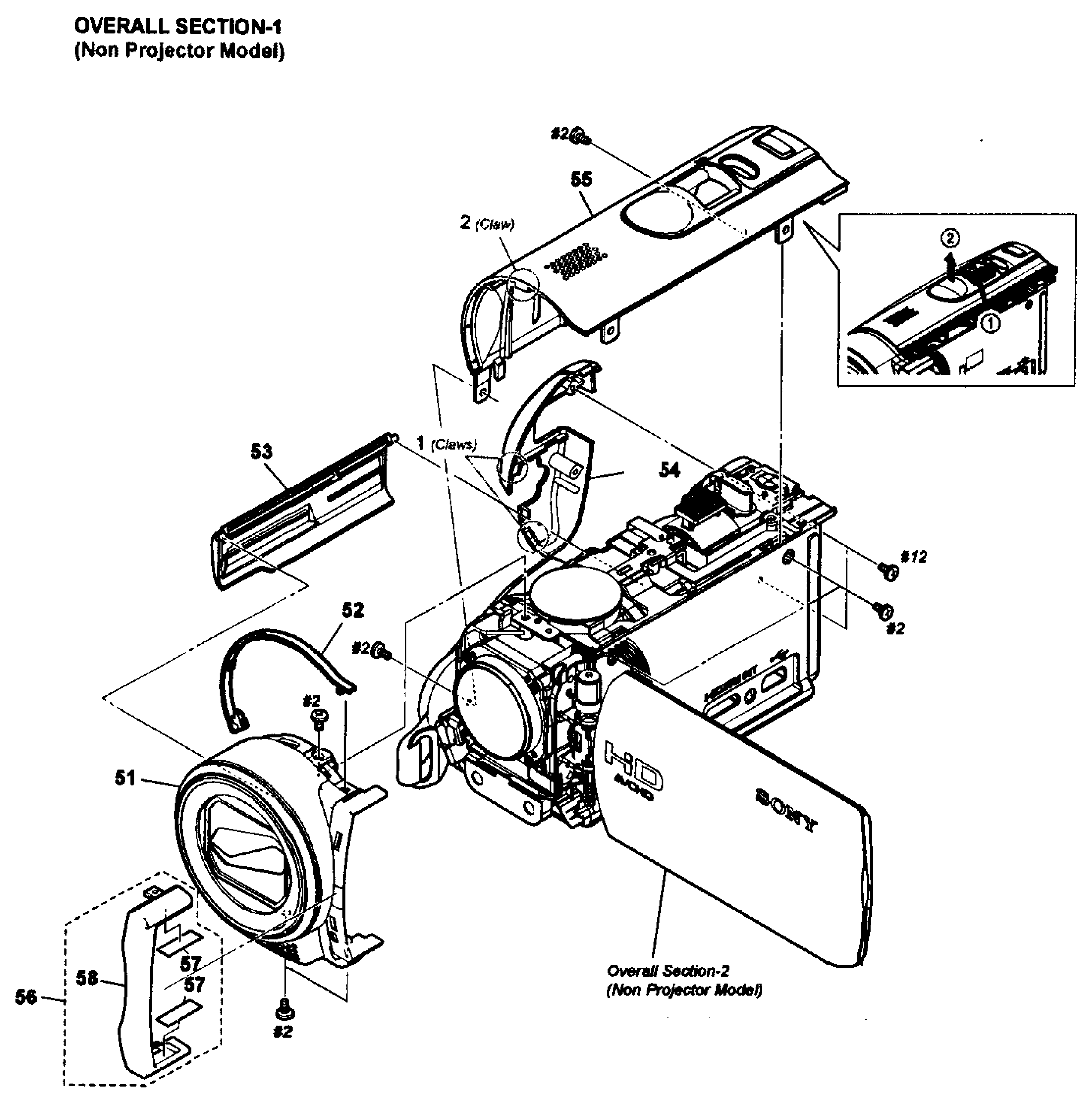

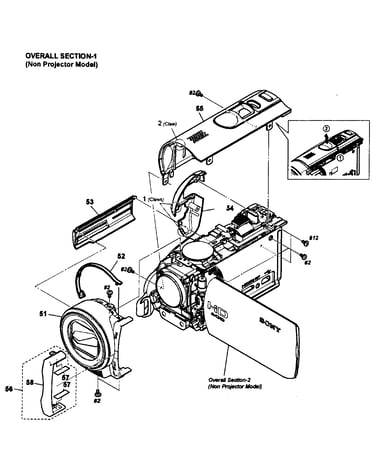

Front/top assy diagram

Own manal

Part #441696911

In Stock
Sheet, Ms 441212501
#209

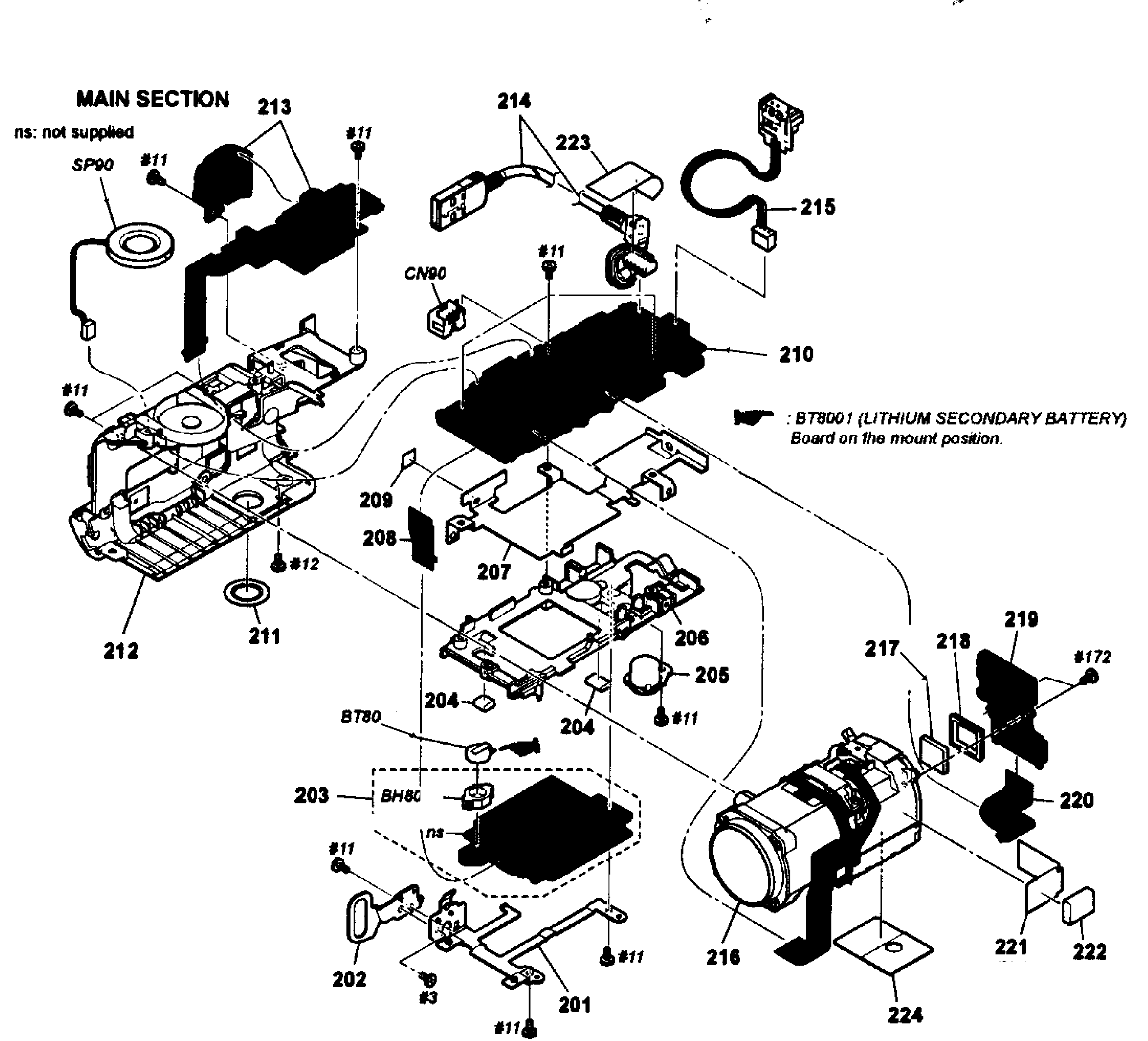

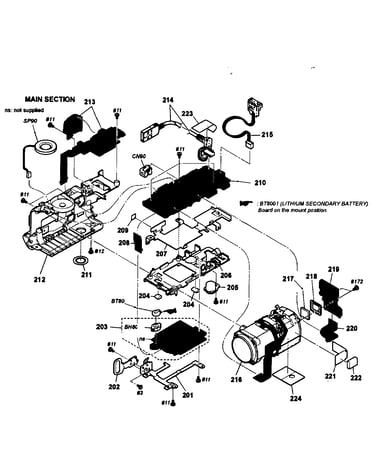

Main assy diagram

Sheet, ms

Part #441212501

This item is not returnable
In Stock
Belt 441213501
#52

Front/top assy diagram

Belt

Part #441213501

In Stock
Cabinet A1854061A
#363

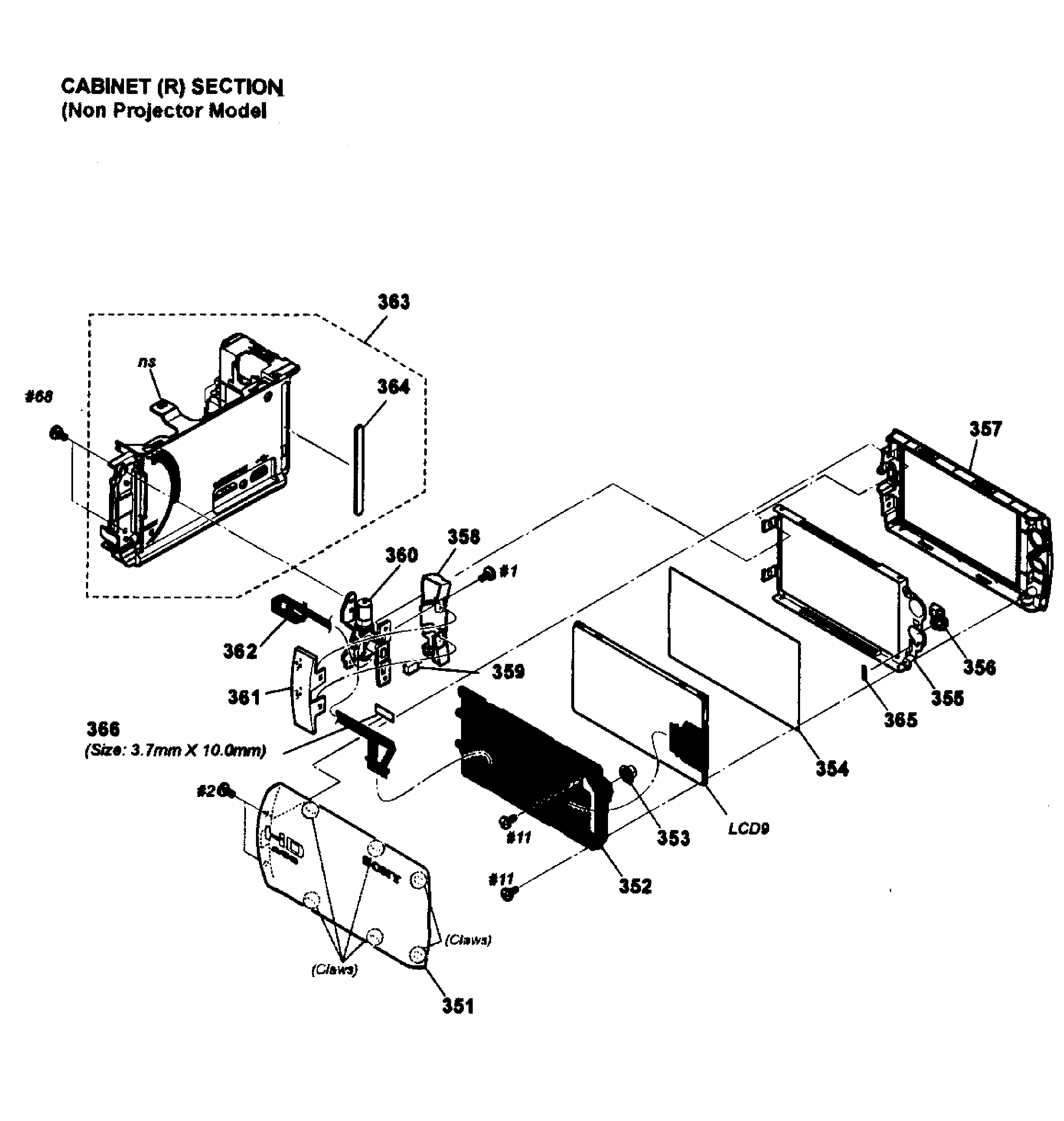

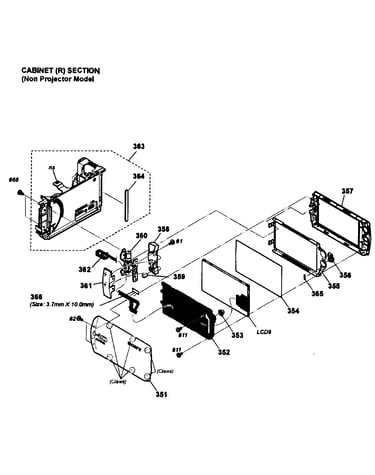

Right/lcd assy diagram

Cabinet

Part #A1854061A

In Stock
Panel A1855293A
#51

Front/top assy diagram

Panel

Part #A1855293A

In Stock
Lid Ms 441213101
#53

Front/top assy diagram

Lid ms

Part #441213101

This item is not returnable
In Stock
Magnet 147150411
#359

Right/lcd assy diagram

Magnet

Part #147150411

In Stock
Holder 441212101
#206

Main assy diagram

Holder

Part #441212101

This item is not returnable
In Stock
