Maytag
Side-By-Side Refrigerator

Model # RSW24E0ZAL Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag RSW24E0ZAL refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

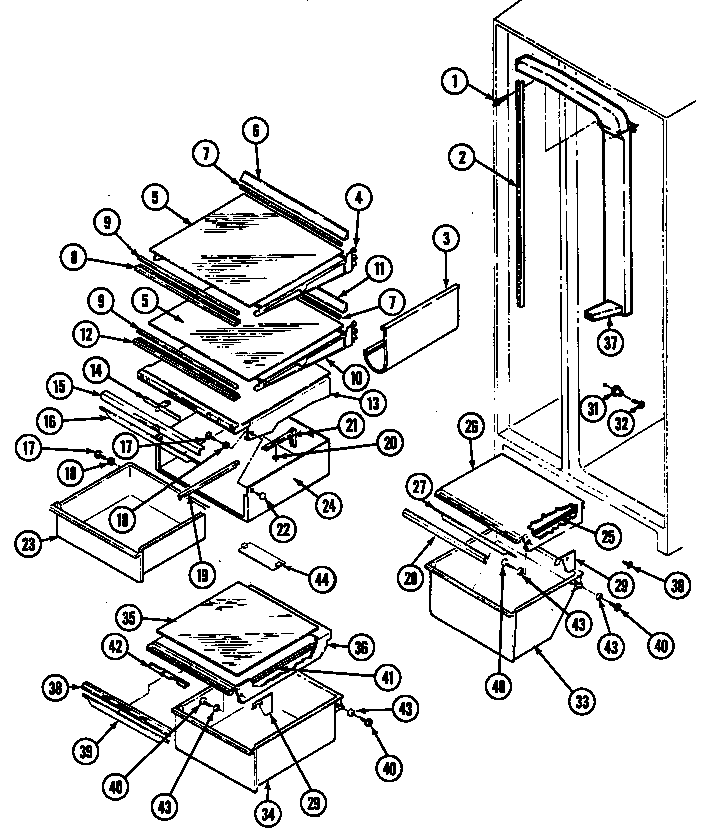

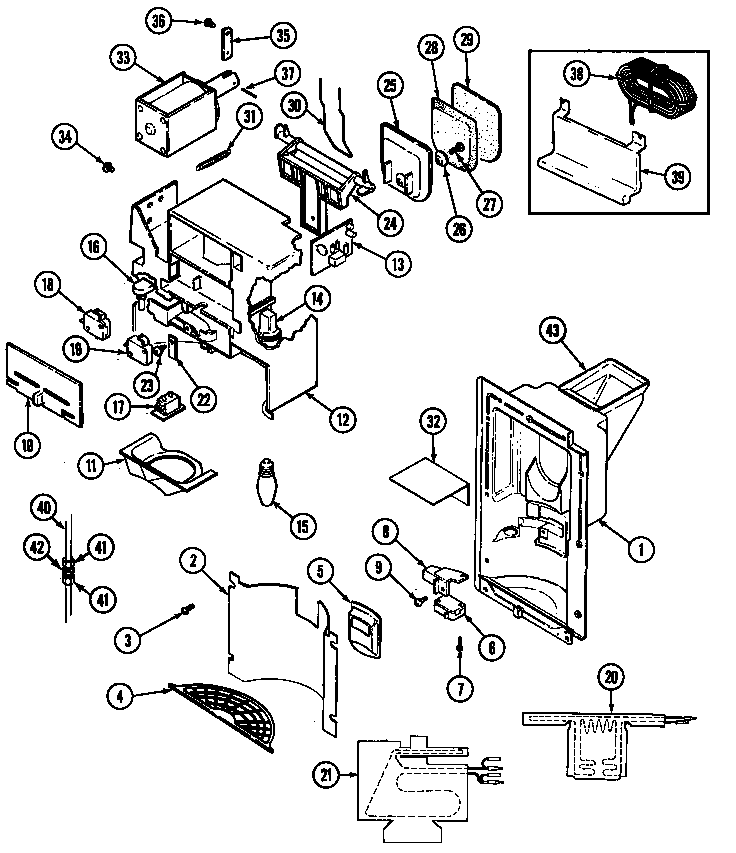

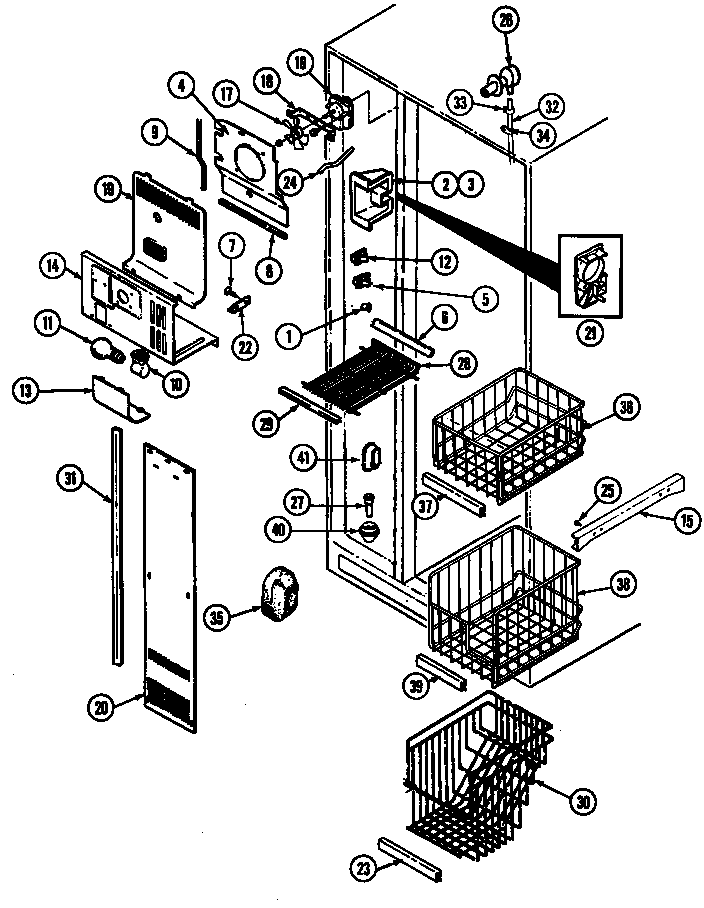

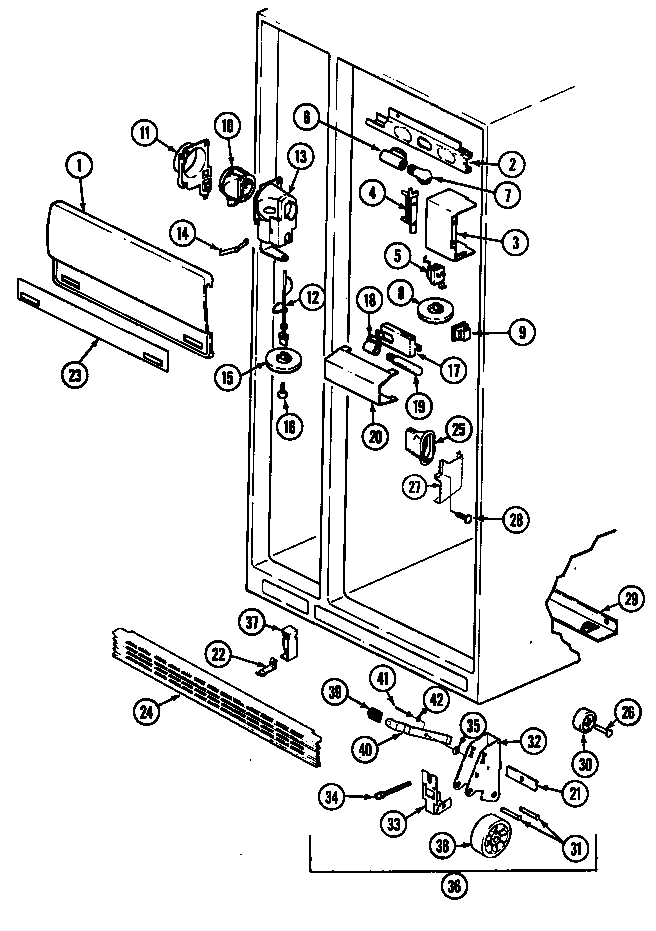

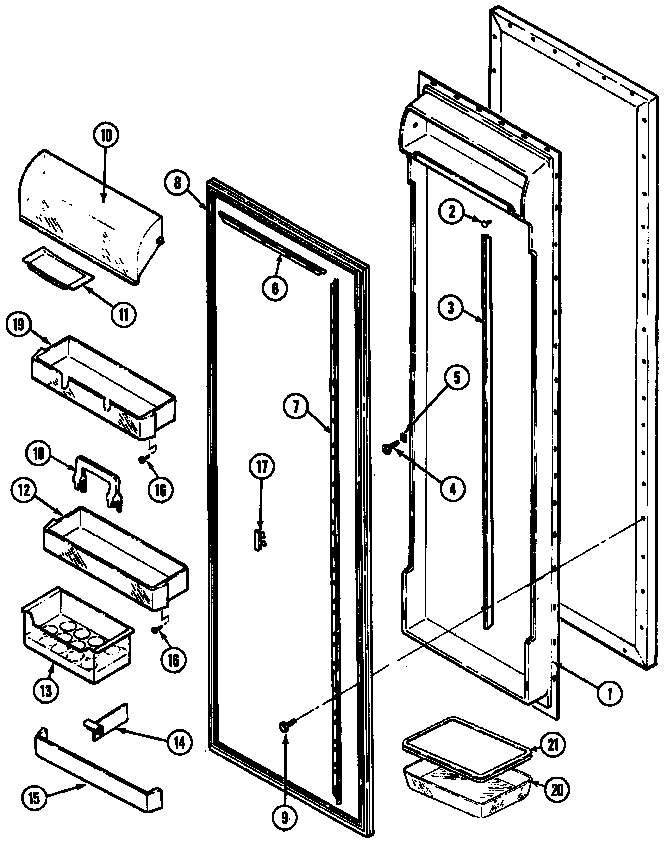

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 357 parts  |
Refrigerator Ice Maker Module 95109-1
#1

Ice maker diagram

Refrigerator ice maker module

Part #95109-1

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Mold And Heater 95098-1
#17

Ice maker diagram

Refrigerator mold and heater

Part #95098-1

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces 95098-1. Substitute parts can look different from the original.
BEST SELLER
$80.74 |
7% OFF Phone Price : $86.74
In Stock
Refrigerator Light Bulb 31956-1
Refrigerator light bulb

Part #31956-1

Replaced by #40A15

?
Manufacturer substitution
This part replaces 31956-1. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Light Switch 66987-1
Light switch

Part #66987-1

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 66987-1. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Drain Hose Clamp 9602-3
#24

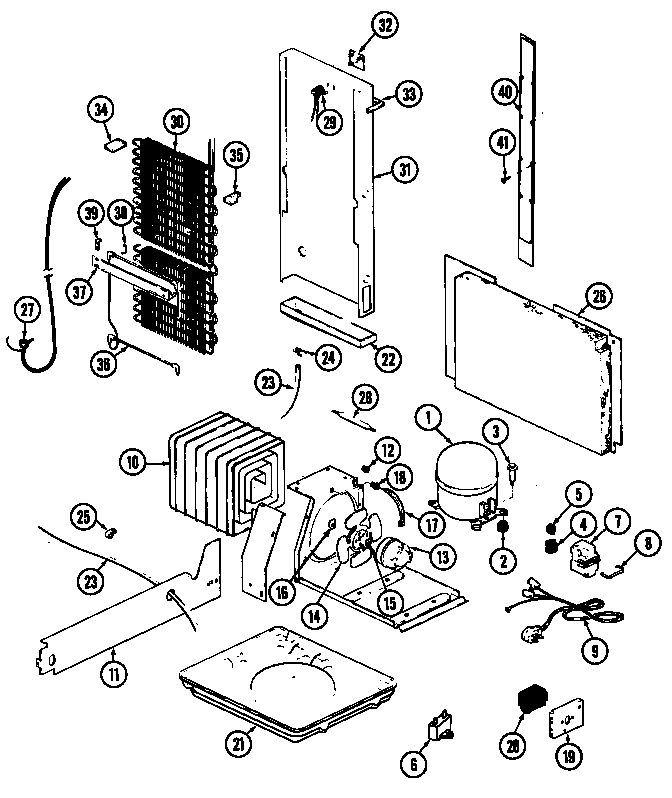

Unit compartment & system diagram

Drain hose clamp

Part #9602-3

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 9602-3. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Ice Dispenser Yoke 63052-2
#11

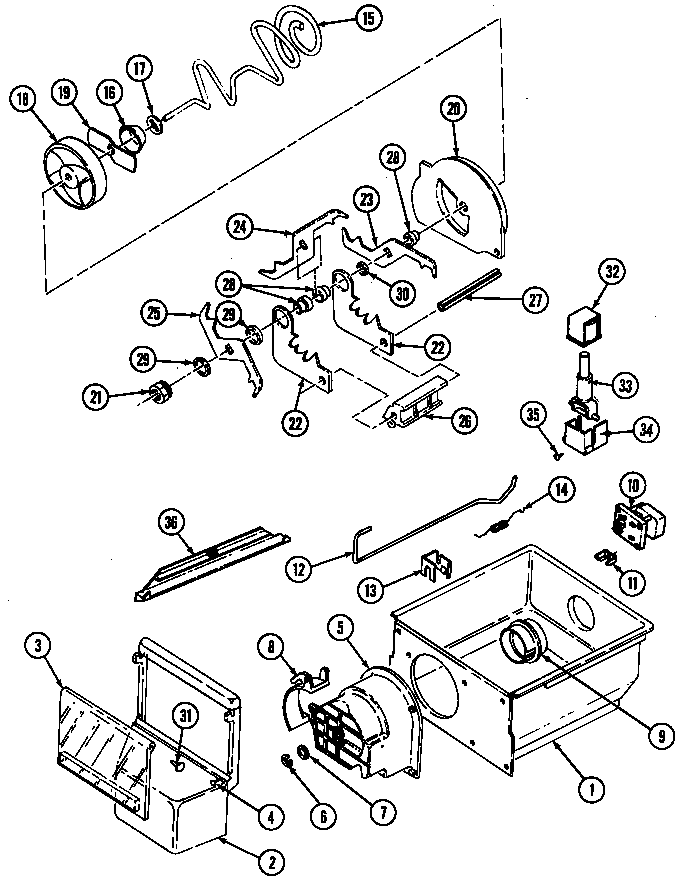

Ice crusher & bin diagram

Refrigerator ice dispenser yoke

Part #63052-2

Replaced by #WP63052-2

?
Manufacturer substitution
This part replaces 63052-2. Substitute parts can look different from the original.
BEST SELLER
$33.77 |
15% OFF Phone Price : $39.77
In Stock
Refrigerator Ice Maker Shut-off Arm 70142-1
#16

Ice maker diagram

Refrigerator ice maker shut-off arm

Part #70142-1

Replaced by #W11342242

?
Manufacturer substitution
This part replaces 70142-1. Substitute parts can look different from the original.
BEST SELLER
$34.31 |
15% OFF Phone Price : $40.31
In Stock
Screw 9986-45
Screw

Part #9986-45

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 9986-45. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Thermostat 95092-1
#13

Ice maker diagram

Refrigerator thermostat

Part #95092-1

Replaced by #WP627985

?
Manufacturer substitution
This part replaces 95092-1. Substitute parts can look different from the original.
BEST SELLER
$47.98 |
11% OFF Phone Price : $53.98
In Stock
Refrigerator Screw 95106-1
#3A

Ice maker diagram

Refrigerator screw

Part #95106-1

Replaced by #WP681249

?
Manufacturer substitution
This part replaces 95106-1. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
