Model # IVS52 Official DCS vent hood

Here are the diagrams and repair parts for Official DCS IVS52 vent hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Harness, Hood, Main Ivs40/52 97072

#NI01

All parts diagram

Harness, hood, main ivs40/52

Part #97072

The manufacturer no longer makes this part, and there's no substitute part

Diode 97006
#21

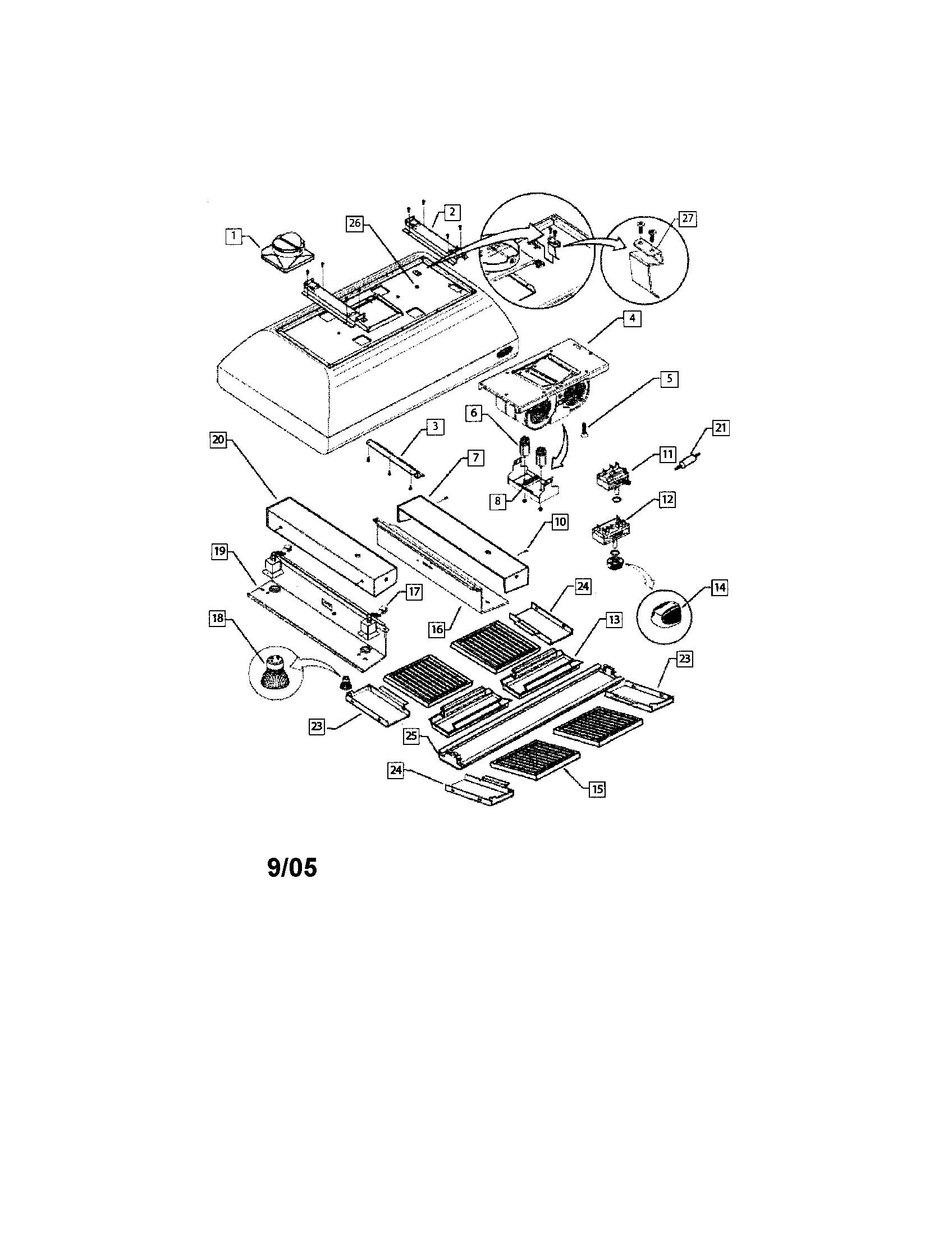

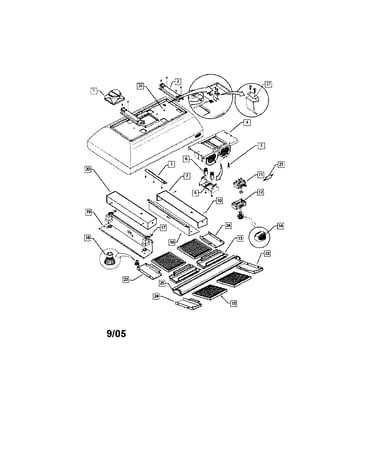

Island hood diagram

Diode

Part #97006

The manufacturer no longer makes this part, and there's no substitute part

Filter Trim Lf, Rr 97065
#24

Island hood diagram

Filter trim lf, rr

Part #97065

The manufacturer no longer makes this part, and there's no substitute part

Chimney Support 97061
#2

Island hood diagram

Chimney support

Part #97061

The manufacturer no longer makes this part, and there's no substitute part

Light Receptacle Assembly 97052
#17

Island hood diagram

Light receptacle assembly

Part #97052

The manufacturer no longer makes this part, and there's no substitute part

Screw (torx) 97055
#10

Island hood diagram

Screw (torx)

Part #97055

The manufacturer no longer makes this part, and there's no substitute part

Halogen Bulb 97009
#18

Island hood diagram

Halogen bulb

Part #97009

The manufacturer no longer makes this part, and there's no substitute part

Spring Clip, Blower Mount 97103
#27

Island hood diagram

Spring clip, blower mount

Part #97103

The manufacturer no longer makes this part, and there's no substitute part

Harness, Hood, Lights Ivs40/52 97073

#NI02

All parts diagram

Harness, hood, lights ivs40/52

Part #97073

The manufacturer no longer makes this part, and there's no substitute part

Blower Motor Assembly (double), Ivs 40/52 (when Ordering Blower Motor, #23 And #31 Required) 97085
#4

Island hood diagram

Blower motor assembly (double), ivs 40/52 (when ordering blower motor, #23 and #31 required)

Part #97085

The manufacturer no longer makes this part, and there's no substitute part
