Model # WFVC6450UC/29 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFVC6450UC-29 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

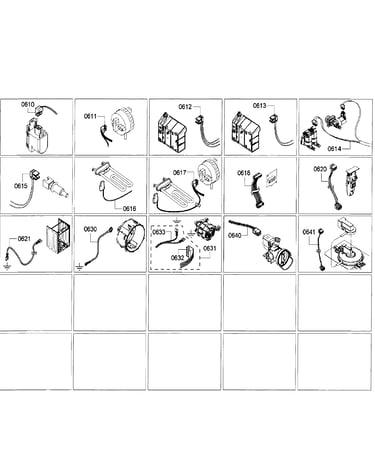

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Washer Door Boot (replaces 00674705, 00678367, 701333) 00701333
#418

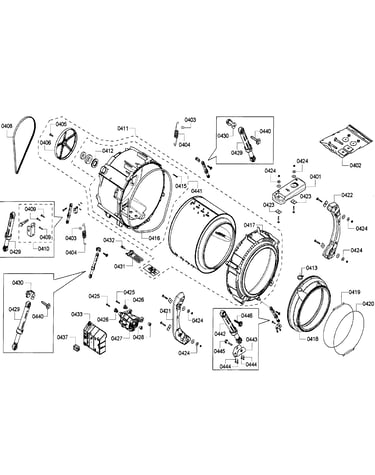

Drum diagram

Washer door boot (replaces 00674705, 00678367, 701333)

Part #00701333

$120.67 |
9% OFF Phone Price : $132.67
In Stock
Washer Drive Motor (replaces 660487) 00660487
#427

Drum diagram

Washer drive motor (replaces 660487)

Part #00660487

$255.29 |
$12.00 OFF Phone Price : $267.29
In Stock
Washer Door Boot Spring Clamp 00648264
#419

Drum diagram

Washer door boot spring clamp

Part #00648264

$15.09 |
12% OFF Phone Price : $17.09
In Stock
Washer Door Hinge Bushing 00422204
#321

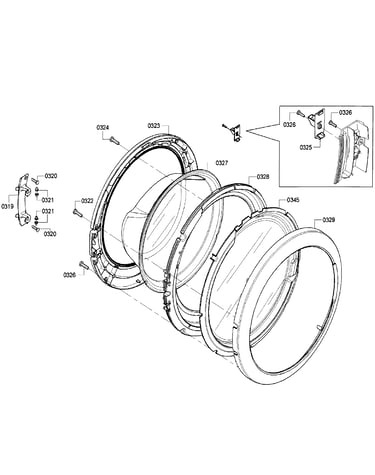

Door diagram

Washer door hinge bushing

Part #00422204

This item is not returnable
$6.63
In Stock
Washer Counterweight, Left 00143681
#421

Drum diagram

Washer counterweight, left

Part #00143681

$100.05 |
11% OFF Phone Price : $112.05
In Stock
Washing Machine Flat Washer, 10 X 20.5-mm 00605059
#236

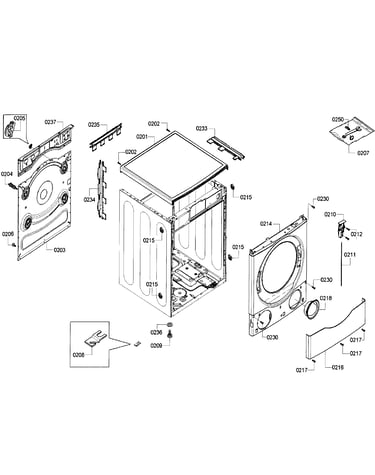

Cabinet diagram

Washing machine flat washer, 10 x 20.5-mm

Part #00605059

This item is not returnable
$2.26
In Stock
Washer Electronic Control Board 00677801
#106

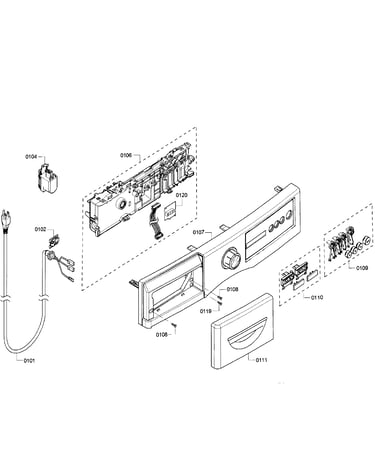

Control panel diagram

Washer electronic control board

Part #00677801

$556.38
In Stock
Washer Drain Sump 00648272
#526

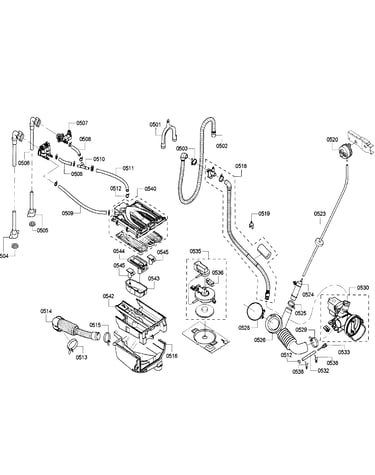

Pump diagram

Washer drain sump

Part #00648272

$29.78
In Stock
Washer Leveling Leg 00610643
#209

Cabinet diagram

Washer leveling leg

Part #00610643

This item is not returnable
$19.89
In Stock
Washer Motor Control Board (replaces 704135) 00704135
#433

Drum diagram

Washer motor control board (replaces 704135)

Part #00704135

$332.53 |
$12.00 OFF Phone Price : $344.53
In Stock
