Model # 11A-414E000 Official MTD lawn mower

Here are the diagrams and repair parts for Official MTD 11A-414E000 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Blade-21" Mu 742-0741
#26A

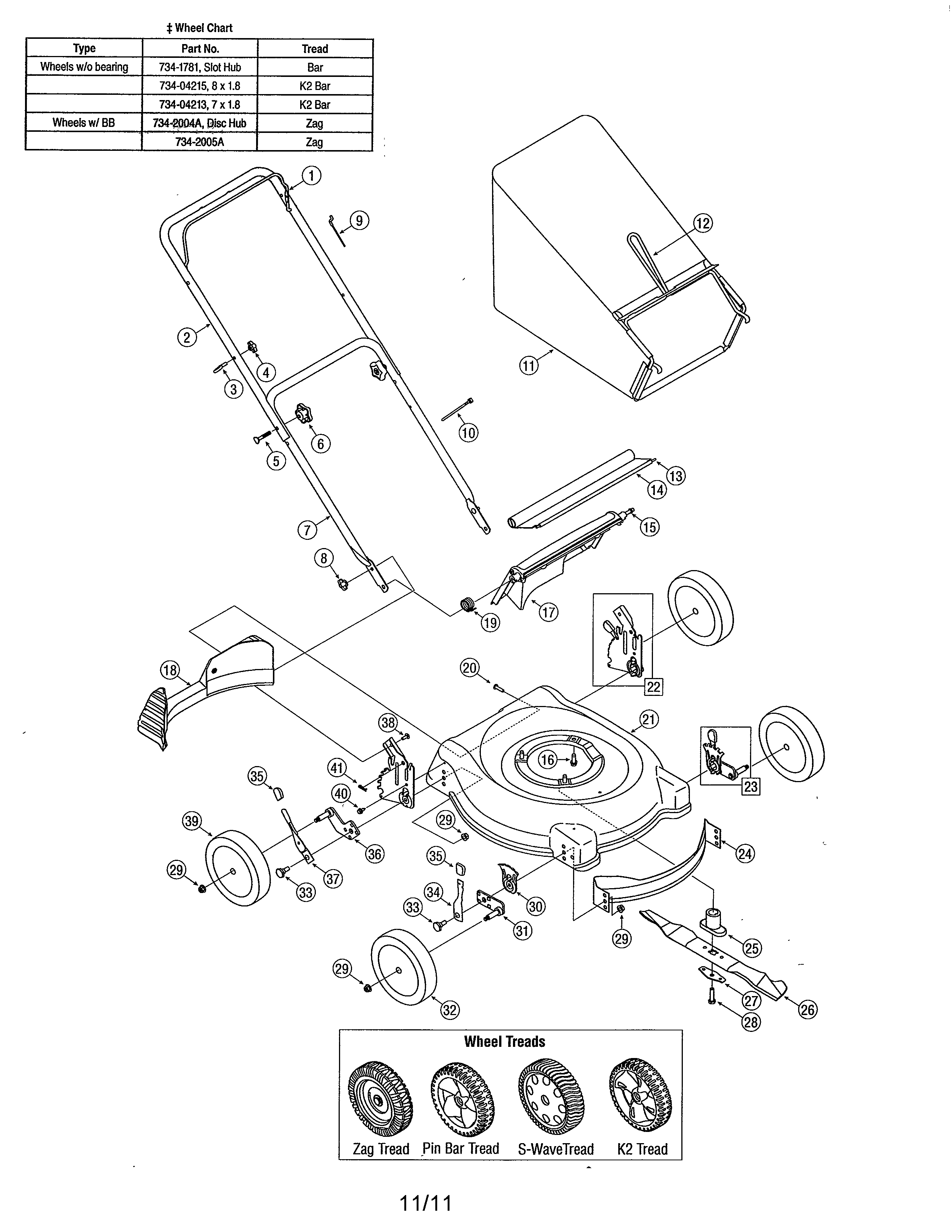

Lawn mower diagram

Blade-21" mu

Part #742-0741

Replaced by #942-0741A

?
Manufacturer substitution
This part replaces 742-0741. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$29.10 |
17% OFF Phone Price : $35.10
In Stock
Knob 720-04072
#6

Lawn mower diagram

Knob

Part #720-04072

Replaced by #720-04072A

?
Manufacturer substitution
This part replaces 720-04072. Substitute parts can look different from the original.
BEST SELLER
$9.33 |
10% OFF Phone Price : $10.33
In Stock
Lawn Tractor Screw, 1/4-20 X 5/8-in (replaces 910-1652) 710-1652
#40

Lawn mower diagram

Lawn tractor screw, 1/4-20 x 5/8-in (replaces 910-1652)

Part #710-1652

BEST SELLER
This item is not returnable
$5.44 |
16% OFF Phone Price : $6.44
In Stock
Wing Nut 712-0397
#8

Lawn mower diagram

Wing nut

Part #712-0397

Replaced by #712-0397A

?
Manufacturer substitution
This part replaces 712-0397. Substitute parts can look different from the original.
This item is not returnable
$5.22 |
16% OFF Phone Price : $6.22
In Stock
Cable Tie 726-0240
#10

Lawn mower diagram

Cable tie

Part #726-0240

Replaced by #726-0178

?
Manufacturer substitution
This part replaces 726-0240. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Bail 747-1161A
#1

Lawn mower diagram

Bail

Part #747-1161A

Replaced by #747-1161A-0637

?
Manufacturer substitution
This part replaces 747-1161A. Substitute parts can look different from the original.
This item is not returnable
$20.10 |
23% OFF Phone Price : $26.10
In Stock
Ace Lawn Tractor Hex Screw 710-0654A
#16

Lawn mower diagram

Ace lawn tractor hex screw

Part #710-0654A

This item is not returnable
$6.57 |
13% OFF Phone Price : $7.57
In Stock
Lawn Mower Rear Skirt Wire Rod 732-0700
#13

Lawn mower diagram

Lawn mower rear skirt wire rod

Part #732-0700

Replaced by #732P0700

?
Manufacturer substitution
This part replaces 732-0700. Substitute parts can look different from the original.
$7.63
In Stock
Upper Handle 749-1092A
#2

Lawn mower diagram

Upper handle

Part #749-1092A

Replaced by #749-1092A-0637

?
Manufacturer substitution
This part replaces 749-1092A. Substitute parts can look different from the original.
$63.25 |
9% OFF Phone Price : $69.25
In Stock
Pivot Rod 747-04587
#15

Lawn mower diagram

Pivot rod

Part #747-04587

$26.46
In Stock
