Model # S1057700 Official Hoover handheld vacuum

Here are the diagrams and repair parts for Official Hoover S1057700 handheld vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |

Kenmore Terminal 27666702
#10A

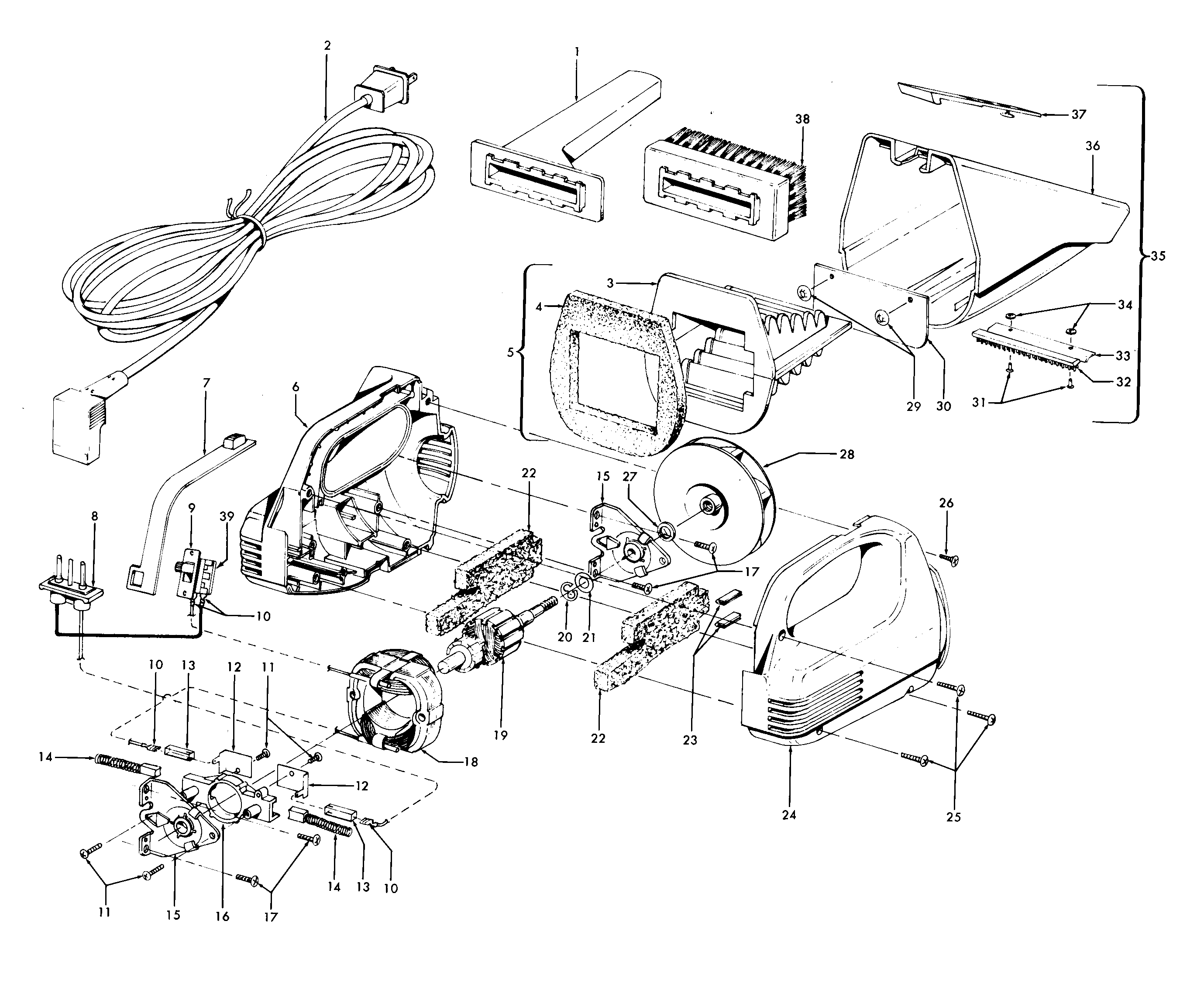

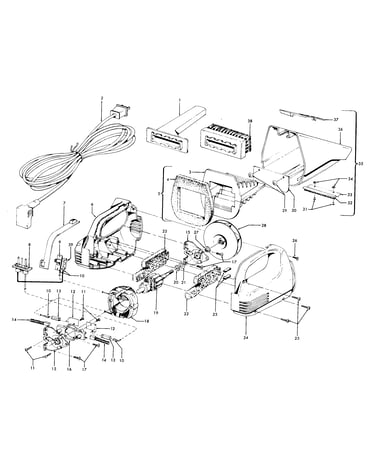

Motor, cleaningtools, motorhousing diagram

Kenmore terminal

Part #27666702

The manufacturer no longer makes this part, and there's no substitute part

Attachment Cord 46388004
#2

Motor, cleaningtools, motorhousing diagram

Attachment cord

Part #46388004

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447003
#17

Motor, cleaningtools, motorhousing diagram

Regina vacuum screw

Part #21447003

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 48451001
#38

Motor, cleaningtools, motorhousing diagram

Vacuum dust brush

Part #48451001

The manufacturer no longer makes this part, and there's no substitute part

Filter, 1-pack 43615051
#5

Motor, cleaningtools, motorhousing diagram

Filter, 1-pack

Part #43615051

The manufacturer no longer makes this part, and there's no substitute part

Washer 160030--
#27

Motor, cleaningtools, motorhousing diagram

Washer

Part #160030--

The manufacturer no longer makes this part, and there's no substitute part

Lock Ring 013730--
#20A

Motor, cleaningtools, motorhousing diagram

Lock ring

Part #013730--

The manufacturer no longer makes this part, and there's no substitute part

Shield 37258082
#39

Motor, cleaningtools, motorhousing diagram

Shield

Part #37258082

The manufacturer no longer makes this part, and there's no substitute part

#35 Connecting Link- N/P
#35 connecting link-

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Switch 281770KD
#9A

Motor, cleaningtools, motorhousing diagram

Switch

Part #281770KD

The manufacturer no longer makes this part, and there's no substitute part
