Model # MAV7600ACQ Official Maytag washer

Here are the diagrams and repair parts for Official Maytag MAV7600ACQ washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Clamp,hose-i 216169
#7

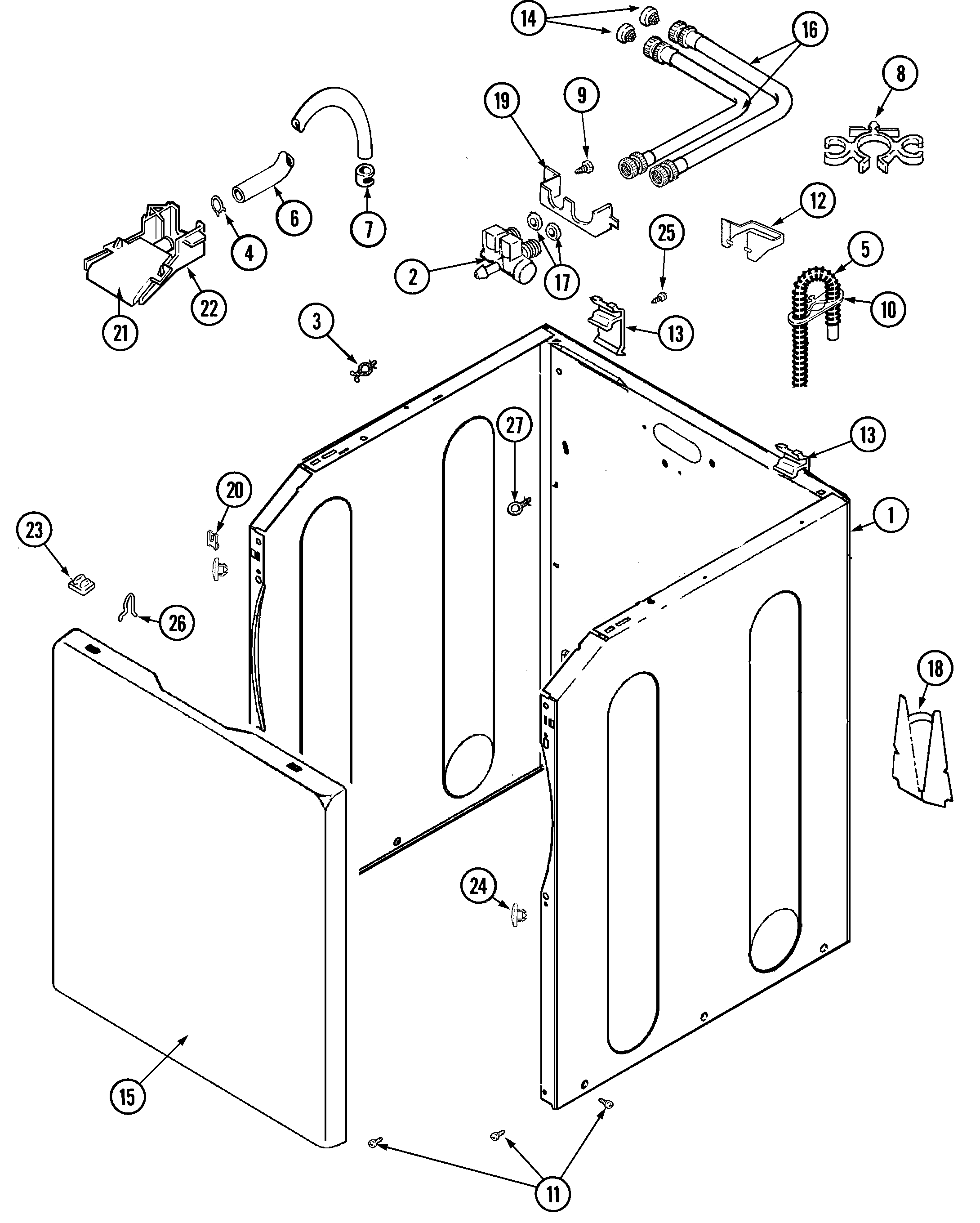

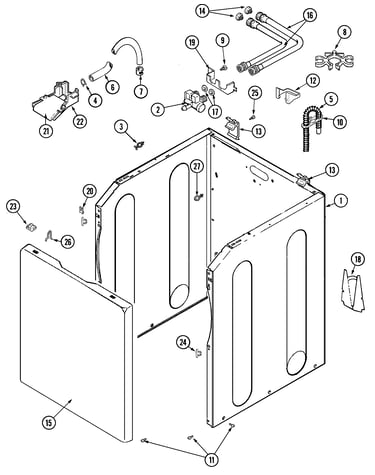

Cabinet diagram

Clamp,hose-i

Part #216169

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 216169. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washer Screw 211294
#17

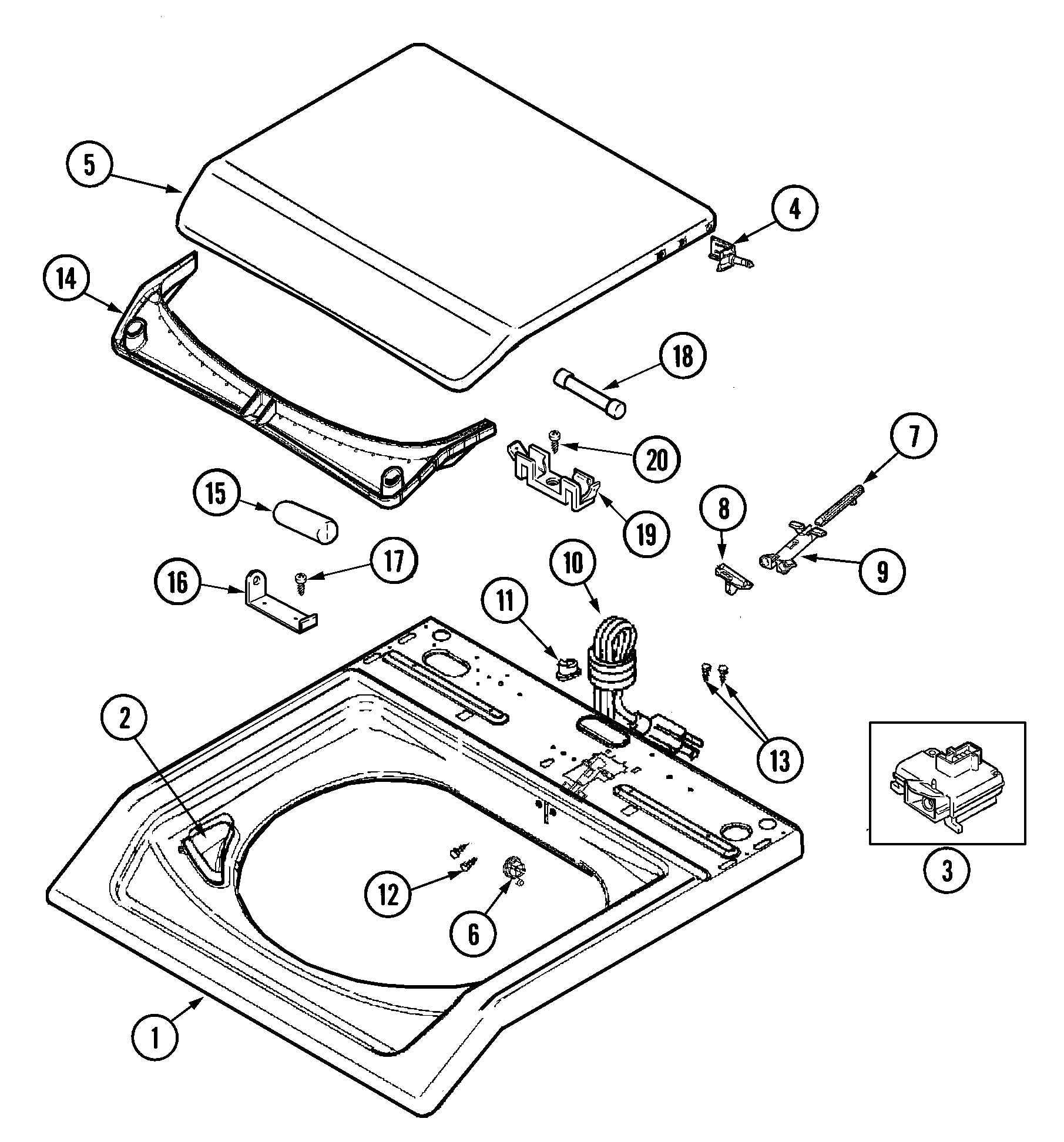

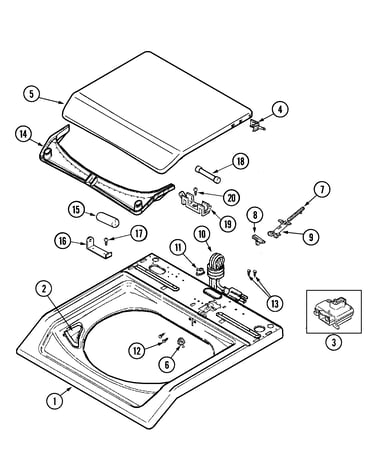

Top diagram

Washer screw

Part #211294

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 211294. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washer Drive Belt 22003483
#30

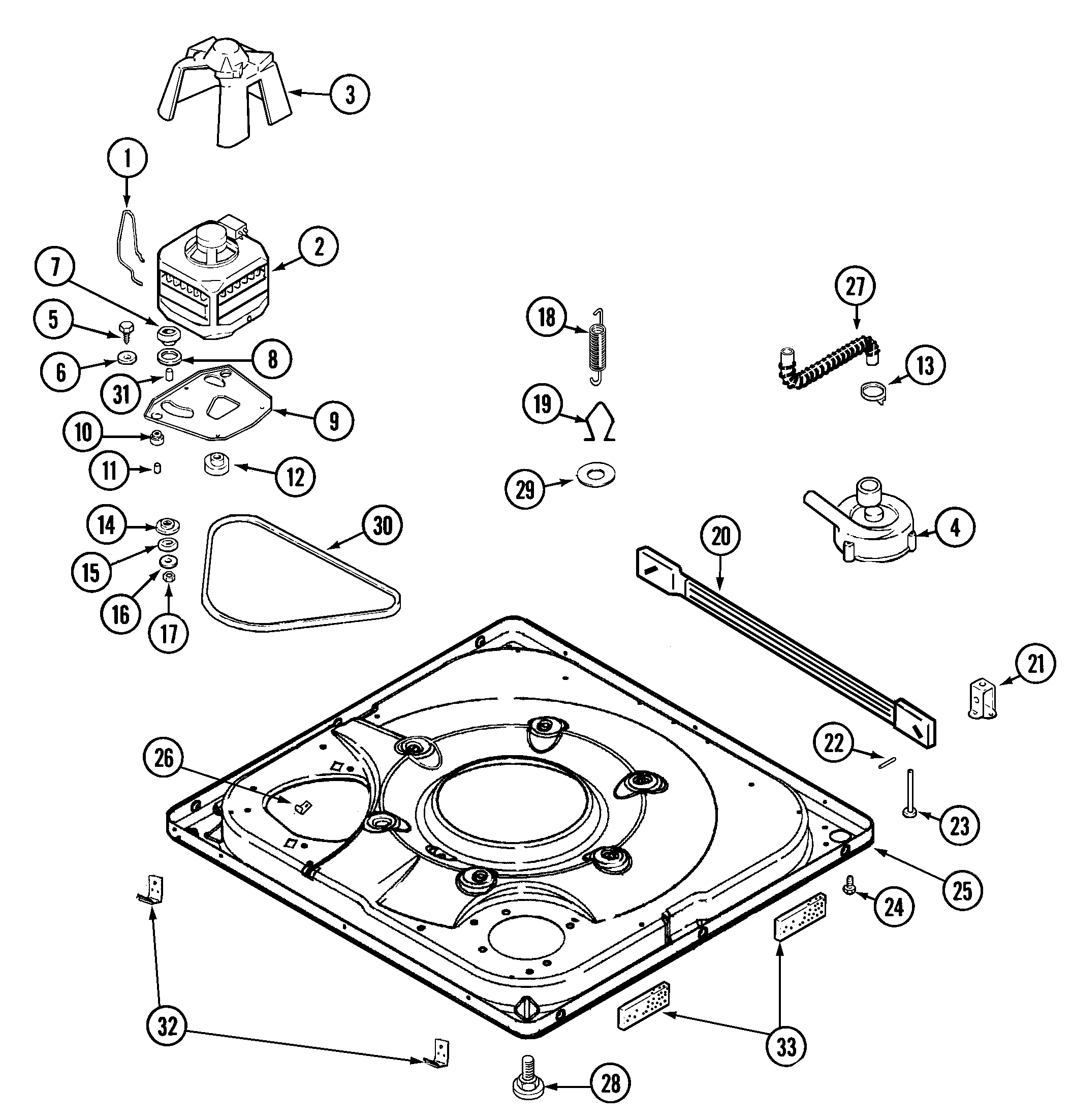

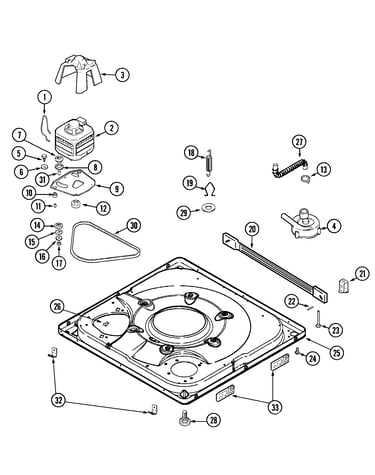

Base diagram

Washer drive belt

Part #22003483

Replaced by #WP22003483

?
Manufacturer substitution
This part replaces 22003483. Substitute parts can look different from the original.
BEST SELLER
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Washer Screw 22001995
#25

Cabinet diagram

Washer screw

Part #22001995

Replaced by #W11573574

?
Manufacturer substitution
This part replaces 22001995. Substitute parts can look different from the original.
BEST SELLER
$11.78
In Stock
Screw 22003538
#20

Top diagram

Screw

Part #22003538

Replaced by #WP693995

?
Manufacturer substitution
This part replaces 22003538. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Snubber 21001161
#22

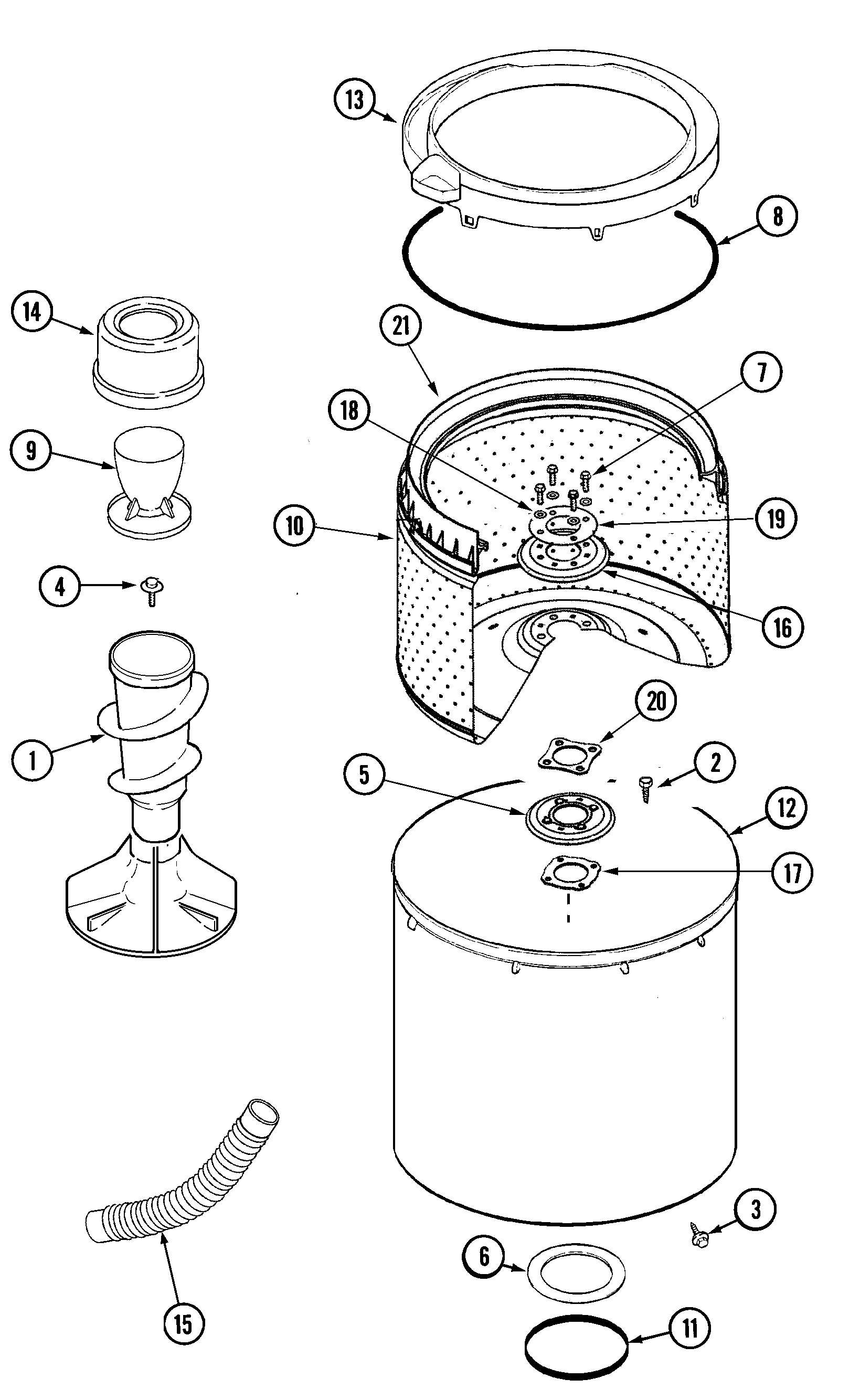

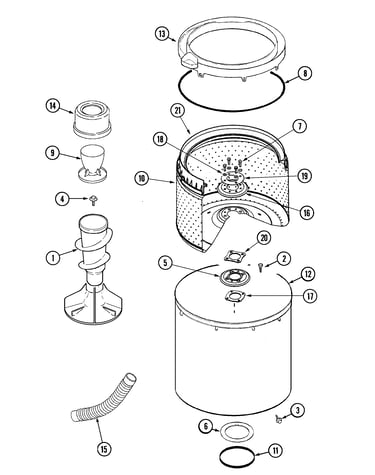

Transmission diagram

Snubber

Part #21001161

Replaced by #WP21002026

?
Manufacturer substitution
This part replaces 21001161. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Ground Screw 705026
#13

Top diagram

Ground screw

Part #705026

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 705026. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Washer Suspension Spring 21001598
#18

Base diagram

Washer suspension spring

Part #21001598

Replaced by #WP21001598

?
Manufacturer substitution
This part replaces 21001598. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 22002925
#8A

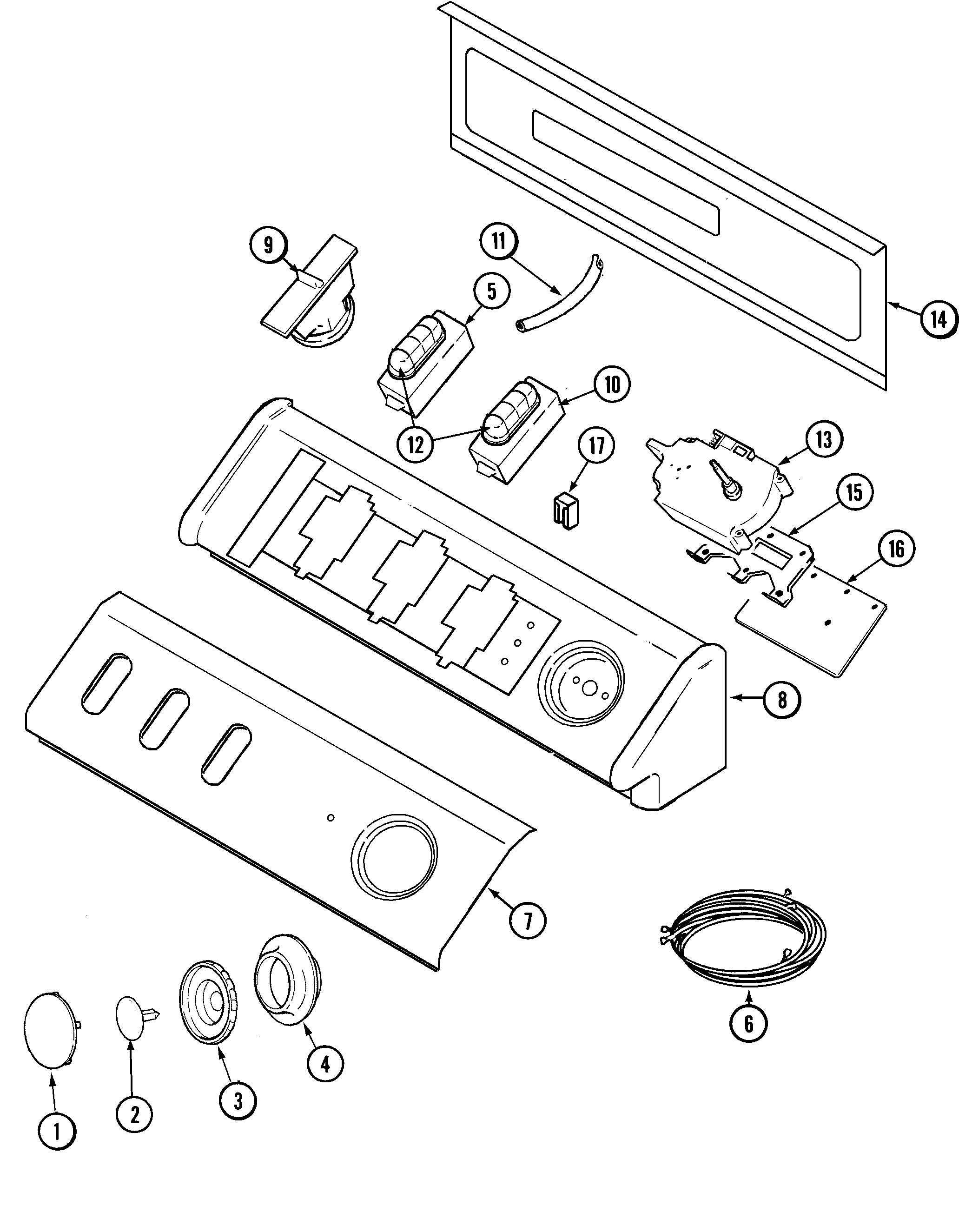

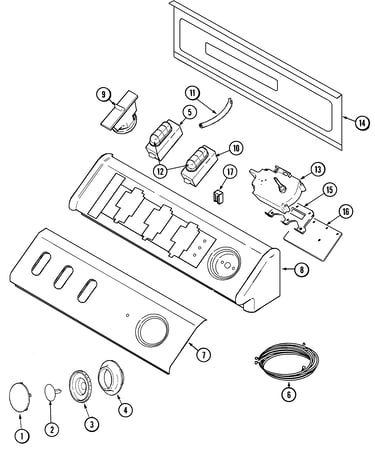

Control panel diagram

Screw

Part #22002925

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 22002925. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Basket Hub A 21001515
#7

Transmission diagram

Basket hub a

Part #21001515

Replaced by #W10219156

?
Manufacturer substitution
This part replaces 21001515. Substitute parts can look different from the original.
$153.01 |
7% OFF Phone Price : $165.01
In Stock
