Model # ART6121WW-P1143812NWW Official Amana electric range

Here are the diagrams and repair parts for Official Amana ART6121WW-P1143812NWW electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

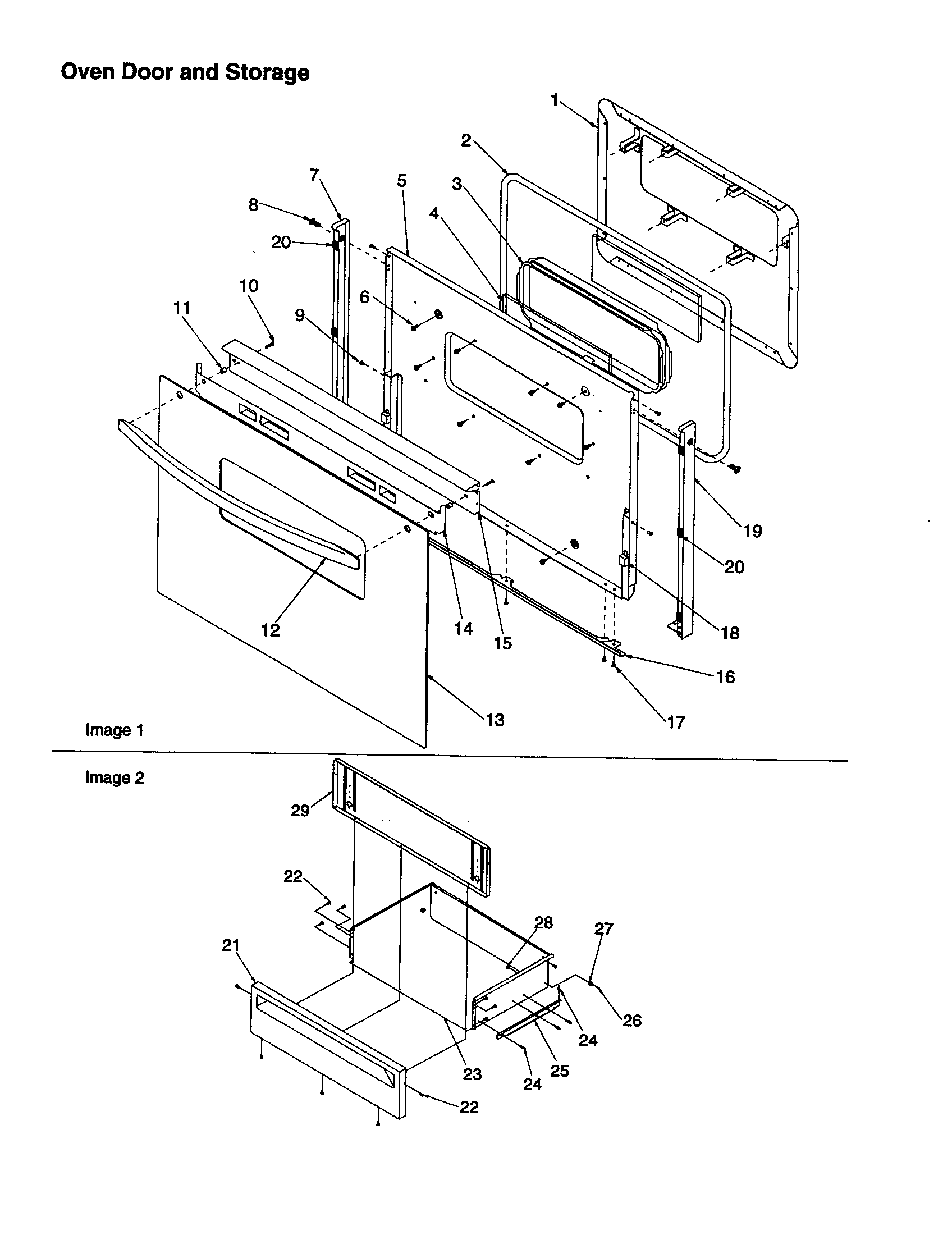

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Cover,backgd 0306379
#18

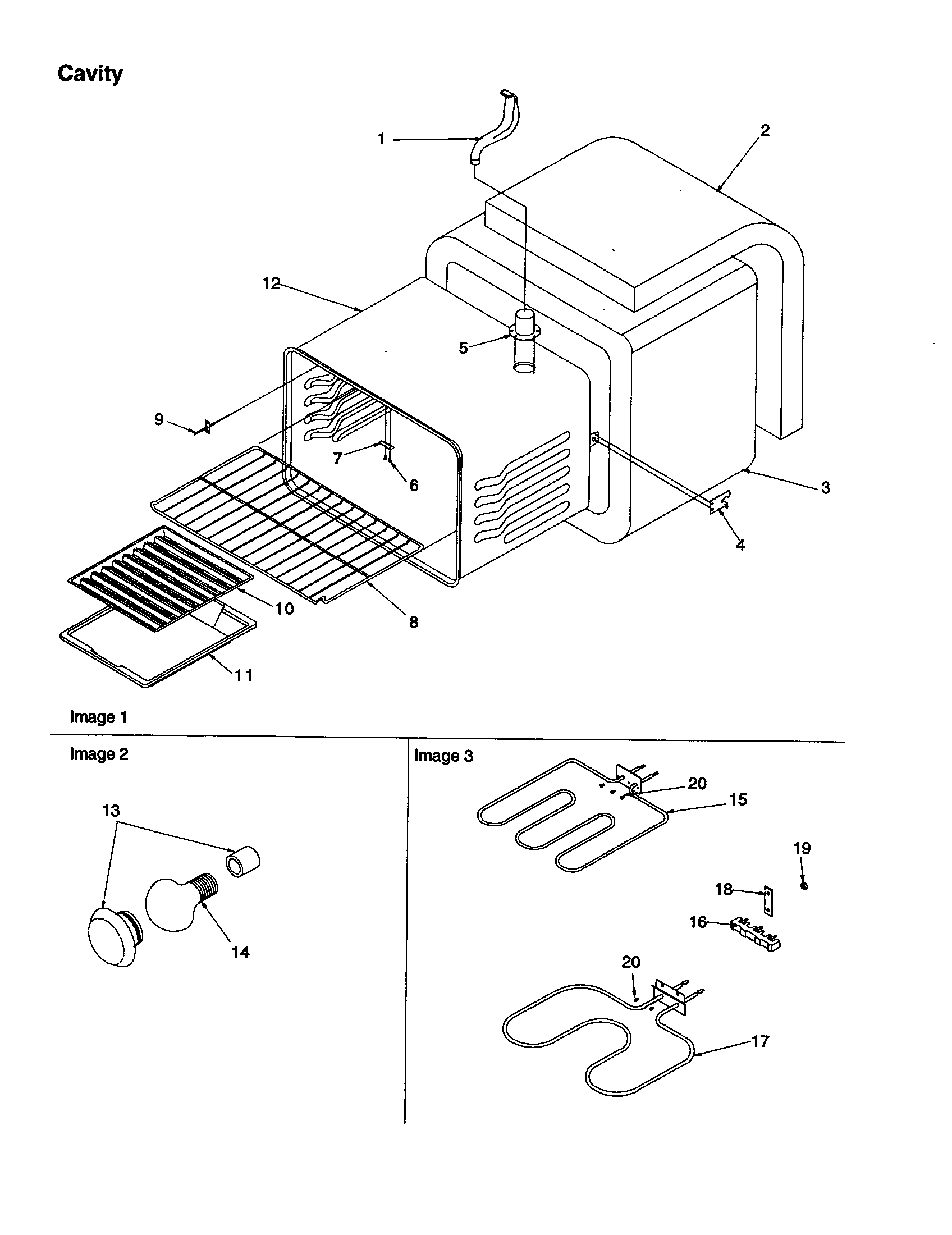

Cavity diagram

Cover,backgd

Part #0306379

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 0306379. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Screw 31750432
#29

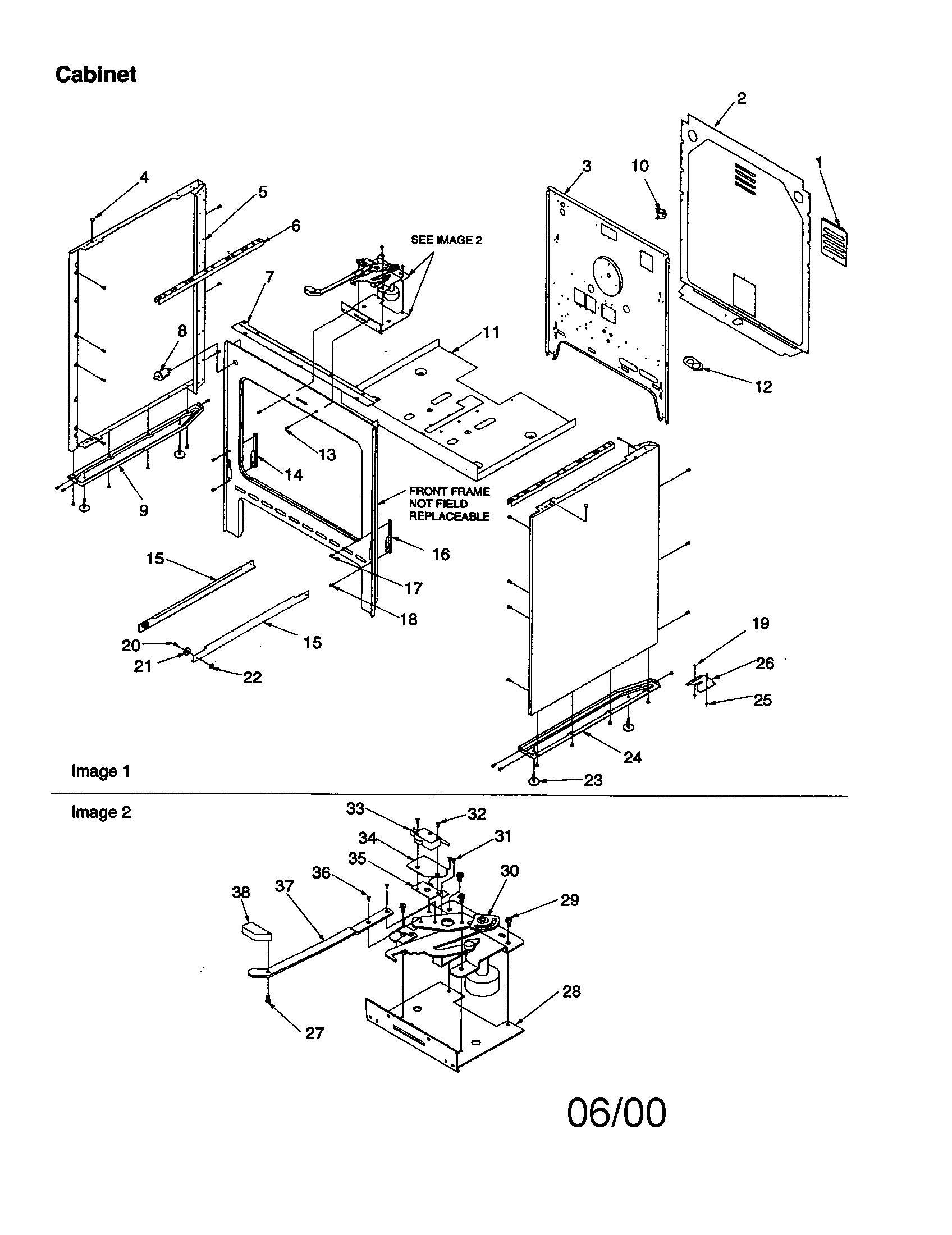

Cabinet diagram

Screw

Part #31750432

The manufacturer no longer makes this part, and there's no substitute part

Element 31939101
#5

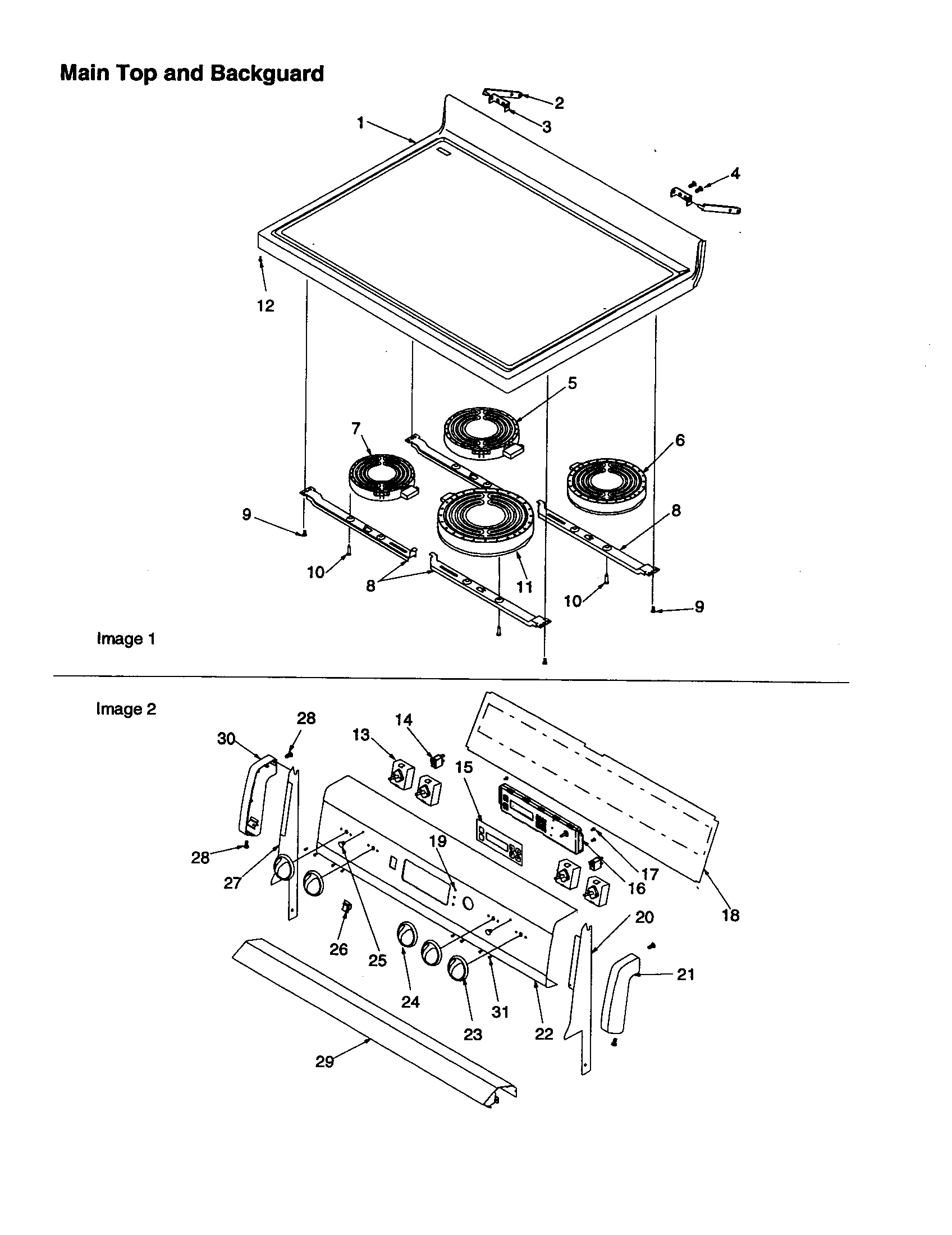

Maintop and backguard diagram
