Whirlpool
Wall Oven/Microwave Combo

Model # WOC75EC0HS20 Official Whirlpool electric microwave combo wall oven

Here are the diagrams and repair parts for Official Whirlpool WOC75EC0HS20 electric microwave combo wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

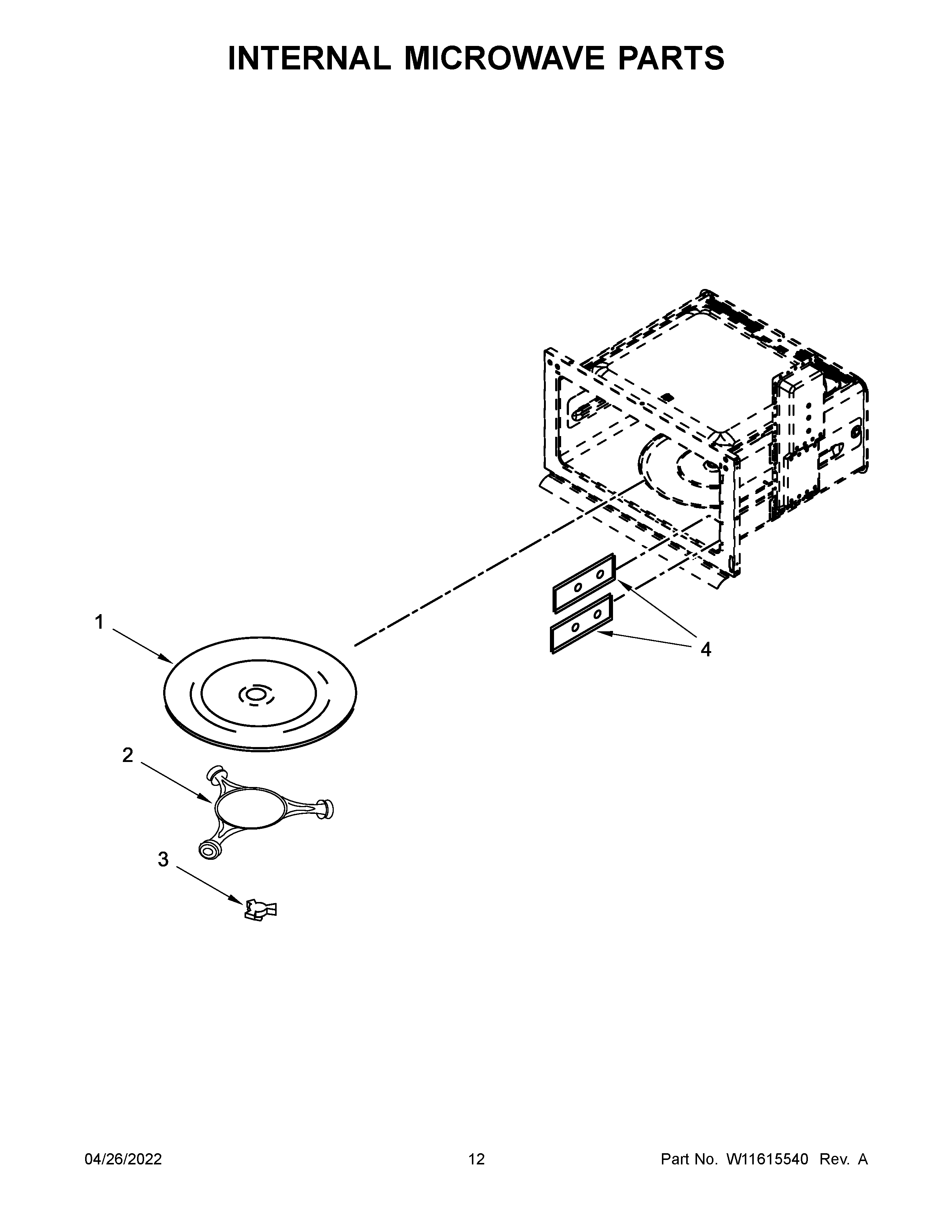

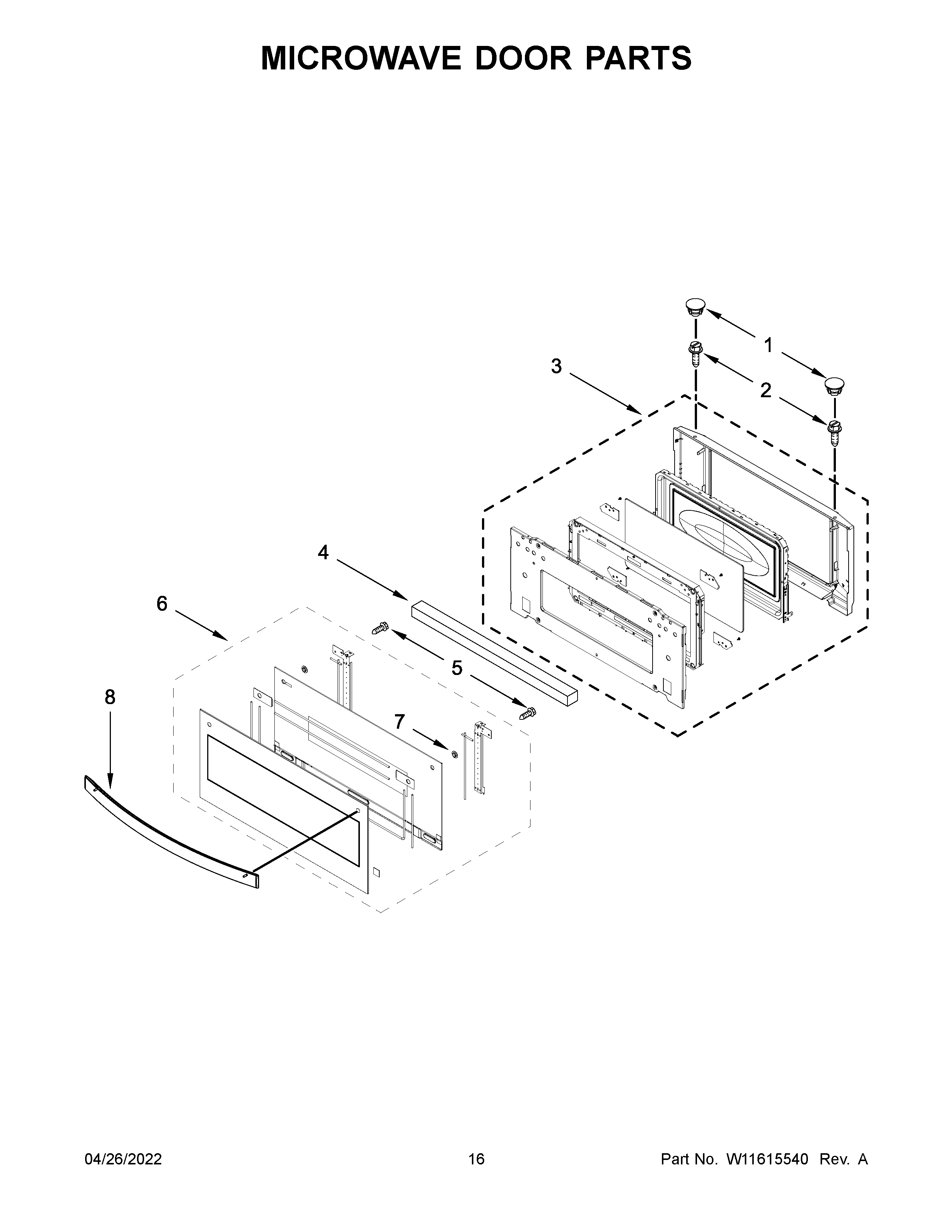

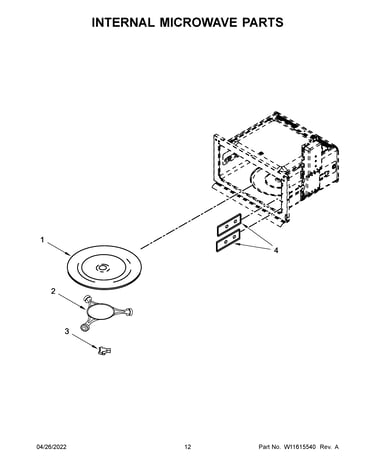

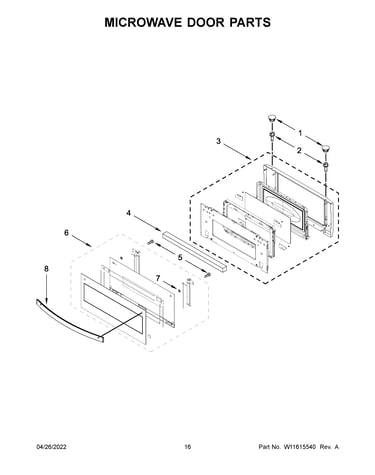

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |
Range High-limit Thermostat 4449751
#18

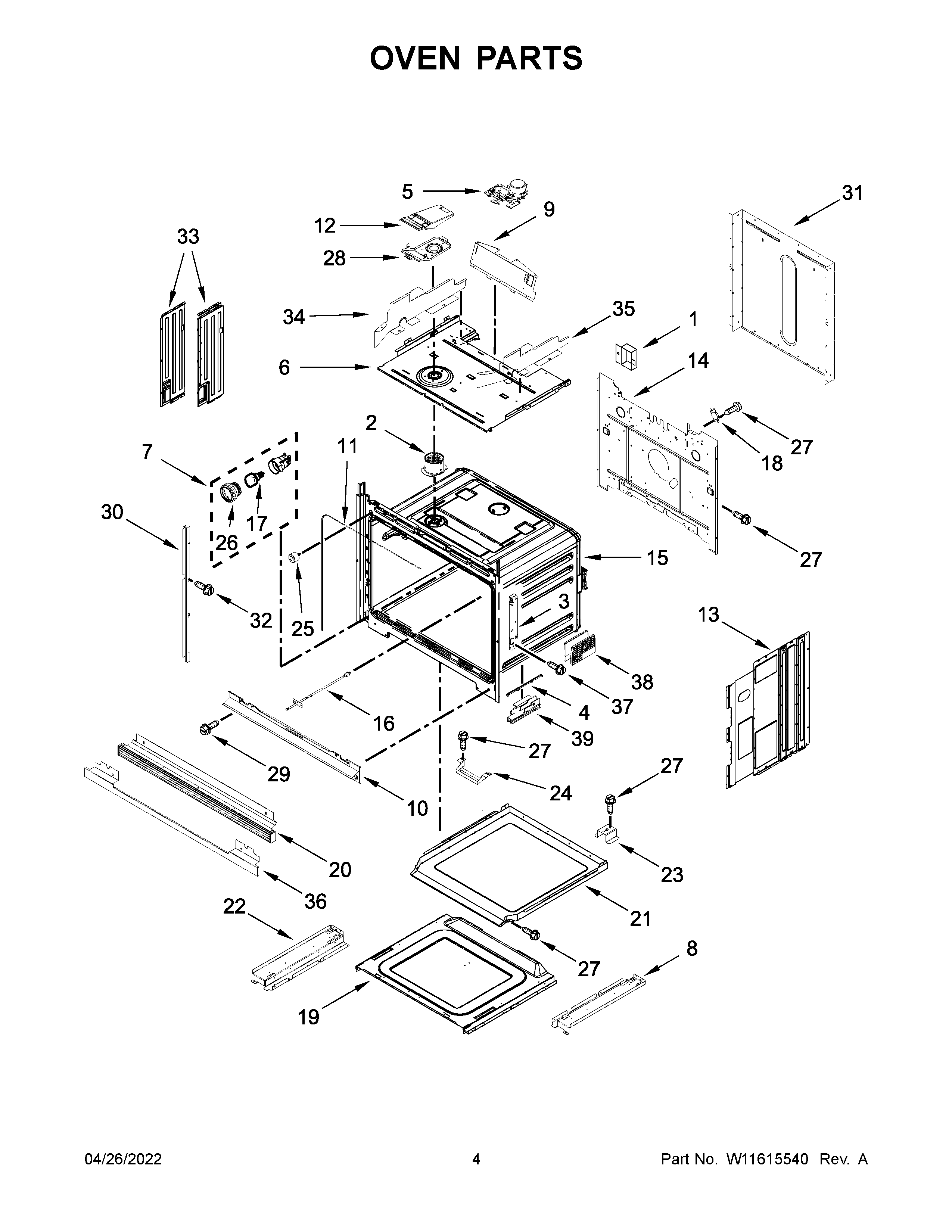

Oven parts diagram

Range high-limit thermostat

Part #4449751

Replaced by #WP4449751

?
Manufacturer substitution
This part replaces 4449751. Substitute parts can look different from the original.
BEST SELLER
$101.25 |
11% OFF Phone Price : $113.25
In Stock
Range Bake Element W11292248
#7

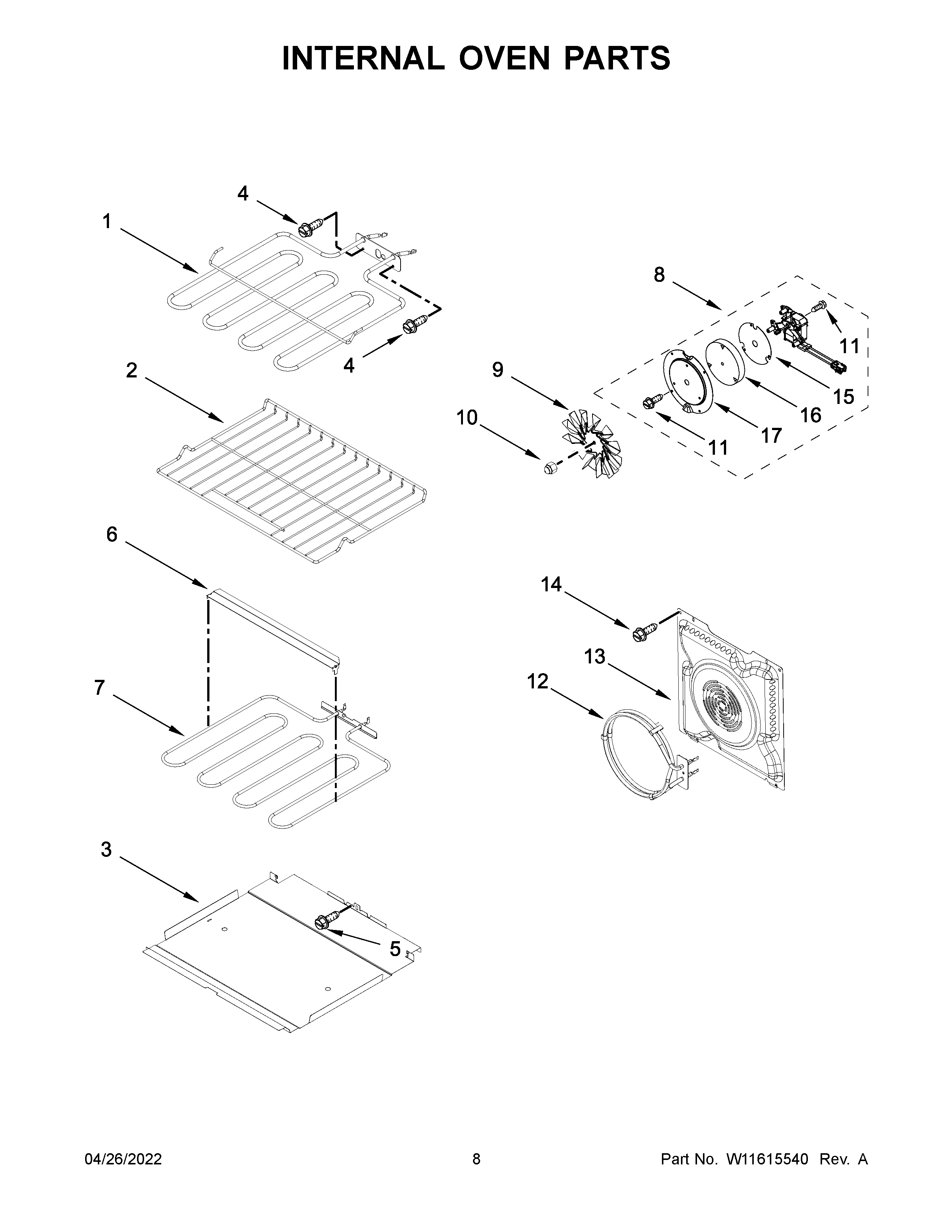

Internal oven parts diagram

Range bake element

Part #W11292248

Replaced by #W11545804

?
Manufacturer substitution
This part replaces W11292248. Substitute parts can look different from the original.
BEST SELLER
$58.25 |
9% OFF Phone Price : $64.25
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts (not included) diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Wall Oven Door Inner Glass W10618107
#4

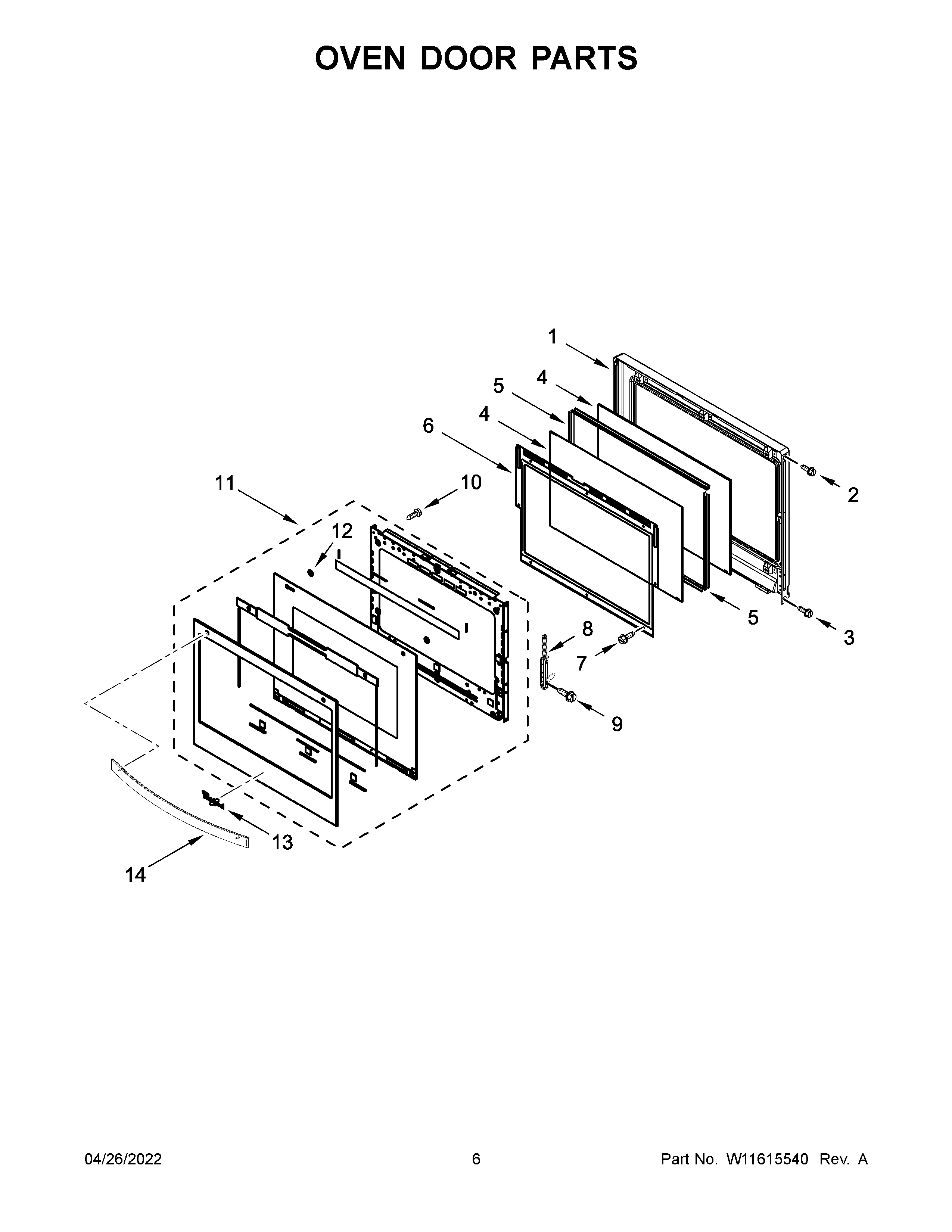

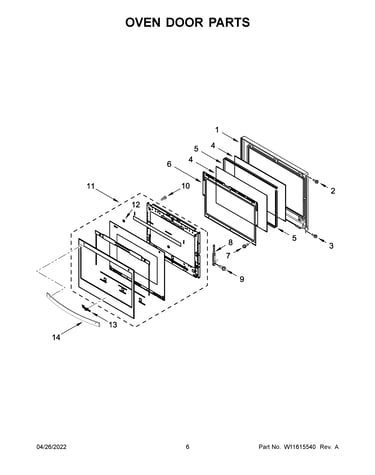

Oven door parts diagram

Wall oven door inner glass

Part #W10618107

Replaced by #WPW10618107

?
Manufacturer substitution
This part replaces W10618107. Substitute parts can look different from the original.
$101.03 |
11% OFF Phone Price : $113.03
In Stock
Blower W11397930
#5

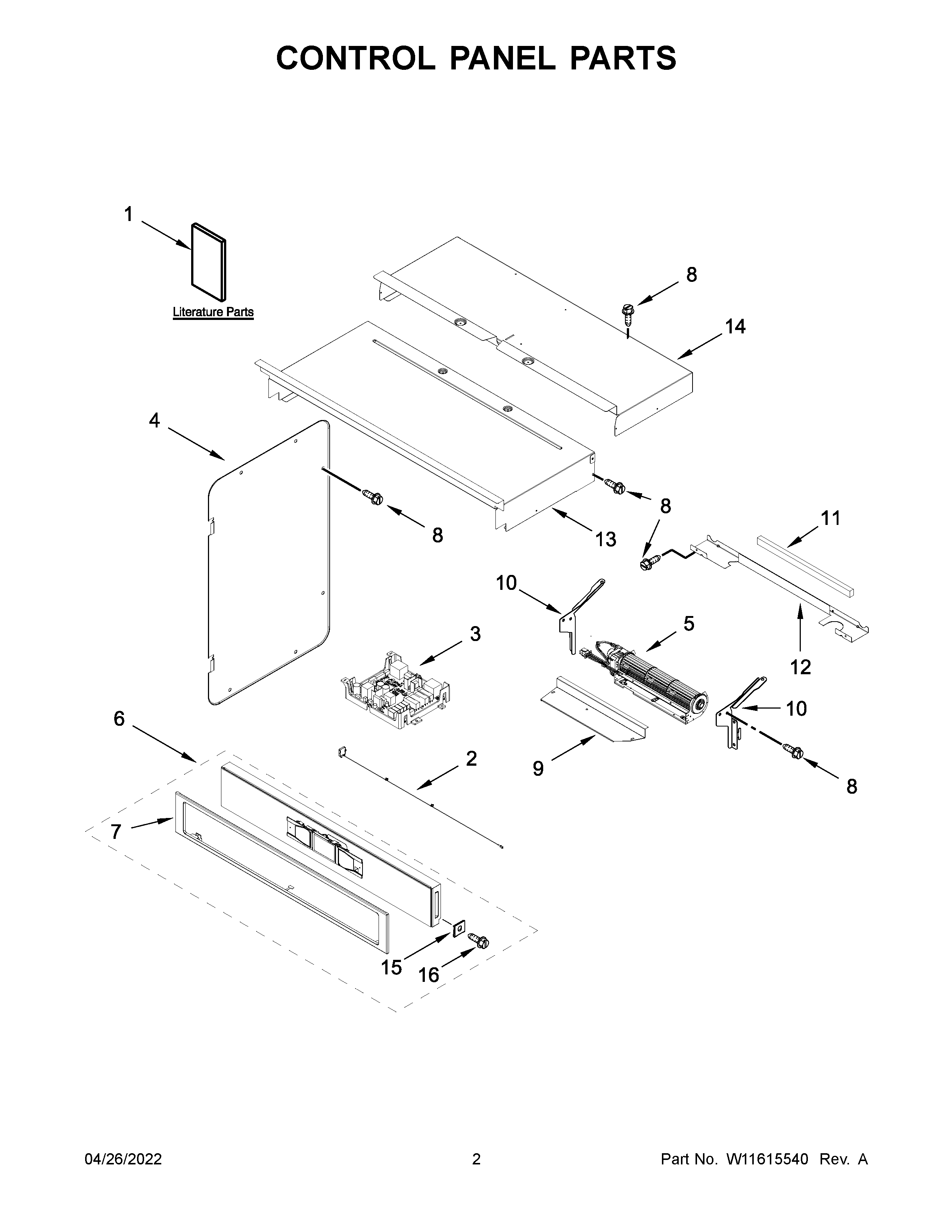

Control panel parts diagram

Blower

Part #W11397930

Replaced by #W11598119

?
Manufacturer substitution
This part replaces W11397930. Substitute parts can look different from the original.
$123.79 |
9% OFF Phone Price : $135.79
In Stock
Copernicus C W11253186
#3

Control panel parts diagram

Copernicus c

Part #W11253186

Replaced by #W11261165

?
Manufacturer substitution
This part replaces W11253186. Substitute parts can look different from the original.
$220.99 |
5% OFF Phone Price : $232.99
In Stock
Badge, Whirl W10884775
#13

Oven door parts diagram

Badge, whirl

Part #W10884775

Replaced by #W11178521

?
Manufacturer substitution
This part replaces W10884775. Substitute parts can look different from the original.
$33.73 |
15% OFF Phone Price : $39.73
In Stock
Fuse W10017410
#6

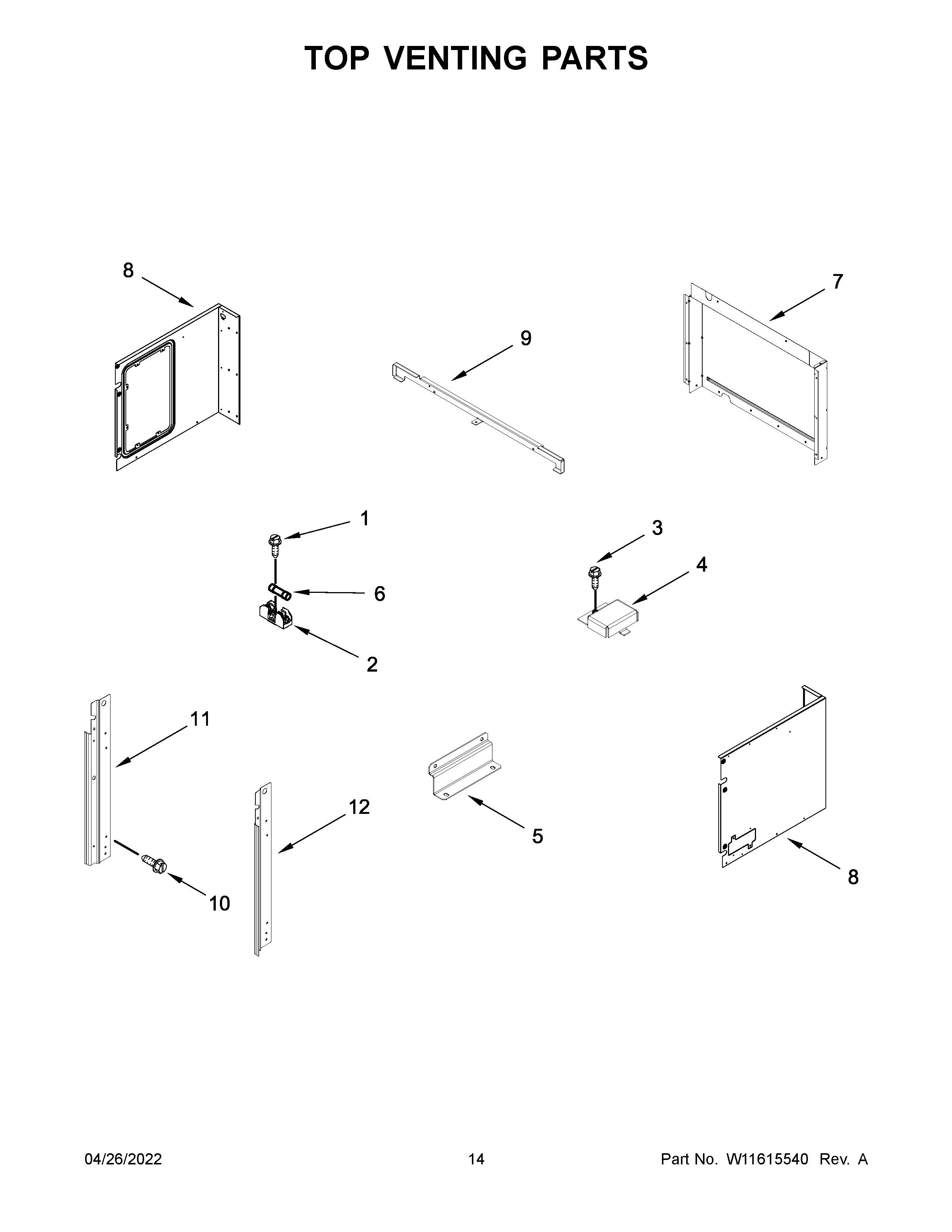

Top venting parts diagram

Fuse

Part #W10017410

Replaced by #WPW10017410

?
Manufacturer substitution
This part replaces W10017410. Substitute parts can look different from the original.
This item is not returnable
$11.89 |
14% OFF Phone Price : $13.89
In Stock
Flange Bushing 461967510191
#35

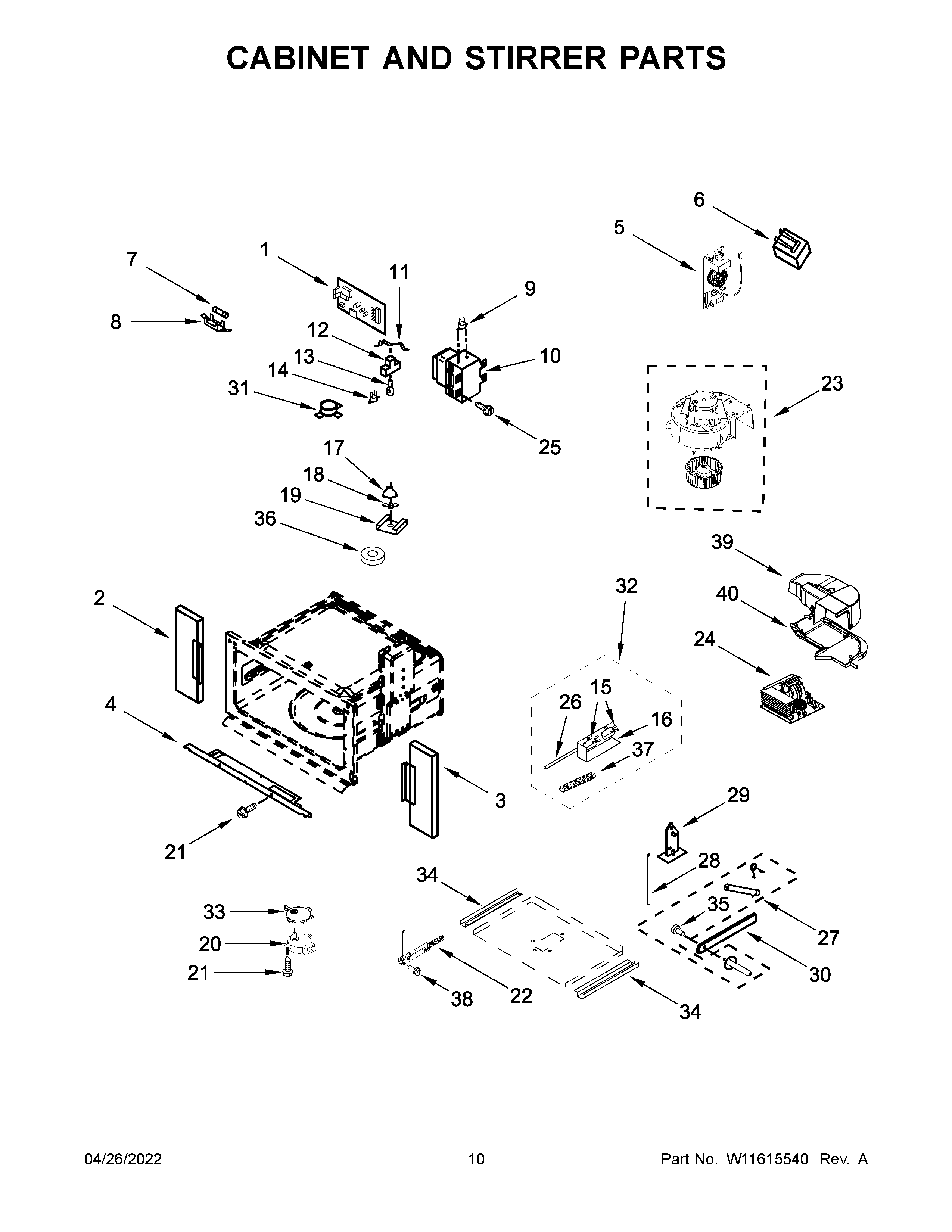

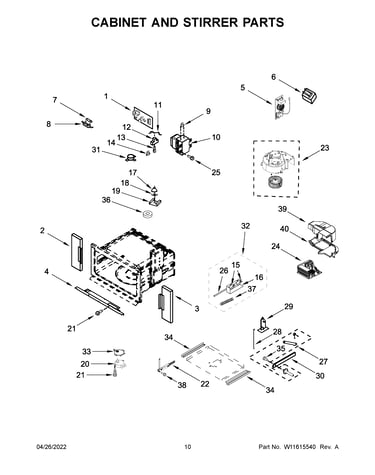

Cabinet and stirrer parts diagram

Flange bushing

Part #461967510191

Replaced by #WPW10128850

?
Manufacturer substitution
This part replaces 461967510191. Substitute parts can look different from the original.
$52.98 |
10% OFF Phone Price : $58.98
In Stock
Rivet 3,2x7, 251968600013
#27

Cabinet and stirrer parts diagram

Rivet 3,2x7,

Part #251968600013

Replaced by #WPW10128850

?
Manufacturer substitution
This part replaces 251968600013. Substitute parts can look different from the original.
$52.98 |
10% OFF Phone Price : $58.98
In Stock
