Model # 113177950 Official Craftsman 6-gallon home-n-shop vacuum
Here are the diagrams and repair parts for Official Craftsman 113177950 6-gallon home-n-shop vacuum, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
113177950 Vacuum Cleaners
#7

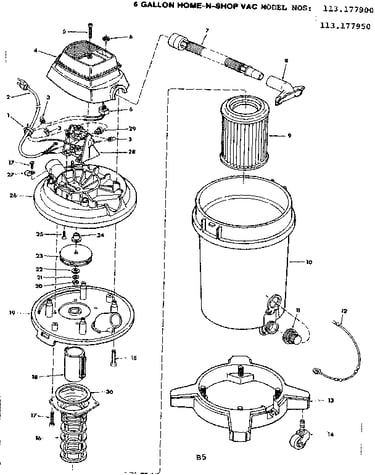

Unit diagram
Hose assembly
Part #73104
The manufacturer no longer makes this part, and there's no substitute part
#14
Unit diagram
Shop vacuum caster (replaces 29776, 73137)
Part #73102
The manufacturer no longer makes this part, and there's no substitute part
#11
Unit diagram
Cap drain
Part #73107
The manufacturer no longer makes this part, and there's no substitute part
#29
Unit diagram
Relf strain
Part #62503
The manufacturer no longer makes this part, and there's no substitute part
#12
Unit diagram
Strap
Part #73103
The manufacturer no longer makes this part, and there's no substitute part
#8
Unit diagram
Nozzle rect
Part #20014-01
The manufacturer no longer makes this part, and there's no substitute part
#6

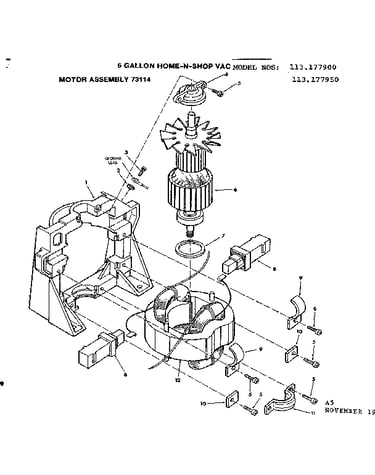

Motor assembly 73114 diagram
Armature assembly
Part #73117
The manufacturer no longer makes this part, and there's no substitute part
#9
Unit diagram
Filter
Part #73108
The manufacturer no longer makes this part, and there's no substitute part
#4
Unit diagram
Cover assembly
Part #73111
The manufacturer no longer makes this part, and there's no substitute part
#8
Motor assembly 73114 diagram
Brsh hldr as
Part #73116
The manufacturer no longer makes this part, and there's no substitute part
