Model # GUID045DA30/P1226901F Official Amana gas furnace - guid series

Here are the diagrams and repair parts for Official Amana GUID045DA30-P1226901F gas furnace - guid series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

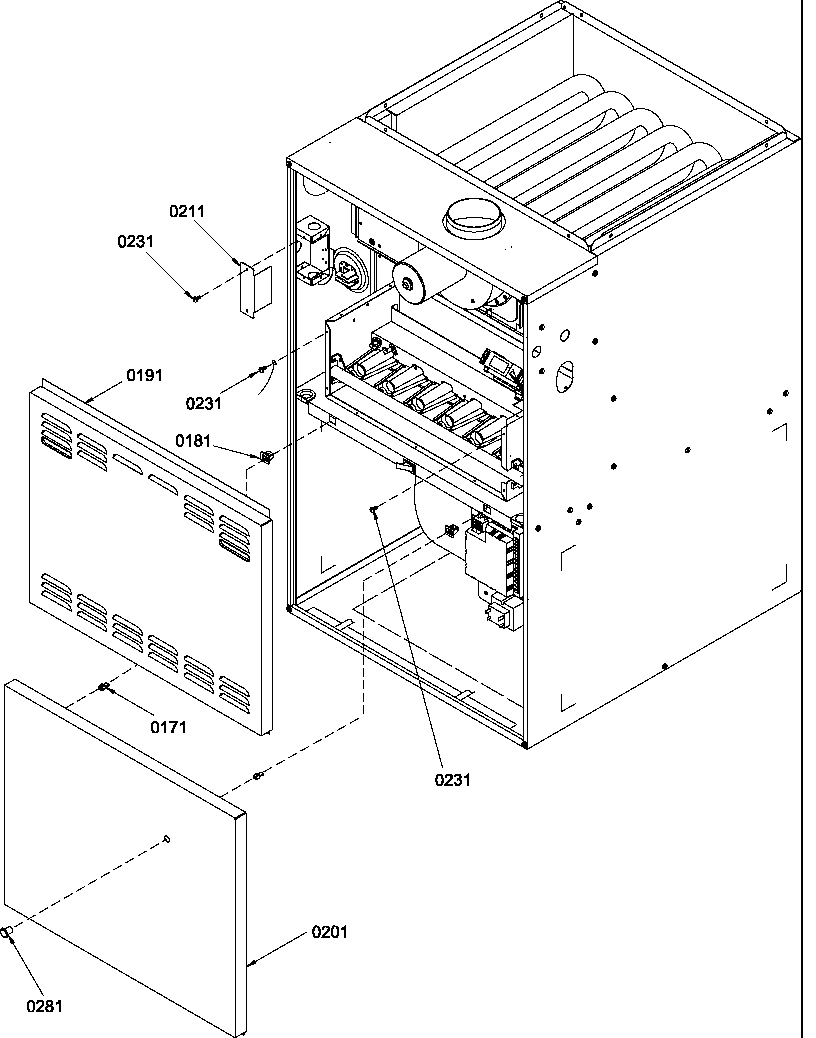

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |
Orifice 10716003
#32

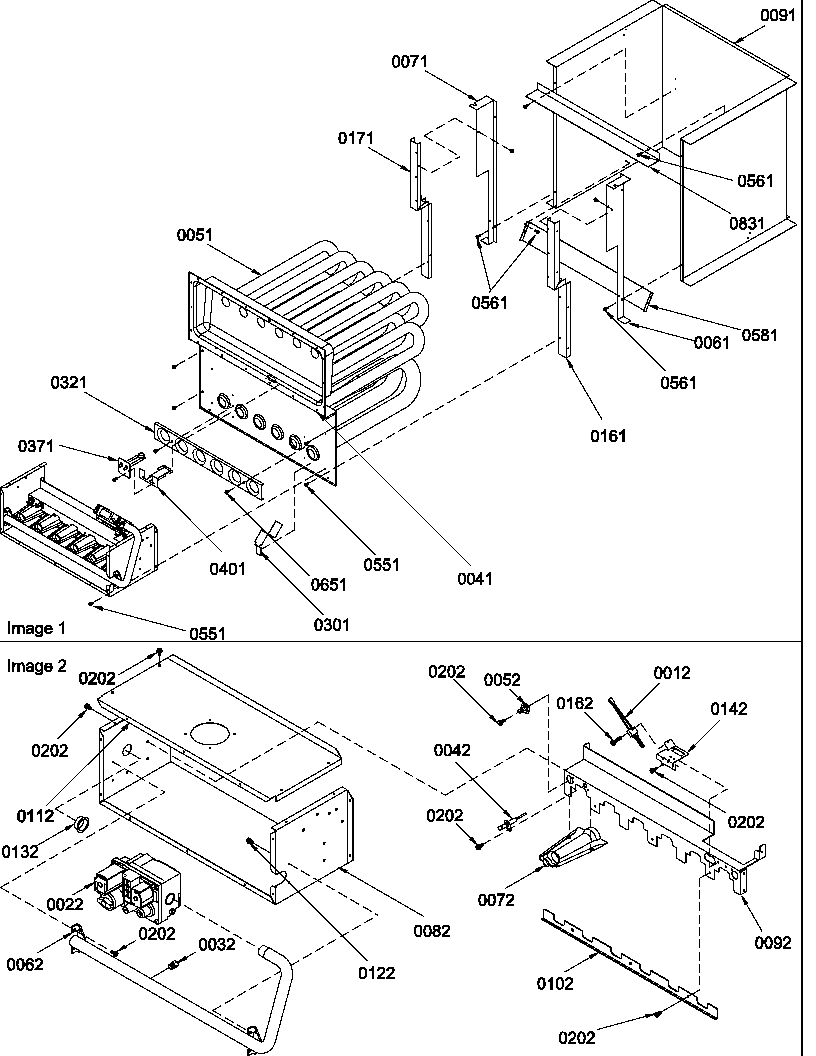

Partition tube/collector box/manifold diagram

Orifice

Part #10716003

Replaced by #0163F00018

?
Manufacturer substitution
This part replaces 10716003. Substitute parts can look different from the original.
This item is not returnable
$4.29
In Stock
Screw M0211021
Screw

Part #M0211021

Replaced by #WP489474

?
Manufacturer substitution
This part replaces M0211021. Substitute parts can look different from the original.
This item is not returnable
$4.86 |
17% OFF Phone Price : $5.86
In Stock
Screw M0267144
#251

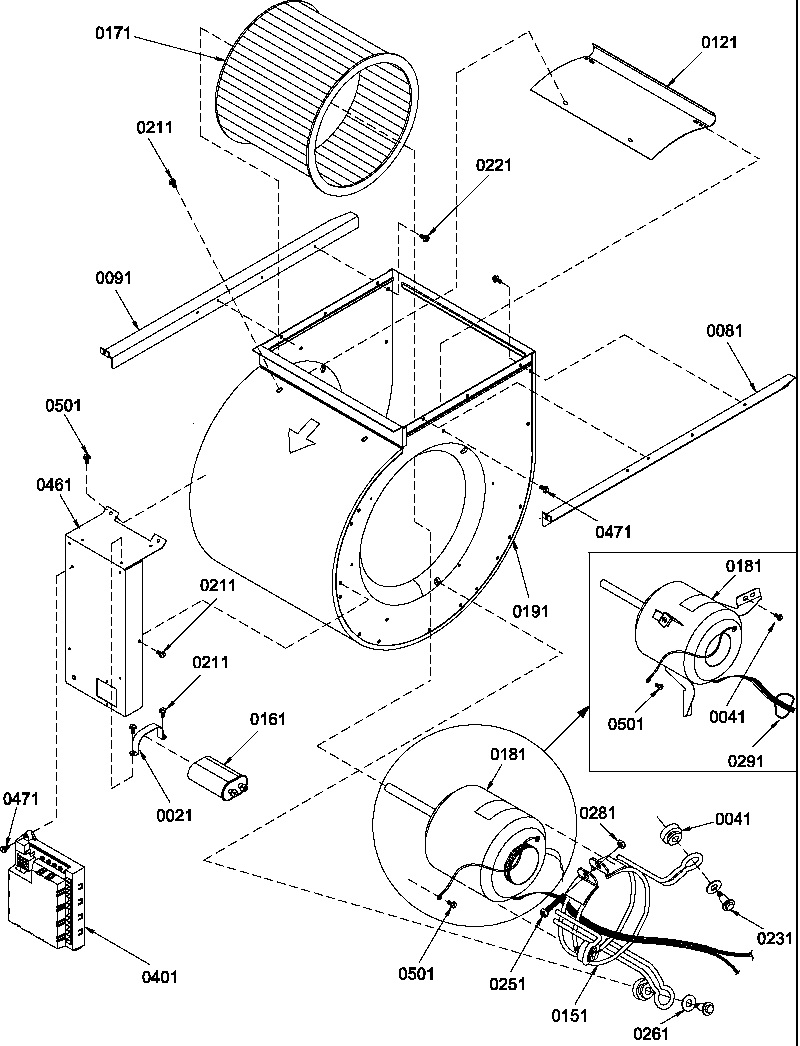

Blower diagram

Screw

Part #M0267144

Replaced by #3400241

?
Manufacturer substitution
This part replaces M0267144. Substitute parts can look different from the original.
$12.49
In Stock
Grommet M0282015
#281

Blower diagram

Grommet

Part #M0282015

Replaced by #WP487939

?
Manufacturer substitution
This part replaces M0282015. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0211016
#211

Blower diagram

Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Tie M0321202
#291

Blower diagram

Tie

Part #M0321202

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces M0321202. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Support-part Pan 10728401
#101

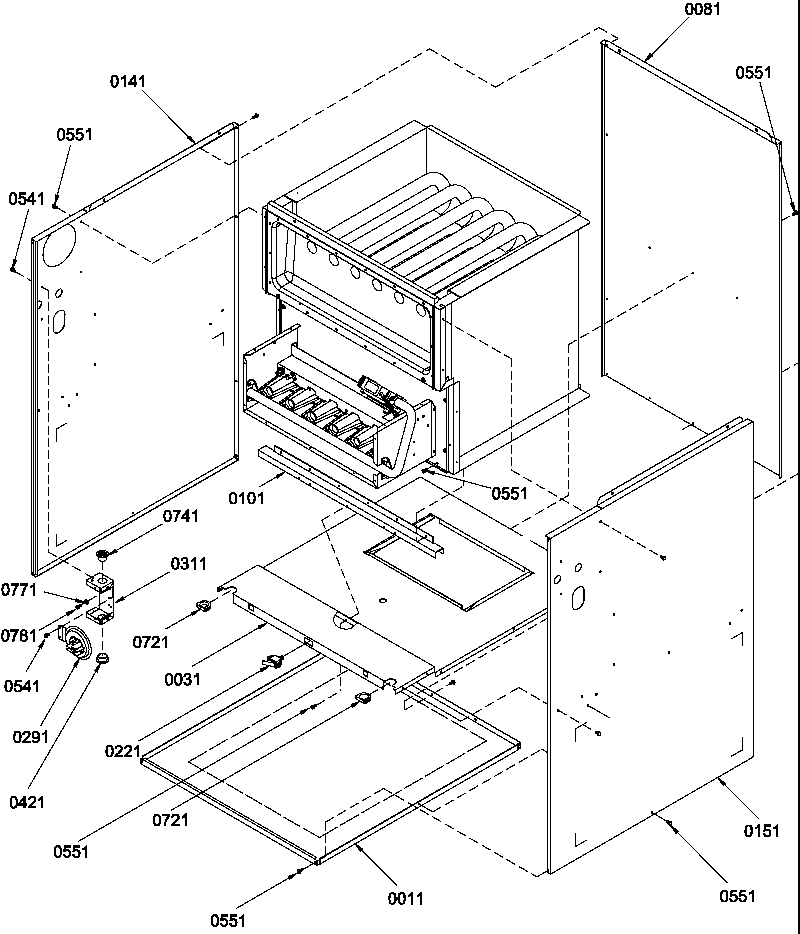

Outer cabinet diagram

Support-part pan

Part #10728401

The manufacturer no longer makes this part, and there's no substitute part

Plate-rotating 10764302
#251

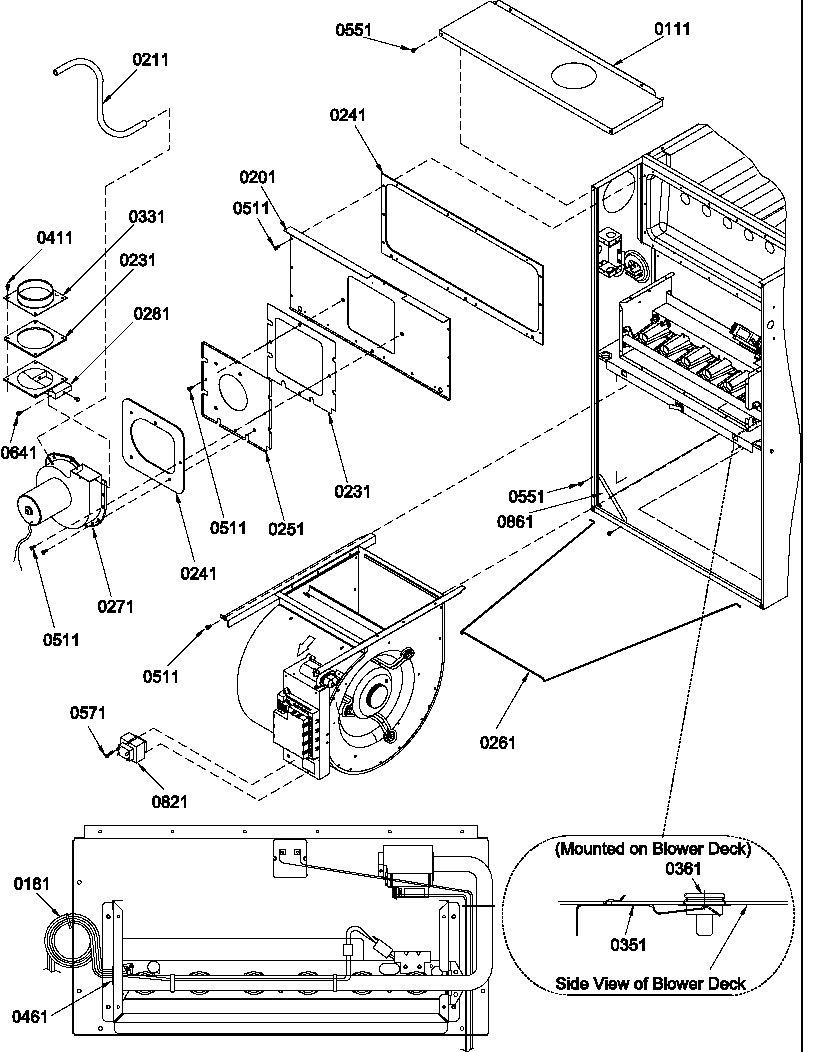

Vent systems/controls diagram

Plate-rotating

Part #10764302

The manufacturer no longer makes this part, and there's no substitute part

Motor Blow 1/3 Hp 20046604
#181

Blower diagram

Motor blow 1/3 hp

Part #20046604

The manufacturer no longer makes this part, and there's no substitute part

Baffle-deck 11008801
#581

Partition tube/collector box/manifold diagram

Baffle-deck

Part #11008801

The manufacturer no longer makes this part, and there's no substitute part
