Model # HF369-3 Official Magic Chef magic chef hood

Here are the diagrams and repair parts for Official Magic Chef HF369-3 magic chef hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 8 of 8 parts  |
Light Cover 06276-00
#5

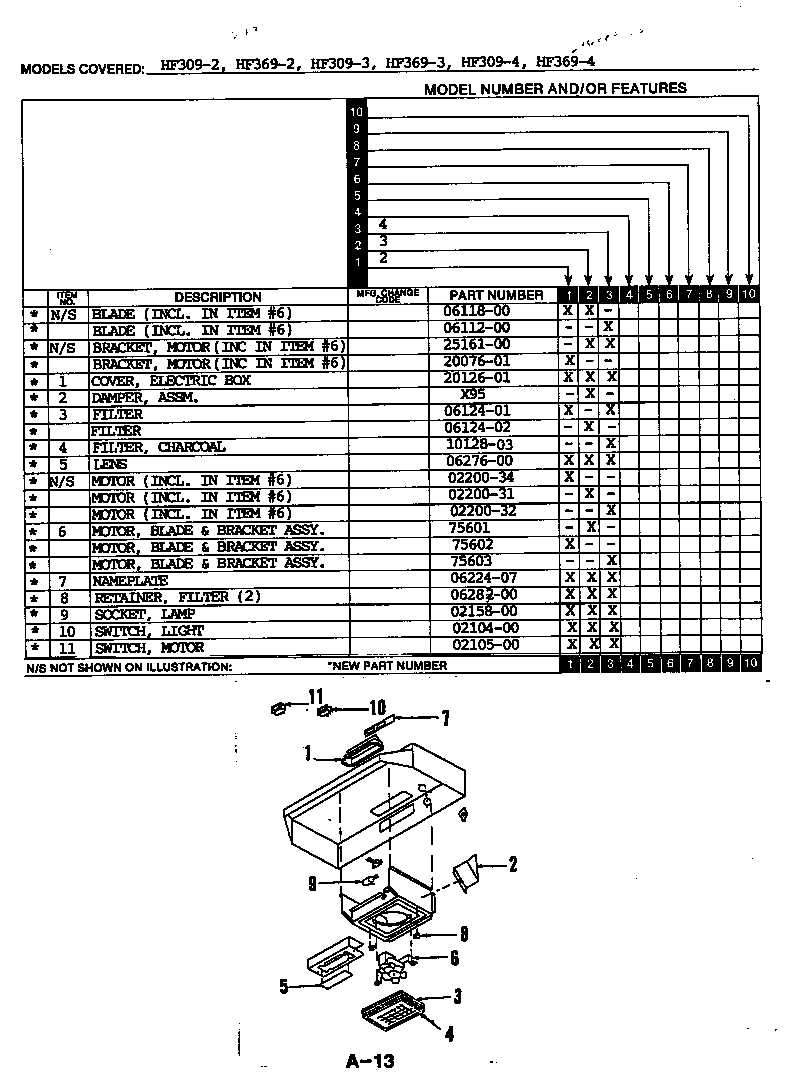

Hood (hf369-2,3,4) diagram

Light cover

Part #06276-00

$25.71
In Stock
Blade 06118-00
#11B

Hood (hf369-2,3,4) diagram

Blade

Part #06118-00

This item is not returnable
$6.26
In Stock
Filter Retainer 06282-00
#8

Hood (hf369-2,3,4) diagram

Filter retainer

Part #06282-00

The manufacturer no longer makes this part, and there's no substitute part

Motor Switch 02105-00
#11

Hood (hf369-2,3,4) diagram

Motor switch

Part #02105-00

The manufacturer no longer makes this part, and there's no substitute part

Motor 02200-34
#6E

Hood (hf369-2,3,4) diagram

Motor

Part #02200-34

The manufacturer no longer makes this part, and there's no substitute part

Motor 02200-32
#6D

Hood (hf369-2,3,4) diagram

Motor

Part #02200-32

The manufacturer no longer makes this part, and there's no substitute part

Motor 02200-31
#6C

Hood (hf369-2,3,4) diagram

Motor

Part #02200-31

The manufacturer no longer makes this part, and there's no substitute part

Damper Kit X95
#2

Hood (hf369-2,3,4) diagram

Damper kit

Part #X95

The manufacturer no longer makes this part, and there's no substitute part
