Model # JTD910SB3SS Official GE warming drawer

Here are the diagrams and repair parts for Official GE JTD910SB3SS warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 19 parts |

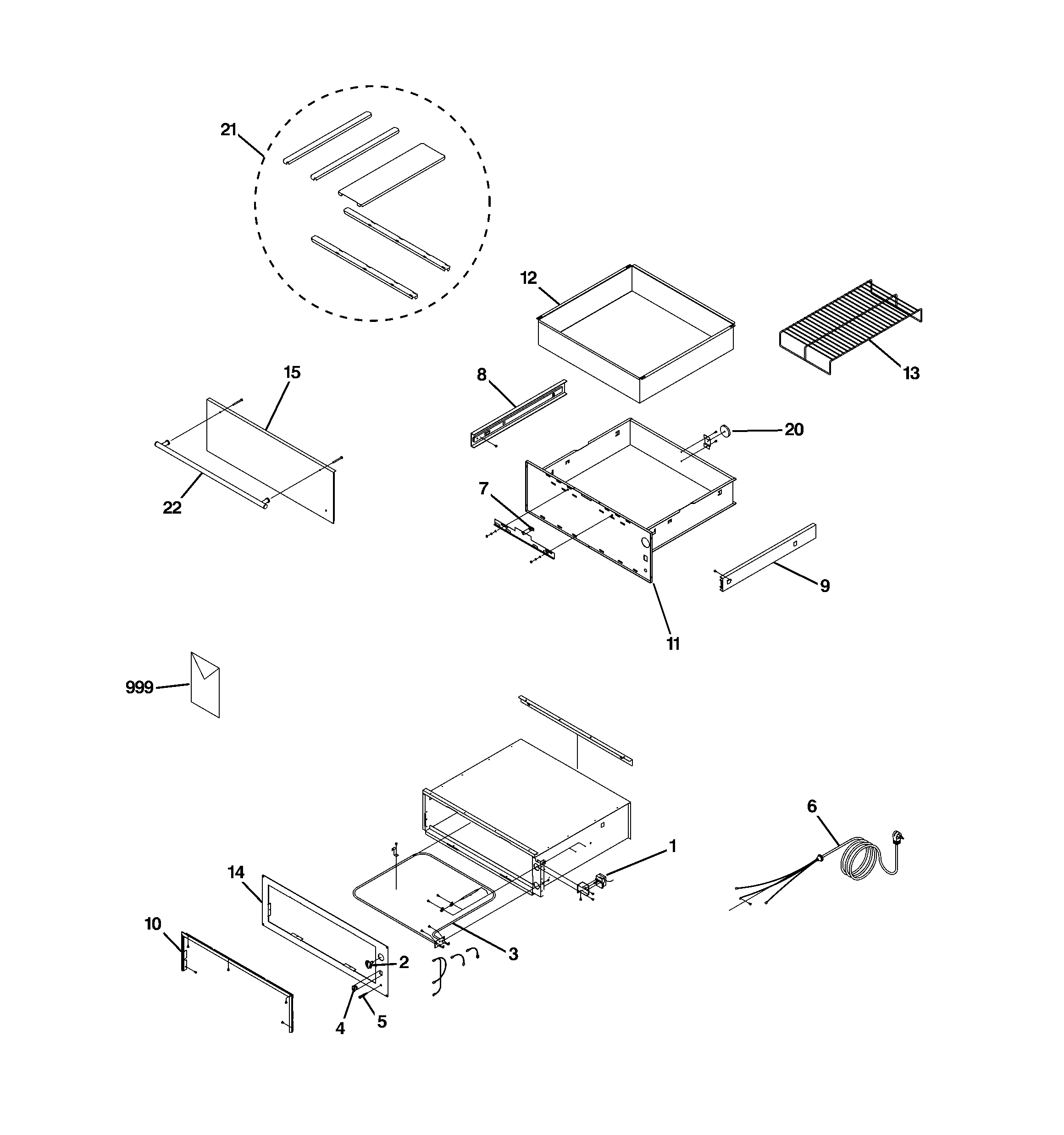

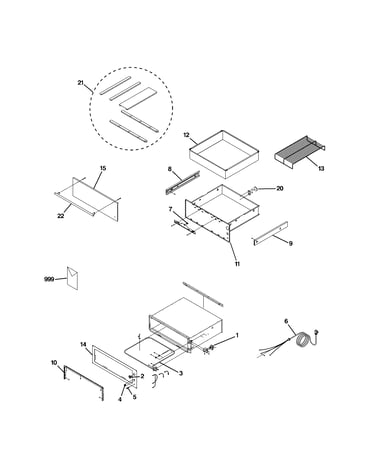

Warmer drawer diagram

Heating element

Part #WB44X10029

$86.69 |

6% OFF Phone Price : $92.69

In Stock

Qty

#20

Warmer drawer diagram

Magnet closure

Part #WB02X10592

$153.33

In Stock

Qty

#999

Warmer drawer diagram

Uc/install j

Part #49-8933

Replaced by #49-8933-1

$20.49

In Stock

Qty

#13

Warmer drawer diagram

Wire rack

Part #WB48X10010

Replaced by #WB48X10045

$143.09 |

8% OFF Phone Price : $155.09

In Stock

Qty

#21

Warmer drawer diagram

Rail kit, 30

Part #WB64X10002

Replaced by #WB64X10032

$248.70

In Stock

Qty

#11

Warmer drawer diagram

Drawer frame

Part #WB58X10005

Replaced by #WB58X10016

$348.96

In Stock

Qty

#10

Warmer drawer diagram

Gasket seal

Part #WB02X10946

The manufacturer no longer makes this part, and there's no substitute part

Warmer drawer diagram

Power cord

Part #WB02X10588

The manufacturer no longer makes this part, and there's no substitute part

#12

Warmer drawer diagram

Drawer pan

Part #WB58X10006

The manufacturer no longer makes this part, and there's no substitute part

Warmer drawer diagram

Knob, vent s

Part #WB03X10061

The manufacturer no longer makes this part, and there's no substitute part
