Kenmore
Furnace

Model # 867736433 Official Kenmore gas-fired direct vent wall furnace

Here are the diagrams and repair parts for Official Kenmore 867736433 gas-fired direct vent wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Ferrule Nut 29441
#11

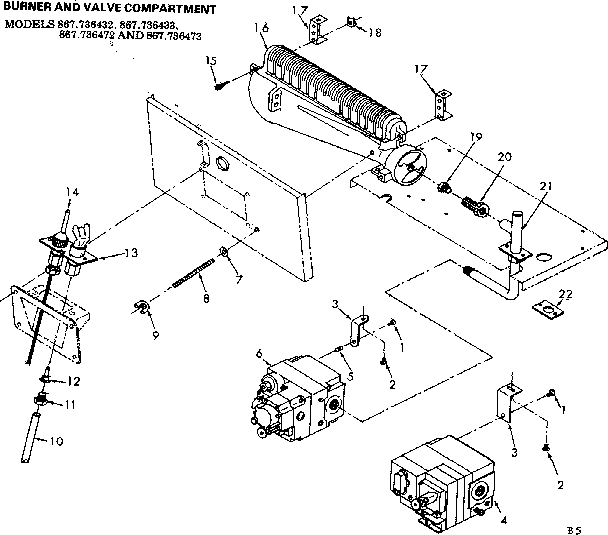

Burner and valve compartment diagram

Ferrule nut

Part #29441

Replaced by #100108370

?
Manufacturer substitution
This part replaces 29441. Substitute parts can look different from the original.
$36.67
In Stock
Transformer 86852
#18

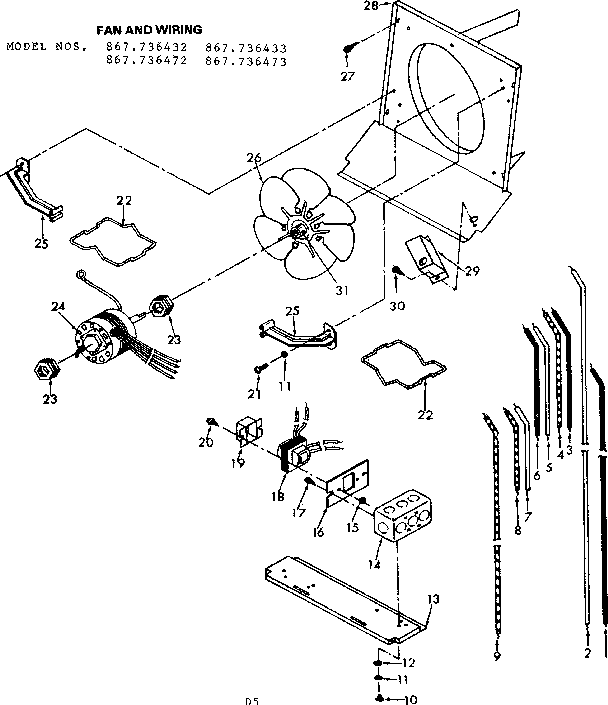

Fan and wiring diagram

Transformer

Part #86852

Replaced by #90-4031F

?
Manufacturer substitution
This part replaces 86852. Substitute parts can look different from the original.
$10.99
In Stock
Thermostat 504871

#NI

All parts diagram

Thermostat

Part #504871

The manufacturer no longer makes this part, and there's no substitute part

Thermocouple 503758
#14

Burner and valve compartment diagram

Thermocouple

Part #503758

The manufacturer no longer makes this part, and there's no substitute part

Switch 502171
#26

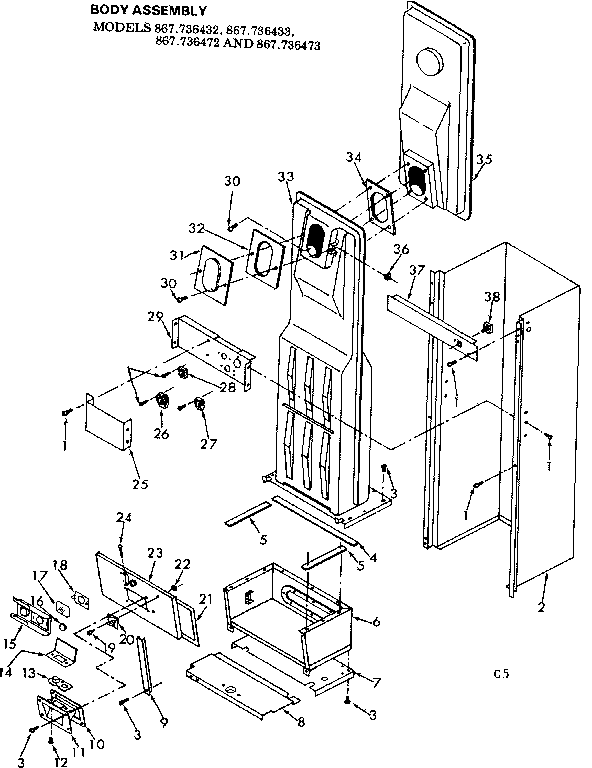

Body assembly diagram

Switch

Part #502171

Replaced by #505962

?
Manufacturer substitution
This part replaces 502171. Substitute parts can look different from the original.
$119.46
In Stock
Tubing Pilot 89031
#10

Burner and valve compartment diagram

Tubing pilot

Part #89031

The manufacturer no longer makes this part, and there's no substitute part

Pilot Burner 503051
#13B

Burner and valve compartment diagram

Pilot burner

Part #503051

The manufacturer no longer makes this part, and there's no substitute part

Support 506601
#29

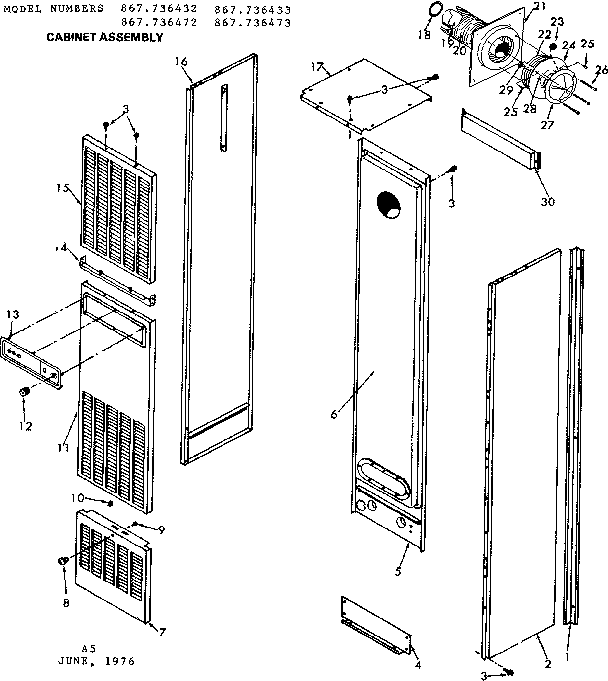

Cabinet assembly diagram

Support

Part #506601

The manufacturer no longer makes this part, and there's no substitute part

Orifice 505770
#28

Fan and wiring diagram

Orifice

Part #505770

The manufacturer no longer makes this part, and there's no substitute part

Pilot Orifice 503037
#12B

Burner and valve compartment diagram

Pilot orifice

Part #503037

The manufacturer no longer makes this part, and there's no substitute part
