Model # JGAS02EV1 Official GE gas range

Here are the diagrams and repair parts for Official GE JGAS02EV1 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Hinge WB10X5213
#7B

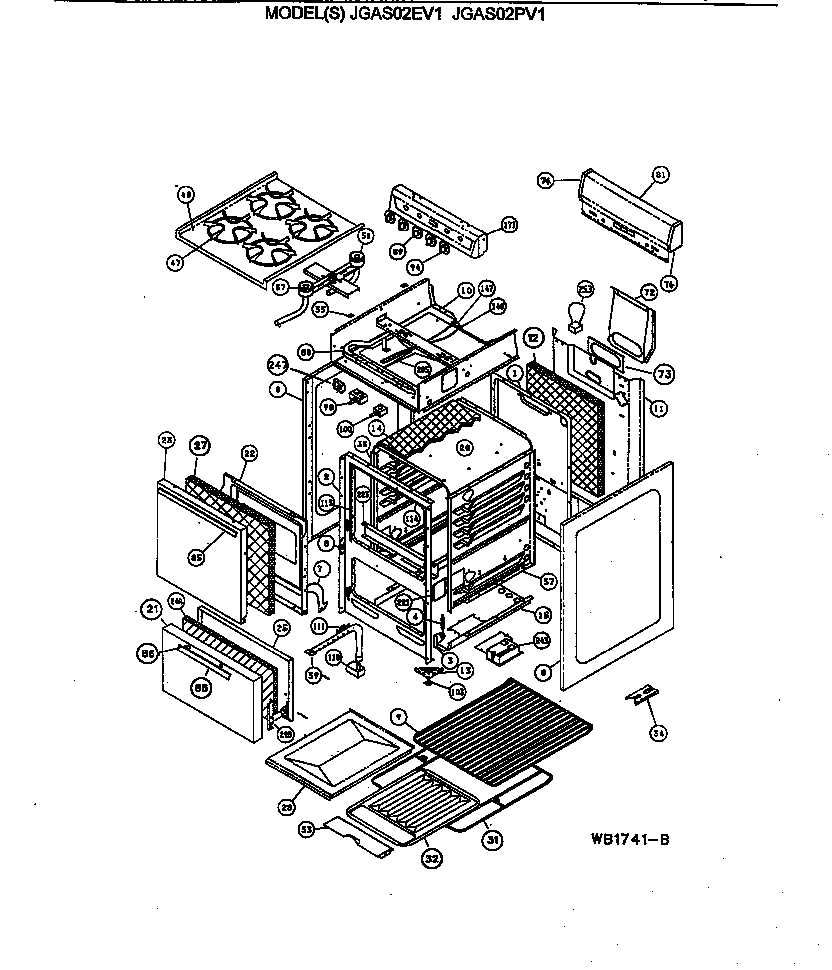

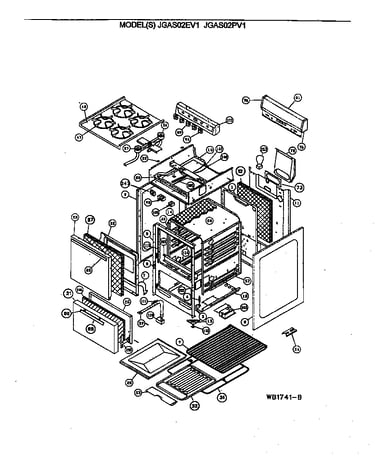

Oven diagram

Hinge

Part #WB10X5213

$9.99
In Stock
Valve WB21X5344
#110A

Oven diagram

Valve

Part #WB21X5344

The manufacturer no longer makes this part, and there's no substitute part

Regulator WB21X5338

#NI

All parts diagram

Regulator

Part #WB21X5338

The manufacturer no longer makes this part, and there's no substitute part

Hinge-quadrt WB10X5198
#7A

Oven diagram

Hinge-quadrt

Part #WB10X5198

The manufacturer no longer makes this part, and there's no substitute part

Door Panel WB56X7005
#23A

Oven diagram

Door panel

Part #WB56X7005

The manufacturer no longer makes this part, and there's no substitute part

Side Pnl Ad WB63X5211
#8B

Oven diagram

Side pnl ad

Part #WB63X5211

The manufacturer no longer makes this part, and there's no substitute part

Dr Panel Ad WB56X7009
#23B

Oven diagram

Dr panel ad

Part #WB56X7009

The manufacturer no longer makes this part, and there's no substitute part

Valve WB21X5345
#110B

Oven diagram

Valve

Part #WB21X5345

The manufacturer no longer makes this part, and there's no substitute part

Brkt-spri WB2X7894
#3

Oven diagram

Brkt-spri

Part #WB2X7894

The manufacturer no longer makes this part, and there's no substitute part

Surface Knob WB3X5857
#94

Oven diagram

Surface knob

Part #WB3X5857

The manufacturer no longer makes this part, and there's no substitute part
