Model # GCR36-4GD Official Thermador 36" professional range

Here are the diagrams and repair parts for Official Thermador GCR36-4GD 36" professional range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

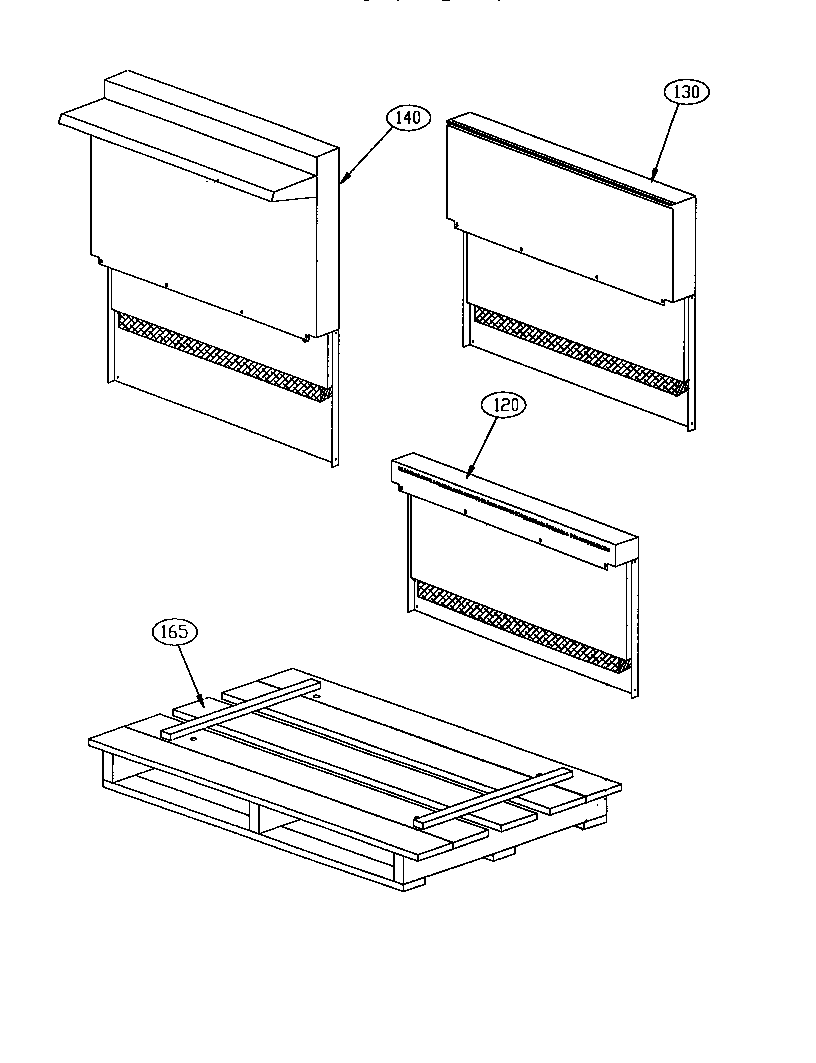

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Door Lock 20-01-733
#153

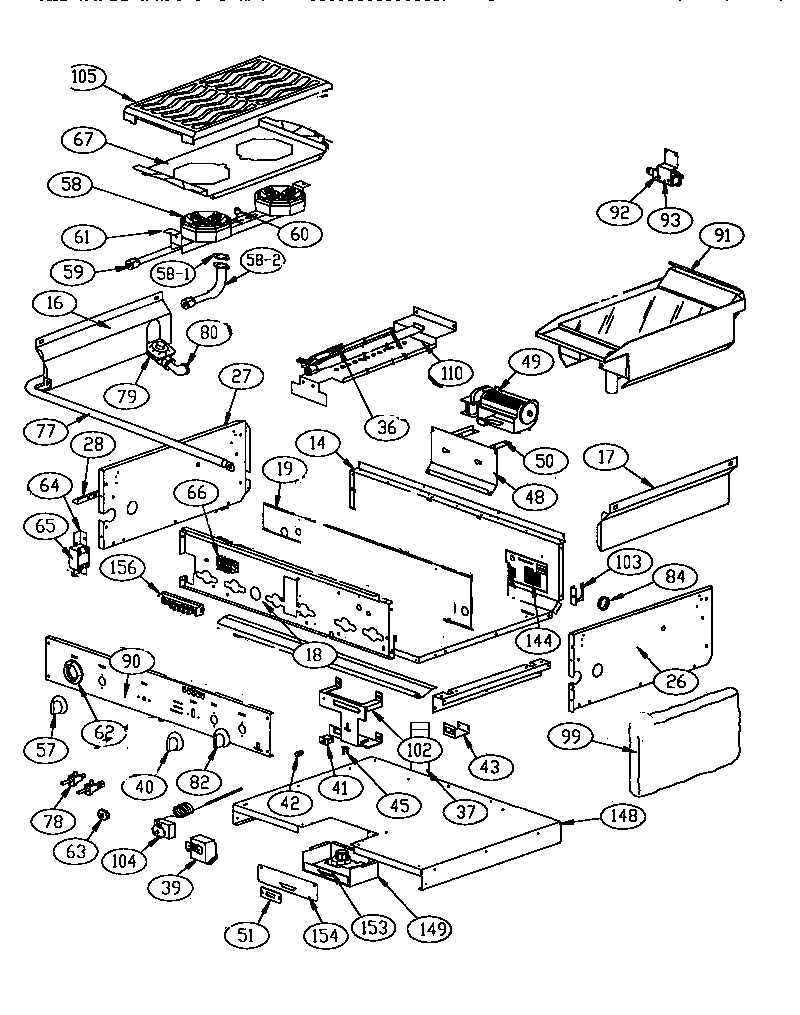

Burner diagram

Door lock

Part #20-01-733

$653.99
In Stock
Gauge 14-32-544
#9

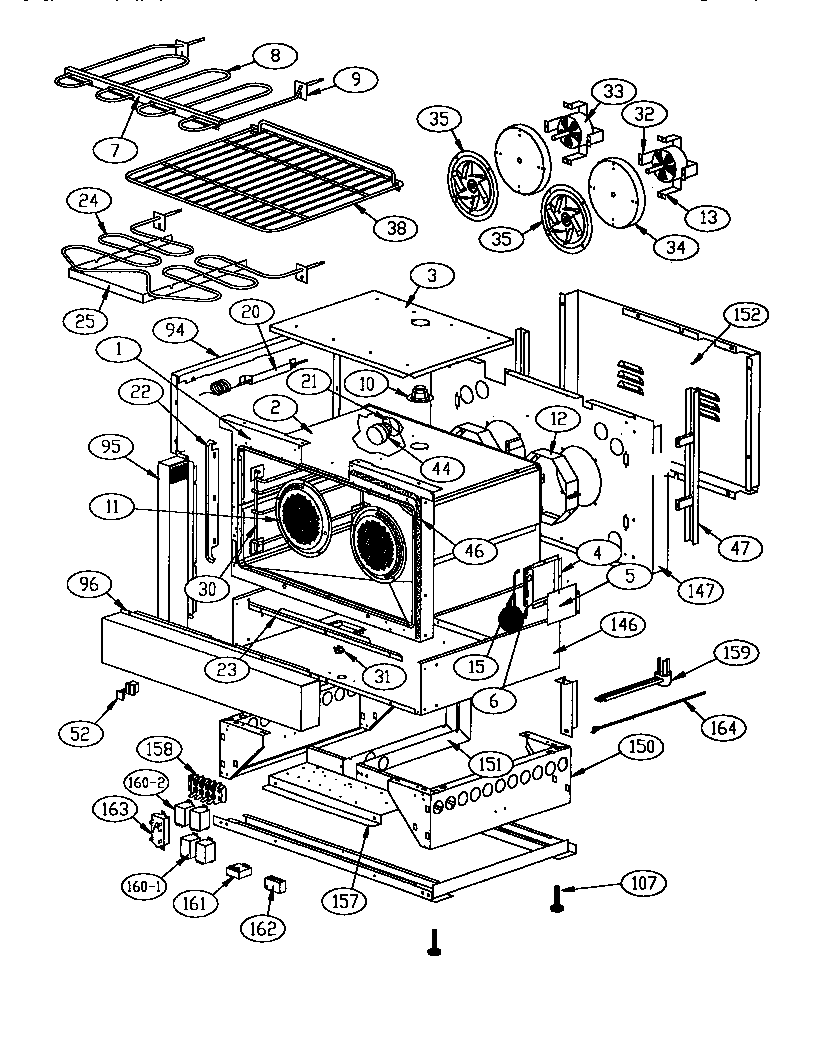

Main body diagram

Gauge

Part #14-32-544

$8.49
In Stock
Door Lock Bracket (1) 35-00-428
#154

Burner diagram

Door lock bracket (1)

Part #35-00-428

The manufacturer no longer makes this part, and there's no substitute part

Light Switch Button 35-00-197
#42

Burner diagram

Light switch button

Part #35-00-197

The manufacturer no longer makes this part, and there's no substitute part

Edge Guard -30" Oven (1) 35-00-378
#22

Main body diagram

Edge guard -30" oven (1)

Part #35-00-378

The manufacturer no longer makes this part, and there's no substitute part

44" Electrode Assembly, Open Top 35-00-223
#60

Burner diagram

44" electrode assembly, open top

Part #35-00-223

The manufacturer no longer makes this part, and there's no substitute part

Window Gasket (48") 35-00-401
#53D

Door diagram

Window gasket (48")

Part #35-00-401

The manufacturer no longer makes this part, and there's no substitute part

Burner Gasket (4) 20-01-552
#58-1

Burner diagram

Burner gasket (4)

Part #20-01-552

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Insulation 35-00-179
#28

Main body diagram

Bracket, insulation

Part #35-00-179

The manufacturer no longer makes this part, and there's no substitute part

Oven Gasket 35-00-203
#46

Main body diagram

Oven gasket

Part #35-00-203

The manufacturer no longer makes this part, and there's no substitute part
