Electric Range

Model # GCR36-4GD Official Thermador 36" professional range

Here are the diagrams and repair parts for Official Thermador GCR36-4GD 36" professional range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

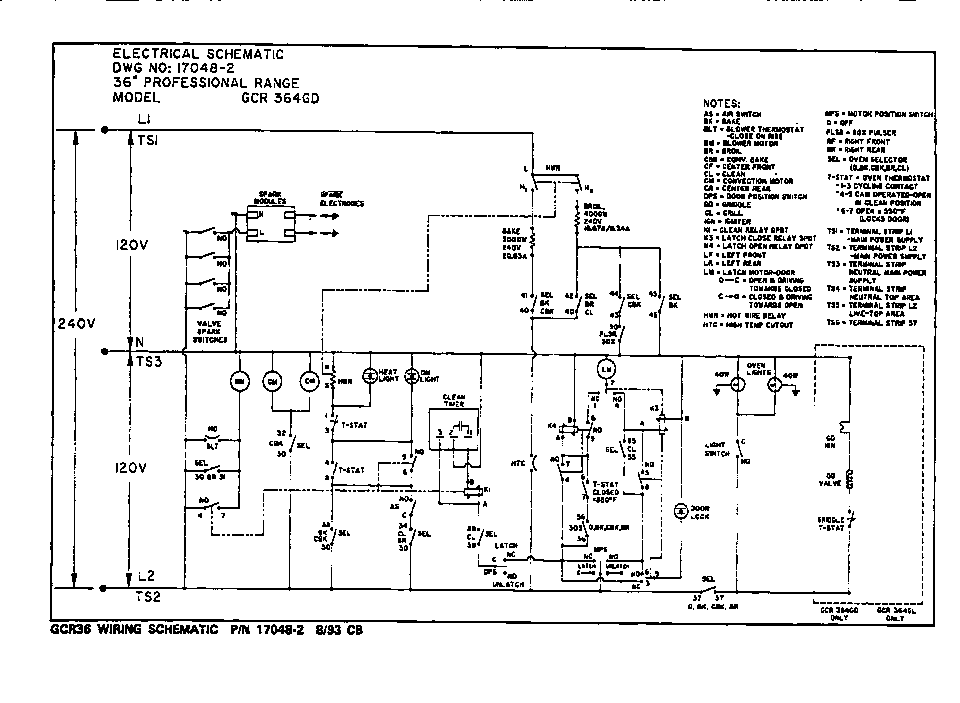

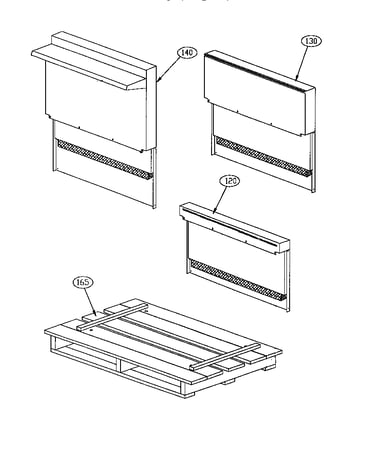

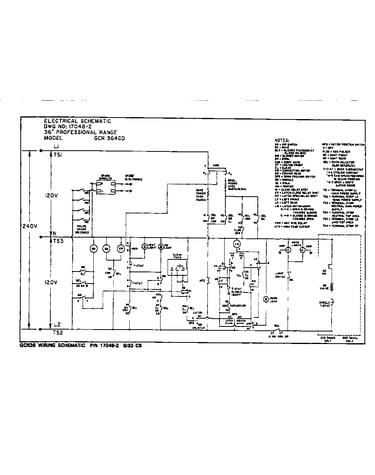

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
GCR36-4GD Ranges
Gauge 14-32-544
#9

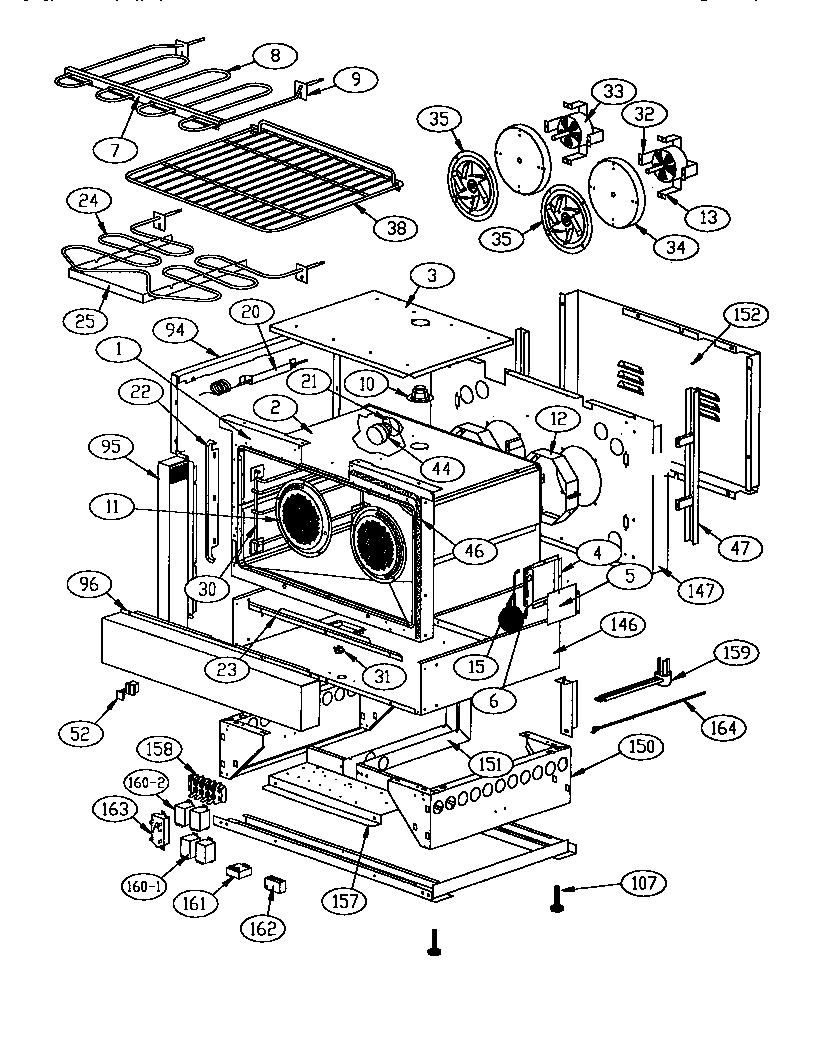

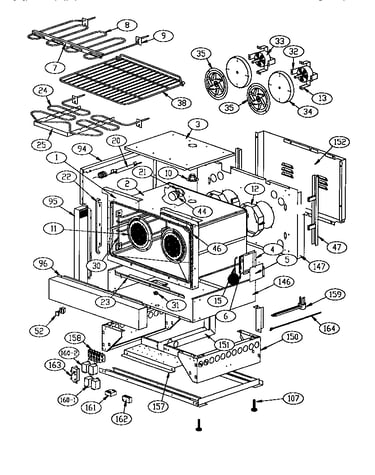

Main body diagram

Gauge

Part #14-32-544

In Stock
Door Lock 20-01-733
#153

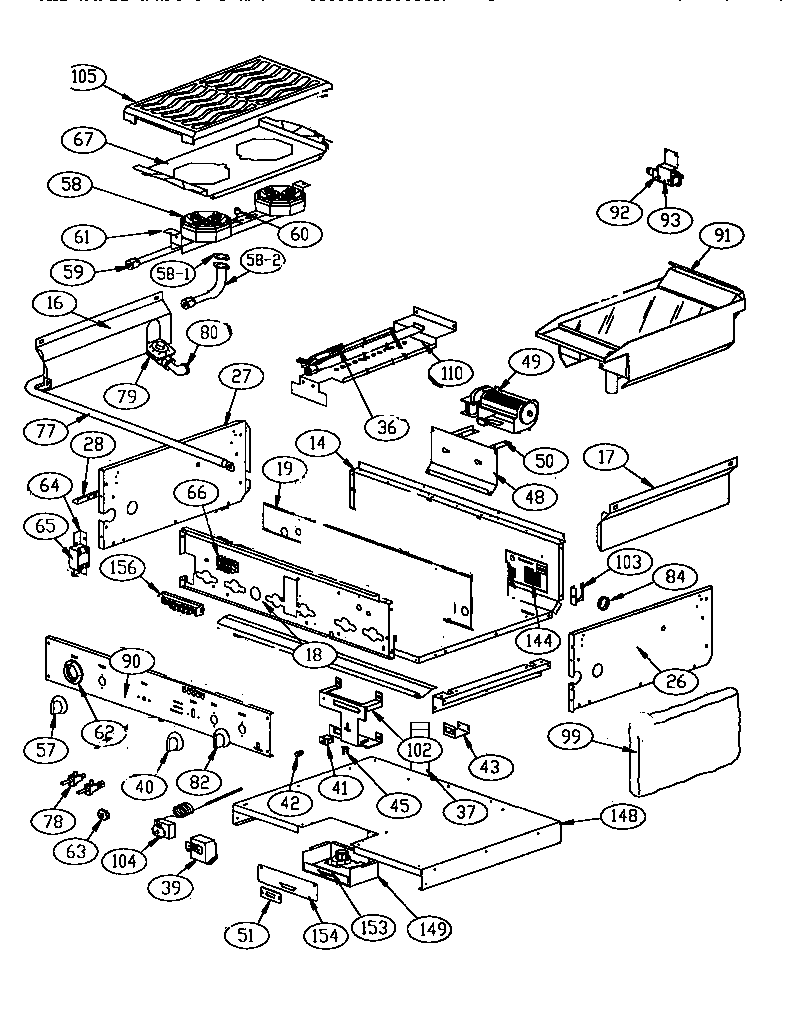

Burner diagram

Door lock

Part #20-01-733

In Stock
Bracket,  Spark Module (2) 35-00-329
#64

Burner diagram

Bracket, spark module (2)

Part #35-00-329

The manufacturer no longer makes this part, and there's no substitute part

Bake Element (1) 20-01-716
#24

Main body diagram

Bake element (1)

Part #20-01-716

The manufacturer no longer makes this part, and there's no substitute part

Heat Diffuser 35-00-255
#88

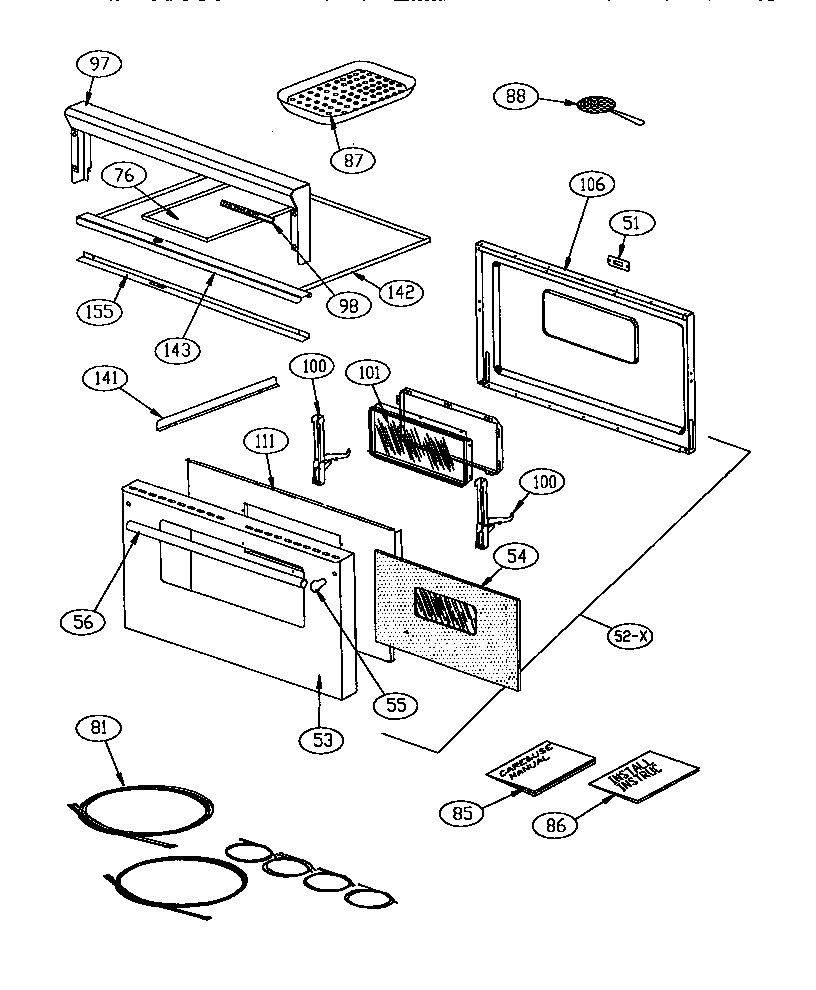

Door diagram

Heat diffuser

Part #35-00-255

The manufacturer no longer makes this part, and there's no substitute part

Bezel 20-01-526
#62

Burner diagram

Bezel

Part #20-01-526

The manufacturer no longer makes this part, and there's no substitute part

Blower Thermostat (1) 20-01-712
#45

Burner diagram

Blower thermostat (1)

Part #20-01-712

The manufacturer no longer makes this part, and there's no substitute part

Oven Rack 35-00-193
#38

Main body diagram

Oven rack

Part #35-00-193

The manufacturer no longer makes this part, and there's no substitute part

Landing Ledge Assembly 35-00-140
#97

Burner diagram

Landing ledge assembly

Part #35-00-140

The manufacturer no longer makes this part, and there's no substitute part

Burner Switch 35-00-240
#78

Burner diagram

Burner switch

Part #35-00-240

The manufacturer no longer makes this part, and there's no substitute part
