Whirlpool
Top-Mount Refrigerator

Model # ET18JMYSM05 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool ET18JMYSM05 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

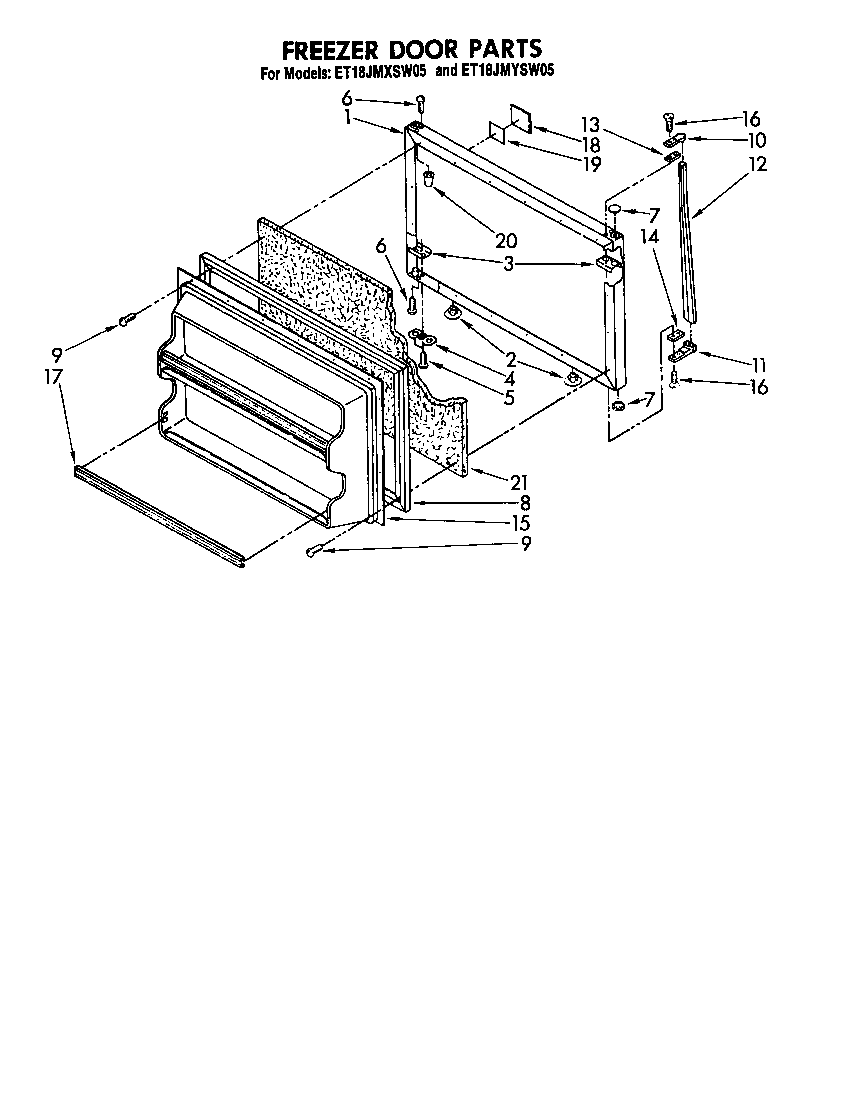

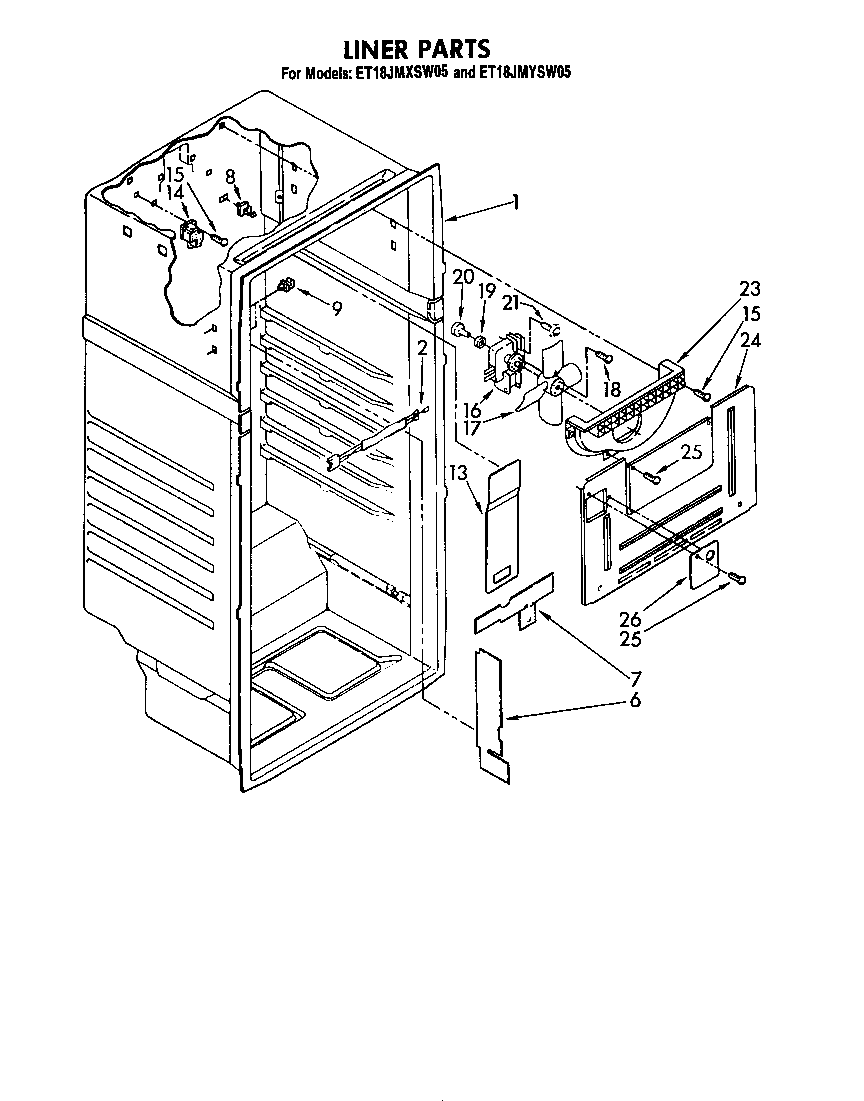

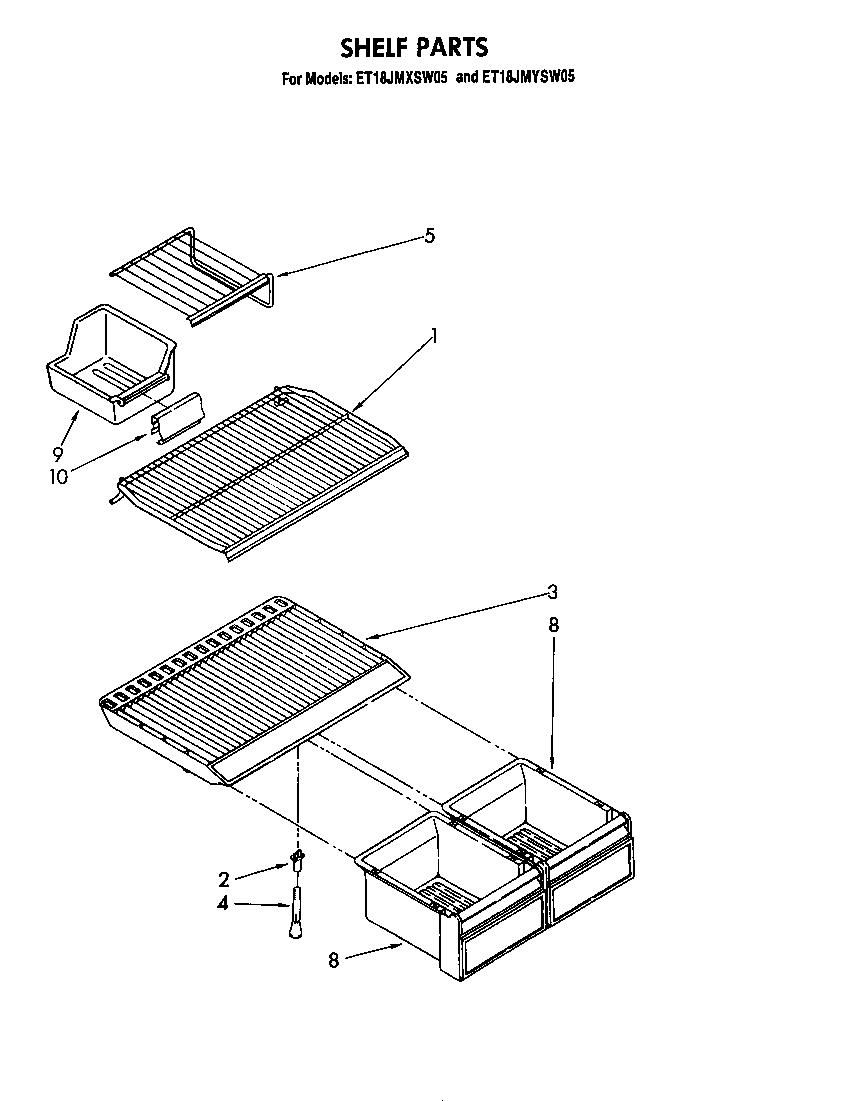

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 330 parts  |
Light Bulb 946059
#8

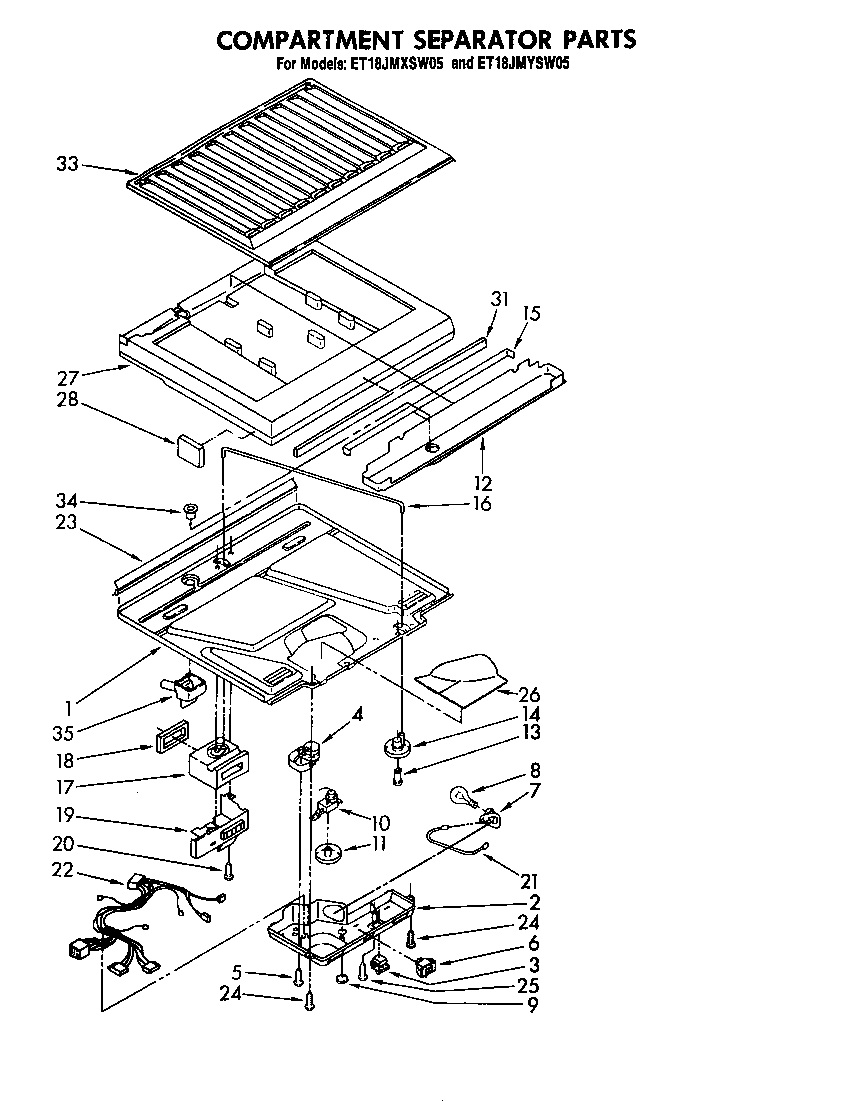

Compartment separator diagram

Light bulb

Part #946059

Replaced by #40A15

?
Manufacturer substitution
This part replaces 946059. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
Back Order
Switch 1108112
#3

Compartment separator diagram

Switch

Part #1108112

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1108112. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Timer 850608
#4

Compartment separator diagram

Refrigerator timer

Part #850608

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 850608. Substitute parts can look different from the original.
BEST SELLER
$27.82 |
18% OFF Phone Price : $33.82
In Stock
Refrigerator Dryer Tube 4387019
#71

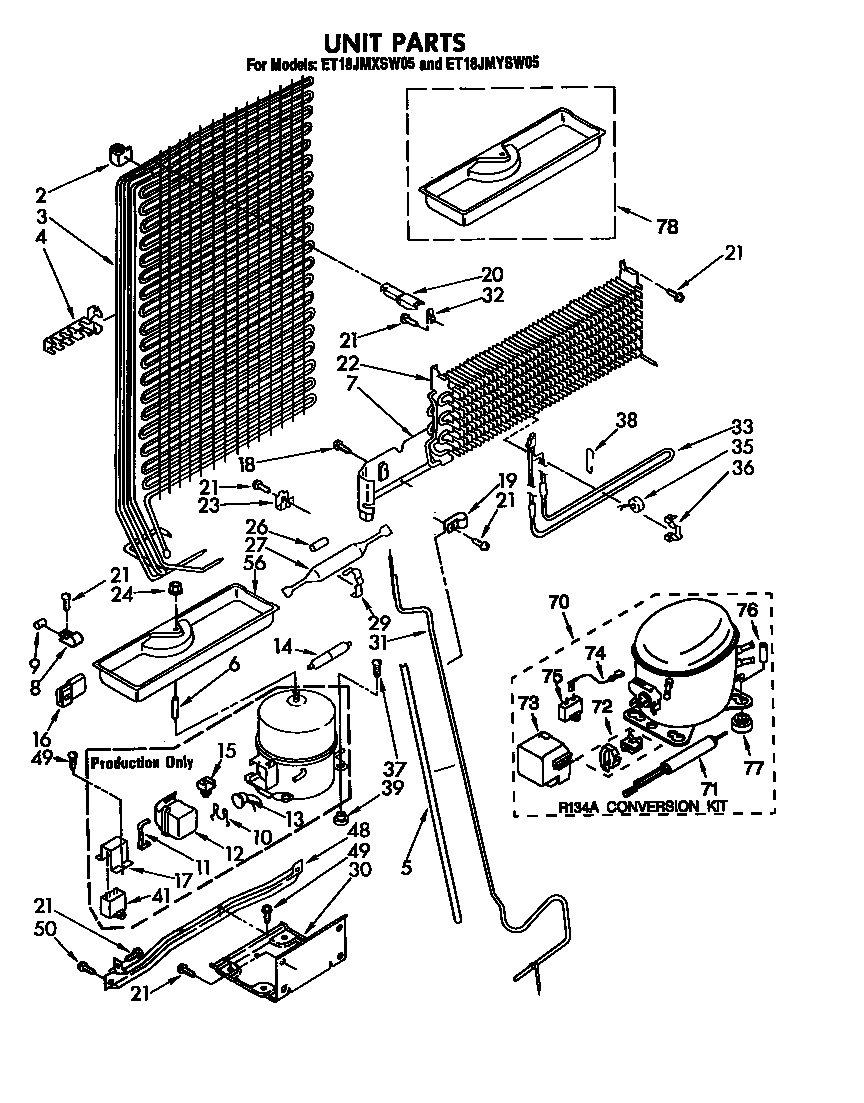

Unit diagram

Refrigerator dryer tube

Part #4387019

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4387019. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Drier 945424
#27

Unit diagram

Drier

Part #945424

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 945424. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Screw 487875
#17

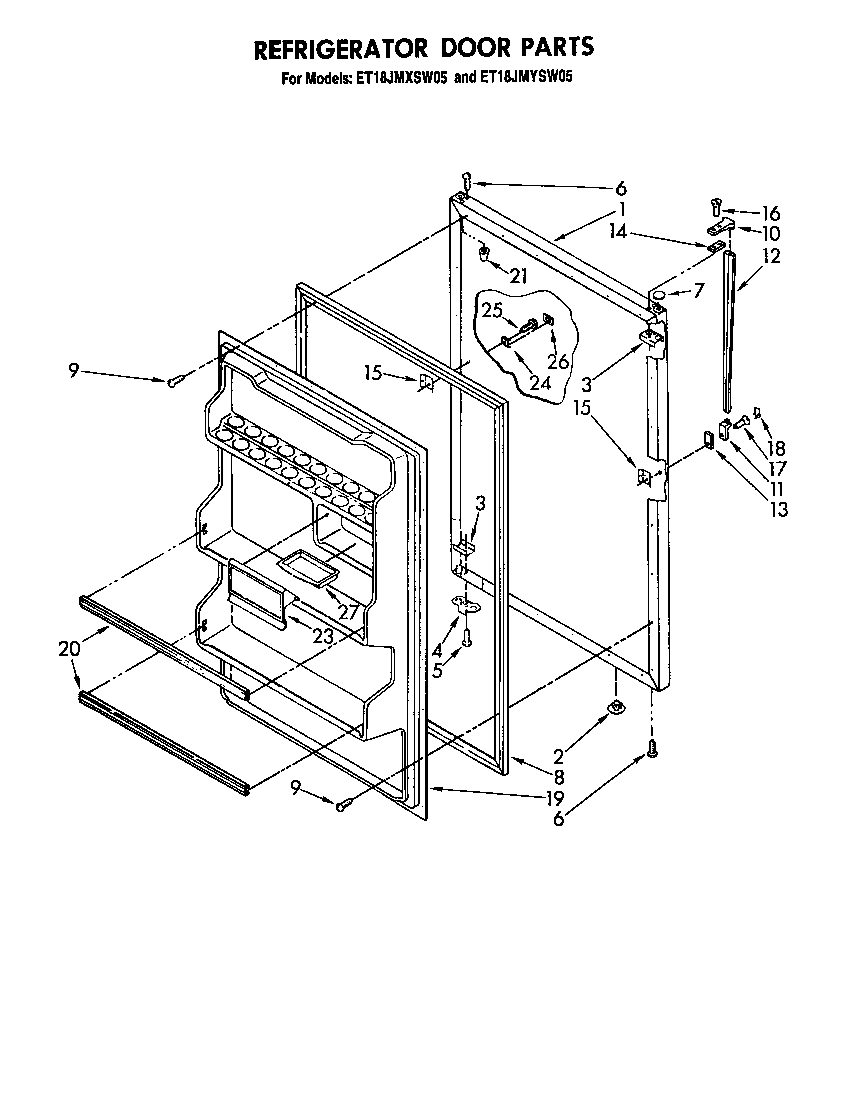

Refrigerator door diagram

Refrigerator screw

Part #487875

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487875. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 487909
#25

Refrigerator door diagram

Screw

Part #487909

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487909. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 489084
Screw

Part #489084

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 489084. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Fitting (almond) 836489
#2

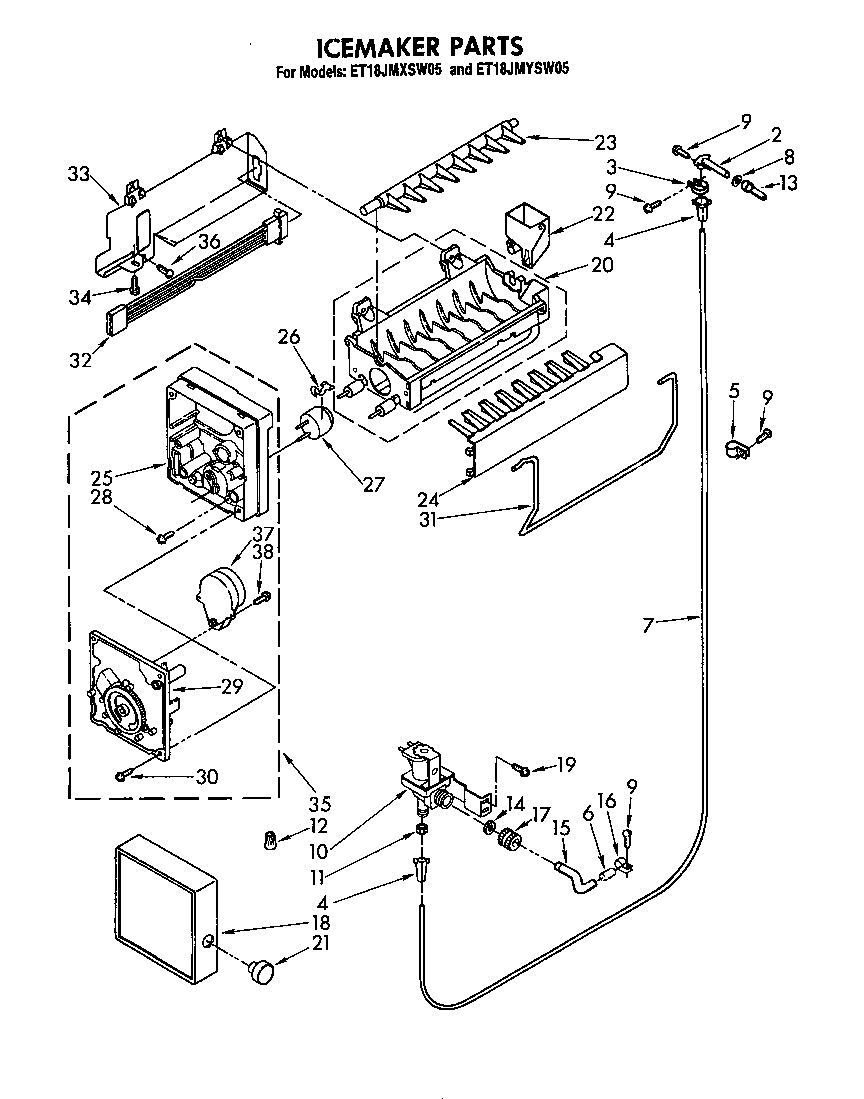

Icemaker diagram

Fitting (almond)

Part #836489

Replaced by #WP2196157

?
Manufacturer substitution
This part replaces 836489. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.30 |
14% OFF Phone Price : $7.30
In Stock
Motor Mold 483042
#35

Icemaker diagram

Motor mold

Part #483042

Replaced by #W10190935

?
Manufacturer substitution
This part replaces 483042. Substitute parts can look different from the original.
BEST SELLER
$107.79 |
10% OFF Phone Price : $119.79
In Stock
