Countertop Microwave

Model # 56561309000 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 56561309000 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

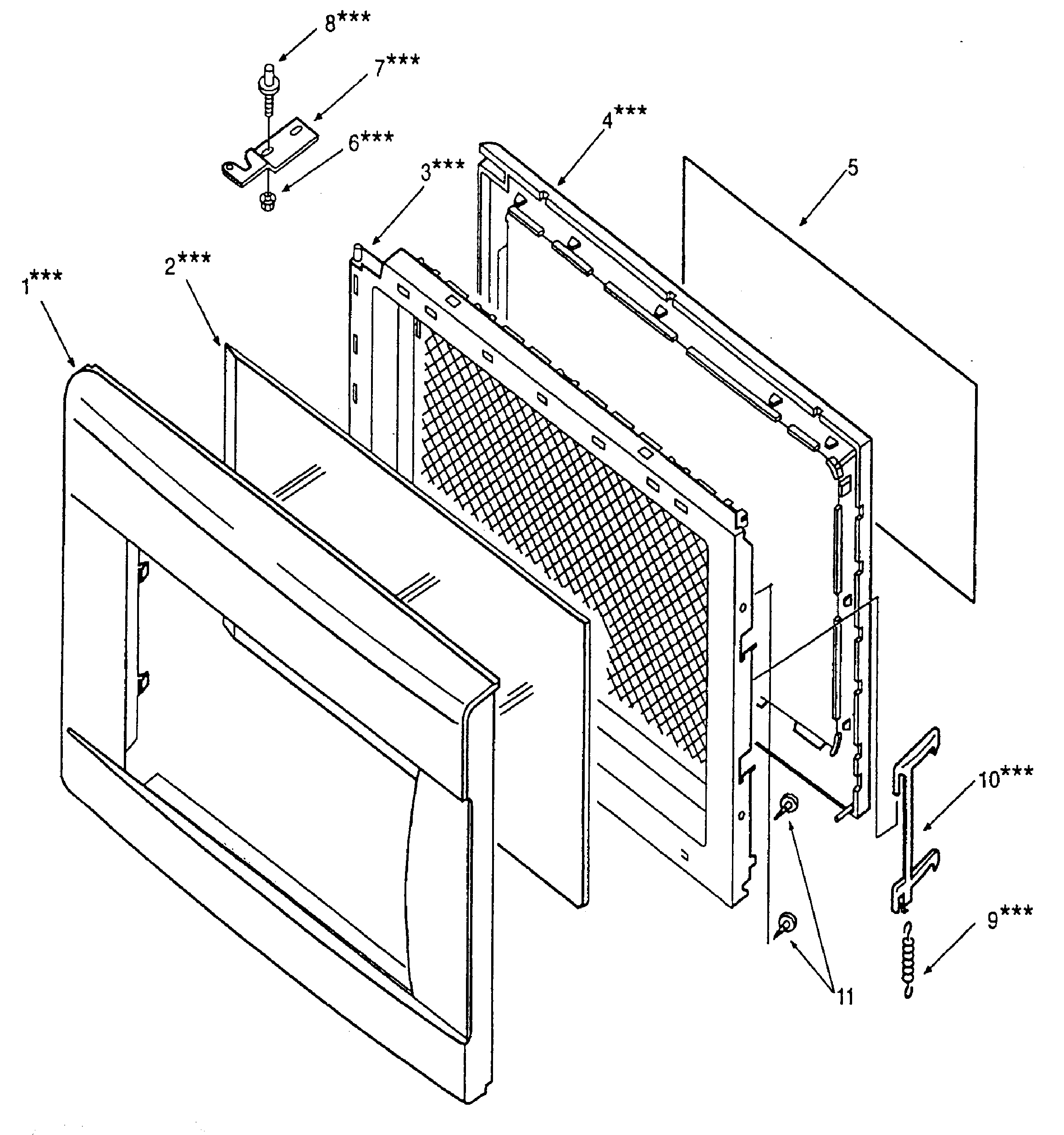

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Capacitor 16747
#11

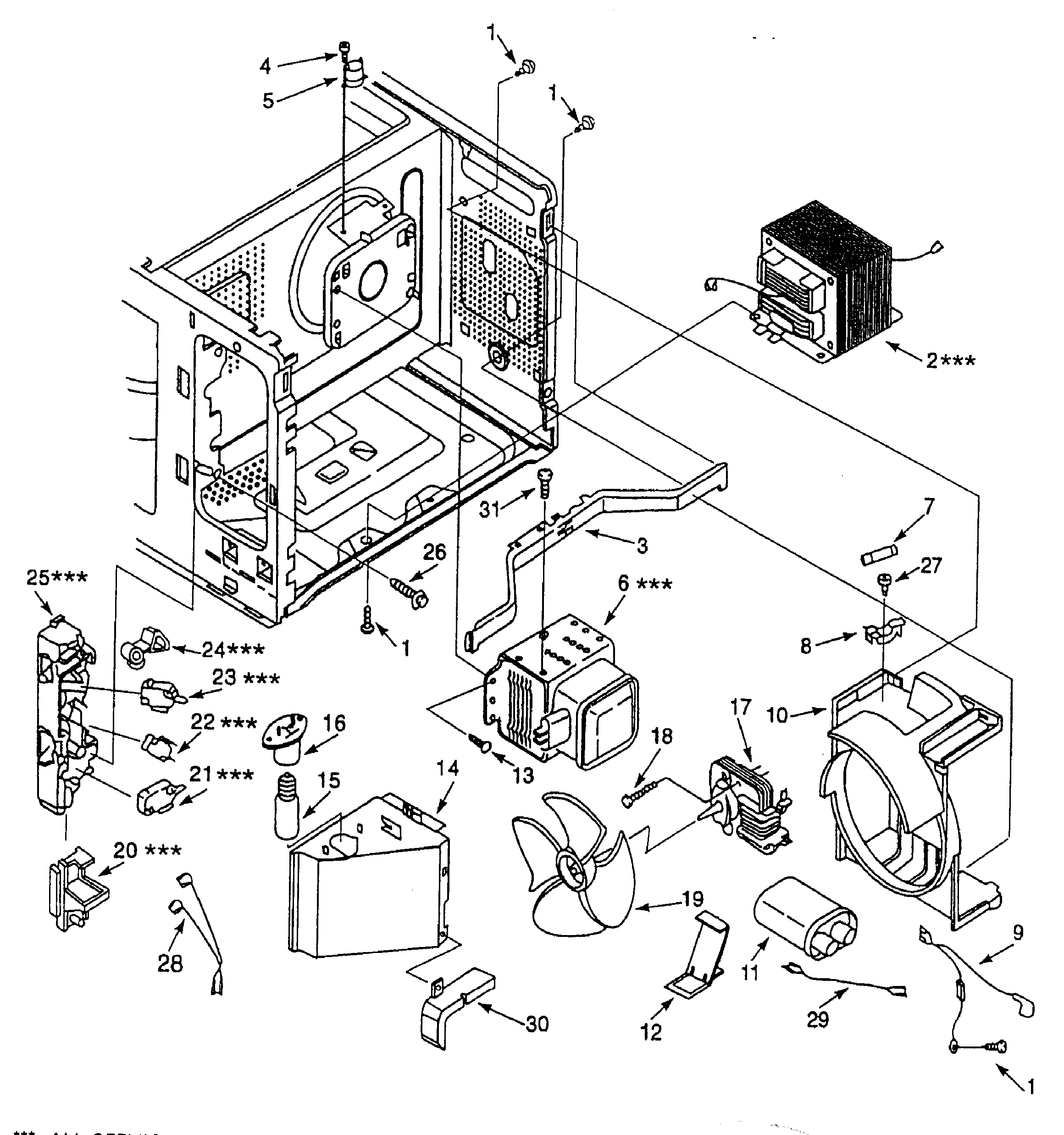

Unit diagram

Capacitor

Part #16747

The manufacturer no longer makes this part, and there's no substitute part

Screw Vcr 16450
Screw vcr

Part #16450

The manufacturer no longer makes this part, and there's no substitute part

Holder 16703
#8

Unit diagram

Holder

Part #16703

The manufacturer no longer makes this part, and there's no substitute part

Fuse 16262
#22

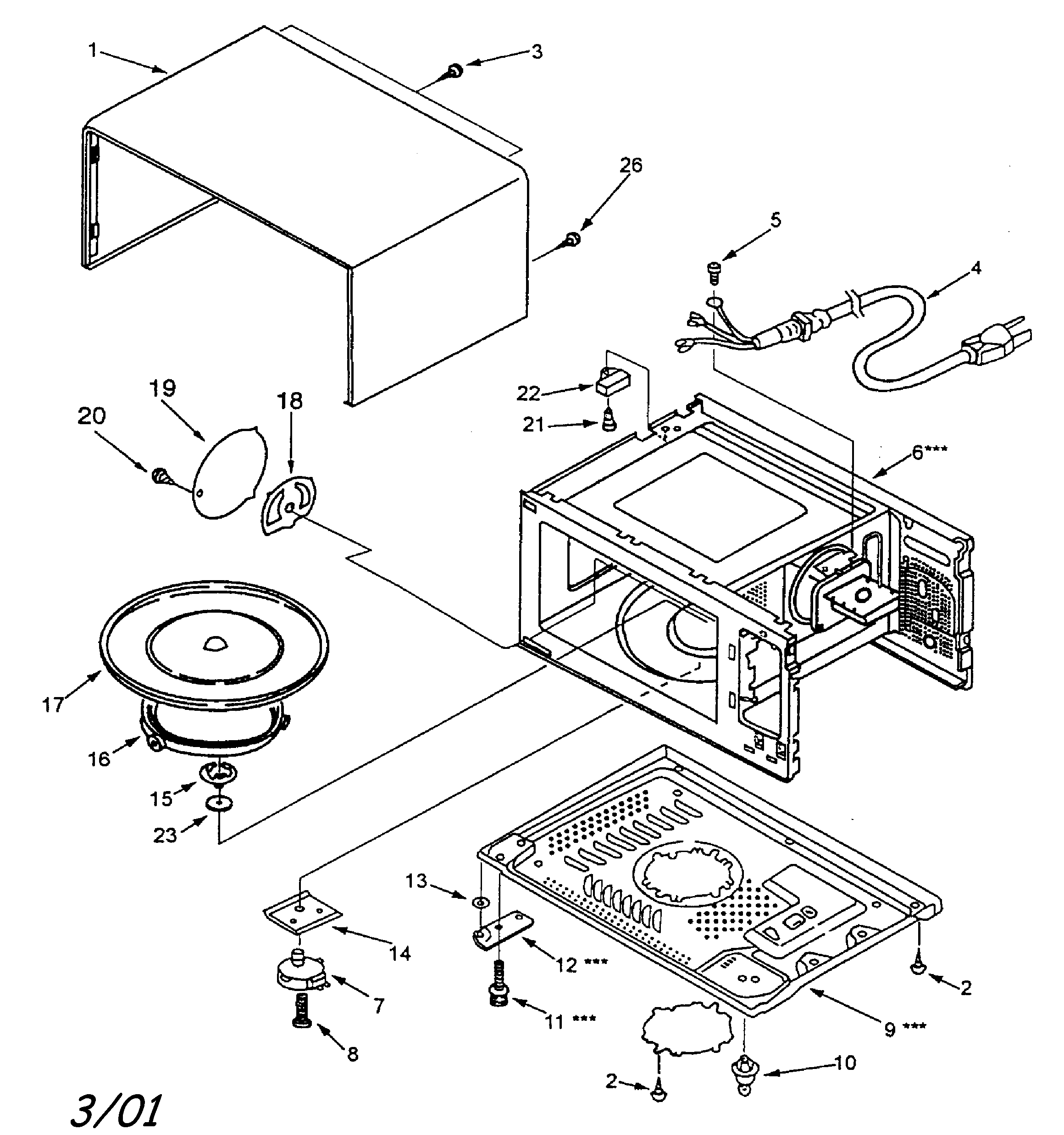

Cabinet parts diagram

Fuse

Part #16262

The manufacturer no longer makes this part, and there's no substitute part

Power Control Board Assembly 16584
#6

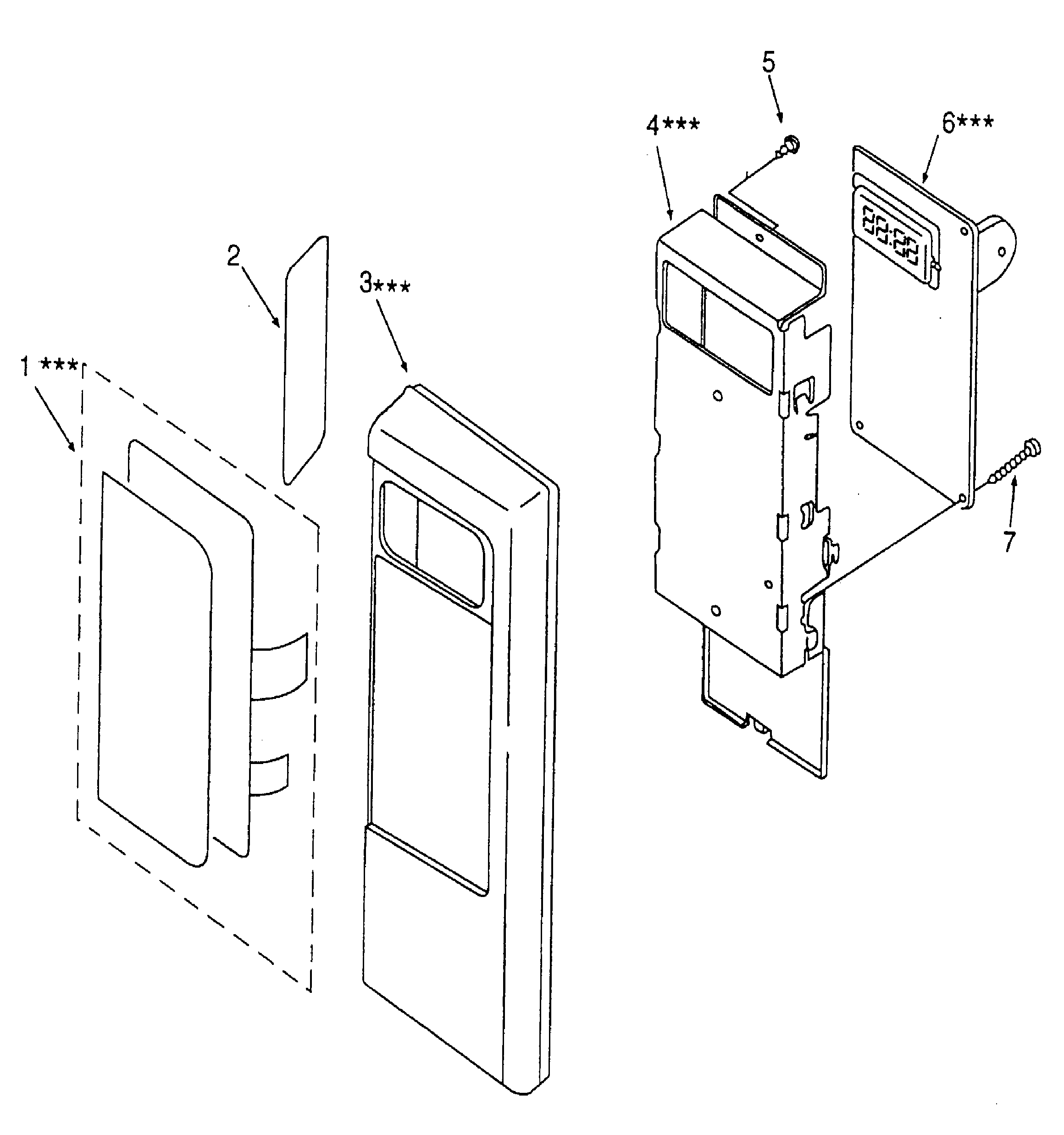

Control panel diagram

Power control board assembly

Part #16584

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 16056
#6

Unit diagram

Magnetron

Part #16056

The manufacturer no longer makes this part, and there's no substitute part

Microwave Cover 16724
#19

Cabinet parts diagram

Microwave cover

Part #16724

The manufacturer no longer makes this part, and there's no substitute part

Stopper 16595
#25

Unit diagram

Stopper

Part #16595

The manufacturer no longer makes this part, and there's no substitute part

Switch 16501
#22

Unit diagram

Switch

Part #16501

The manufacturer no longer makes this part, and there's no substitute part

Duct 16749
#14

Unit diagram

Duct

Part #16749

The manufacturer no longer makes this part, and there's no substitute part
