Frigidaire
Countertop Microwave

Model # FMS062E1W0 Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire FMS062E1W0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |

Door Latch 5303305351
#22

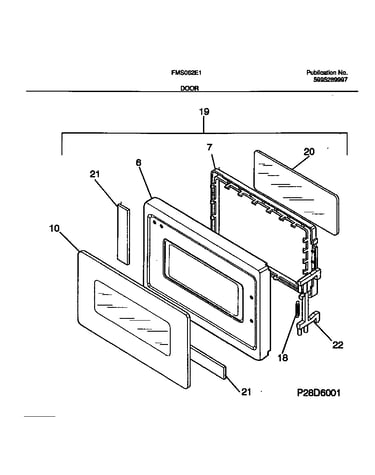

Door diagram

Door latch

Part #5303305351

This item is not returnable
In Stock
Frigidaire Button Plug 5303307905
#5

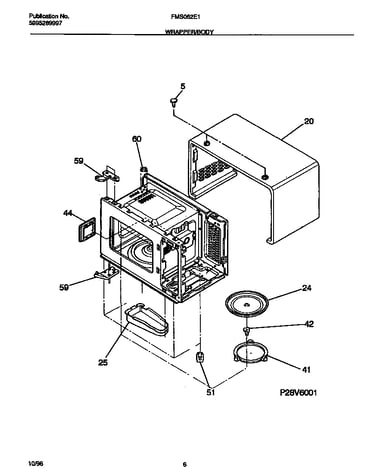

Wrapper/body diagram

Frigidaire button plug

Part #5303307905

This item is not returnable
In Stock
Spring 5303305352
#18

Door diagram

Spring

Part #5303305352

This item is not returnable
In Stock
Spring 5303305355
#11

Control panel diagram

Spring

Part #5303305355

This item is not returnable
In Stock
Frigidaire Circuit Board 5303321643
#1

Control panel diagram

Frigidaire circuit board

Part #5303321643

In Stock
Frigidaire Wrapper 5303321845
#20A

Wrapper/body diagram

Frigidaire wrapper

Part #5303321845

In Stock
Lamp 5303305385
#26

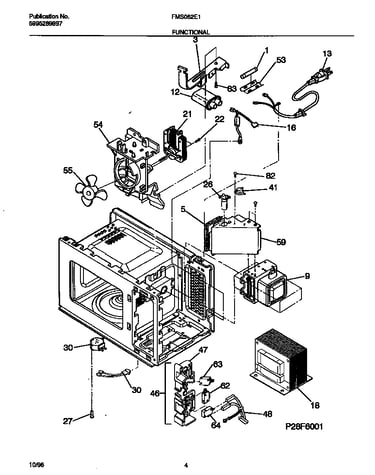

Functional diagram

Lamp

Part #5303305385

In Stock
Support 5303321355
#42

Wrapper/body diagram

Support

Part #5303321355

This item is not returnable
In Stock
Tappan Door Panel 5303321841
#6

Door diagram

Tappan door panel

Part #5303321841

In Stock
Magnetron 5303305417
#9

Functional diagram

Magnetron

Part #5303305417

In Stock
