Model # AEB060EHA2 Official ICP auxiliary heater kit
Here are the diagrams and repair parts for Official ICP AEB060EHA2 auxiliary heater kit, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
AEB060EHA2 Auxiliary Heater Kit
#14

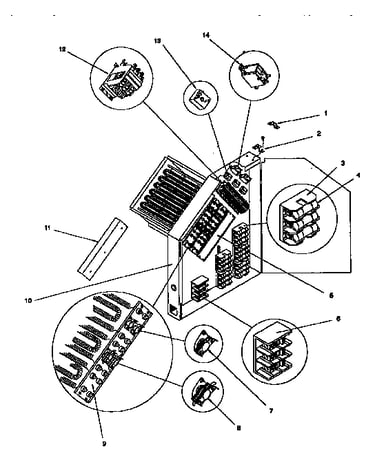

Electric heat accessory diagram
Spst relay
Part #1053004
The manufacturer no longer makes this part, and there's no substitute part
#9
Electric heat accessory diagram
Element k
Part #1071395
Replaced by #1149686
?
Manufacturer substitution
This part replaces 1071395. Substitute parts can look different from the original.
$101.70
In Stock
#12
Electric heat accessory diagram
Contactor
Part #1071498
Replaced by #90-170
?
Manufacturer substitution
This part replaces 1071498. Substitute parts can look different from the original.
$35.09 |
15% OFF Phone Price : $41.09
In Stock
#11
Electric heat accessory diagram
Baffle
Part #1071686
The manufacturer no longer makes this part, and there's no substitute part
#3
Electric heat accessory diagram
Fuse block
Part #1071525
The manufacturer no longer makes this part, and there's no substitute part
#1
Electric heat accessory diagram
Inlet grille
Part #1071482
The manufacturer no longer makes this part, and there's no substitute part
#7
Electric heat accessory diagram
Control tod
Part #1071527
The manufacturer no longer makes this part, and there's no substitute part
#8
Electric heat accessory diagram
Control tod
Part #1071692
The manufacturer no longer makes this part, and there's no substitute part
#10
Electric heat accessory diagram
Box assembly insulated
Part #1071740
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Instl-manl
Part #1071843
The manufacturer no longer makes this part, and there's no substitute part
