Samsung
Countertop Microwave

Model # MW1030BA/XAA Official Samsung microwave

Here are the diagrams and repair parts for Official Samsung MW1030BA-XAA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Microwave Diode DE91-70063A
#3

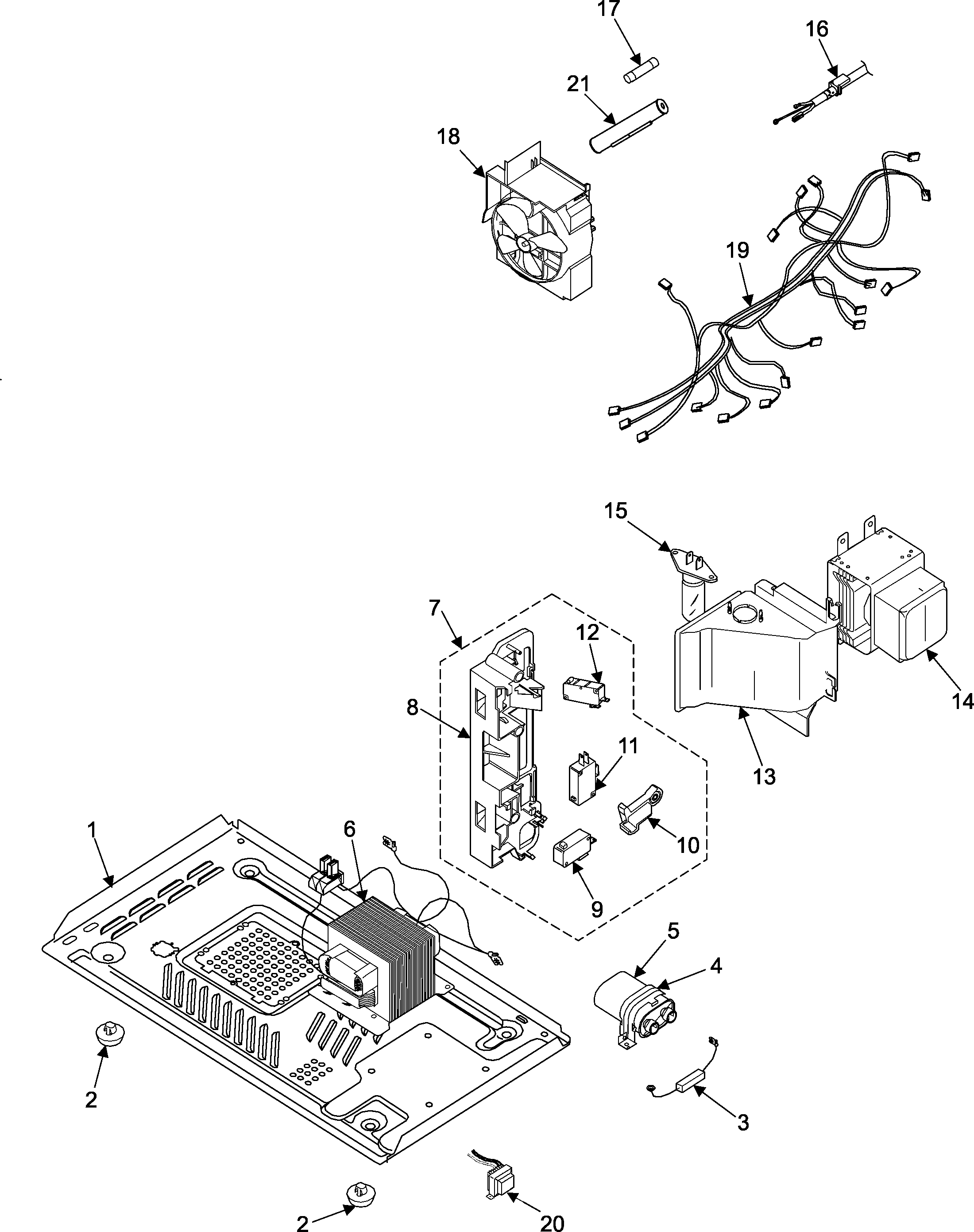

Internal control/latch assy/base diagram

Microwave diode

Part #DE91-70063A

Replaced by #DE91-70063D

?
Manufacturer substitution
This part replaces DE91-70063A. Substitute parts can look different from the original.
BEST SELLER
$17.40 |
10% OFF Phone Price : $19.40
In Stock
Microwave Fuse, 20-amp (replaces 3601-001142) 3601-001198
#17

Internal control/latch assy/base diagram

Microwave fuse, 20-amp (replaces 3601-001142)

Part #3601-001198

This item is not returnable
$16.00 |
11% OFF Phone Price : $18.00
In Stock
Microwave High-voltage Capacitor 2501-001016
#5

Internal control/latch assy/base diagram

Microwave high-voltage capacitor

Part #2501-001016

$57.07 |
10% OFF Phone Price : $63.07
In Stock
Microwave Light Bulb 4713-001102
#15

Internal control/latch assy/base diagram

Microwave light bulb

Part #4713-001102

This item is not returnable
$16.93 |
11% OFF Phone Price : $18.93
In Stock
Latch Assembly DE96-00115A
#7

Internal control/latch assy/base diagram

Latch assembly

Part #DE96-00115A

$22.58
In Stock
Button DE66-20275A
#15

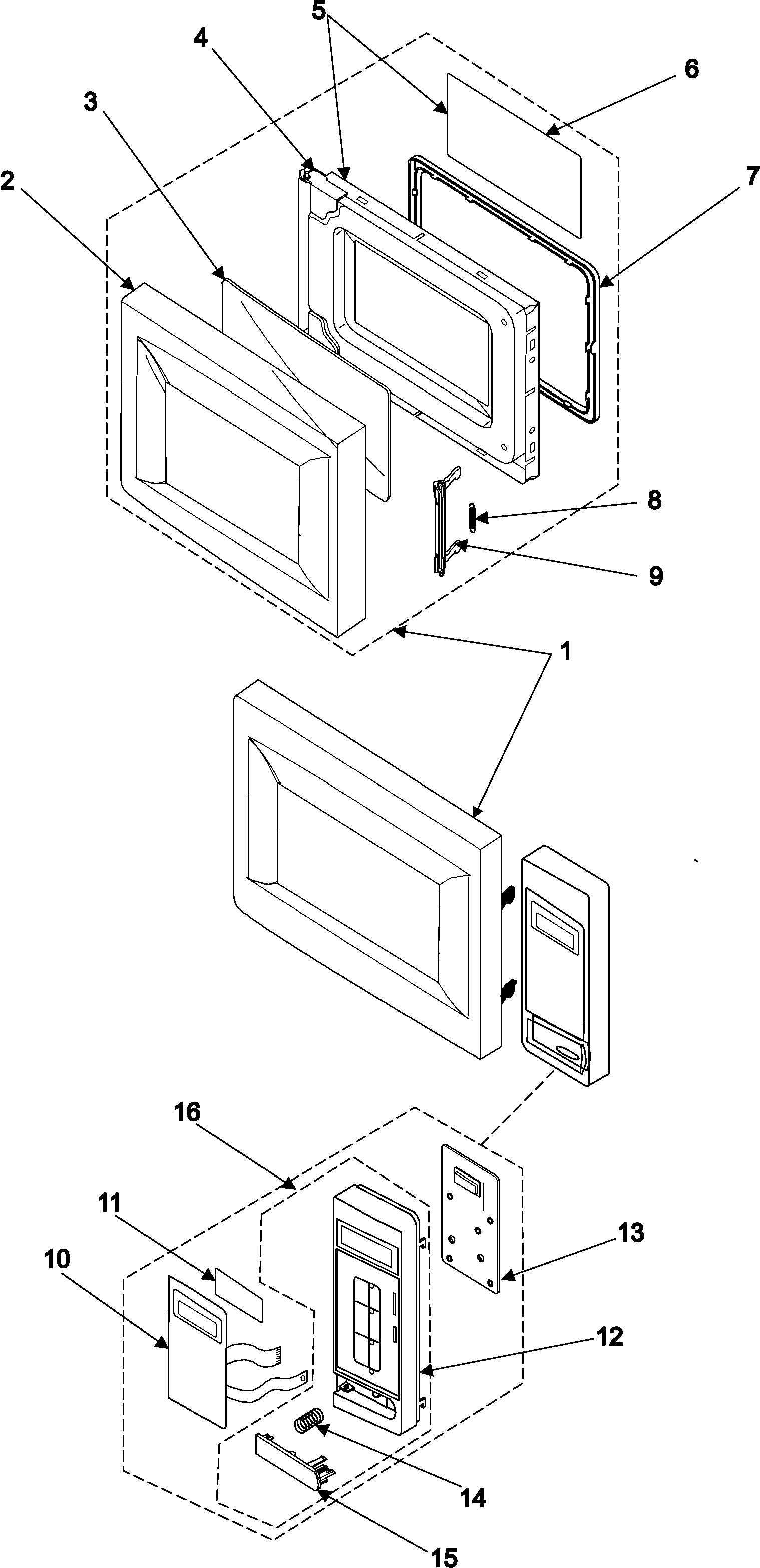

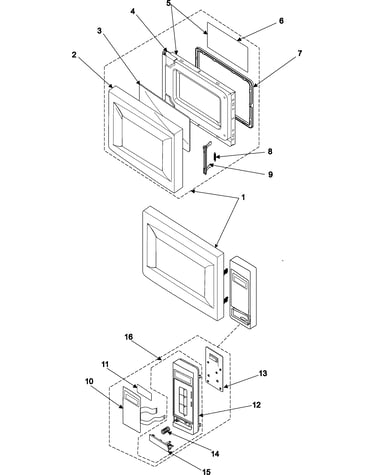

Control panel/door assembly diagram

Button

Part #DE66-20275A

This item is not returnable
$6.06
In Stock
Holder DE47-40025A
#21

Internal control/latch assy/base diagram

Holder

Part #DE47-40025A

$14.51
In Stock
Door Panel DE64-40012A
#7

Control panel/door assembly diagram

Door panel

Part #DE64-40012A

$14.51
In Stock
Microwave Button DE66-20275K
#15A

Control panel/door assembly diagram

Microwave button

Part #DE66-20275K

$14.51
In Stock
Bracket DE61-50106A
#4

Internal control/latch assy/base diagram

Bracket

Part #DE61-50106A

This item is not returnable
$2.43
In Stock
